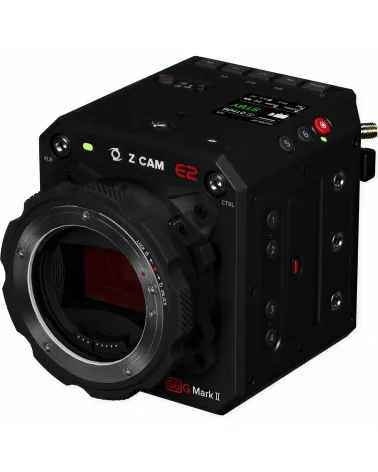

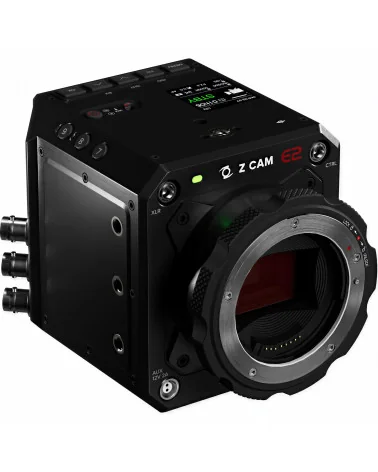

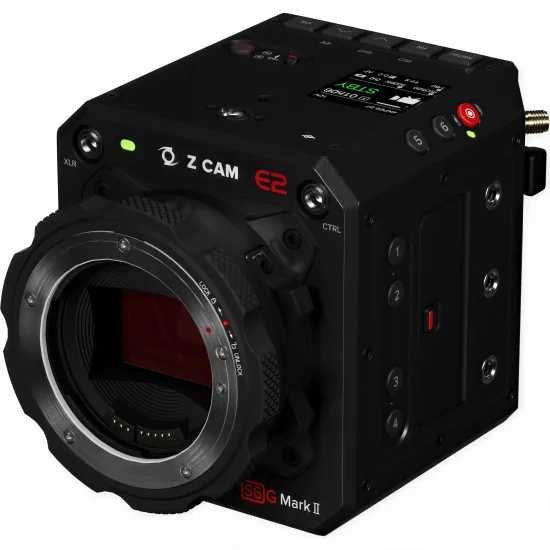

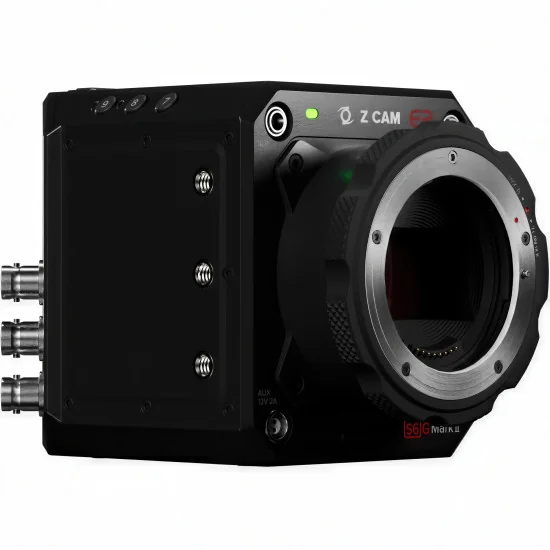

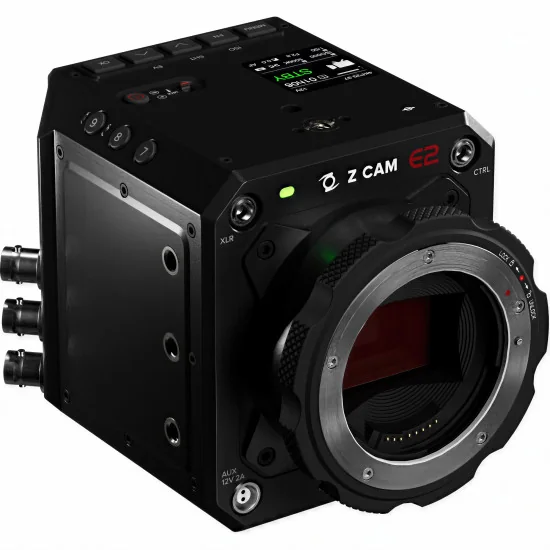

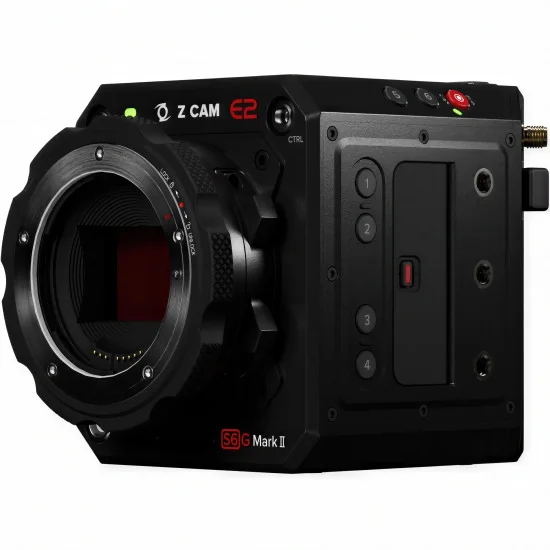

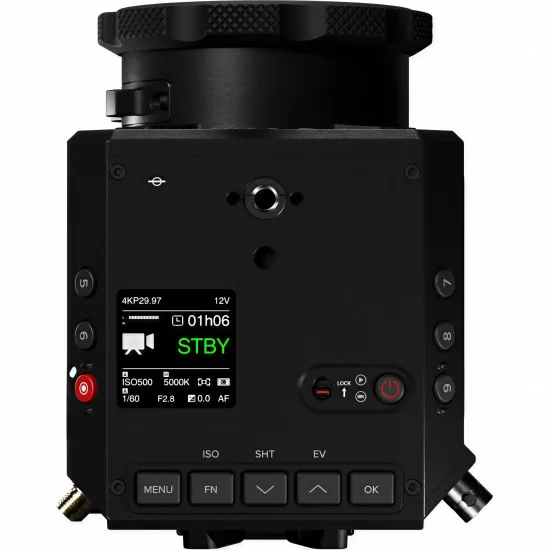

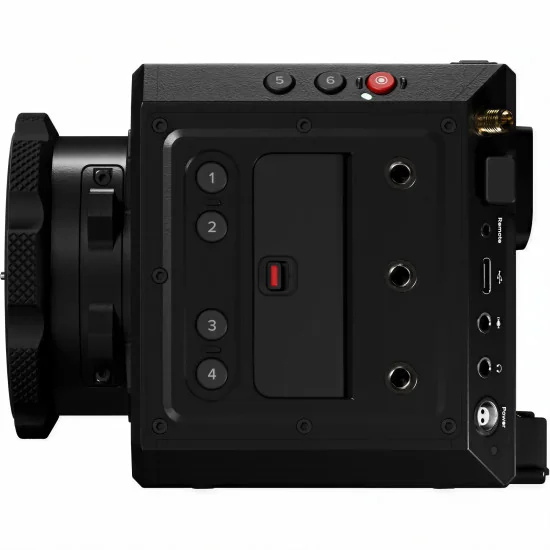

Z-CAM E2-S6G Mark II NDI Global Shutter 6K Camera

    ZCE2S6GM2N
    Price: €5,199.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

    Skew-free frames are the whole point of this camera. The Z-CAM E2-S6G Mark II NDI Global Shutter pairs a Super 35 global shutter CMOS sensor — 31.49 effective megapixels, 14 stops of dynamic range — with a body wired for networked production. Whip pans, spinning rotors, strobe hits and LED wall refresh cycles land on the sensor as one complete exposure, so sports coverage and virtual production plates stay geometrically clean. Native ISO sits at 1250, a sensible match for lit stages and studio grids.

    Internal recording reaches Open Gate 6144 x 4096 at 30 fps, 6K 2.4:1 at 50 fps and 4K DCI 2.4:1 at up to 70 fps, written to CFexpress Type B cards as 10-bit H.265, ProRes 422 HQ or ZRAW. An Atomos Ninja V takes ProRes RAW over HDMI; a Blackmagic Video Assist captures BRAW. Grading starts from Z-Log2, and 12-axis colour correction lets one operator match several bodies to a single reference — the difference between an evening of grading and a coffee break.

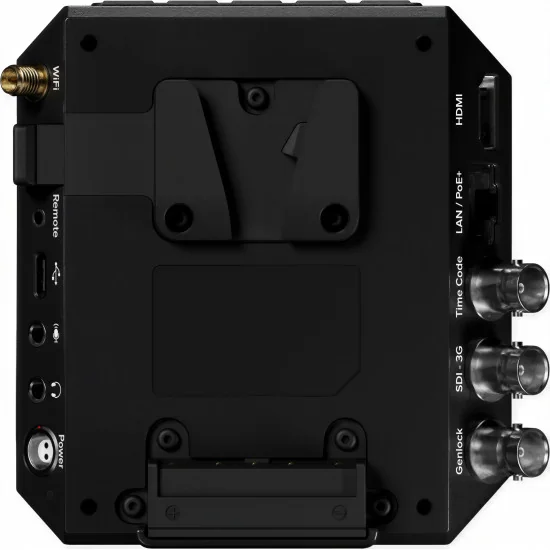

    Its network side earns the name. 10-bit NDI|HX3, RTSP, RTMP and SRT streams leave the Gigabit Ethernet port directly, while PoE+ feeds power through the same Cat 6 run — one cable per camera position across a conference hall or an esports arena. Genlock and LTC timecode arrive on BNC, EzLink holds a whole fleet within 0.5 ms, and 3G-SDI plus HDMI 2.0 (4K DCI 60p, 10-bit 4:2:2) connect to any vision mixer already in the rack.

    A fanless aluminium alloy housing draws a mere 18 W, stays silent behind a lectern and accepts mini V-Lock batteries once mains power is out of reach. USB-C, 2.5 mm LANC and a serial port hand control to robotic heads and production software through an open API, and dual-channel XLR audio enters via a 5-pin LEMO socket. The EF mount with active lock swaps for optional PL, LPL or M versions, so existing cinema glass keeps earning its keep in broadcast studios, on touring stages, or inside permanently cabled streaming rooms.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Specifications

    Camera
    Camera Model: Z CAM E2-S6G Mark II (w/ NDI): E1706N
    Sensor Type: Super 35 mm Global Shutter CMOS Sensor
    Sensor Size: Diagonal 27.9mm
    Effective Pixels: 31.49 MP
    Dynamic Range: 14 stops

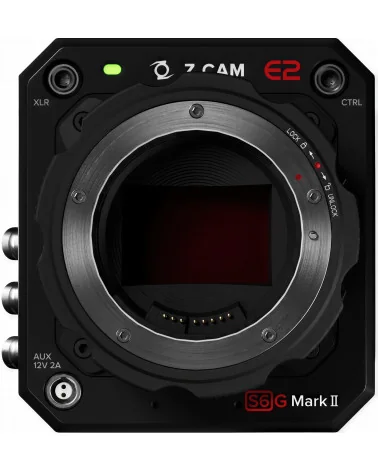

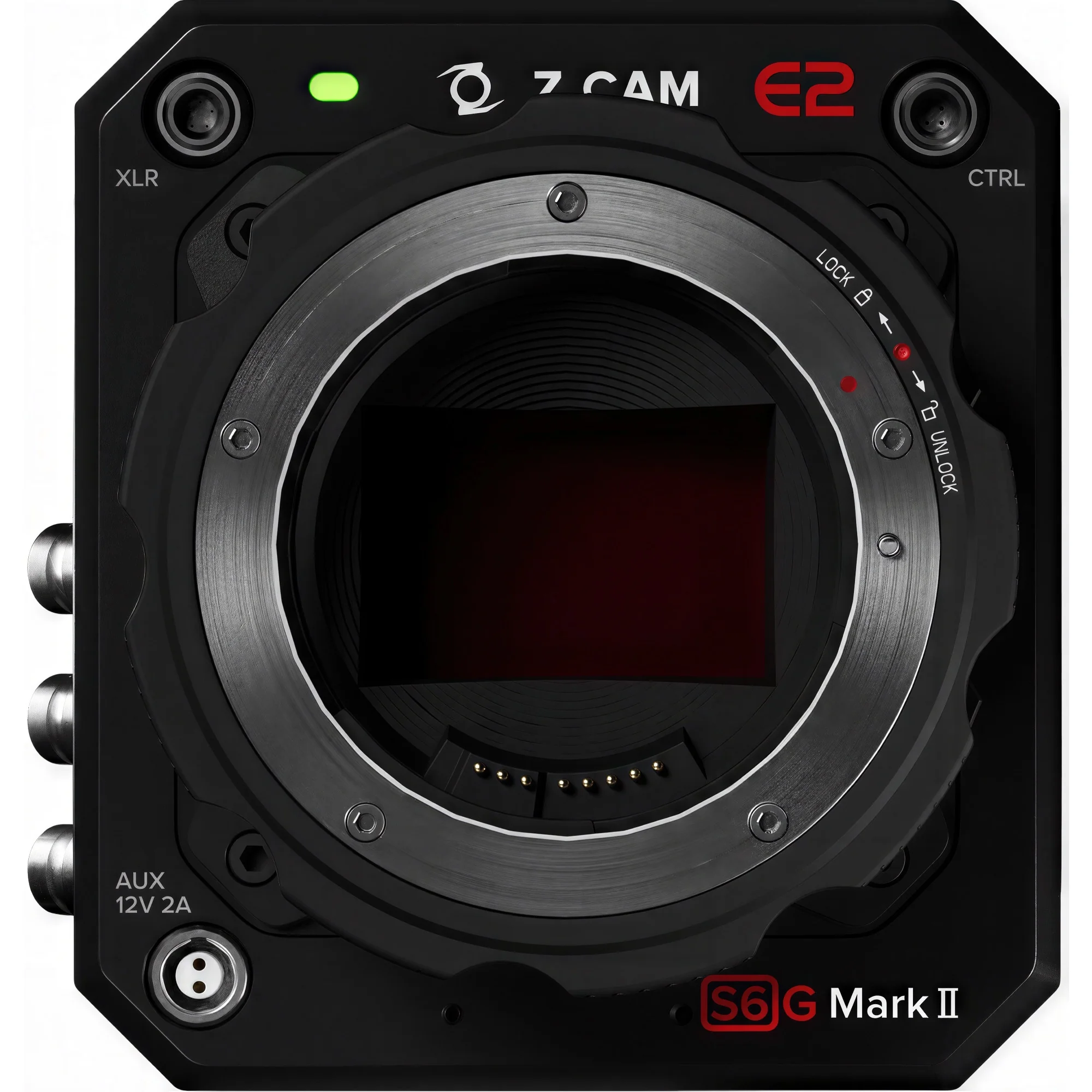

    Lens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)
    Microphone: Built-in Stereo Microphone

    Recording
    Resolution & Max Frame Rate
    Open Gate (6144x4096) @30fps max
    6K DCI (6144x3240) @30fps max
    6K UHD (5760x3240) @30fps max
    6K 2.4:1 (6144x2592) @50fps max
    4K DCI (4096x2160) @56fps max*
    4K DCI 2.4:1 (4096x1728) @70fps max*
    4K UHD (3840x2160) @56fps max*
    FHD (1920x1080) @70fps max
    * supersampling / cropping selectable when < 30fps

    Video Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW
    RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
    Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
    Audio Format: 16-bit 48 kHz
    Audio Encoder: AAC / PCM (for MOV only)
    File Format: MOV / MP4
    Record Mode: Video / Time Lapse Video / Still Image Capture

    Settings
    ISO: Auto, Manual (1250 ~ 20000), Native ISO: 1250
    Shutter: Shutter Speed: Auto, Manual (1s ~ 1/10000s) , Shutter Angle: Auto, Manual (1° ~ 360°)
    White Balance: Auto, Preset, Manual (2300K ~ 30000K)
    Focus Mode: MF / AF / CAF
    Image: Sharpness / Noise Reduction / Dynamic Range Optimizer / Brightness / Contrast / Saturation / Hue / Gamma / Matrix / 12-Axis Color
    Image Config: Rec.709 / Z-Log2 / Flat / Concert / Vivid 0 / Vivid 1 / Vivid 2 / HLG / Gamma
    Time Code: Current Time / Manual Input / External Input

    Storage
    Storage Media: CF Express Type B
    File System: exFAT

    Connectivity
    HDMI: HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
    SDI: 3G-SDI
    Time Code: LTC Time Code Input via BNC
    Genlock: BB/Tri-Level Genlock Input via BNC (E1513N w/o Genlock Input)
    USB: USB 3.0 Type C for camera control & data transfer only
    Remote Port: 2.5 mm jack socket (Sony LANC compatible)
    Audio In: 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
    Audio Out: 3.5 mm stereo jack socket
    Wi-Fi: 5G, up to 802.11n, external antenna port
    CTRL: Serial port
    Ethernet: Gigabit Ethernet port

    Power
    Battery: Mini V-Lock 14.8V (Battery not included)
    Power Input: DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at) (Power Adapter not included)
    Power Output (AUX): DC 12V 2A (2-pin LEMO socket)
    Power Consumption: 18W maximum, not inclusive of AUX power consumption

    Physical
    Camera Body: Aluminum Alloy
    Weight - Camera: 1.21kg (w/ EF mount)
    Weight - Package: 1.55kg
    Dimensions (HxWxL) - Camera: 105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (w/ EF mount)
    Dimensions (HxWxL) - Package: 145 x 192 x 162 mm / 5.71 x 7.68 x 6.38 inch

    Environment
    Storage Temperature: -20 °C ~ 60 °C
    Operation Temperature: 0 °C ~ 40 °C

    ZCE2S6GM2N

    Data sheet

    Video Output
    HDMI
    NDI
    RJ-45 (IP)
    SDI
    Audio Input
    LEMO 5-pin
    Mini Jack 3.5mm
    Audio Output
    HDMI Embedded
    Mini Jack 3.5mm
    NDI Embedded
    RJ-45
    SDI Embedded
    Max Output Resolution
    6K (6144 x 2592) 50/60 fps
    6K Open Gate (6144x4096) 25/30 fps
    Output colour sampling
    RGB 4:2:2 10-bit
    Streaming protocols
    NDI®|HX 3
    RTMP
    RTMPS
    RTSP
    SRT
    SSP
    Network Connection
    Ethernet
    Wi-Fi
    Sensor Size
    Super 35mm (23.21x15.48mm)
    Lens mount
    Canon EF
    Interchangeable mount
    Internal ND filtres
    No
    Features
    Global Shutter
    Media type
    CFexpress Type B
    Battery Type
    Mini V-Mount
    Screen Type
    External
    Sensor Resolution
    31.49MP
    Sensor Type
    CMOS
    Image Stabilization
    Gyro
    ISO Sensitivity Range
    1250-128000
    Dynamic Range
    14 stops
    Shutter Type
    Electronic Global Shutter
    Shutter Speed
    1/10000s-1min
    Bit Depth
    10-bit
    Viewfinder Type
    External
    Focus Mode
    AF
    CAF
    Manual
    Internal Recording Modes
    H.264
    H.265
    ProRes 422
    ProRes 422 HQ
    ProRes 422 LT
    ProRes 422 Proxy
    ZRAW
    External Recording Modes
    Blackmagic RAW
    ProRes RAW
    Timecode
    Yes
    Genlock
    Yes

    Specific References

    ean13
    6970130770477
    mpn
    E1706N

    Contact us

    optional

    Reviews

    Write your review

    Write your review

    Z-CAM E2-S6G Mark II NDI Global Shutter 6K Camera

    Skew-free frames are the whole point of this camera. The Z-CAM E2-S6G Mark II NDI Global Shutter pairs a Super 35 global shutter CMOS sensor — 31.49 effective megapixels, 14 stops of dynamic range — with a body wired for networked production. Whip pans, spinning rotors, strobe hits and LED wall refresh cycles land on the sensor as one complete exposure, so sports coverage and virtual production plates stay geometrically clean. Native ISO sits at 1250, a sensible match for lit stages and studio grids.

    Internal recording reaches Open Gate 6144 x 4096 at 30 fps, 6K 2.4:1 at 50 fps and 4K DCI 2.4:1 at up to 70 fps, written to CFexpress Type B cards as 10-bit H.265, ProRes 422 HQ or ZRAW. An Atomos Ninja V takes ProRes RAW over HDMI; a Blackmagic Video Assist captures BRAW. Grading starts from Z-Log2, and 12-axis colour correction lets one operator match several bodies to a single reference — the difference between an evening of grading and a coffee break.

    Its network side earns the name. 10-bit NDI|HX3, RTSP, RTMP and SRT streams leave the Gigabit Ethernet port directly, while PoE+ feeds power through the same Cat 6 run — one cable per camera position across a conference hall or an esports arena. Genlock and LTC timecode arrive on BNC, EzLink holds a whole fleet within 0.5 ms, and 3G-SDI plus HDMI 2.0 (4K DCI 60p, 10-bit 4:2:2) connect to any vision mixer already in the rack.

    A fanless aluminium alloy housing draws a mere 18 W, stays silent behind a lectern and accepts mini V-Lock batteries once mains power is out of reach. USB-C, 2.5 mm LANC and a serial port hand control to robotic heads and production software through an open API, and dual-channel XLR audio enters via a 5-pin LEMO socket. The EF mount with active lock swaps for optional PL, LPL or M versions, so existing cinema glass keeps earning its keep in broadcast studios, on touring stages, or inside permanently cabled streaming rooms.
