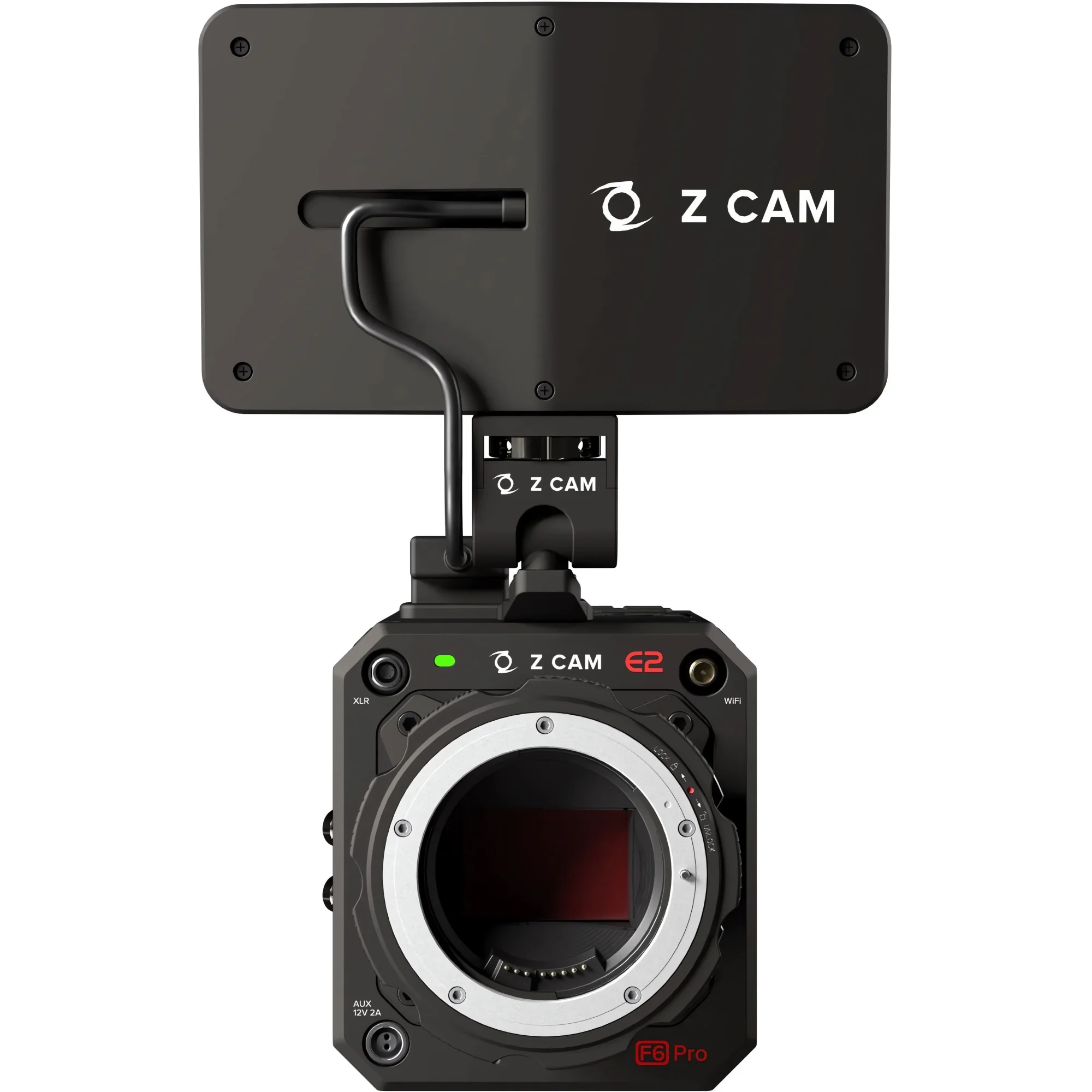

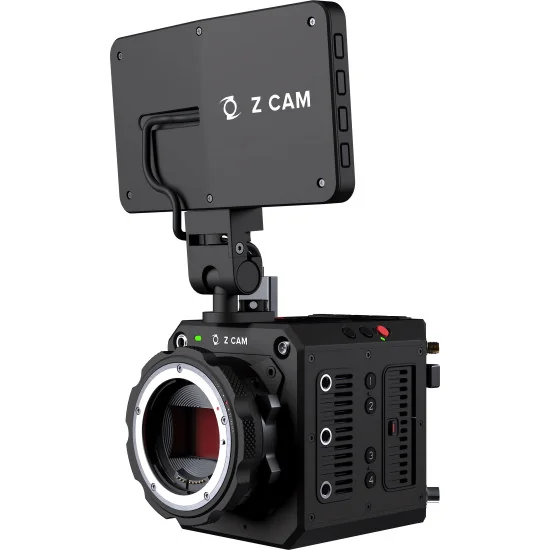

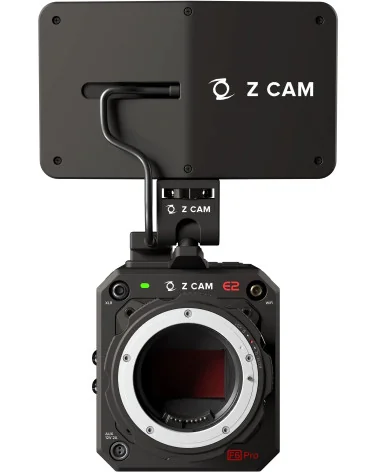

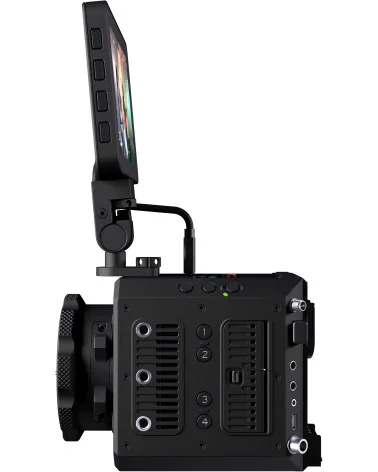

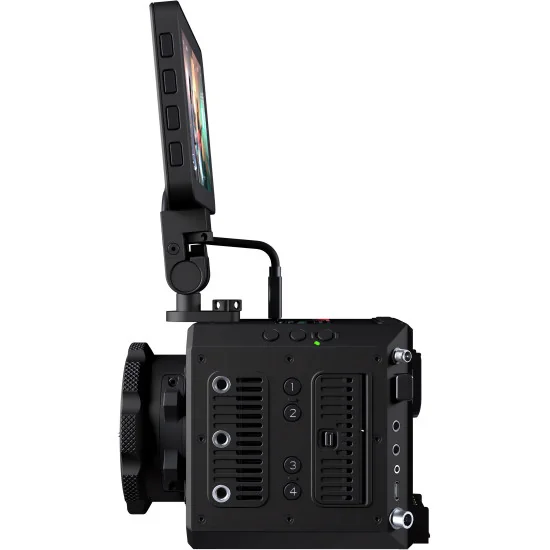

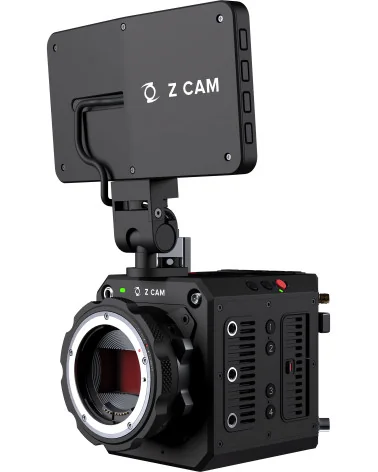

Add both versatile lens compatibility and a detachable onboard monitor to your cine-style capture with the Z CAM E2-F6 Pro Full-Frame Cinema Camera. This compact camera comes with a Canon EF lens mount and can be used with separately available ARRI PL and Leica M mounts. The E2-F6 Pro captures up to 10-bit 6K60 full-frame video and offers both pro 12G-SDI and HDMI video outputs. The included 5" touchscreen monitor is detachable and can be tilted for optimal viewing. It captures a nominal 15 stops of dynamic range, supports timecode and genlock, and incorporates four user-assignable buttons along the side of the camera.

Z CAM E2-F6 Pro Full Frame 6K Cinema Camera
- 6K up to 60fps, 4K up to 120fps
- Full Frame CMOS sensor
- Up to 15 stops Dynamic Range
- Z-Log2, 10-bit Color, ProRes 422 & ProRes 422 HQ
- 5" Touch Screen Monitor for full camera control
- Genlock support
- 12G SDI + HDMI
- EF mount (with optional M, MFT, PL and LPL mount accessory)

Technical Specifications
Disclaimer: All product features and technical specifications stated are subjected to Z CAM’s sole interpretation and explanation. Specifications are subject to change without notice.

Camera
Sensor Type: Full Frame CMOS Sensor
Sensor Size: 37.09 x 24.75 mm
Effective Pixels: 26M
Dynamic Range: 15 Stops
Lens Mount: EF mount (with optional M, MFT, PL and LPL mount accessory)

Recording
Resolution & Max Frame Rate:
6064x4040 @30fps max (Open Gate)
6064x3196 @48fps max (C6K)
6064x2560 @60fps max (6K 2.4:1)
5760x3240 @48fps max (6K UHD)
5376x4032 @30fps max (5K 4:3)
5120x2700 @60fps max (C5K)
4848x4040 @30fps max (5K 6:5)
4800x2700 @60fps max (5K UHD)
4096x3072 @30fps max (4K 4:3)
4096x2160 @90fps max (C4K)
4096x1728 @120fps max (C4K 2.4:1)
4080x3400 @30fps max (4K 6:5)
4064x2712 @60fps max (C4K 3:2)
3840x2160 @90fps max (4K UHD) *
2112x1188 @170fps max (S16 16:9)
1920x1080 @120fps max (FHD)
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode
Video Encoder: ProRes 422 Proxy, ProRes 422 LT, ProRes 422, ProRes 422 HQ
Color Bit-depth: 10 bit, Z-Log2
Audio Format: 16-bit 48 kHz
Audio Encoder: AAC / PCM (for MOV only)
File Format: MOV
Record Mode: Video / Time Lapse Video

Settings
ISO: Auto, Manual (400 ~ 51200), Dual Native ISO: 400 / 2500
Shutter Speed: Auto, Manual（1/24~1/8000”）
Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance: Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode: MF
Image: Brightness / Contrast / Saturation / Sharpness
Image Config: Rec.709, Z-log2, Flat, Concert, HLG
Time Code: Current Time / Manual Input

Storage
Storage Media: CFast 2.0 or ZBlade (custom media)
File System: exFAT

Connectivity
HDMI: HDMI Type A 2.0
3840x2160/4096x2160/1920x1080 @23.94/24/25/29.97/50/59.94
YUV 422 10bit, 48K 2ch audio
SDI: 12G BNC
3840x2160/4096x2160/1920x1080 @23.94/24/25/29.97/50/59.94
YUV 422 10bit, 48K 2ch audio
Time Code In: LTC, share the same BNC with Genlock
Genlock: BB/Tri-level 25/29.97/50/59.94
Share the same BNC with Time Code In
USB: USB 3.0 Type C for camera control & data transfer only
COM: 1 x Serial Port
Remote Port: 2.5 mm jack socket (Sony LANC compatible)
Audio In: 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out: 3.5 mm stereo jack socket
Wi-Fi: 5G, up to 802.11n, external dual antenna port
CTRL: 1x Serial Control Port
Ethernet: Gigabit Ethernet port

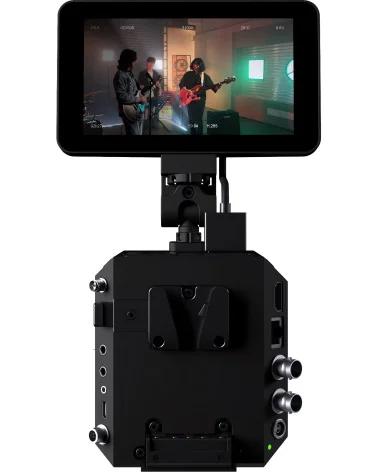

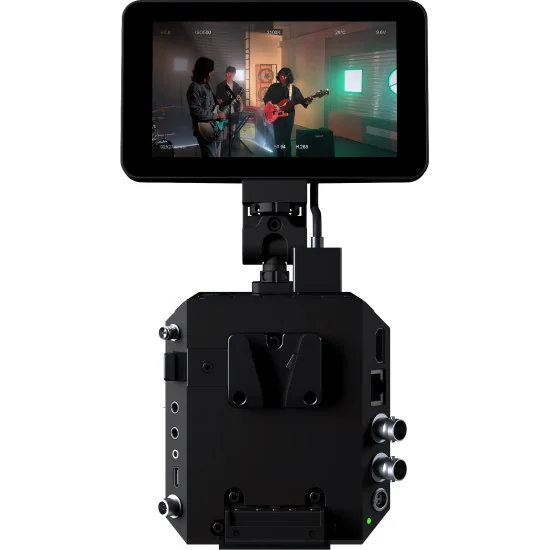

Monitor (Included in standard package)
Monitor: 5" Touch Screen LCD Monitor, 1000 Nits
Resolution: 1920 x 1080
Mount: Top & Bottom 1/4" screw hole with anti-rotational pin (mount holder included in standard package)
Power: Through dedicated control cable to camera body
Touchscreen: Capacitive touch panel, calibration to Rec.709

Power
Battery: V-Mount 14.8V (Battery not included)
Power Input: DC 12~18V (2-pin LEMO socket), with LEMO connector
Power Output (AUX): DC 12V 2A (2-pin LEMO socket)
Power Consumption: 50W maximum, not inclusive of AUX power consumption

Physical
Camera Body: Aluminium Alloy
Weight - Camera: 1.39kg (with EF mount)
Weight - Camera + Monitor: 1.68kg (with EF mount)
Dimensions (HxWxL) - Camera: 108.5 x 107.9 x 156.7mm (with EF mount)
Dimensions (HxWxL) - Monitor: 90.6x152.2x26.3mm

Environment
Storage Temperature: -20 °C ~ 60 °C
Operation Temperature: 0 °C ~ 40 °C
