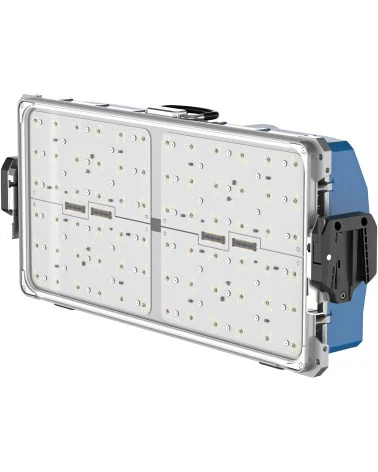

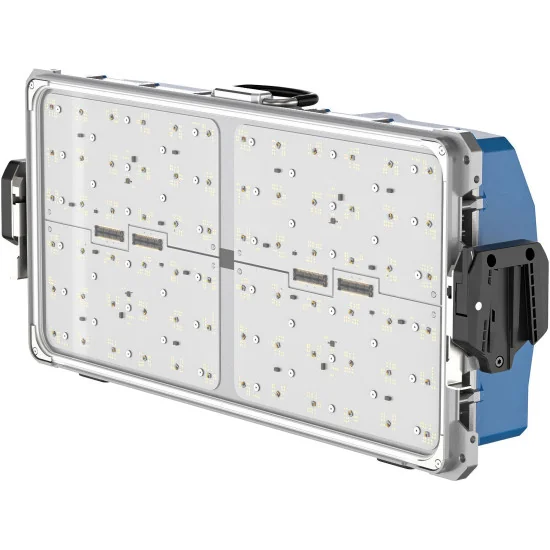

ARRI SkyPanel X21 inkl. Dome LED Panel

Name: ARRI SkyPanel X21 inkl. Dome LED Panel
Brand: ARRI
SKU: L1.0048487
Price: 5290.00 EUR
Availability: InStock

MPN: L1.0048487

Price: €5,290.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

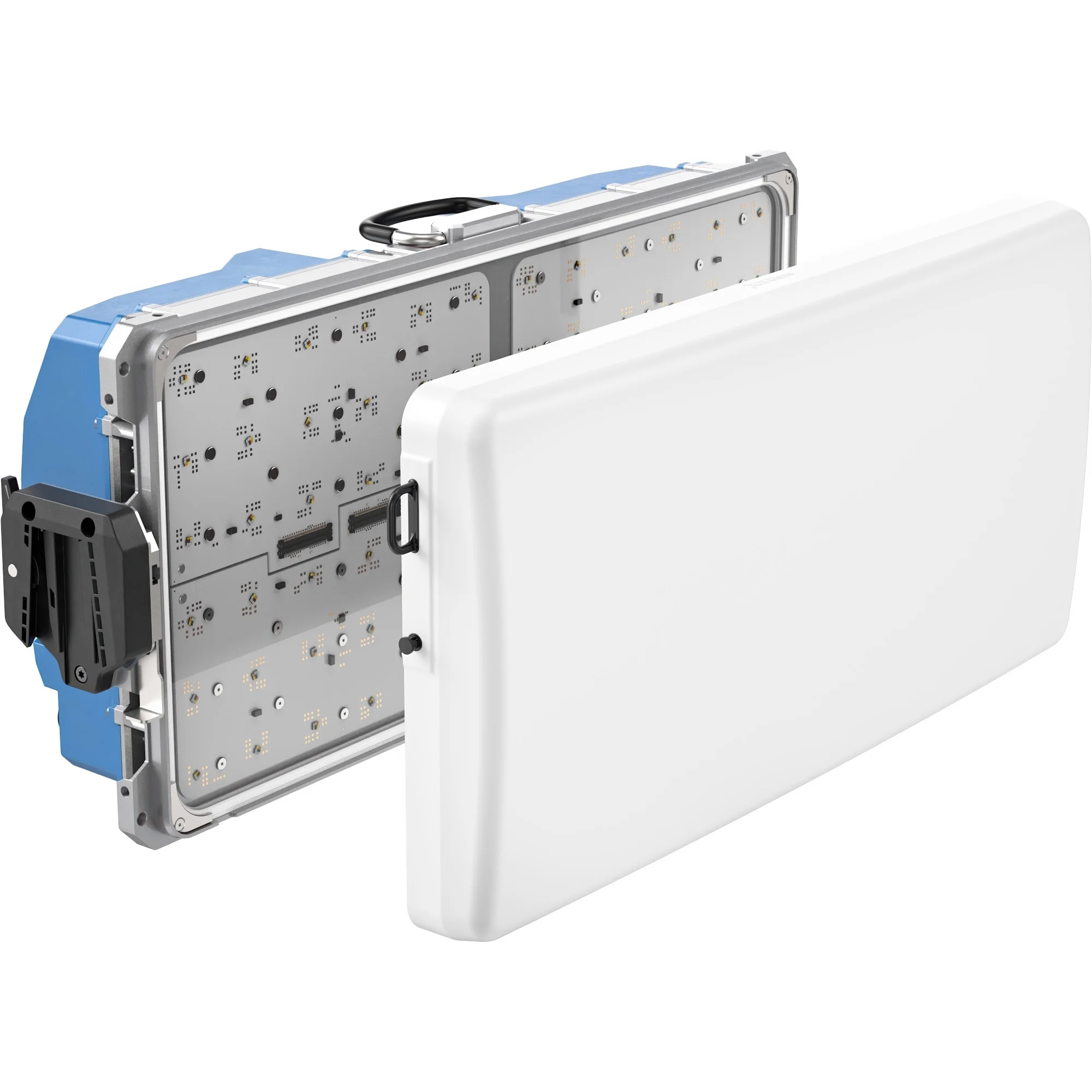

ARRI SkyPanel X21 with the included X21 Dome is an all-weather 2:1 RGBACL LED panel rated IP66 for studio grids, OB trucks and location rigs. The full-spectrum engine spans 1,500–20,000 K and offers ARRI ALEXA Mode sensor matching, plus Source Matching, gels and precise CCT/HSI/RGB control for consistent colour with mixed practicals and LED volumes. Operation is specified from -20°C to +40°C, with passive + active cooling on a double heat-sink. Dimming is flicker-free with high-resolution control near black; High CRI VariFan reaches up to CRI 99 (min. 90) with TLCI 93 typical.

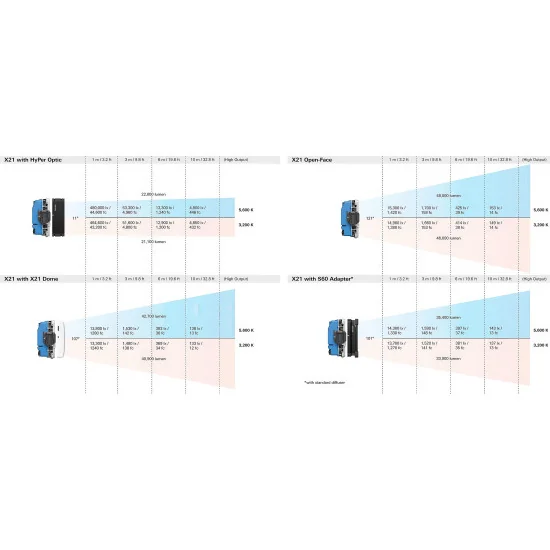

Maximum draw is 800 W, driving 4 light engines and up to 8 pixel zones for zoned cues and mapped accents. In native hard configuration the fixture reaches 4,800 lx at 10 m at 5,600 K; native open-face operation delivers up to 51,809 lm for bounce. Beam geometry stays predictable: approx. 107° with the Dome, approx. 121° open-face, and approx. 11° with an optional HyPer Optic for long throws and defined shadows.

Control integrates into professional lighting networks: DMX-512A with RDM, Ethernet Art-Net 4 and sACN, plus web control and discovery via mDNS/Bonjour, with PTP/NTP synchronization support. Wireless options include CRMX (Classic/CRMX2), W-DMX G3–G5, BLE and Bluetooth 5.0. Connections cover powerCON TRUE1 TOP AC in/through, 48 V DC input, 5-pin XLR DMX, dual RJ45 (EtherCON compatible), USB-C, and LEMO for the control panel.

The lamphead supports a removable ALL-WEATHER Control Panel (LiOS3), quick-release yokes and multi-unit arrays (up to three fixtures in one DMX profile). Built-in tools include 15 Pixel Macros and 15 effects for stage cues and repeatable streaming looks, while legacy DMX presets can mirror familiar SkyPanel S60-C modes. An optional S60 adapter accepts SkyPanel S60-C front accessories. Typical uses include interview keys, soft toplight, chroma-key fill and weather-resistant exterior work where network control matters as much as output.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Available in three size configurations (X21, X22, and X23), the modular SkyPanel X offers native soft and native hard light technology, setting a new bar not only in terms of dimming and color science, but also in output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per unit; dynamic CCT range of 1,500 K – 20,000 K; six-color full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to established workflows.

Main Features
- LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
- IP66 all-weather professional lighting solution
- Excelling in color rendition, dimming, and beam quality
- Dynamic CCT range of 1,500 K - 20,000 K
- RGBACL full-spectrum color engine
- Up to 24 pixels (8 for X21, 16 for X22, 24 for X23)
- Integrated PSU and built-in wireless control

PACKAGES: L1.0048487 ARRI X21
1x L1.0048487 SkyPanel X, incl. X21 Dome

Technical data
Power: 800 W
Format size: 2:1 (horizontal)
Light engines: 4
Pixel zones: 8 max.
Max. output (lux): 4,800 Lux @ 10 m, 5,600 K (native hard)
Max. output (lumen): 51,809 Lumen (native open-face)
Included items: 1x X21 Dome

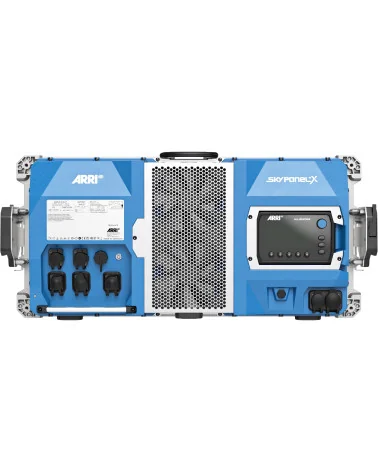

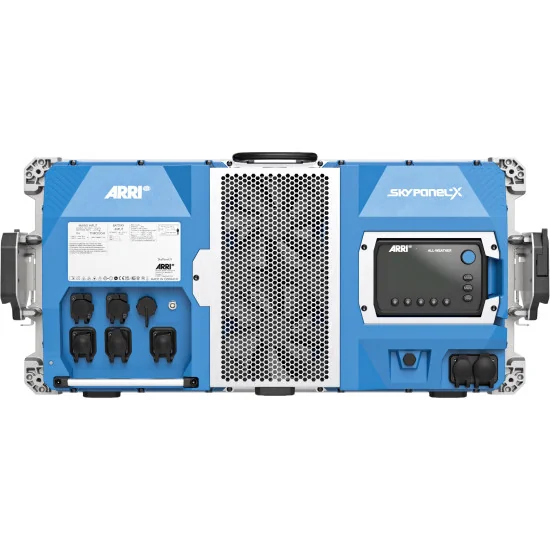

Connectors:
- 2x AC (In and Through), max. 20 A, TRUE1 TOP
- 1x DC (In) 48 V for battery use
- 2x DMX (In and Out), XLR-5pin
- 2x LAN / Ethernet, RJ45, EtherCON compatible
- 1x USB type C
- 1x LEMO for ALL-WEATHER Control Panel
Rigging System:
- Manual Yoke, bent, Quick-Release, 28 mm spigot
- P.O. Yoke, Quick-Release, 28 mm spigot
- Twin Quick-Lock bracket for multi-unit setups
Dimensions:
Fixture only: 738 x 339 x 154 mm / 29.1 x 13.3 x 6.1 in
with MAN yoke: 875 x 588 x 170 mm / 34.4 x 23.2 x 6.7 in
with P.O. yoke: 842 x 622 x 155 mm / 33.2 x 24.5 x 6.1 in
Weight:
Fixture only: approx. 15 kg / 33 lbs
with MAN yoke: approx. 18 kg / 39.7 lbs
with P.O. yoke: approx. 18,5 kg / 40.8 lbs
AC voltage: 100 - 240 V~, 50/60Hz
PSU: Integrated
LED engine: Full Spectrum, 6-color RGBACL LED
Native quality: Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face
CCT range: 1,500 K - 20,000 K
CRI: 90 min. / 99 max. (High CRI VariFan mode)
TLCI: 93 typical (High CRI VariFan mode)
Camera sensor matching: Yes, via ARRI ALEXA Mode
Dimming performance: Flicker free, High-res low end dimming
Native beam angle: 11º (hard), 107° (soft), 121º (open-face)
Diffuser options: X21 Dome, Beam Enhancer filter, S60-C diffusers
Accessory compatibility: All SkyPanel S60-C front accessories via S60 Adapter
Type of display: Removable ALL-WEATHER Control Panel with LiOS3
Operational modes: Standard (low noise), High Output, High CRI VariFan, ARRI ALEXA
Color modes: CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
DMX presets: Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A
Legacy DMX modes: Compatible with S60-C mode 1 and 6
Multi-array setup: Yes (up to 3 units in just one single DMX profile)
IP-rating: IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)

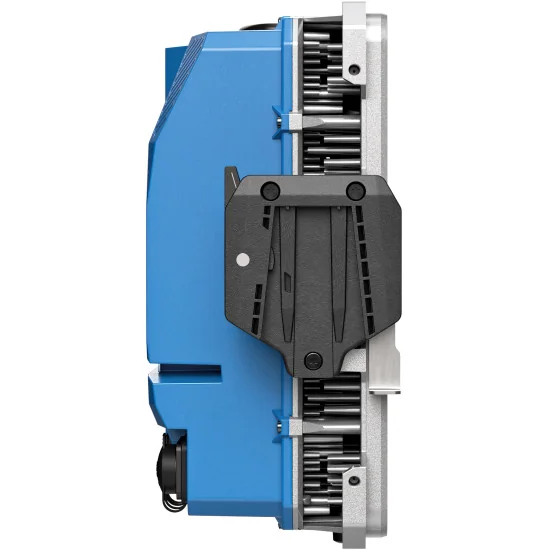

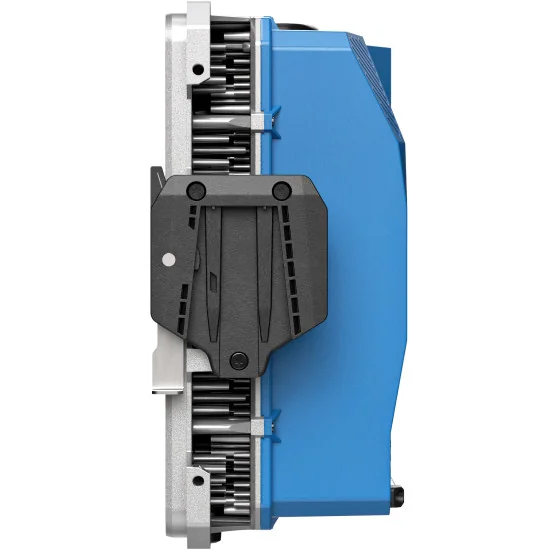

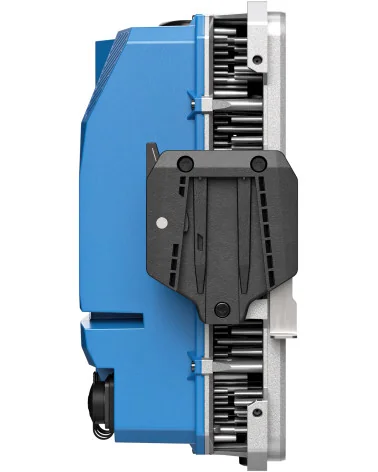

Cooling system: Passive + Active cooling system with double heat sink
Integrated wired control: DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
Integrated wireless control: CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
Daisy-chain modularity: Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
Pre-programmed effects: 15 Pixel Macros, 15 effects
Warranty: 3 years
Ambient temperature: -20°C to +40ºC / -4°F to +104°F (during operation)
Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, KC, TRA, ETA, ENACOM, RCM, R-NZ, NBRC, NTC, IFT, PSE
