ARRI SkyPanel X23 Soft & Hard Light Package (Schuko) LED Panel

ARRI SkyPanel X23 Soft & Hard Light Package (Schuko) LED Panel

Name: ARRI SkyPanel X23 Soft & Hard Light Package (Schuko) LED Panel
Brand: ARRI
SKU: L0.0049595
Price: 19400.00 EUR
Availability: InStock

MPN: L0.0049595

Price: €19,400.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

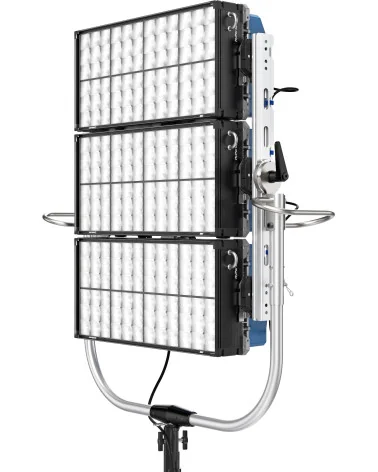

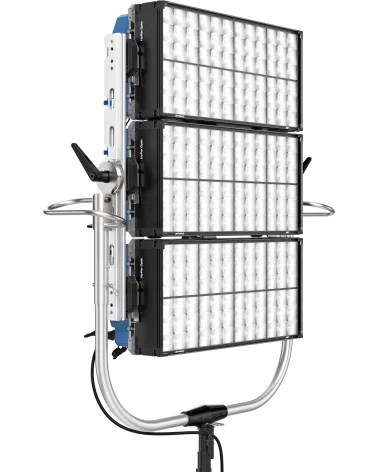

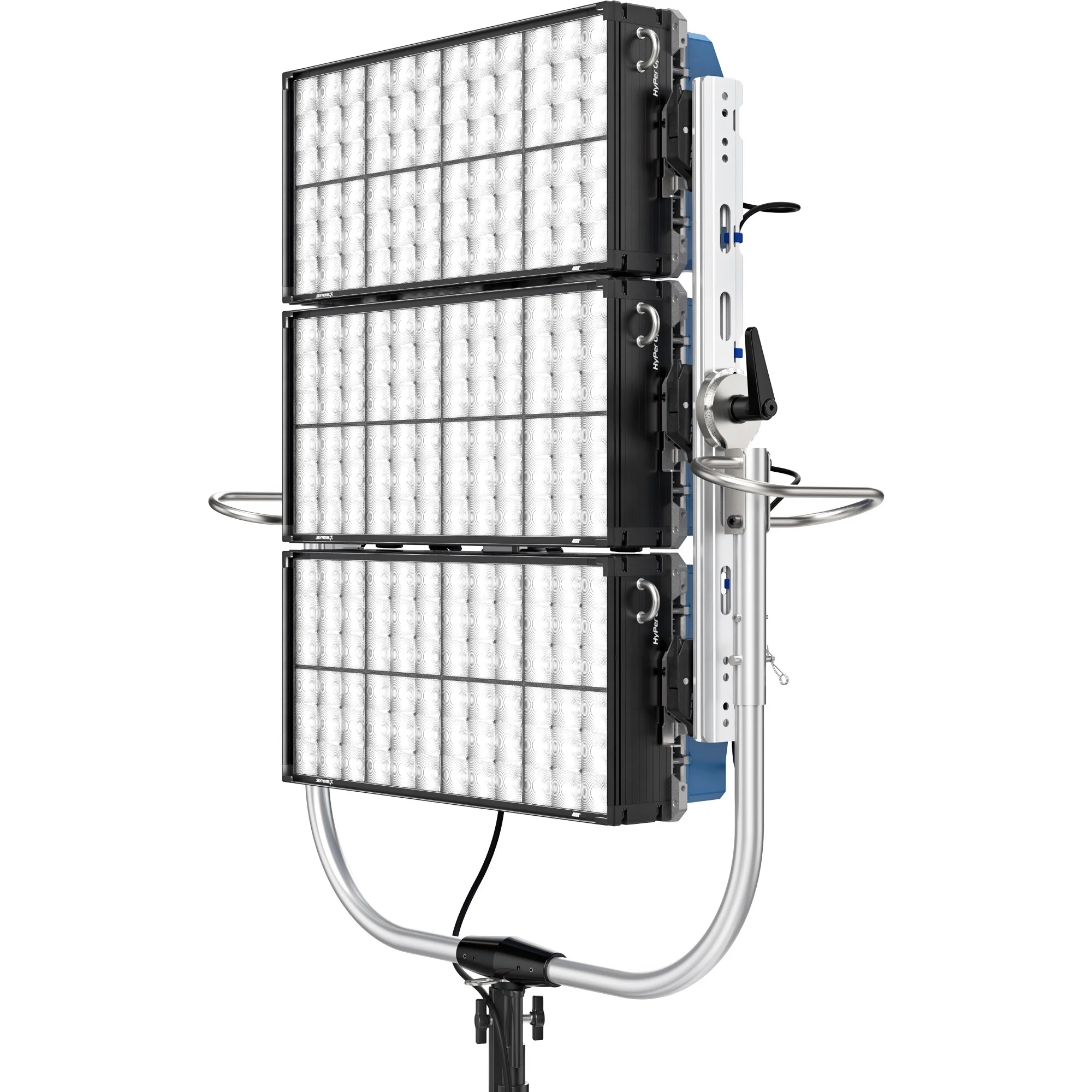

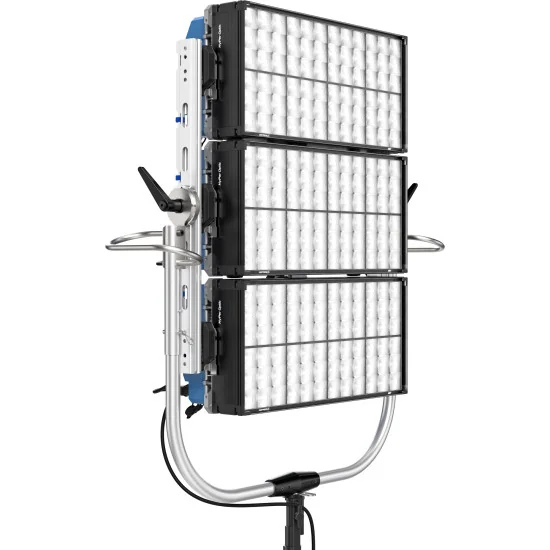

ARRI SkyPanel X23 Soft & Hard Light Package (Schuko) brings three SkyPanel X lampheads into a single 2:3 modular array that can operate as native soft light, native hard light or a high-output open-face source. The full-spectrum RGBACL engine runs from 1,500–20,000 K and supports camera-sensor matching (including ARRI ALEXA modes) for controlled reproduction across mixed practicals, broadcast keying setups and LED-volume environments. With IP66 weather sealing on the fixture and control interface, it remains viable for exterior night work, rain cover rigs and high-humidity locations.

As an X23 configuration the array draws up to 2,400 W with 12 light engines and up to 24 pixel zones for mapping, selective emphasis and cueable looks. Output reaches 14,400 lx at 10 m (5,600 K) in native hard mode, while native open-face operation delivers up to 155,427 lm for bounce, overhead ambience and large frames. The included HyPer Optics form a refined hard beam (native angle approx. 11°), while the supplied X21 Domes provide wide soft coverage (approx. 107°); open-face native coverage is approx. 121°.

Control and networking align with professional lighting infrastructures: DMX-512A with RDM, plus Art-Net 4 and sACN over Ethernet, with timing via PTP/NTP. Wireless options include CRMX (Classic/2), W-DMX and Bluetooth 5.0 for fast configuration. High-resolution, flicker-free dimming down to black supports high-speed capture, and onboard pixel tools offer macros/effects for repeatable stage and broadcast cues.

The package includes the removable ALL-WEATHER Control Panel (LiOS3), X23 Modular Frame with power/data daisy-chain cabling, and an X Modular Yoke with 28 mm spigot, plus a Schuko mains lead. Typical deployments include key/fill walls for multicam streaming studios, window-through daylight accents, weather-safe exterior backlight, and pixel-addressable arrays for stages where one fixture must cover soft, hard and hybrid looks.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Available in three size configurations (X21, X22, and X23), the modular SkyPanel X offers native soft and native hard light technology, setting a new bar not only in terms of dimming and color science, but also in output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per unit; dynamic CCT range of 1,500 K – 20,000 K; six-color full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to established workflows.

Main Features
- LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
- IP66 all-weather professional lighting solution
- Excelling in color rendition, dimming, and beam quality
- Dynamic CCT range of 1,500 K - 20,000 K
- RGBACL full-spectrum color engine
- Up to 24 pixels (8 for X21, 16 for X22, 24 for X23)
- Integrated PSU and built-in wireless control

PACKAGES: L0.0049595 X23 Soft & Hard Light Package (Schuko)

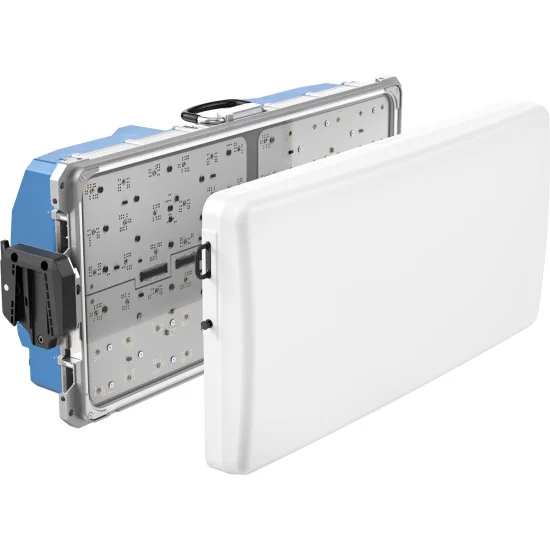

3x L1.0048487 SkyPanel X, incl. X21 Dome
3x L2.0048580 X21 HyPer Optic
1x L2.0048844 ALL-WEATHER Control Panel
1x L2.0049573 X Modular Yoke, incl. Spigot
1x L2.0049570 X23 Modular Frame, incl. Daisy Chain Cabling Ethernet & Power
1x L2.0007516 Mains cable, 3 m, powerCON TRUE1 TOP Schuko (16 A)

Technical data
Power: 2,400 W
Format size: 3:2 (vertical)
Light engines: 12
Pixel zones: 24 max.

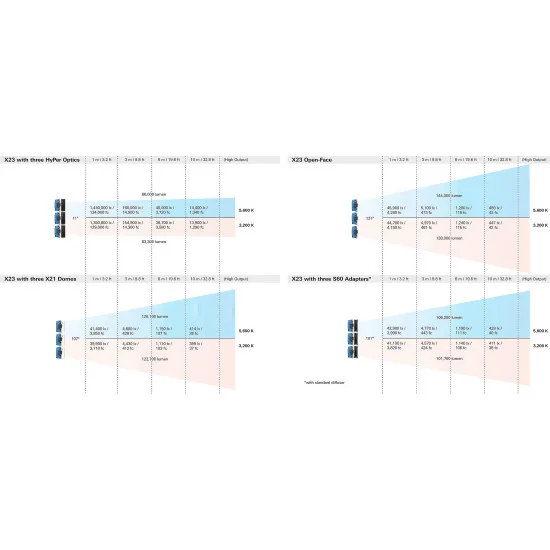

Max. output (lux): 14,400 Lux @ 10 m, 5,600 K (native hard)
Max. output (lumen): 155,427 Lumen (native open-face)
Included items: 3x X21 Dome

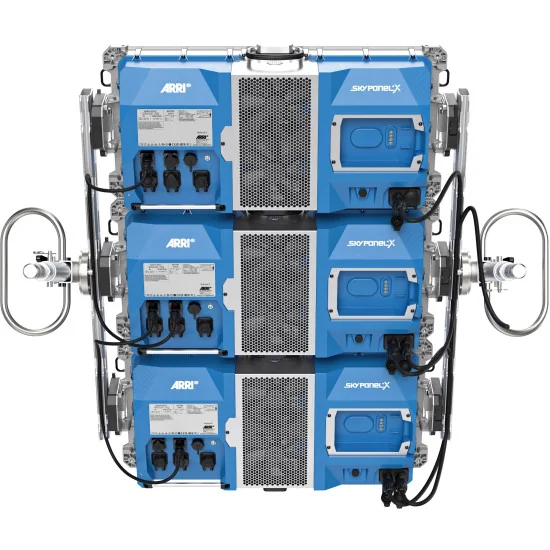

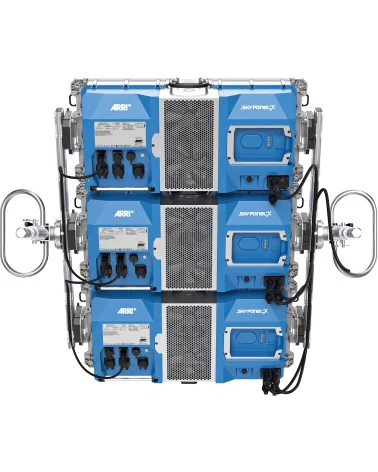

Connectors:
- 6x AC (In and Through), max. 20 A, TRUE1 TOP
- 3x DC (In) 48 V for battery use
- 6x DMX (In and Out), XLR-5pin
- 6x LAN / Ethernet, RJ45, EtherCON compatible
- 3x USB type C
- 3x LEMO for ALL-WEATHER Control Panel
Rigging System:
- X Modular frames for X23, Quick-Release
- X Modular System for X22 & X23, Quick-Release, 28 mm spigot
- Twin Quick-Lock bracket for multi-unit setups
Dimensions:
Fixture only: 738 x 1,002 x 154 mm / 29.1 x 39.4 x 6.1 in
with MAN yoke: 1128 x 1414 x 290 mm / 44.4 x 55.7 x 11.4 in
with P.O. yoke: n.a.
Weight:
Fixture only: approx. 45 kg / 99.2 lbs
with MAN yoke: approx. 54 kg / 119.1 lbs
with P.O. yoke: n.a.
AC voltage: 100 - 240 V~, 50/60Hz
PSU: Integrated
LED engine: Full Spectrum, 6-color RGBACL LED
Native quality: Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face
CCT range: 1,500 K - 20,000 K
CRI: 90 min. / 99 max. (High CRI VariFan mode)
TLCI: 93 typical (High CRI VariFan mode)
Camera sensor matching: Yes, via ARRI ALEXA Mode
Dimming performance: Flicker free, High-res low end dimming
Native beam angle: 11º (hard), 107° (soft), 121º (open-face)
Diffuser options: X21 Dome, Beam Enhancer filter, S60-C diffusers
Accessory compatibility: All SkyPanel S60-C front accessories via S60 Adapter
Type of display: Removable ALL-WEATHER Control Panel with LiOS3
Operational modes: Standard (low noise), High Output, High CRI VariFan, ARRI ALEXA
Color modes: CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
DMX presets: Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A
Legacy DMX modes: Compatible with S60-C mode 1 and 6
Multi-array setup: Yes (up to 3 units in just one single DMX profile)
IP-rating: IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)
Cooling system: Passive + Active cooling system with double heat sink
Integrated wired control: DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
Integrated wireless control: CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
Daisy-chain modularity: Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
Pre-programmed effects: 15 Pixel Macros, 15 effects
Warranty: 3 years
Ambient temperature: -20°C to +40ºC / -4°F to +104°F (during operation)
Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, KC, TRA, ETA, ENACOM, RCM, R-NZ, NBRC, NTC, IFT, PSE
