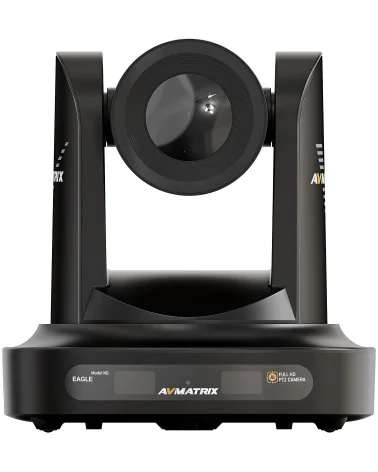

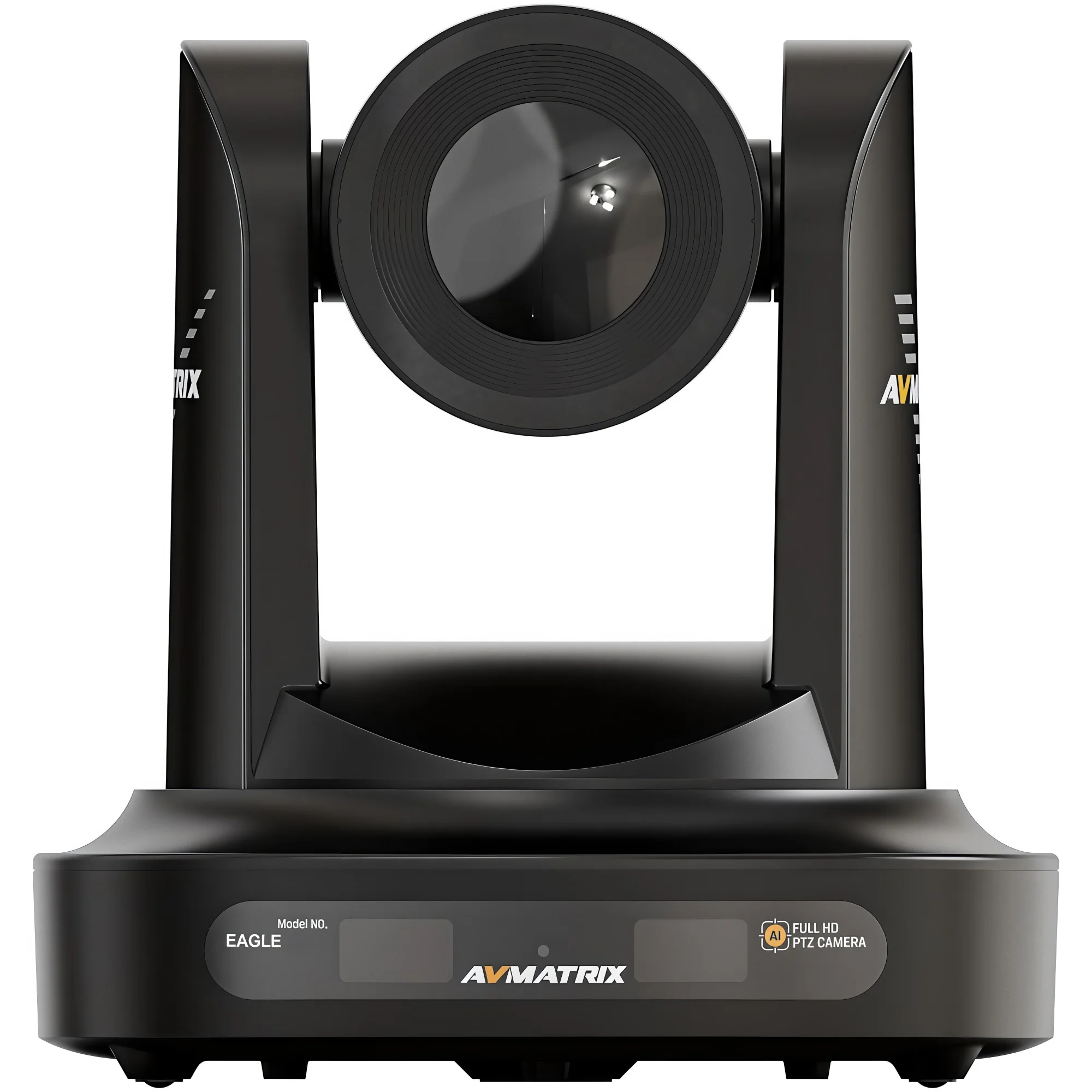

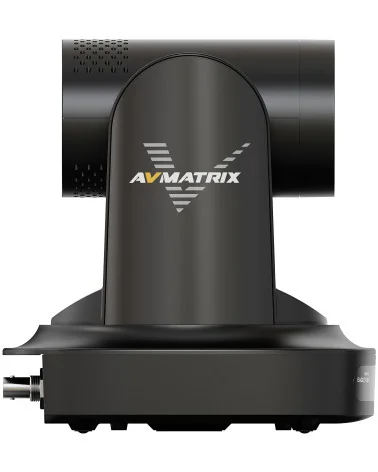

AVMATRIX EAGLE P20A is a 1080p60 PTZ camera for live switching, lecture capture and corporate AV where repeatable framing and simultaneous outputs matter. A 1/2.8-inch HD CMOS sensor (2.07 MP, 16:9) operates at ≥50 dB SNR with sensitivity down to 0.5 lux (F1.8, AGC on). Processing includes 2D/3D noise reduction, backlight compensation, selectable gamma, dynamic-range level control and picture tuning for brightness, colour, saturation, contrast, sharpness and B/W mode.
Optics centre on a 20x optical zoom lens (f=5.1–94.49 mm) with 16x digital zoom and a horizontal field of view from 60.04° to 3.45°, covering wide rooms and tight podium close-ups without repositioning. Focus, iris and shutter support auto or manual control; white balance adds one-touch, manual and specified colour temperature from 2400–7100 K in 100 K steps for consistent skin tones under mixed lighting.
For unattended operation, AI auto-tracking follows a presenter across four modes (Real-time, Stage Tracking, Area Tracking and Intelligent View) and provides quick subject framing: choose Left/Middle/Right placement plus Close/Half/Full/Custom shot size. Tracking remains usable up to 18 m, fitting training spaces, council chambers, worship stages and compact studios that need stable mid-shots and clean cutaways during panels, product demos or hybrid events.
Connectivity runs baseband and IP in parallel: HDMI and 3G-SDI output up to 1080p60 with embedded audio, while USB 3.0 UVC/UAC enables direct ingest to conferencing or streaming software. Over LAN, main/sub streams use H.264/H.265/MJPEG with CBR/VBR control (64–40960 kbps) via RTSP, RTMP, ONVIF, GB/T28181 and SRT, and support remote upgrade, reboot and reset. Dual-channel 3.5 mm line input feeds AAC or G.711A audio to LAN, USB, HDMI and SDI. Control integrates via VISCA (RS-232/RS-485), VISCA over IP and Pelco-D/P, with PoE+ (IEEE 802.3at) option and up to 255 presets for fast shot recall.
AVMATRIX EAGLE P20A is a 1080p60 PTZ camera for live switching, lecture capture and corporate AV where repeatable framing and simultaneous outputs matter. A 1/2.8-inch HD CMOS sensor (2.07 MP, 16:9) operates at ≥50 dB SNR with sensitivity down to 0.5 lux (F1.8, AGC on). Processing includes 2D/3D noise reduction, backlight compensation, selectable gamma, dynamic-range level control and picture tuning for brightness, colour, saturation, contrast, sharpness and B/W mode.
Optics centre on a 20x optical zoom lens (f=5.1–94.49 mm) with 16x digital zoom and a horizontal field of view from 60.04° to 3.45°, covering wide rooms and tight podium close-ups without repositioning. Focus, iris and shutter support auto or manual control; white balance adds one-touch, manual and specified colour temperature from 2400–7100 K in 100 K steps for consistent skin tones under mixed lighting.
For unattended operation, AI auto-tracking follows a presenter across four modes (Real-time, Stage Tracking, Area Tracking and Intelligent View) and provides quick subject framing: choose Left/Middle/Right placement plus Close/Half/Full/Custom shot size. Tracking remains usable up to 18 m, fitting training spaces, council chambers, worship stages and compact studios that need stable mid-shots and clean cutaways during panels, product demos or hybrid events.
Connectivity runs baseband and IP in parallel: HDMI and 3G-SDI output up to 1080p60 with embedded audio, while USB 3.0 UVC/UAC enables direct ingest to conferencing or streaming software. Over LAN, main/sub streams use H.264/H.265/MJPEG with CBR/VBR control (64–40960 kbps) via RTSP, RTMP, ONVIF, GB/T28181 and SRT, and support remote upgrade, reboot and reset. Dual-channel 3.5 mm line input feeds AAC or G.711A audio to LAN, USB, HDMI and SDI. Control integrates via VISCA (RS-232/RS-485), VISCA over IP and Pelco-D/P, with PoE+ (IEEE 802.3at) option and up to 255 presets for fast shot recall.
We ship all over the European Union for €20, free shipping on orders over €1,000.
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
Al Auto Tracking
Supports four intelligent tracking modes: Real-time, Stage Tracking, Area Tracking, and Intelligent View. Automatically follows subjects and adapts to different scenes, ensuring smooth, professional-level framing for live events, lectures, or presentations.
Quick Subject Framing
Quickly choose the subject position (Left / Middle / Right) and frame size (Close / Half / Full / Custom), perfect for dynamic shooting and Al tracking scenarios. In Real-Time Tracking mode, both position and frame size can be adjusted, while Stage Tracking mode allows adjustment of frame size.
Zoom Lens Optional
Provides 12×/20×/30x optical zoom lens for effective close-up and wide-angle shooting. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness provide precision control of your images.
Easily Control The PTZ camera can be easily controlled by IR remote control, Web Ul as well as the joystick camera controller via IP or serial port. Multiple control protocols are supported including ONVIF, VISCA over IP, VISCA, PELCO-D, PELCO-P.
Threaded DC & PoE Power
Lockable threaded power and POE dual power supply ensure stable and reliable power delivery. Even in dynamic scenarios or frequent movement, the screw-lock DC connector prevents accidental disconnection, guaranteeing continuous power for uninterrupted shooting and live streaming.
A Variety of Installation
Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, ceiling mounting. Widely used in many applications in broadcasting, education, church and other fields.
Application Fields
The PTZ camera can be widely used in various field events, such as conference, church, concert, education, interviews, sport live and other live broadcast activities.
HDMI & SDI Dual Outputs
Equipped with dual HDMI and SDI outputs, it supports simultaneous output of signals up to FHD 1080p resolution. Audio signals can be embedded into the SDI/HDMI channels to deliver high-quality video to monitors, switchers, and broadcast systems. This makes it ideal for live streaming, professional production, and multi-screen display applications.
USB Capture & LAN Streaming
Equipped with USB and LAN ports, this PTZ camera supports direct USB capture for video conferencing and computer recording, as well as LAN streaming to platforms via ONVIF/ RTSP/ RTMP/ SRT. Flexible, professional, and easy to deploy for any live production.
PARAMETERS
Image Sensor: 1/2.8 inch high quality HD CMOS sensor
Effective Pixel: 2.07M, 16:9
Optical Lens: 20X f=5.1 ~ 94.49mm
Viewing Angle: D: 67.45° - 3.94°, H: 60.04° - 3.45°, V: 35.310 - 1.97°
Digital Zoom: 16 X
Minimum Illumination: 0.5Lux (F1.8, AGC ON)
DNR: 2D&3D
White Balance: Auto/Manual/One Touch White Balance/Specified Color Temperature (2400K-7100K, adjustable in 100K steps)
Focus: Auto/Manual/One-push
Iris: Auto/Manual
Electronic Shutter: Auto/Manual
BLC(Backlight Compensation): On/Off
Dynamic Range: Off/ Dynamic level adjustment
Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma curve
SNR: ≥50dB
INTERFACE

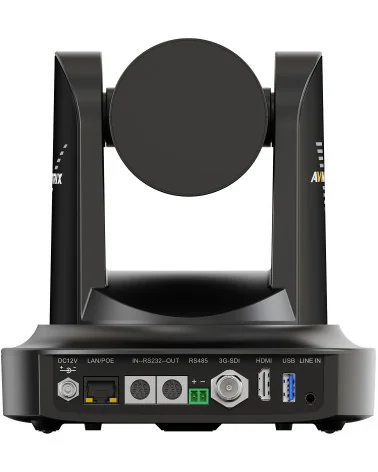

Video output: HDMI, SDI, LAN, USB3.0
Video Format:
HDMI/SDI interface video format: 1080P60/59.94/50/30/29.97/25, 1080|60/50/59.94, 720P60/59.94/ 50
USB3.0: YUY2/NV12: 1920*1080/1280*720/1024*576/800*600/800*448/640*480/640*360/480*270/320*180@60/30/25/20/15/10/5fps;
MJPG/H264/H265: 1920*1080/1280*720/640*360/640*480/320*240/320*180@60/30/25/20/15/10/5fps
LAN: Main Stream: H264/H265/MJPEG: 1920*1080/1280*720/640*480@60/30/25/20/15/10/5fps
Sub-stream: H.264/H.265/MJPEG: 1280*720/640*360/640*480/320*240/320*180@60/30/25/20/15/10/5fps;
Video compression formats: LAN: H.265, H.264 USB 3.0: MJPG, H264, H.265, YUY2, NV12
Video Bitrate: 64-40960
Bitrate Control: Fixed Bitrate, Variable Bitrate
Frequency: 50Hz:1fps ~ 50fps 60Hz:1fps ~ 60fps
Audio In Interface: Dual audio channel 3.5mm linear input
Audio Output Interface: HDMI, LAN, USB 3.0, SDI
Audio Bitrate: 96Kbps, 128Kbps
Audio Compression Format: AAC, G.711A
Network Interface: 100M Ethernet port, optional POE+ IEEE 802.3at power supply, supports audio and video output
Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, SRT, FreeD, IP VISCA, supports remote upgrade, remote reboot, and remote reset
Control Interfaces: RS232-IN, RS232-OUT, RS485
Serial Communication Protocol: VISCA/Pelco-D/Pelco-P; Supports baud rates of 115200/38400/9600/4800/2400
USB Communication Protocol: UVC (Video Communication Protocol) UAC (Audio Communication Protocol)
Power Interface: HEC3800 power socket (DC12V)
Power Adapter: Input:AC110V-AC220V Output:DC12V/1.5A
Input Voltage: DC12V+10%
Input Currency: ≤1.2A
Power Consumption: ≤13 W
PTZ
Pan: -170°~+170°
Tilt: -30°~+90°
Pan Speed: 0.1~100%s
Tilt Speed: 0.1~45/s
Preset Speed: Pan: 100%s, Tilt: 45%
Preset Quantity: User can set 255 presets (10 via IR remote control)
MONOCULAR TRACKING
Tracking Modes: Off, Real-time Tracking, Stage Tracking, Area Tracking, and Intelligent Framing
Tracking Distance: Maximum tracking distance up to 18 meters
OTHERS
Storage Temperature: -10°C~ +70°C
Storage Humidity: 20% ~ 95%
Working Temperature: -10°C~+50°C
Working Humidity: 20% ~80%
Dimension: 170×170×180mm
Weight: 1.26kg
Environment: Indoors
