Z-CAM P2-R1 24x Zoom is a broadcast-grade PTZ camera for rooms where you need repeatable framing, low operator load and an image that doesn’t look “webcam flat”. The 24x optics cover a 32–768 mm (35 mm equivalent) range, shifting from wide establishing shots to tight podium close-ups without a lens swap. A fast f/1.6–f/4.5 aperture and a 1/1.5" CMOS sensor keep highlights under control while preserving clean midtones, with gain up to 36 dB (ISO 200–12800) and shutter from 1/10000 to 1 s for LED-wall stages and mixed lighting.
Focus behavior matters in live work, so P2-R1 uses PDAF phase-detection AF plus manual overrides, backed by E.I.S. when the rig sees vibration. AI auto framing can lock onto a presenter and keep composition stable during panel discussions, lecture capture or one-person streaming. Image profiles include Rec.709 plus HLG options for HDR-aware workflows and consistent matching across multi-camera setups.
Output tops out at UHD 4K up to 50/59.94 fps over HDMI 2.0. 3G-SDI feeds reliable 1080p/1080i to broadcast routers and SDI switchers, while RJ45 IP and USB-C UVC slot straight into vMix/OBS, Teams or Zoom pipelines. For remote contribution, the camera speaks RTMP/RTMPS, RTSP, SRT and Z CAM SSP, and it can record a safety master to SD in H.265—useful when you need an iso backup of keynotes, sermons, product launches or sports commentary.
Control is production-friendly: VISCA over IP or RS-422, a browser web client, tally logic, and fast preset recall (up to 256 via CGI) for multicam shows, worship venues, esports desks, courtrooms and conference stages. Genlock helps keep timing stable in a synchronized chain, and Free-D data support fits AR/VR graphics and virtual set tracking, where camera moves must line up with render engines frame after frame. Power options include PoE+ (802.3at) for single-cable installs or 12 V DC, making P2-R1 a tidy choice for permanent PTZ grids.
Z-CAM P2-R1 24x Zoom is a broadcast-grade PTZ camera for rooms where you need repeatable framing, low operator load and an image that doesn’t look “webcam flat”. The 24x optics cover a 32–768 mm (35 mm equivalent) range, shifting from wide establishing shots to tight podium close-ups without a lens swap. A fast f/1.6–f/4.5 aperture and a 1/1.5" CMOS sensor keep highlights under control while preserving clean midtones, with gain up to 36 dB (ISO 200–12800) and shutter from 1/10000 to 1 s for LED-wall stages and mixed lighting.
Focus behavior matters in live work, so P2-R1 uses PDAF phase-detection AF plus manual overrides, backed by E.I.S. when the rig sees vibration. AI auto framing can lock onto a presenter and keep composition stable during panel discussions, lecture capture or one-person streaming. Image profiles include Rec.709 plus HLG options for HDR-aware workflows and consistent matching across multi-camera setups.
Output tops out at UHD 4K up to 50/59.94 fps over HDMI 2.0. 3G-SDI feeds reliable 1080p/1080i to broadcast routers and SDI switchers, while RJ45 IP and USB-C UVC slot straight into vMix/OBS, Teams or Zoom pipelines. For remote contribution, the camera speaks RTMP/RTMPS, RTSP, SRT and Z CAM SSP, and it can record a safety master to SD in H.265—useful when you need an iso backup of keynotes, sermons, product launches or sports commentary.
Control is production-friendly: VISCA over IP or RS-422, a browser web client, tally logic, and fast preset recall (up to 256 via CGI) for multicam shows, worship venues, esports desks, courtrooms and conference stages. Genlock helps keep timing stable in a synchronized chain, and Free-D data support fits AR/VR graphics and virtual set tracking, where camera moves must line up with render engines frame after frame. Power options include PoE+ (802.3at) for single-cable installs or 12 V DC, making P2-R1 a tidy choice for permanent PTZ grids.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop

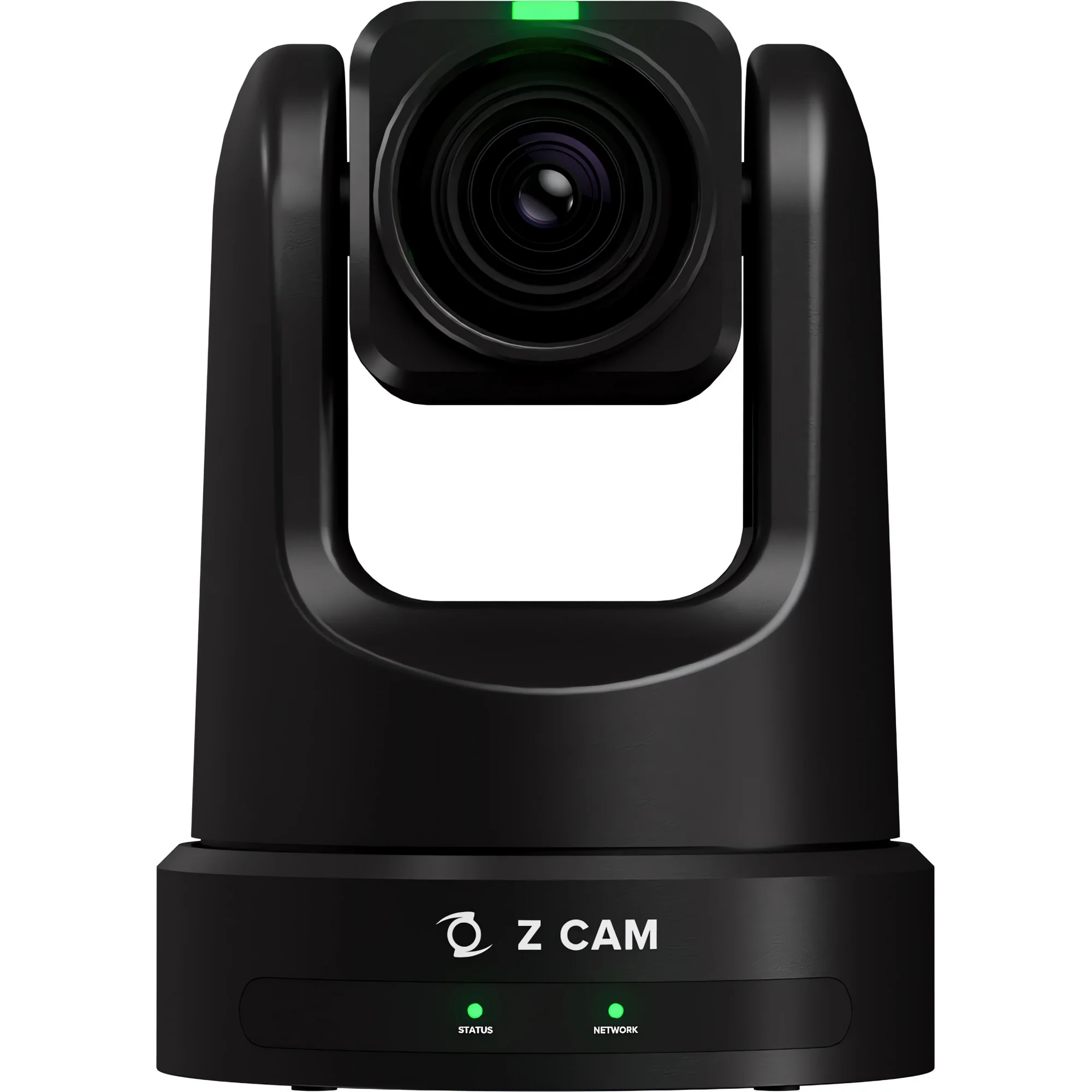

PTZ Camera with Stunning Image Quality
Key features:
P2-R1 24x zoom
1/1.5" Sensor Size
32mm to 768mm Focal Length (35mm equivalent)
iris Enabled
PDAF Auto Focus
4K 60FPS Video
AI Auto Framing
Stunning Image
Now iris-Enable
Easily control, manage and monitor your Z CAM P2-R1, anytime, anywhere, just via the cloud in your browser. No extra hardware required!
PDAF - Phase Detection Auto Focus
Boasting quick and accurate capabilities, PDAF achieves state-of-the-art auto focus for professional shooting.
AI Auto Framing
AI-powered real-time intelligent target tracking enables the P2-R1 to deliver perfectly framed shots at all times.
Face Registration
Register faces to increase tracking priority.
Multi-target
Enable simultaneous recognition and tracking of multiple human targets.
Tracking Zone
Set specific boundaries for tracking activation.
Multiple Color Matrix
6 groups of RGB cross adjustment for precise customization of image colors.
What's in the box
Z CAM P2-R1 PTZ Camera Body
12V AC-DC Power Adapter & AC Cable
Ceiling Mount Bracket
Remote Controller
Technical Specifications
Imaging
Image Sensor: P2-R1(N) 24x zoom: 1/1.5" CMOS sensor
Image Stabilization: E.I.S.
Horizontal Resolution (TV Lines): 2160 TV Lines
Focus Control: PDAF (Phase Detection Auto Focus), Manual Focus
Built in ND Filter: No
Image Profile: Rec 709, Cine, High Contrast, Vivid, HLG, HLG Vivid, Concert, Gamma
Exposure Control
Shutter Speed: 1/10000 to 1 second
Gain: P2-R1(N) 24x zoom: 0 to 36 dB (ISO 200 to 12800)
White Balance: Auto, Incandescent, Cloudy, D10000, Fluorescent, Indoor, Daylight, Shade, Manual, Expert
Lens
Focal Length: P2-R1(N) 24x zoom: 32mm to 768mm (35mm equivalent)
Maximum Aperture: P2-R1(N) 24x zoom: f/1.6 (W) / f/4.5 (T) to f/7.1
Optical Zoom Ratio: P2-R1(N) 24x zoom: 24x
Minimum Focus Distance: P2-R1(N) 24x zoom: Wide - 6.5mm, Tele - 156mm
Max Digital Zoom: P2-R1(N) 24x zoom: 48x (in 1080p)
ND: No
Field of View: P2-R1(N) 24x zoom - Horizontal: 60º to 3.2º
OLPF: No
Video Capture
External Recording Modes:
HDMI 2.0:
UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080i) at 50/59.94 fps
SDI / BNC:
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080i) at 50/59.94 fps
RJ45 / USB:
UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 24/25/29.97/50/59.94
Audio Recording : 3.5 mm TRS (Mic in / Line in)
Internal Recording Modes: HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94/120fps max
Broadcast Output: NTSC / PAL
IP Streaming:
RTMP, RTMPS, RTSP, SRT, SSP, NDI_HX3*
UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 24/25/29.97/50/59.94
Control
Presets: 256 via CGI, 100 via VISCA, 9 via IR
Tally Light: Yes
Move Speed: Pan: 0.1 to 180º/sec, Tilt: 0.1 to 180º/sec
Supported Control Methods:
IR
VISCA over RS-422
VISCA over IP
Web Client
USB
Movement Range: Pan: 350º (-175º to +175º), Tilt: 240º (-30º to +210º)
FreeD: Yes
Movement Accuracy: 0.01º

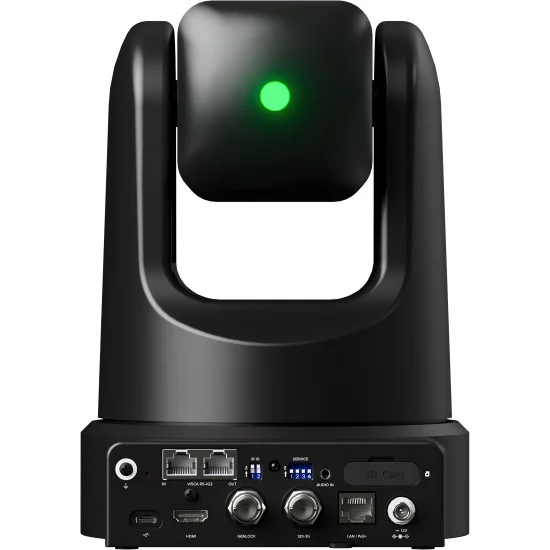

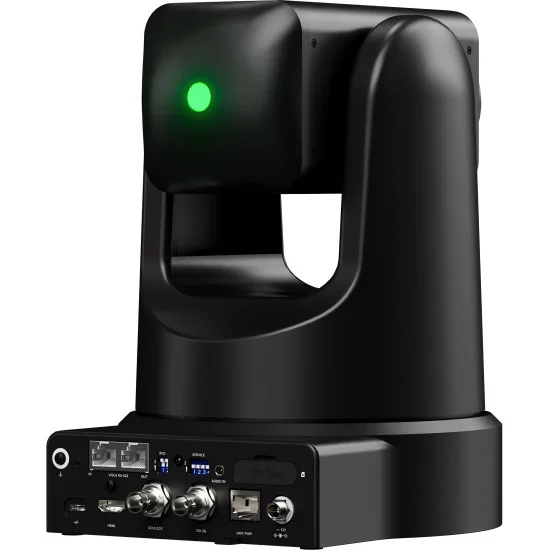

Interface
Media / Memory Card Slot: SD (4K 60fps max, H.265, 8-bit color)
Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Video I/O:
1x BNC (3G-SDI) Output
1x RJ45 (IP) Output
1x HDMI 2.0 Output
1x USB-C 3.0 Gen 1 Output
Other I/O:
1x BNC (Genlock) Input
1x RJ45 (VISCA / RS-422) Input
1x RJ45 (VISCA / RS-422) Output
Power
PoE Support: PoE+ 802.3at
Power Consumption: 18W maximum
Power I/O: 1x Barrel (12V DC) Input
Environmental
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
General
Mounting: 3/8" Screw Hole + 1/4" Adapter, Desktop / Ceiling / Wall Mount (Optional accessory)
Environmental Resistance: No
Certifications: CE, FCC, RoHS
Color: Black

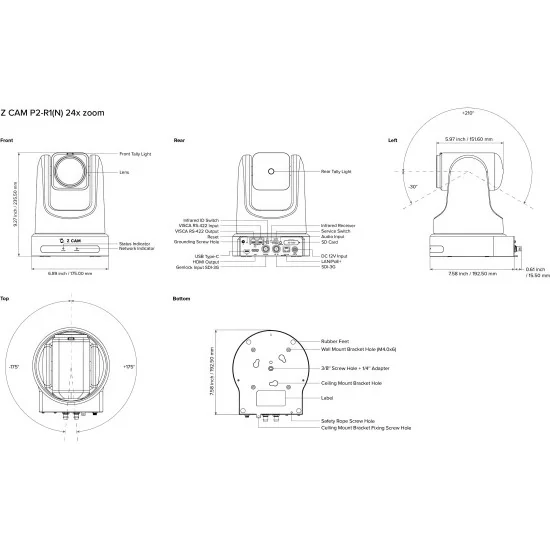

Dimensions (W X H x D): P2-R1(N) 24x zoom: 6.8 x 9.3 x 7.6" / 175.0 x 235.5 x 192.5mm
Color: Black
Weight: P2-R1(N) 24x zoom: 6.77 lb / 3.07 kg (Camera Unit only), 11.4 lb / 5.17kg (Full Package)
Fanless Design: Yes
*NDI_HX3 will be offered as an upgrade license, available for separate purchase.
