The AVMATRIX PKC4000 is a network and serial PTZ camera controller for control rooms that need fast recall, tactile operation and broad protocol support. Its 5-inch touch screen works with a 4D joystick, dedicated knobs and assignable keys, so pan, tilt, zoom, focus, exposure and white balance can be adjusted directly from the panel. In live event, conference, education or studio environments, that physical control helps the operator react faster than touchscreen-only control.
PKC4000 supports VISCA, VISCA over IP, ONVIF, Pelco-D and Pelco-P, with control over IP, RS-232, RS-422 and RS-485. This gives one controller a place in mixed installations where legacy serial PTZ cameras work alongside newer IP models. The unit can organise cameras into 10 groups, address up to 100 cameras on one network and store up to 255 presets, which is practical for recurring positions such as a lectern close-up, wide stage shot, audience angle, interpreter frame or tabletop demo view.
The integrated touch display is also used for real-time monitoring, helping the operator confirm framing while adjusting movement and lens parameters. Quick access to iris, shutter, gain, autofocus and white balance makes the controller useful not only for movement control, but also for day-to-day image adjustment from the same surface. Camera track recording and playback are especially valuable in conference rooms, training centres, telemedicine spaces and education facilities where the same camera move must be repeated across multiple sessions without rebuilding it manually each time.
In multi-camera production, AVMATRIX PKC4000 also brings practical integration features such as PoE+, external DC powering, Tally GPIO and browser-based system management. It can follow preview and program logic with compatible switching systems, which helps keep PTZ selection aligned with what is being prepared and what is already live. For streaming studios, broadcast control rooms, medical production spaces and corporate event setups, it is a focused PTZ joystick controller for operators who need dependable camera control across different protocols and installation types.

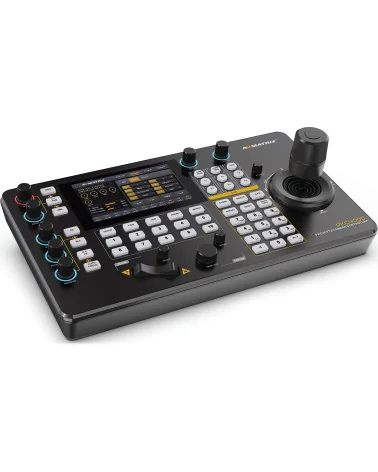

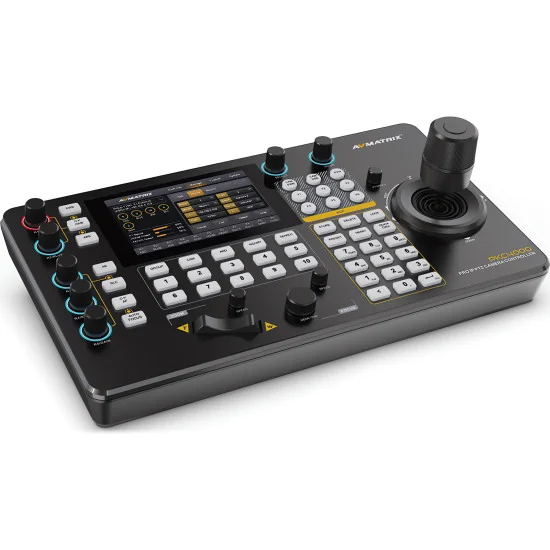

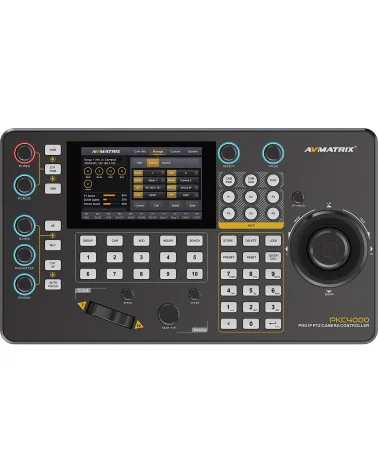

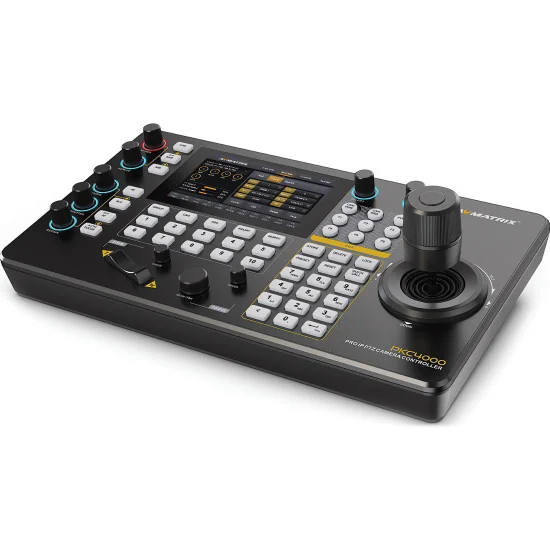

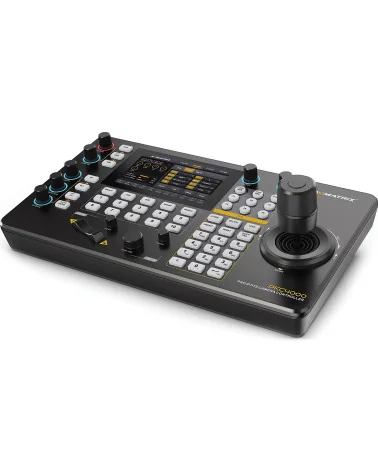

AVMATRIX PKC4000 PTZ Camera Controller
PKC4000
Price: €549.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
The AVMATRIX PKC4000 is a network and serial PTZ camera controller for control rooms that need fast recall, tactile operation and broad protocol support. Its 5-inch touch screen works with a 4D joystick, dedicated knobs and assignable keys, so pan, tilt, zoom, focus, exposure and white balance can be adjusted directly from the panel. In live event, conference, education or studio environments, that physical control helps the operator react faster than touchscreen-only control.
PKC4000 supports VISCA, VISCA over IP, ONVIF, Pelco-D and Pelco-P, with control over IP, RS-232, RS-422 and RS-485. This gives one controller a place in mixed installations where legacy serial PTZ cameras work alongside newer IP models. The unit can organise cameras into 10 groups, address up to 100 cameras on one network and store up to 255 presets, which is practical for recurring positions such as a lectern close-up, wide stage shot, audience angle, interpreter frame or tabletop demo view.
The integrated touch display is also used for real-time monitoring, helping the operator confirm framing while adjusting movement and lens parameters. Quick access to iris, shutter, gain, autofocus and white balance makes the controller useful not only for movement control, but also for day-to-day image adjustment from the same surface. Camera track recording and playback are especially valuable in conference rooms, training centres, telemedicine spaces and education facilities where the same camera move must be repeated across multiple sessions without rebuilding it manually each time.
In multi-camera production, AVMATRIX PKC4000 also brings practical integration features such as PoE+, external DC powering, Tally GPIO and browser-based system management. It can follow preview and program logic with compatible switching systems, which helps keep PTZ selection aligned with what is being prepared and what is already live. For streaming studios, broadcast control rooms, medical production spaces and corporate event setups, it is a focused PTZ joystick controller for operators who need dependable camera control across different protocols and installation types.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
AVMatrix PKC4000 is a PTZ camera controller with IP and serial interface, touch screen and joystick.
- Easy operation with 5" touch screen and 4D joystick
- Supports video decoding for real-time signal monitoring
- Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols, NDI version also supports NDI|HX
- Control over IP, RS-422, RS-485 and RS-232
- Automatic IP address assignment for quick setup
- Manage up to 100 IP cameras on a single network
- Six user-assignable buttons for quick access to functions
- Quickly control exposure, aperture, focus, pan, tilt, etc.
- Supports PoE and external 12 V= power supply
The touchscreen installation camera controller offers easy and intuitive operation with a 5" touchscreen and 4D joystick. It supports Visca, Visca Over IP, Pelco P&D and Onvif protocols and allows control via IP, RS-422, RS-485 and RS-232 interfaces. With real-time video monitoring, automatic IP address assignment and management of up to 100 IP cameras, it ensures efficient PTZ camera operation. Support for video decoding enables real-time signal monitoring and provides users with live feedback for accurate setup. Automatic IP address assignment simplifies the setup process, while the controller's ability to manage up to 100 IP cameras on a single network makes it suitable for large-scale productions. In addition, the panel features six user-assignable buttons for quick access to basic functions and offers dedicated controls for adjusting exposure, aperture, focus, pan, tilt and more. The device can be powered via PoE or a 12V DC power supply, and an NDI version is available for those requiring advanced IP video workflows.
CONNECTIONS
Interfaces: IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade)
IP Protocol: ONVIF, VISCA-IP
Serial Protocol: PELCO-D, PELCO-P, VISCA
Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200 bps
LAN Port: 100M×1 (PoE/PoE+: IEEE802.3 af/at)
USER INTERFACES
Display: 5 Inch Touch Screen
Joystick: Pan/Tilt/Zoom
Knob: Quickly control iris, shutter speed, gain, auto exposure, white balance, etc
Camera Group: 10 (Each group connect up to 10 cameras)
Camera Address: Up to 100
Camera Preset: Up to 255
POWER
Power: PoE+ / DC 7~24V
Power Consumption: PoE+: < 8W, DC: < 8W
ENVIRONMENT
Working Temperature: -20°C~60°C
Storage Temperature: -20°C~70°C
DIMENSION
Dimension(LWD): 340mm×195mm×49.5mm, 340mm×195mm×110.2mm (With joystick)
Weight: 1730g
PKC4000
Data sheet
- Interface
- Ethernet
- Control protocol for PTZ cameras
- ONVIF
PELCO-D
PELCO-P
RS-232
RS-422
RS-485
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- Yes
Specific References
- ean13
- 6971118002801
- mpn
- PKC4000
