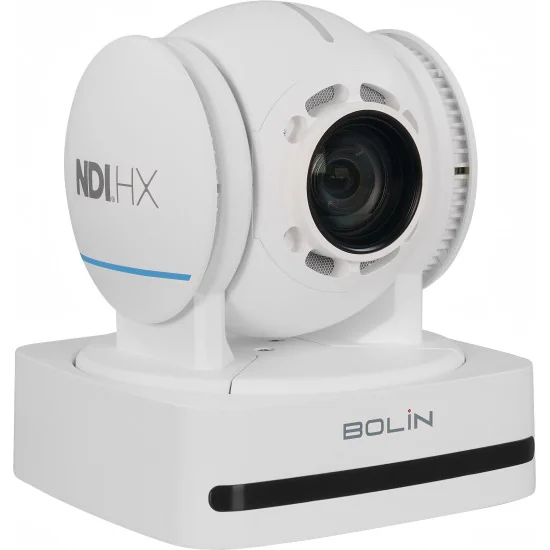

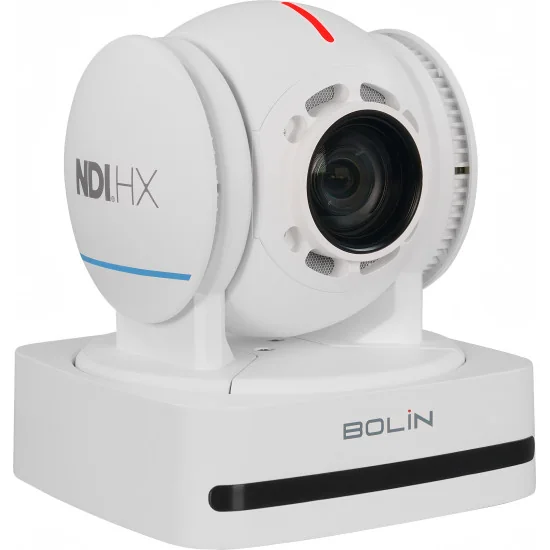

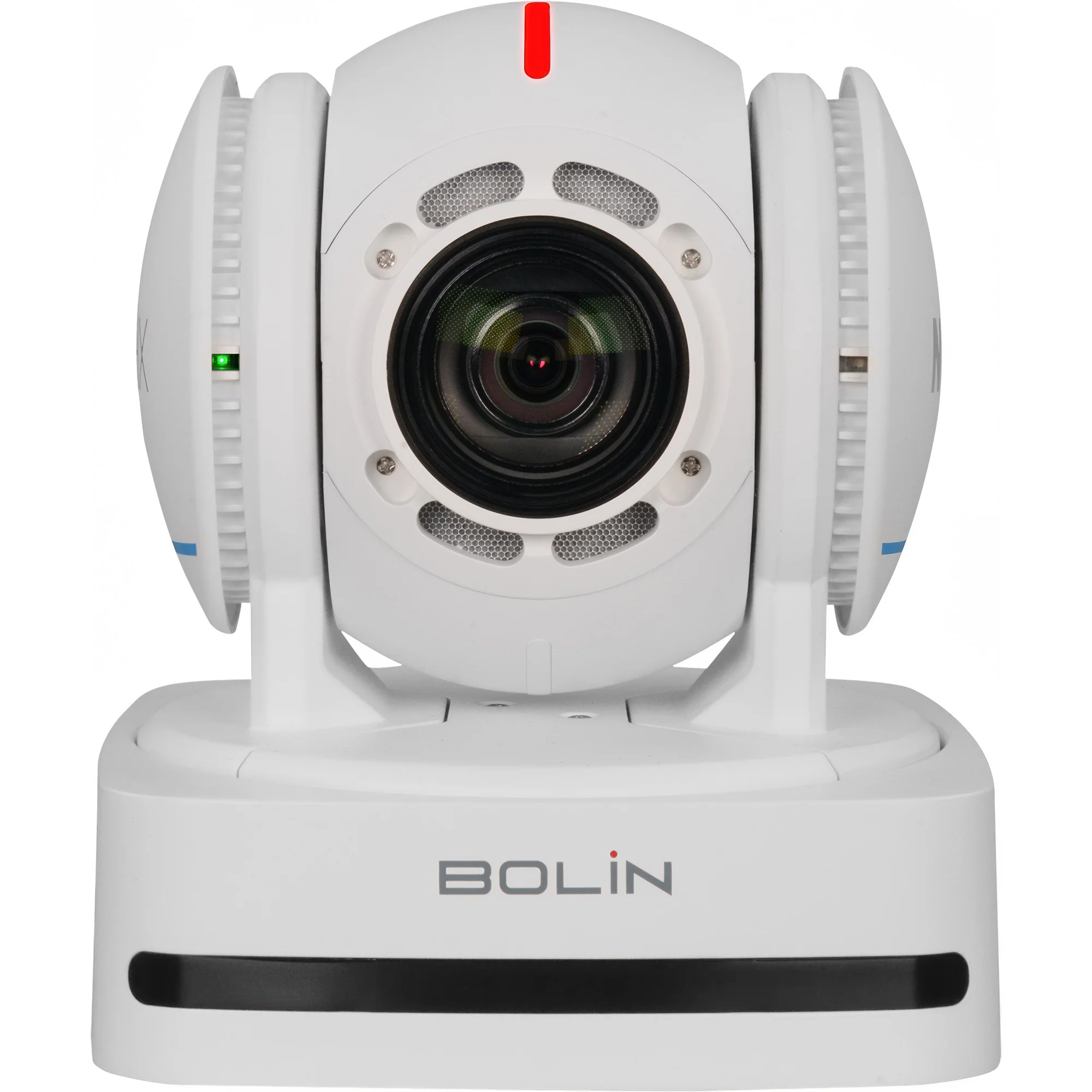

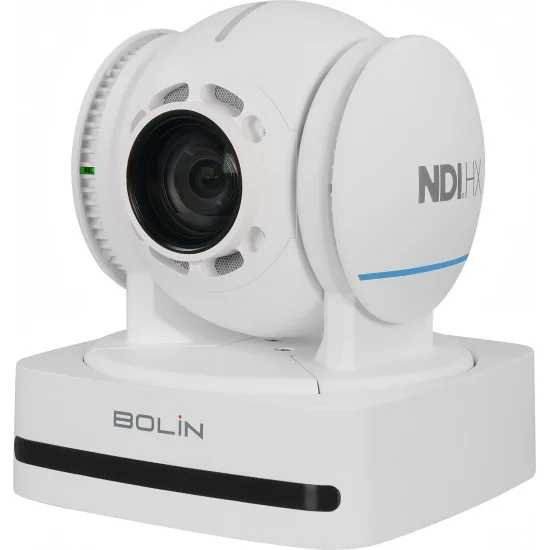

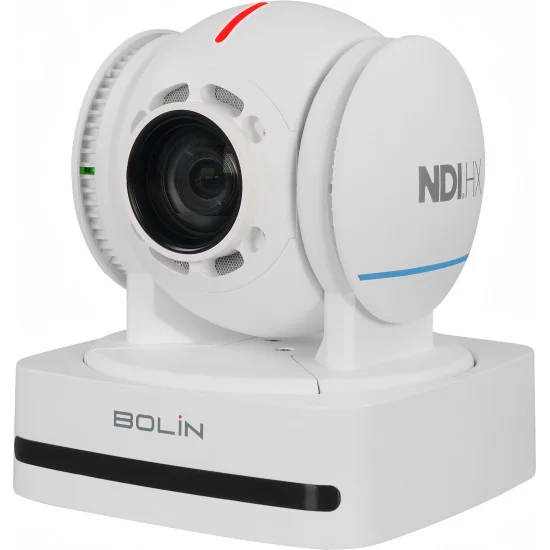

The Bolin N2-210X, N2-220X FHD NDI HX3 PTZ Cameras provide high-quality Full HD video in a compact and budget-friendly design, making them an excellent choice for live production, video conferencing, studios, Pro AV applications, and houses of worship. Built on Bolin’s Blue Line platform, these cameras offer professional features at an affordable price, without compromising on image quality, industry standards, or smooth PTZ control.

Both models support Certified NDI HX3, HDMI, USB, and IP streaming. The N2-210X offers a 10x zoom, providing wide-angle shots ideal for conference rooms and collaborative workspaces. Both models maintain consistent image quality across all outputs, delivering sharp detail, accurate colors, and smooth motion, whether used for live events, streaming, or professional video calls.

Designed for versatility in any setup, these cameras are compact enough to fit into tight spaces while offering precise PTZ movement for controlled, professional framing. NDI HX3 support ensures efficient, high-quality IP video transmission, reducing bandwidth demands without sacrificing performance.

IEC 60601-certified, meeting medical safety and electromagnetic standards for use in clinical, surgical, and healthcare education environments.

The N2-210X and N2-220X provide a cost-effective solution for professionals looking for reliable, high-quality video, flexible connectivity, and smooth PTZ operation in a compact, well-built design.

Color Matrix
■ Convenient access to image Color Matrix via WebUI
■ Easy adjustments to Gain and Hue for RGBCMY
■  Results instantly visible in the WebUI preview
Another Gold Standard feature of the Blue Line is the Color Matrix. With it, you can easily make subtle and specific corrections to the colors in your camera’s image.

NDI IP Streaming
■ Bolin's N-Series PTZ cameras support NDI® HX3 and are fully compatible with NDI-enabled hardware and software.
■ Remotely view smooth and stable video streaming (up to 1080p60) plus audio over an IP network via web browser and video decoder.
■ Supports RTSP, RTMP for online video and live streaming.
■ Cross Browser Compatibility - HTML5 support for Edge, Chrome, Firefox, and Safari browsers without plugin.
■ Full function PTZ camera IP control via Visca Over IP protocol.
■ Integration with popular VMS - ONVIF for IP video control, record and management.

SRT Ready
Delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over unstable networks.
■ High quality video image
■ Low latency
■ Secure end-to-end transmission
■ Leveraging the internet
■ Open source

The ways that you have the camera under control
■ N2 Series NDI PTZ camera provides comprehensive  methods of controlling: NDI Control, Serial port RS422/485 and IP, Rest API software control. Protocols supported: VISCA, Pelco, VISCA Over IP and ONVIF IP.

AI Powered Auto Focus and Auto Exposure
■ Built with Bolin’s latest AI-powered facial analytics engine, which enables smart focus and smart exposure to provide faster, more precise focusing and improved auto exposure on faces in complex lighting environments.

IEC 60601-Certified Medical Grade
IEC 60601-certified, meeting medical safety and electromagnetic standards for use in clinical, surgical, and healthcare education environments. The compact design and NDI®|HX3 support enable easy integration into telemedicine systems, operating rooms, simulation labs, and remote training workflows. Compatible with platforms such as NDI Tools, OBS, vMix, Panopto, IP-video workflows, and hospital-grade video networks, these cameras deliver flexible and standards-compliant imaging in demanding medical settings.

Features

High-Quality Imaging - Full HD
Bolin’s NDI HX3 PTZ cameras are equipped with Sony sensor to provide brilliant, high-quality images in 1080p60 resolutions with 10x optical zoom.

PTZ Movement
Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Preset: Image parameter settings restored with presets and quick access operation.

Video Output
N2 NDI HX3 PTZ cameras deliver NDI IP streaming video to network and are fully compatible with NDI-enabled hardware and software, with local HDMI video and USB streaming to PC software for conventional video production and cloud based video conferencing applications.

Remote Control and Setup PTZ Camera
Supports traditional serial RS232, RS422/485 via VISCA and Pelco P/D protocol, and IP remote control over network via Visca-over-IP and Onvif IP protocol, IR remote control.

Video Settings
Image parameter adjustments include exposure, focus, iris, shutter speed, white balance, color matrix, gamma, wide dynamic range, E-flip/mirror and more with configurable video settings.

Ease of Installation and Use
Simply connect one network cable from camera to any 1GB Ethernet network/POE device to access to existing IP network and HDMI/SDI cable to baseband video work flow. Standard mounting and ceiling mounting with E-Flip function.

AI Featured Smart Focus and Exposure
Built with Bolin’s latest AI-powered face analytical engine which enables precise smart focus and smart exposure to bring customer a greater level of user experience and effective image quality improvement in a complex user environments.

Always Up to Date
Firmware updates, upgrade via USB and IP interface to keep camera features and performance up to date.

Audio
HDMI/SDI/USB and IP video streaming signal has high–quality audio streaming embedded with support for Mic-in and Line-in audio input.

NDAA Section Statement of Compliance
Bolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defense Authorization Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.

Specifications

CAMERA
Image Sensor: Sony Progressive scan CMOS image sensor 1/2.8 type
Number of effective pixels: 1920X1080, 2.13 MP
Zoom: Optical Zoom 10X, Digital Zoom 16X
Focal Length: f= 4.34 mm (Wide) to 35.17 mm (Tele)
Aperture: F1.85 (Wide) to F2.63 (Tele)
Horizontal Angle of View: 68.8 °(W)~8.8° (T)
Vertical Angle of View: 39.5° (W)~5.1° (T)
Min. object distance: 10mm (Wide)
Min. Illumination: 0.5lux（color），0.1lux（black）
Shutter Speed: 1/25~1/100K sec
Focus: Auto, Manual, One Push
White Balance: Auto, Indoor, Outdoor, OPW, ATW, Manual, SVL USER
Exposure: Auto, Manual, Shutter/Iris priority
Image Adjustment: Brightness, Color(Saturation), Contrast, Sharpness, HUE
Back Light Compensation: On/Off
E-Flip: On/Off
WDR: On/Off
Image Stabilizer: -
Defog: Yes
Mirror: Horizontal
Day/Night: On/Off
Contrast: Yes
Color Gain: Yes
Color Hue: Yes
Color Matrix: Yes
Black Level: -
Gamma: Yes, 4 levels (0.45, 0.50, 0.55, 0.63)
High Sensitivity: Yes
Scene: Default, Clear, Bright, Soft
Focus Zone: Face Priority, All Area, Upper Area, Central Area, Lower Area
AI Face Detection Focus: Yes
AI Face Auto Exposure: Yes
Noise Reduction: 2D/3D, 0-100
S/N Ratio: ≥50db
OSD: Editable

HDMI SIGNAL SYSTEM
Video Format - HDMI: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
Color Format: 8bit(RGB), 12bit(YUV422),
Color Space: YUV, RGB
OSD Menu Display: YES

USB SIGNAL SYSTEM
USB Port: USB2.0,Type C
Encoder: H.264/MJPEG/YUV2
USB Video Format: 1920×1080p60/50/30/25fps ,1280X720p60/50/30/25fps
Compatible Integration: UVC，UAC
Video Conference Compatibility: Most video conference platform in the market

NETWORK-IP STREAMING
Video Codec: NDI HX3, MJPEG, AVC/HEVC-H.264/265 by SoC
Network Interface: RJ45 port-Standard 1Gbps Ethernet
IP Video - 1st Stream: 1920×1080p60/59.94/50/30/29.97/25fps ,1280X720p60/59.94/50/30/25fps
IP Video - 2nd Stream: 704x576, 640x480, 640x360, 576x480, 352x228; Frame Rate P30/25
True Dual Output: Video resolution and framerate: IP and HDMI can be output with different format (SDI and HDMI will be the same, SDI is the same or lower than HDMI, USB is the same as IP)
IP Protocols: TCP/IP, ICMP, ARP, RTP, UDP, HTTP, DNS, DHCP, FTP, NTP, NDI
Application Protocols: RTP, RTSP, RTMP,RTMPS, SRT, NDI
Multi-stream: 2 Streams（Up to 8 viewers at the same time）
Audio Compression: AAC-LC, Broadband Audio Encoding
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP, NDI
OSD: Customized OSD
Browser Support: Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari
Latency Codec: NDI Certified <100ms
Bandwidth: 1Mbps - 100Mbps
Back Light Compensation: Results may vary depending on network configuration and management settings.
NDI Bridge: Yes, with NDI 6 supported

INTERFACE
HDMI Video Output: HDMI 1.4X1 Type A
IP Video Stream: Up to 1080p60
SDI Video Output: -
Camera Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
Control Protocol: VISCA. VISCA Over IP, Pelco P/D, Onvif, NDI
LAN Port: RJ45X1 (1000BASE-T Ethernet port)
USB Port: USB2.0,Type C
USB Protocol: UVC，UAC
Synchronization: Internal synchronization
Tally Light: Tally lamp in front, Red and Green Color
Dip Switch: Camera bottom panel: 8 PIN x 2
Firmware Upgrade: Upgrade via IP for camera system MCU and Encoder
IR ID: ID selector for IR controller, total 3
Power Connector Type: DC12V (IEC60130-10 (JEITA standard RC-5320A) TYPE4) , INPUT: RJ45, PoE(IEEE802.3af)
Audio Input: MIC/LINE input, 3.5mm audio jack, AAC（Bit Rate(bps)48K*/64k / 96K / 128k; Sampling Rate(bps)44.1k / 48k
Audio Output: Embedded with HDMI, SDI, IP, USB streaming, 24bit Stereo, sample rate: 44.1KHz, 48KHz, PCM24
Audio S/N Ratio: ≥85dB
Audio THD+N: ≤0.05%
Audio Noise (RMS): ≤-90dB

MECHANICAL
Pan Movement: Horizontal:±170 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜70°/S)
Speed Proportional: Pan/Tilt Speed proportional to zoom range
Preset Position: 255 positions, Speed 100°/s, Accuracy: 0.05° 9 presets on remote controller
Preset Speed: 0~5 Level Adjustable
Preset Memory: YES, ( Picture Profile Preset-Preset Memory for image parameters, like: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: On/Off
PTZ Trace Memory: Yes, 4 (Supported via IP interface)
Cruise: Yes, 12
Adaptive PT: Zoom range adaptive Pan/Tilt speed
Pan/Tilt Direction: Normal, Invert
Quietness: NC35 or less
Home Position: Support
Environmental: Indoor

GENERAL
Body Partial: Magnesium Alloy
Mount: Ceiling mount, Wall mount, Tripod
Size of Tripod Screw Hole: 1/4”-20UNC with safety joint
Operating Temperature: -10 to +50 (°C), 32 to 130 (°F)
Operating Humidity: ≤80% Suitable for Use
Power Input: DC±12V, PoE+ (IEEE802.3 at Type 1 Class 4)
Power Consumption: Min:10W(Static state with no movement); Max:13W(Fully loaded operation)
Dimension: 143x143x161mm (LxWxH)
Weight: 1.5kg (Net weight)
Body Color: Available in Black, White
Certificate: CE, FCC, IC, UKCA, ROHS, WEEE, IEC60601 (Medical Grade)

ACCESSORY
Power Supply: 12VDC 2A X1, Universal various power core.
Remote Controller: Full Function IR Controller X1
Serial Control Adaptor: RS232/RS422 adapter cable x1 For serial RS232/422 control
