Sixteen camera feeds, one strand of glass. That is the arithmetic behind the FieldCast Mux + Demux Three 3G Plus, a matched multiplexer and demultiplexer pair that collapses a whole multi-camera trunk line onto a single single-mode fibre core. The mux sits at the camera end, the demux in the control room or OB truck, and the link stretches to 40 km over 9/125 fibre — a reach no coaxial run will cover. A simplex cable suffices, so a two-core tactical reel leaves a spare core for a redundant second pair.
Each channel handles 3G-SDI at 2.97 Gb/s, with SMPTE 259M, 344M, 292M and 424M conformance covering every SD and HD standard through 1080p60. All sixteen 75 Ω BNC inputs carry a reclocked loop-through, so a local monitor or recorder can tap a feed before it reaches the fibre, while the demux answers with dual SDI outputs per channel — one to the switcher, one to multiviewer. Nothing is compressed en route: thin-film CWDM multiplexing gives each feed its own wavelength, so what enters the mux leaves the demux bit-for-bit identical, with no codec latency to absorb in a live cut.
Control data travels with the pictures. Both units carry a full-duplex 1 Gb Ethernet port on RJ-45, running IEEE 802.3u and 802.3z across the same COM fibre channel as the video. Hang a hub off the mux and camera control reaches RCP panels, a switcher or a production laptop at the far end as though a Cat5 run were still in place. Paint control at a stadium, PTZ commands across a conference campus, tally and intercom on a festival site — all of it shares the glass with the video. A second, unused LC single-mode channel sits beside the COM port for extra capacity later.
Both boxes are 1RU all-aluminium, mains-fed at 110–240 V AC through a PowerCon connector and drawing under 50 W each. Warm-white LEDs on the black front panel report power, module activity, input presence, TP/LNK and 1 Gb link, so an engineer reads the whole chain at a glance. Standard configuration is unidirectional — sixteen in, sixteen out — with LC (U)PC connectors fitted as default, which makes the pair a predictable specification for stadium installs, remote production and touring rigs.

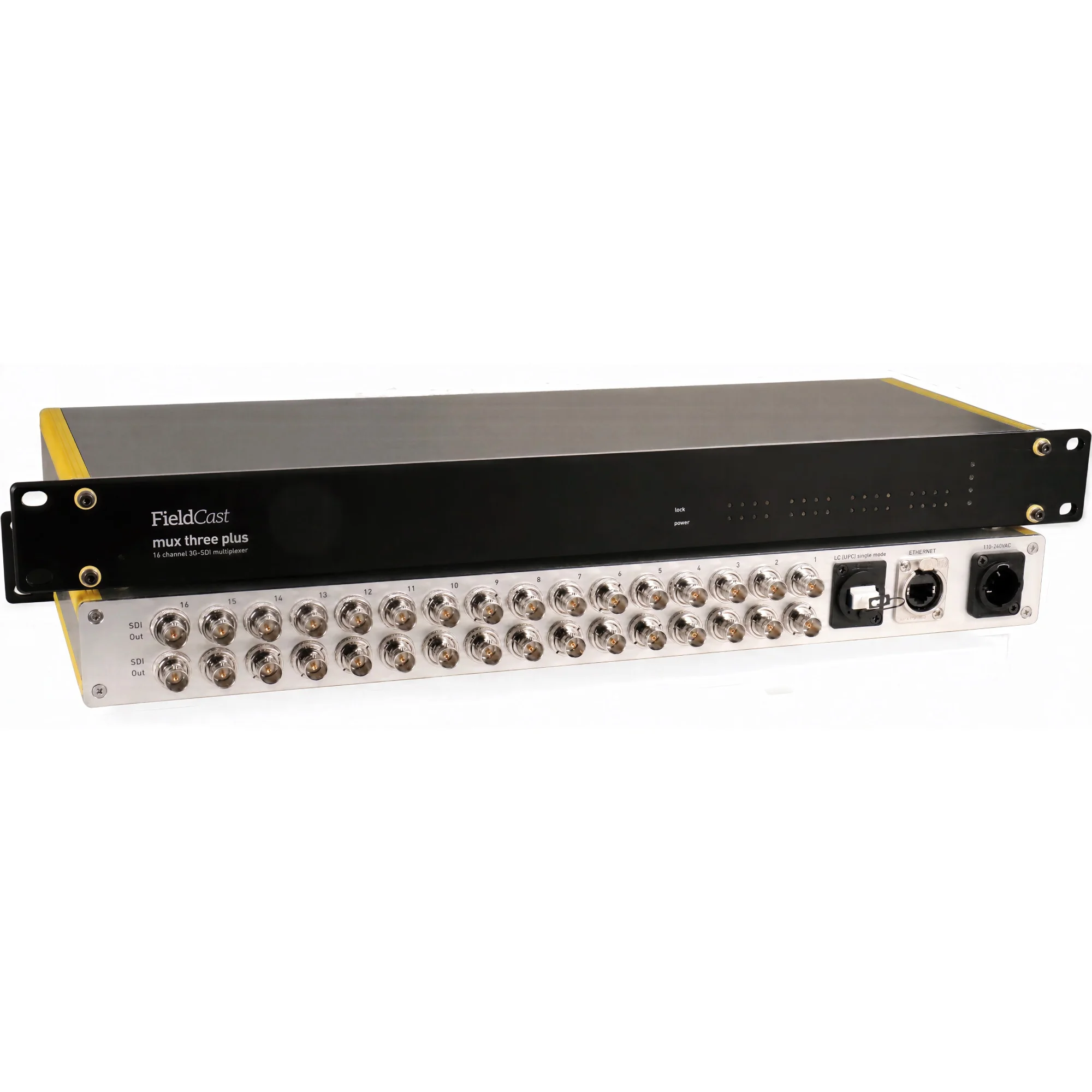

FieldCast Mux + Demux Three 3G Plus 16x 3G-SDI over One Fiber
CO132
Price: €9,999.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Sixteen camera feeds, one strand of glass. That is the arithmetic behind the FieldCast Mux + Demux Three 3G Plus, a matched multiplexer and demultiplexer pair that collapses a whole multi-camera trunk line onto a single single-mode fibre core. The mux sits at the camera end, the demux in the control room or OB truck, and the link stretches to 40 km over 9/125 fibre — a reach no coaxial run will cover. A simplex cable suffices, so a two-core tactical reel leaves a spare core for a redundant second pair.
Each channel handles 3G-SDI at 2.97 Gb/s, with SMPTE 259M, 344M, 292M and 424M conformance covering every SD and HD standard through 1080p60. All sixteen 75 Ω BNC inputs carry a reclocked loop-through, so a local monitor or recorder can tap a feed before it reaches the fibre, while the demux answers with dual SDI outputs per channel — one to the switcher, one to multiviewer. Nothing is compressed en route: thin-film CWDM multiplexing gives each feed its own wavelength, so what enters the mux leaves the demux bit-for-bit identical, with no codec latency to absorb in a live cut.
Control data travels with the pictures. Both units carry a full-duplex 1 Gb Ethernet port on RJ-45, running IEEE 802.3u and 802.3z across the same COM fibre channel as the video. Hang a hub off the mux and camera control reaches RCP panels, a switcher or a production laptop at the far end as though a Cat5 run were still in place. Paint control at a stadium, PTZ commands across a conference campus, tally and intercom on a festival site — all of it shares the glass with the video. A second, unused LC single-mode channel sits beside the COM port for extra capacity later.
Both boxes are 1RU all-aluminium, mains-fed at 110–240 V AC through a PowerCon connector and drawing under 50 W each. Warm-white LEDs on the black front panel report power, module activity, input presence, TP/LNK and 1 Gb link, so an engineer reads the whole chain at a glance. Standard configuration is unidirectional — sixteen in, sixteen out — with LC (U)PC connectors fitted as default, which makes the pair a predictable specification for stadium installs, remote production and touring rigs.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
16 channels of 3G SDI video plus Ethernet over one fiber core
Mux Three Plus 3G and its twin brother Demux Three Plus 3G, as a pair, allow you to transport sixteen independent channels of 3G SDI video plus full duplex 1 Gb Ethernet over just one fiber optic channel.
Is your infrastructure such that you only have access to one single mode (simplex) fiber optic connection? Mux Three Plus and Demux Three Plus can help you to get this all done, plain and simple.
Or else, do you want to roll out a minimum number of cables in live event environments? Just use Mux Three and Demux Three, multiplex up to sixteen channels of video plus Ethernet, and get all data from A to B using only one strand of fiber!
No hidden processing involved! All 3G video signals preserve full data integrity! What goes in comes out, unchanged.
And the Ethernet connection simply behaves like a Cat5 cable connecting your hubs!
Features
Transport over long distance
The mux/demux pair can transport video over distances of up to 40 km/24 mi for 3G SDI. The mux is typically placed at the camera side, and the demux at the control room side.
16 independent video channels with loop-through and dual output
The set supports 16 independent SDI video channels. The SDI inputs have a reclocked loop-through. The SDI outputs are dual. Hence, monitoring on both sides (input and output) is possible. The SDI input is typically connected to the camera’s SDI output. The SDI output is generally connected to the SDI input of a monitor or switcher.
16 independent bidirectional Ethernet channels
Both the Mux and Demux units contain one full-duplex 1Gb Ethernet port. The 1Gb Ethernet port is typically used to transport camera control data between the camera and the camera controller or switcher. Connect the cameras’ Ethernet ports to a hub, then connect the hub to the Mux’s Ethernet port. On the other side, connect the Demux’s Ethernet port to the camera controller/switcher’s Ethernet port, or connect to a hub if more data controller devices are needed, for instance, a camera controller and a laptop.
Transport over one fiber optic core
All information for up to 16 SDI video channels and their corresponding control data, back and forth, runs over a single fiber optic core. This means a simplex fiber-optic cable is sufficient to bridge the distance between mux and demux, saving on fiber-optic cable costs. Alternatively, if you have a fiber optic cable with 2 cores, you have 1 core (or channel) left for other fiber optic transport. You might, for example, use the free fiber optic core to connect to a second, similar Mux/Demux pair to add redundancy to your setup.
No compression
There is no signal processing involved, so there is no compression; full data integrity is guaranteed.
Unidirectional video by default
The standard model is unidirectional, meaning that 16 SDI signals go from mux to demux; it’s denoted as 16i/o, where ‘i’ stands for input and ‘o’ stands for output.
specifications
mux three plus 3G
• 16 channel SDI input to 1 channel fiber optic output multiplexer
• 1RU all aluminum enclosure design
• 9/125 single mode fiber optic technology
• sixteen 3G (2.97Gb) SDI input channels (1), each with SDI loopthrough (2)
• 75ohm BNC oonnectors for all SDI inputs and loopthrough outputs
• complies with SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M
• accepts all SD and HD standards up to 1080p60
• one LC single mode (U)PC fiber optic channel (COM) for all SDI signals and ethernet (3)
• one LC single mode (U)PC fiber optic upgrade (UPG) channel (4)
• Ethernet protocol: IEEE802.3U IEEE802.3z 1000Base-TxFx
• UTP RJ-45 connector for Ethernet, full duplex or half duplex (10)
• black front panel with 2mm. warm white led indicators
• one led indicator for power (5)
• led indicators for channel module activity (6), input activity (7), TP/LNK (8) and 1Gb (9)
• power consumption ← 50W
• robust thin film CWDM multiplexing technology
• maximum distance between Mux and Demux unit → 40km.
• 110-240VAC input with PowerCon connector (11)
• dimensions: 482(W) x 155(D) x 43(H) mm.
• weight: 2090 grams
• comes with manual and local power cord
demux three plus 3G
• 1 channel fiber optic input to 16 channel SDI output demultiplexer
• 1RU all aluminum enclosure design
• 9/125 single mode fiber optic technology
• sixteen 3G (2.97Gb) SDI channels with dual SDI output (1)(2)
• 75ohm BNC oonnectors for all SDI outputs
• complies with SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M
• accepts all SD and HD standards up to 1080p60
• one LC single mode (U)PC fiber optic channel (COM) for all SDI signals and ethernet (3)
• one LC single mode (U)PC fiber optic upgrade (UPG) channel (4)
• Ethernet protocol: IEEE802.3U IEEE802.3z 1000Base-TxFx
• UTP RJ-45 connector for Ethernet, full duplex or half duplex (10)
• black front panel with 2mm. warm white led indicators
• one led indicator for power (5)
• led indicators for channel module activity (6), input activity (7), TP/LNK (8) and 1Gb (9)
• power consumption ← 50W
• robust thin film CWDM multiplexing technology
• maximum distance between Mux and Demux unit → 40km.
• 110-240VAC input with PowerCon connector (11)
• dimensions: 482(W) x 155(D) x 43(H) mm.
• weight: 2100 grams
• comes with manual and local power cord
CO132
Data sheet
