Lumens CL511 60x Zoom 4K Ceiling Camera

Name: Lumens CL511 60x Zoom 4K Ceiling Camera
Brand: Lumens
SKU: CL511
Price: 1849.00 EUR
Availability: InStock

MPN: CL511

Price: €1,849.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

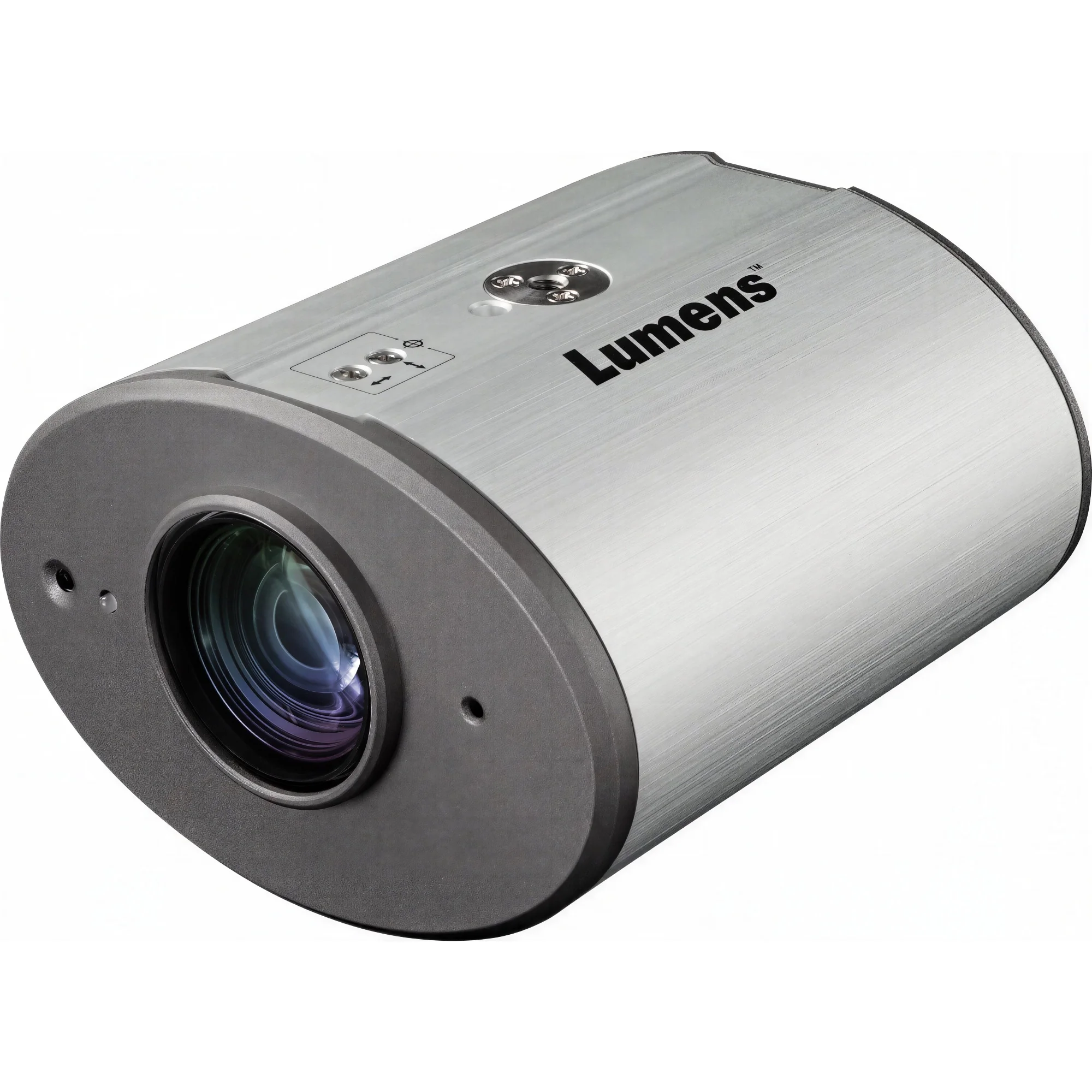

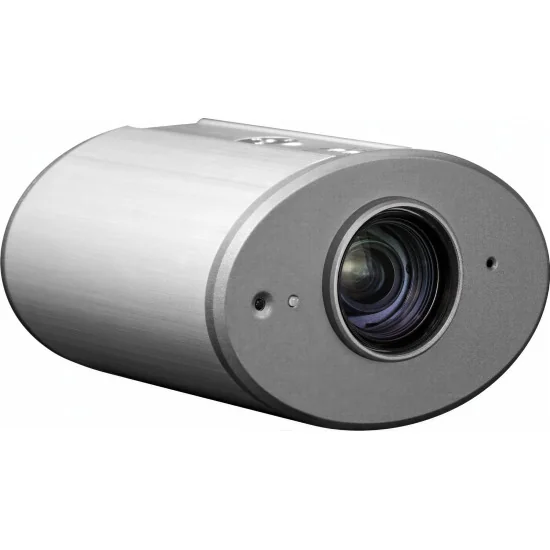

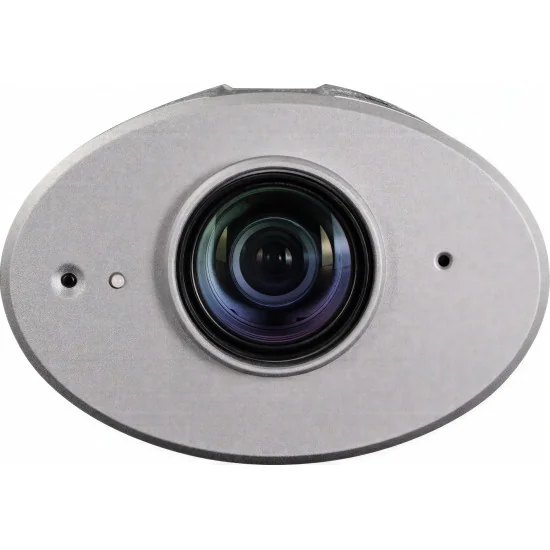

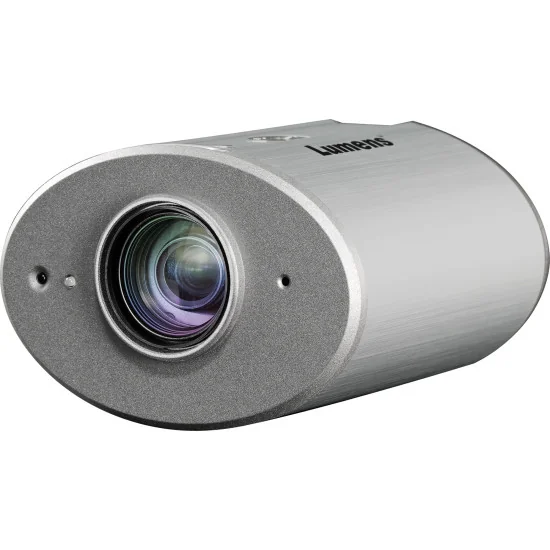

Mounted overhead rather than on a desk, the Lumens CL511 60x Zoom 4K Ceiling Camera reframes how technical teams capture anything that sits flat on a surface. Suspended from a rail or recessed into the ceiling, it gives a presenter a clean top-down view of a workbench, podium or demonstration table without an arm or stand crowding the shot. The 1/2.8" 8.6MP CMOS sensor records in 4K UHD at 30fps, sharp enough to read fine print on a schematic or the texture of a material sample, and the frame is wide enough to hold a document larger than A0 — roughly 2.2 by 1.2 metres — from a typical two-metre mounting height.

Reach is where the CL511 separates itself from a standard document camera. A 300x total zoom, built from 60x optical and 15x digital, lets an operator fill the screen with a single soldered joint or a line on an engineering drawing while the rig stays fixed above the table. A centre positioning laser marks the middle of the capture area, so placing an object dead-centre takes a second instead of a fiddly nudge-and-check. With the shooting area ranging from 2235 x 1211 mm down to 136 x 76 mm, one unit covers both the full-table wide shot and the extreme close-up.

Connectivity is built for live rooms. HDMI, VGA, USB and Ethernet outputs feed a projector, a large-format display, a capture card or a conferencing platform at the same time, while RTSP H.264 streaming pushes a 2160p30 feed straight onto the network for remote viewers. The USB host port records H.264 1080p60 to a flash drive of up to 4TB, and a built-in memory holds 100 still captures for instant before-and-after comparison — useful when an instructor needs to set a reference image beside a live sample during medical or laboratory training.

A wireless mouse opens the onboard tools: spotlight a region, freeze a frame or draw directly over the image with no PC in the loop, and bring in the bundled Ladibug software on Windows, Mac or Chrome OS for text overlay and 4K recording. PoE+ (IEEE 802.3at) carries data and power down a single network cable, which keeps ceiling installation tidy and trims cabling cost. RS-232, Ethernet and USB control, a Kensington lock and a five-year warranty round out a fixture built for courtrooms, lecture halls, culinary demonstrations and technical instruction.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

CL511 4K Ceiling Camera

4K UHD 30fps Resolution
300x Total Zoom
Supports RTSP streaming and PoE+
Central Laser Marking Positioning
5 Year Warranty

Sharp 4K UHD Overhead Video
Lumens CL511 can be suspended from, or embedded into the ceiling. It provides presenters an unobstructed top view of a table top, podium, or demonstration area. The camera can shoot documents or objects larger than A0 size (over 88" x 48" / 2.2m x 1.2m) at up to 4K resolution.

Accurate Positioning
The CL511 can project mark the middle of the shooting area with a targeting laser, making it quick and easy to position objects accurately in the center of the frame. With 300x close-up capabilities, the camera is ready to capture the finest details.

Step-Up Onboard Collaboration
The CL511 supports a wireless mouse to access onboard collaboration tools for spotlighting a particular area. It also enables free drawing without a PC or any software. The addition of Lumens Ladibug program gives users access to advanced features such as text overlay, 4K recording, and use with a touch panel.

Fast & Easy Installation

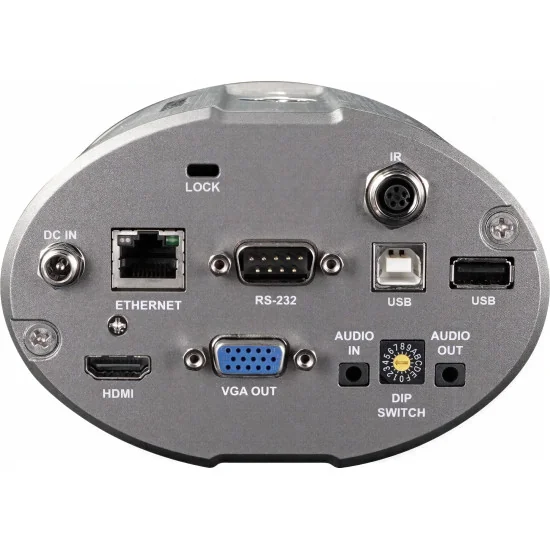

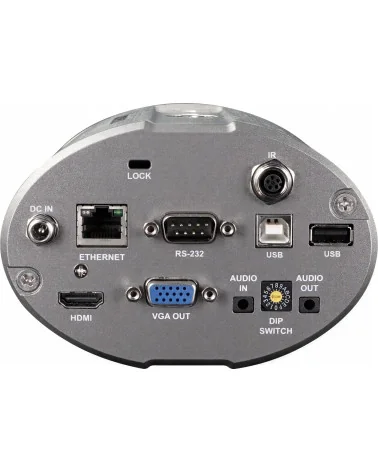

Featuring HDMI, USB, VGA, and Ethernet video outputs, users can output to video conferencing platforms, projectors and large format displays, and devices connected to the local network.

The CL511 also supports Power over Ethernet (PoE+). Using a standard network cable, the visualizer can be operated without additional power supplies. These features significantly reduce installation time and costs.

Specs.
Sensor: 1/2.8" 8.6MP CMOS
Video Format: 2160p: 30 / 25
1080p: 60 / 50
720p: 60 / 50
XGA
Video Output Interface: VGA / HDMI / USB / Ethernet
Total Zoom: 300x
Zoom: 60x
Digital Zoom: 15x
Sharpness: MTF 1100 lines
Shooting Area at 2m Height: Max: 2235 x 1211mm, Min: 136 x 76mm
Center Laser Mark for Positioning of Objects: Yes
Auto Tune: Yes
Picture in Picture (PIP): Yes
Slide Show: Automatically or Manually
Image Rotation: 0° / 90° / 180° / 270° / Flip / Mirror
Pan Across the Screen: Yes
HDMI: 2160p30 / 1080p60, VGA, 1080p60
IP Streaming: 2160p30
IP Compression: H.264
USB: H.264 2160p30 / MJPEG 1080p30
USB Video Format: H.264 / MJPEG / YUV
USB Host: Type-A x1
Supports USB 2.0 Flash Drive: USB Mouse and Keyboard
USB Flash Drive: Up to 4TB
Image Capture: Single or Continuous Capturing
Built-in Memory: 100 JPEG images
Video Recording: Yes
Recording Format: H.264 1080p60
Video Playback: Yes
IP Protocol: RTSP
PoE: PoE+ (IEEE802.3at)
Audio In: Line In Phone Jack 3.5mm x1
Audio Out: Line Out Phone Jack 3.5mm x1
Audio Compression Format: USB: PCM
Control Interface: RS-232 / Ethernet / USB
UVC: 1.1
UAC: Yes
Anti-Theft: Kensington Lock
IR Extender: Yes
Ladibug Software Included: Ladibug Software (Supports Windows 10, 8, 7 Mac OS X, Chrome OS)
DC In: 12V DC (100~240 VAC)
Power Consumption: PoE: 13W , DC In: 12W
Weight: 800g
Dimensions (W x H x D): 126 x 86 x 142mm
