Equipping a compact meeting room with broadcast-grade capture usually means cabling together a camera, a microphone array and a separate speaker. The Lumens MS-10S 4K Video Soundbar folds all three into one mountable bar, so a production team can standardise huddle spaces and client-facing rooms without juggling vendors or running extra cabling. A single USB connection carries video, audio, control and network traffic to the host laptop, which keeps installation predictable across multiple rooms.
Image quality rests on a 1/2.8" 8.29-megapixel CMOS sensor paired with a fixed F2.2 lens, feeding clean UHD 4K at 3840 x 2160. The 120-degree diagonal field of view takes in a full conference table, while 8x zoom and electronic pan-tilt frame tighter shots without a motorised head to maintain. Two features earn their keep in daily use: auto-framing reads how the room is occupied and adjusts the crop so nobody sits half out of frame, and voice tracking hands the active speaker to remote guests by zooming toward whoever is talking. Wide dynamic range and 2D/3D noise reduction hold detail when blinds are open or lighting is uneven.
Four omnidirectional beamforming microphones reach across roughly six metres, with echo cancellation and noise suppression stripping reverberation and HVAC hum before it reaches the call. A 20W speaker backed by a passive diaphragm carries natural speech to the far corners of small and mid-sized rooms, and distortion stays controlled as the level climbs. When a longer boardroom needs fuller coverage, the optional MS-EM1 expansion microphone adds a three-metre pickup on a five-metre lead, and a second pod can be chained for the most demanding layouts.
For IT and AV managers, the standout is data bridging: an onboard RJ-45 port lets the Lumens MS-10S pass wired Ethernet to the connected PC or Mac over that same USB cable, so a conferencing machine never has to lean on shaky Wi-Fi during a live session. The bar mounts above or below a display, locks down with a Kensington slot, ships with a remote and stores up to 128 presets over USB. Compatible with the major conferencing and unified-communications platforms and backed by a five-year warranty, it is a dependable building block for businesses rolling out consistent rooms at scale.

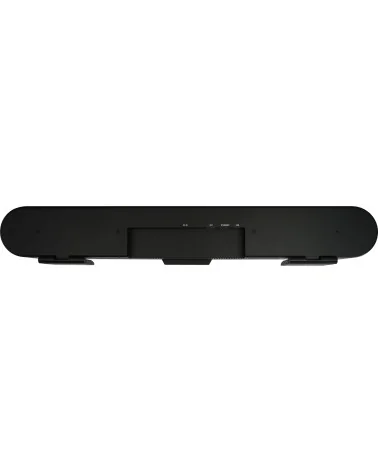

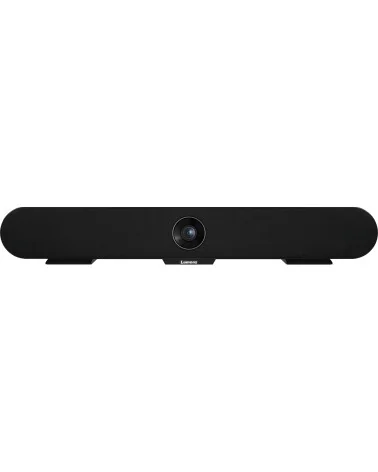

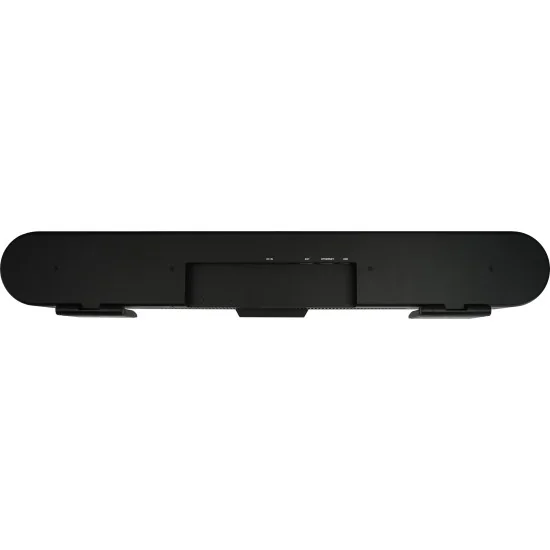

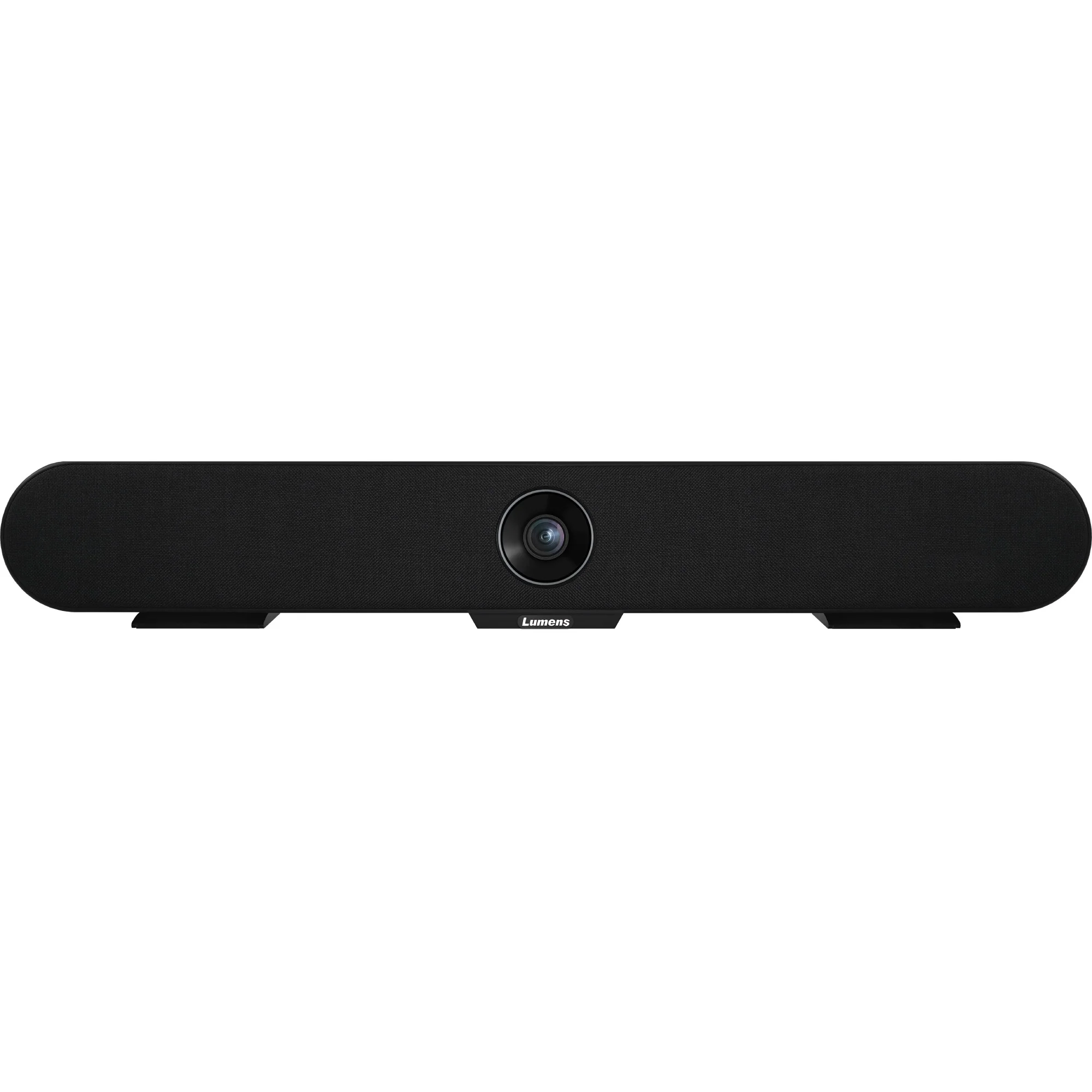

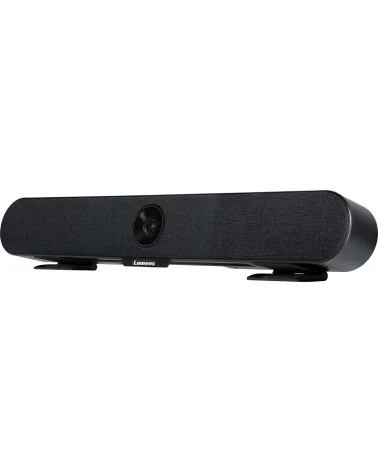

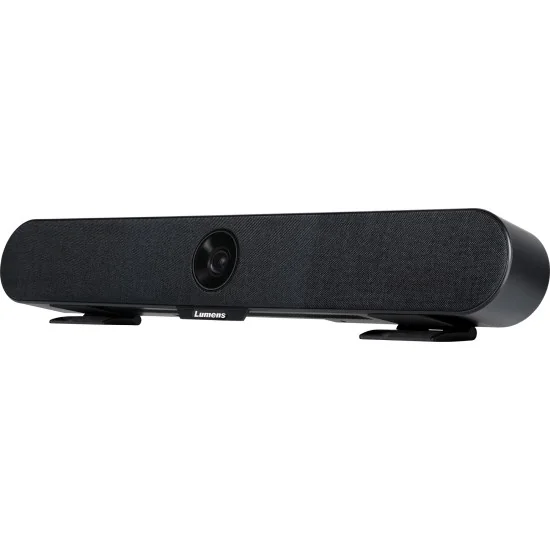

Lumens MS-10S 4K Video Soundbar
MS-10S
Price: €1,249.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Equipping a compact meeting room with broadcast-grade capture usually means cabling together a camera, a microphone array and a separate speaker. The Lumens MS-10S 4K Video Soundbar folds all three into one mountable bar, so a production team can standardise huddle spaces and client-facing rooms without juggling vendors or running extra cabling. A single USB connection carries video, audio, control and network traffic to the host laptop, which keeps installation predictable across multiple rooms.
Image quality rests on a 1/2.8" 8.29-megapixel CMOS sensor paired with a fixed F2.2 lens, feeding clean UHD 4K at 3840 x 2160. The 120-degree diagonal field of view takes in a full conference table, while 8x zoom and electronic pan-tilt frame tighter shots without a motorised head to maintain. Two features earn their keep in daily use: auto-framing reads how the room is occupied and adjusts the crop so nobody sits half out of frame, and voice tracking hands the active speaker to remote guests by zooming toward whoever is talking. Wide dynamic range and 2D/3D noise reduction hold detail when blinds are open or lighting is uneven.
Four omnidirectional beamforming microphones reach across roughly six metres, with echo cancellation and noise suppression stripping reverberation and HVAC hum before it reaches the call. A 20W speaker backed by a passive diaphragm carries natural speech to the far corners of small and mid-sized rooms, and distortion stays controlled as the level climbs. When a longer boardroom needs fuller coverage, the optional MS-EM1 expansion microphone adds a three-metre pickup on a five-metre lead, and a second pod can be chained for the most demanding layouts.
For IT and AV managers, the standout is data bridging: an onboard RJ-45 port lets the Lumens MS-10S pass wired Ethernet to the connected PC or Mac over that same USB cable, so a conferencing machine never has to lean on shaky Wi-Fi during a live session. The bar mounts above or below a display, locks down with a Kensington slot, ships with a remote and stores up to 128 presets over USB. Compatible with the major conferencing and unified-communications platforms and backed by a five-year warranty, it is a dependable building block for businesses rolling out consistent rooms at scale.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
MS-10S 4K Video Soundbar
- 4K UHD Wide-Angle Camera with Auto Framing
- Integrated voice tracking with built-in beam-forming microphones
- Optional Expansion Microphone Pod
- Voice, Audio, and Ethernet over USB
Voice-Tracking
The MS-10S features directional microphones which identify the position of participants in the room and intelligently adjust the camera to zoom onto the active speaker. This helps remote guests focus on discussions in the room.
Auto-Framing
The camera's auto-framing technology recognizes the area occupied within the room and adjusts the zoom angle to incorporate every guest. With a 120° field of view and the ability to zoom in 8x, the camera delivers superb HD or 4K output at all zoom settings.
Beamforming Microphones
MS-10S' four omnidirectional microphones have echo cancellation and noise suppression to capture every participant's voice clearly. The optional MS-EM1 expansion microphone is an ideal accessory for larger rooms. The MS-EM1 has a 3m pick-up range and is connected to the MS-10S by a 5m cable. A second expansion microphone can be added if required.
Clear Voice Speaker
MS-10S incorporates a 20W speaker with passive diaphragm to deliver sound output that can fill small and medium sized meeting rooms. Distortion is very well controlled at higher volumes, providing clear and natural voice communications.
Data Bridging
MS-10S has a network port which enables it to act as a bridge to deliver Internet connectivity to the host laptop over USB. This means that the PC or Mac running the video conferencing software is no longer reliant on WiFi for streaming. All connectivity (video, audio, control and network data) is routed thru a single USB port to the MS-10S.
Specs.
Sensor: 1 / 2.8" 8.29MP CMOS
Viewing Angle: 120° (D) / 107° (H) / 74° (V)
Lens: Fixed lens (F2.2)
Resolution (Max.): 3840 x 2160
Minimum Focus Distance: 50 cm
Zoom: 8x (Max)
ePTZ: Yes
Auto Framing: Yes
Voice Tracking: Yes
WDR: Yes
2D / 3D Noise Reduction: Yes
Video Format: MJPEG, H.264
Presets: 3 for IR remote control , 128 for USB command
Mic Element: 4 Mics
Pickup Distance: 6 Meters
Frequency Response: 50 Hz ~ 8kHz
Sensivity: -32 dBV
SNR: 76 dBV
Echo Cancellation: Yes
Noise Suppression: Yes
Configuration: 20W, speaker element x1 + passive diaphragm x 1
Frequency Response: 20Hz ~ 20kHz
Speaker Max SPL: 95 ± 3dB 0.5m / 5W
Distortion: 5% AT 5.0W / 4.47V 1kHz

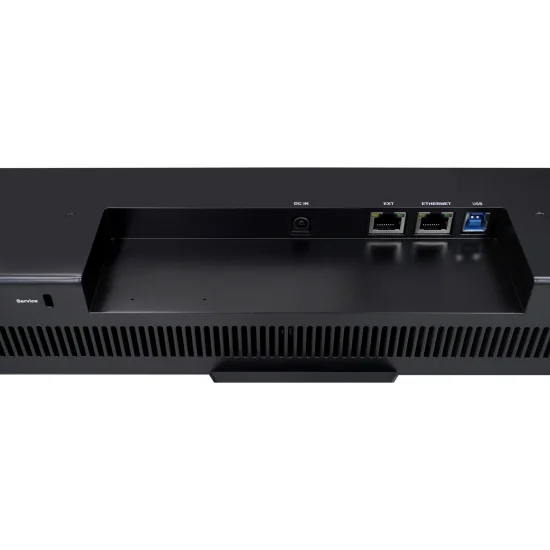

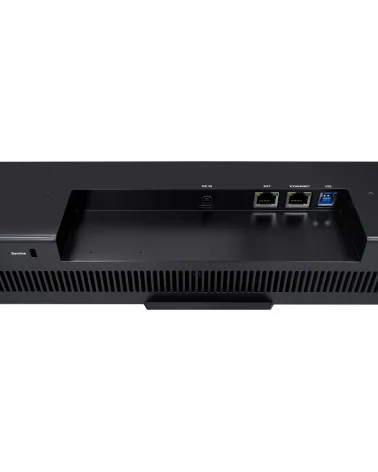

DC In: 12V + / - 20%

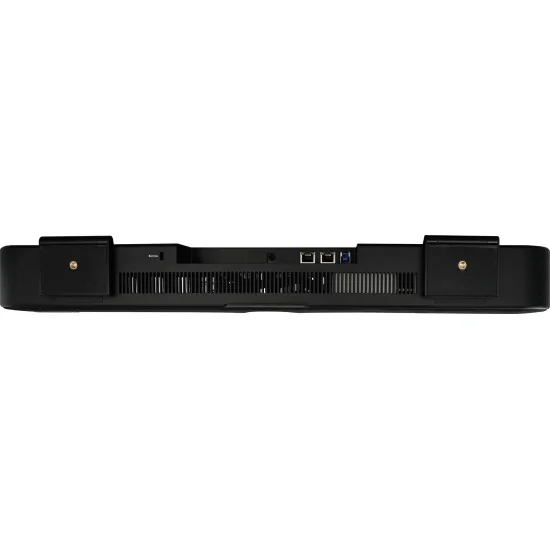

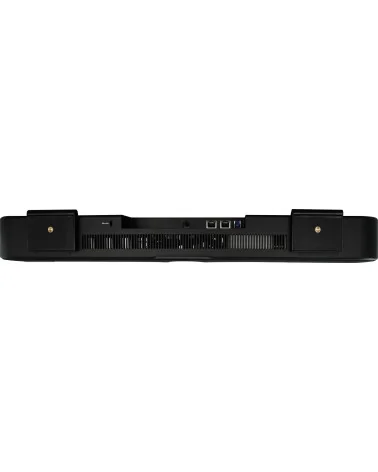

USB: USB 3.0 type-B, compatible USB2.0
RJ-45: USB bridge to Ethernet
LED Indicator: Ring, 3 color LED (Green, Blue, Red)
Expansion Mic Input: Yes, with JR-45 connector
Remote Controller: Yes
Kensington: Yes
Mount: TV Mount, Bracket
Weight: 1.7 kg
Dimension (W x L x H): 597 x 90 x 75 mm
Optional Accessory: Expansion Mic: MS-EM1
MS-10S
Data sheet
- Video Output
- RJ-45 (IP)
USB - Audio Input
- Built-in microphone
- Audio Output
- RJ-45
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 25/30 fps
- Streaming protocols
- HTTP
RTMP
RTMPS
RTSP
SRT - Network Connection
- Ethernet
- USB video capture
- Yes
- Sensor Size
- 1/2.8"
- Optical Zoom
- 8x
- Interchangeable lens
- No
- Lens mount
- Integrated lens
Specific References
- ean13
- 4711246503304
- mpn
- MS-10S
