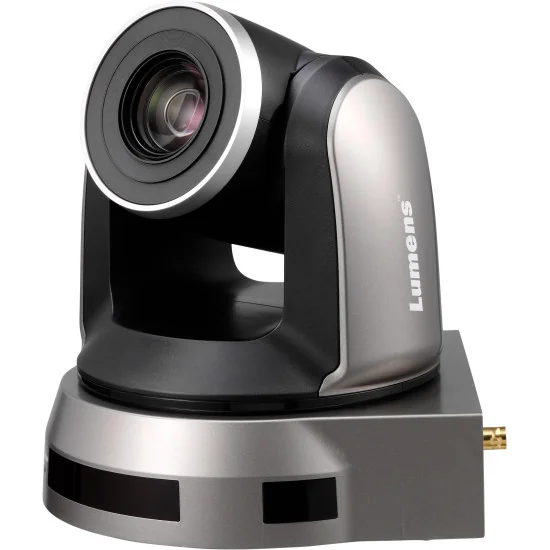

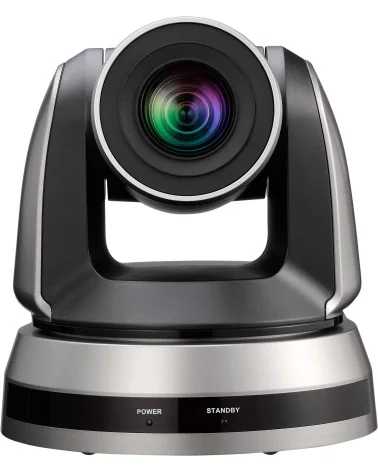

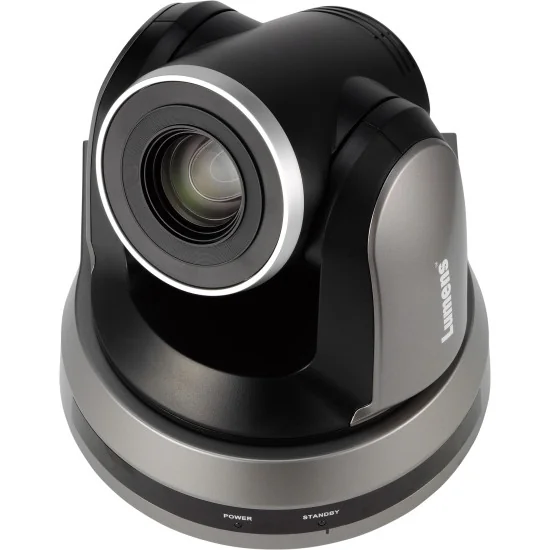

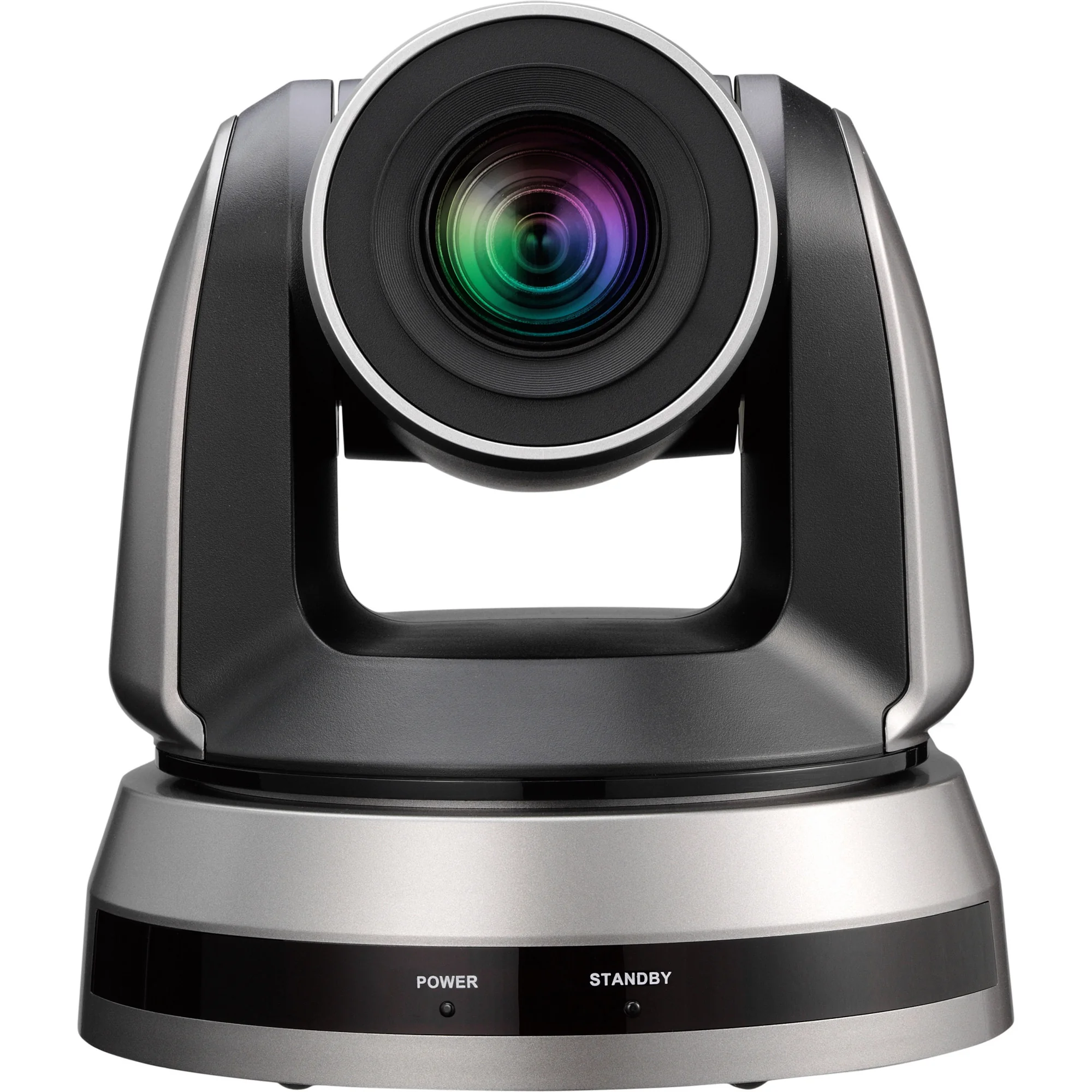

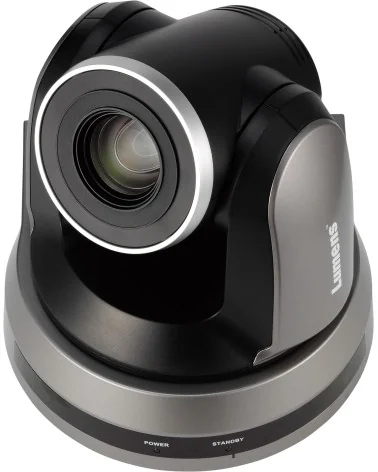

A presenter-led room often needs a camera that can follow movement without adding another operator. Lumens VC-TA50 Black answers that requirement with Full HD PTZ capture, in-camera AI human detection and auto tracking for lectures, corporate training, product briefings, panel talks and compact studio productions. Its 1/2.8" 2.16 MP CMOS sensor delivers up to 1080p60, while the 20x optical zoom and 57° horizontal field of view cover both wide room views and tighter speaker framing from a fixed installation point.
The tracking logic is practical rather than merely automatic. Everywhere mode follows the selected subject across the room; Stage mode keeps tracking to horizontal pan inside a defined area; Partition mode recalls a preset angle and zoom inside a chosen zone, then returns to subject following outside it. This helps in spaces with a lectern, display wall or demonstration table, because the camera can react to presenter movement without control desk intervention. Smart AF, auto framing, WDR, 3D noise reduction, image flip and 128 preset positions support long sessions, repeated recordings and multi-room AV systems.
Professional routing is a main reason to specify this model. HDMI, 3G-SDI and Ethernet can carry video at the same time, allowing one camera position to serve a hardware switcher, recorder and IP streaming platform. The primary IP stream supports H.264 1080p at 60 fps, with a secondary H.264/MJPEG D1 stream at 30 fps for monitoring or control preview. RTSP, RTMP, RTMPS, MPEG-TS and SRT cover direct streaming, managed contribution links and networked lecture capture, while line/mic input and G.711 audio keep sound available over Ethernet, SDI or HDMI.
For integrators, the Lumens VC-TA50 Black fits neatly into controlled AV environments. Power can be supplied via PoE+, and control is available through RS-232, RS-422 or Ethernet using VISCA, VISCA over IP, PELCO-D and ONVIF. Tally, IR pass-through, IR remote operation and FreeD support for AR/VR tracking give it more than basic PTZ behaviour. With pan and tilt speeds up to 300°/s, the camera moves quickly between stored angles, making it a dependable Full HD auto-tracking PTZ option for teams that value repeatable capture, clean cabling and remote supervision.
A presenter-led room often needs a camera that can follow movement without adding another operator. Lumens VC-TA50 Black answers that requirement with Full HD PTZ capture, in-camera AI human detection and auto tracking for lectures, corporate training, product briefings, panel talks and compact studio productions. Its 1/2.8" 2.16 MP CMOS sensor delivers up to 1080p60, while the 20x optical zoom and 57° horizontal field of view cover both wide room views and tighter speaker framing from a fixed installation point.
The tracking logic is practical rather than merely automatic. Everywhere mode follows the selected subject across the room; Stage mode keeps tracking to horizontal pan inside a defined area; Partition mode recalls a preset angle and zoom inside a chosen zone, then returns to subject following outside it. This helps in spaces with a lectern, display wall or demonstration table, because the camera can react to presenter movement without control desk intervention. Smart AF, auto framing, WDR, 3D noise reduction, image flip and 128 preset positions support long sessions, repeated recordings and multi-room AV systems.
Professional routing is a main reason to specify this model. HDMI, 3G-SDI and Ethernet can carry video at the same time, allowing one camera position to serve a hardware switcher, recorder and IP streaming platform. The primary IP stream supports H.264 1080p at 60 fps, with a secondary H.264/MJPEG D1 stream at 30 fps for monitoring or control preview. RTSP, RTMP, RTMPS, MPEG-TS and SRT cover direct streaming, managed contribution links and networked lecture capture, while line/mic input and G.711 audio keep sound available over Ethernet, SDI or HDMI.
For integrators, the Lumens VC-TA50 Black fits neatly into controlled AV environments. Power can be supplied via PoE+, and control is available through RS-232, RS-422 or Ethernet using VISCA, VISCA over IP, PELCO-D and ONVIF. Tally, IR pass-through, IR remote operation and FreeD support for AR/VR tracking give it more than basic PTZ behaviour. With pan and tilt speeds up to 300°/s, the camera moves quickly between stored angles, making it a dependable Full HD auto-tracking PTZ option for teams that value repeatable capture, clean cabling and remote supervision.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
HD PTZ Camera with Multiple Tracking Modes, 20x Zoom and PoE+
- AI-Powered Human Face Recognition
- Three Tracking modes with auto framing
- 1080P 60fps with 20x Optical Zoom
- HDMI, SDI, and Ethernet simultaneous output
- Supports RTSP / RTMP / RTMPS / SRT
Everywhere Tracking Mode
The camera will follow wherever the presenter goes. You can simply change the tracked subject by clicking on the individual via the web interface
Partition Tracking Mode
When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.
Stage Tracking Mode
When inside the Tracking Area, the camera follows the presenter with only a pan (left-right) movement. When the presenter moves outside the Tracking Area, the camera stops following.
Smooth Pan-Tilt-Zoom Movement
Whether in auto-tracking or manual mode, VC-TA50 offers a smooth pan, tilt, and zoom movements. The speed of camera movement can be set to meet the needs of each production.
Smart AF
The Smart AF feature keeps the presenter’s face in sharp focus even when they move across a stage. This advanced feature delivers fast, reliable, and accurate focusing performance.
Specification:
Sensor: 1/2.8" 2.16 MP CMOS
Video Format: 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 , 1080i : 60 / 59.94 / 50 , 720p : 60 / 59.94 / 50
Video Output (HD) Interface: 3G-SDI / HDMI / Ethernet
Optical Zoom: 20x
Viewing Angle: 57° (H) / 32.1° (V) / 65.4° (D)
Aperture: F1.6~F3.8
Focal Length: 5.33mm~110mm
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: 1.5m (Wide/Tele)
Video S/N Ratio: > 50dB
Minimum Illumination: 1.0 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual / Smart AF
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
AR/VR Systems: FreeD
Tally Light: Yes
Auto-Tracking: Everywhere / Stage / Partition
Auto Framing: Yes
Panning Angle: +170 ~ -170°
Panning Speed: 300°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 300°/sec
Preset Positions: 128
HDMI / 3G-SDI: 1080p60
IP Stream: First : H.264 1080p 60fps , Second : H.264/MJPEG D1 30fps
IP Compression: H.264 / MJPEG
IP Protocol: RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE: PoE+ (IEEE802.3at)
Audio Input: Line In / MIC In
Audio Output: Ethernet / SDI / HDMI
Audio Compression Format: G.711

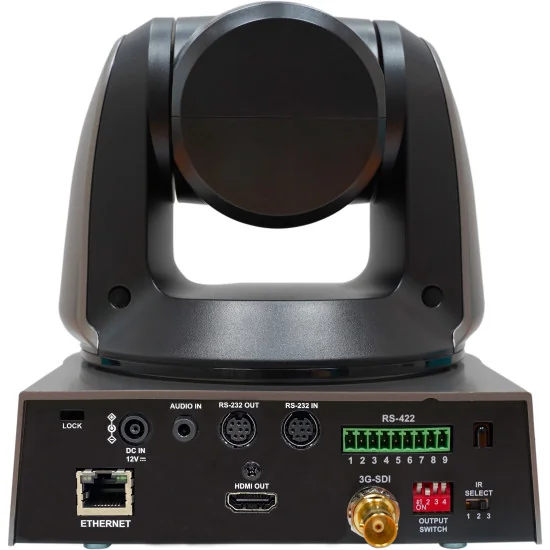

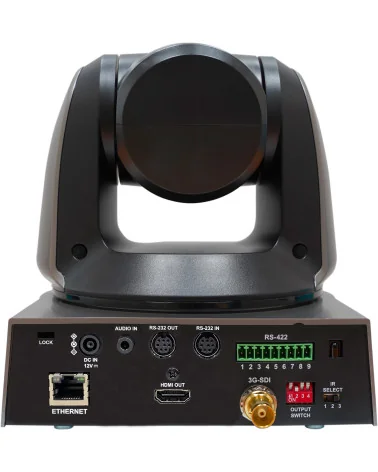

Interface: RS-232 / RS-422 / Ethernet
Protocol: VISCA / VISCAIP / PELCO D / ONVIF
IR Pass-Through: Yes
IR Receiver: Yes
IR Remote Control: Yes
DC In: 12V +/- 20%
Power Consumption: PoE : 18.5W , DC In : 17W
Body Color: Black / White
Weight: 4.4 lbs (2 kg)
Dimensions: 6.9" x 7.3" x 7.3" , (174 x 186 x 187mm )
