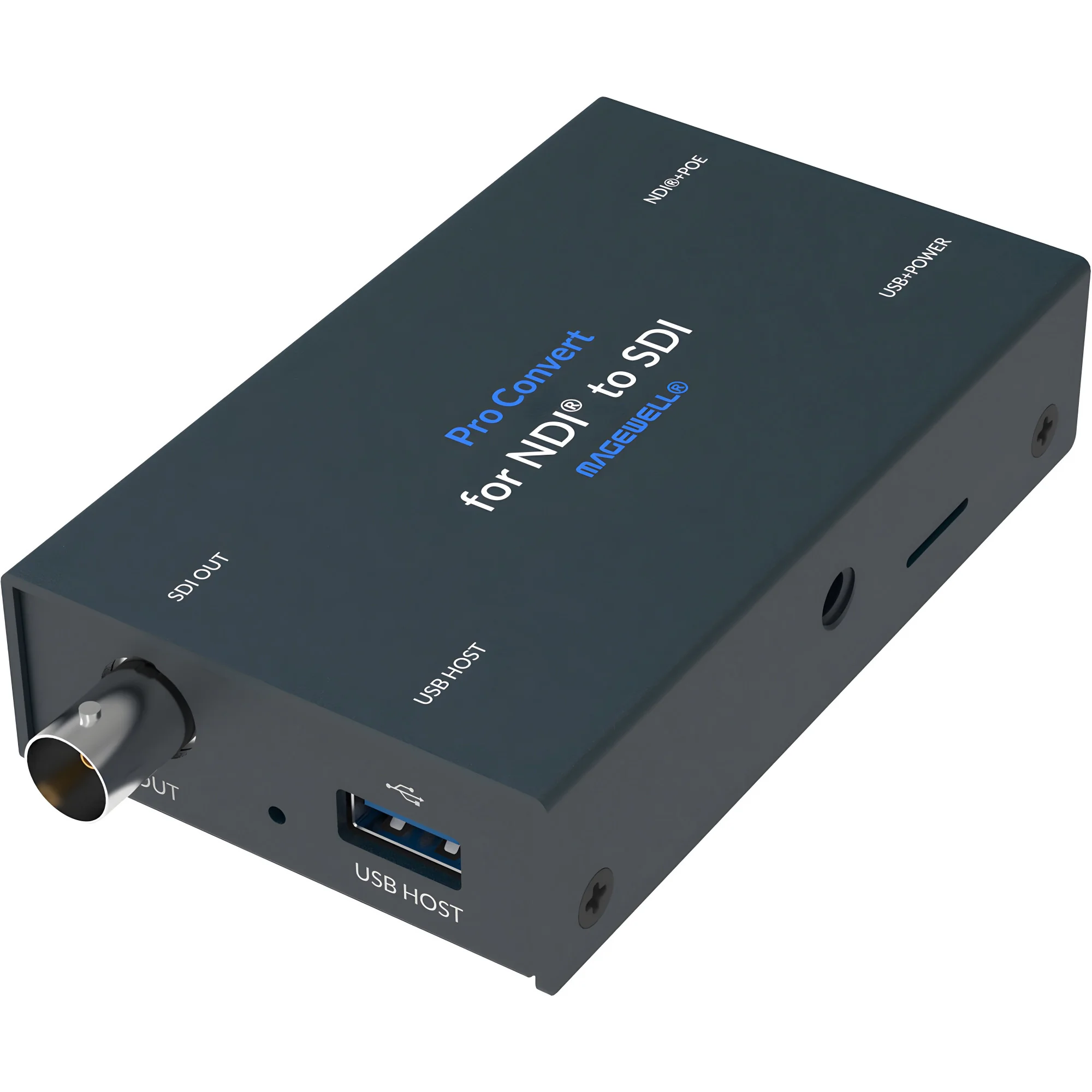

Magewell Pro Convert for NDI® to SDI (64150) Decoder

Magewell Pro Convert for NDI® to SDI (64150) Decoder

Name: Magewell Pro Convert for NDI® to SDI (64150) Decoder
Brand: Magewell
SKU: 641500000
Price: 449.00 EUR
Availability: InStock

MPN: 641500000

Price: €449.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Broadcast islands still built around SDI do not need to be cut off from NDI production. Magewell Pro Convert for NDI to SDI takes an incoming network source and turns it into a clean SDI output for monitors, recorders, routers, switchers, projection systems and legacy infrastructure that must stay in baseband. It decodes signals up to 2K60 and delivers output up to 1080p60, which makes it a practical bridge between IP contribution feeds and professional SDI environments used in television, live events, corporate AV and streaming studios.

This unit is not limited to one transport method. In addition to full-bandwidth NDI, it also handles NDI|HX, NDI|HX2 and NDI|HX3, plus compressed streams over SRT, RTSP, RTMP, RTP, UDP, HLS and HTTP. That widens its use well beyond simple NDI decoding. It can sit at the end of a remote guest feed, return a program signal to an SDI multiviewer, feed an IMAG screen from an IP network, or decode contribution streams for conference rooms, auditoriums, campuses and control rooms. Support for H.264 and H.265 decoding adds another layer of compatibility when sources come from mixed ecosystems.

For professional signal handling, the decoder outputs SD/HD/3G-SDI over BNC, supports BT.601 and BT.709 colour spaces, carries 8-channel embedded audio at 48 kHz, and supports caption transport including CEA-608 and 608 over 708. Image processing controls such as deinterlacing, resolution selection, frame-rate handling and aspect-ratio conversion help when the incoming stream does not match the connected destination exactly. In fixed installations, the stated 3G-SDI cable reach of more than 100 metres is useful for rack-to-stage, control-room-to-display and venue-distribution runs.

Installation is straightforward in both permanent and mobile systems. The unit supports Gigabit Ethernet with PoE, can also be powered from USB, and offers control through Web UI, Control Hub and HTTP API. Real-time status monitoring, audio channel mapping and on-device menu controls help technicians work quickly when a decoder must be reassigned during production. For OB kits, flypacks, lecture capture rooms, digital signage endpoints or hybrid event systems that need dependable NDI to SDI conversion, this model gives existing SDI equipment a direct path into IP-based video transport.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Magewell Pro Convert Pro Convert for NDI® to SDI converts a live NDI® stream with embedded audio into SDI. Decode 2K 60fps NDI streams into SDI output up to 1920x1080 60fps at very low latency. Full NDI® and NDI®|HX are supported for decoding.

Pro Convert decoders support both dedicated video-over-IP and universal streaming protocols including NDI®, SRT (Secure Reliable Transport), RTMP, RTSP, RTP, UDP, HTTP and HLS, enabling high-quality conversion of full NDI, NDI|HX, H.264 (AVC) or H.265 (HEVC) streams into high-quality HDMI or SDI outputs.

Compatible with a wide variety of hardware and software encoders, Pro Convert decoders transform input streams up to 4096x2160 at 60fps for output to baseband monitors, projectors, hardware switchers and more.

They are perfect for multi-site video distribution, video walls, image magnification (IMAG), digital signage, remote production, and video surveillance.

- Converts a live NDI® stream into SDI
- Connects baseband presentation or distribution equipment into IP-based media networks
- Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
- Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

Output Features
Max output: 1920x1080p60. Supported output formats are:
1920x1080p 23.98/24/25/29.97/30/50/59.94/60 1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60 720x576i50
720x480i59.94
Support YUV BT.601, YUV BT.709 signals
Support 48KHz 8-channel audio output
SD/HD/3G-SDI BNC output
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
Output 3G-SDI signal and transmitted distance greater than 100m (328ft)

Decoding Features
Decoding up to 2Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
H.264/H.265 video decoders
AAC/MP3 audio decoders
Support NDI 5.x

Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is processed and decoded, including:
OSD setting, deinterlacing, resolution, frame rate, AR conversion
audio gain, sample rate and audio channel mapping
network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

On-board Control Buttons
MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection
16 Position Rotary DIP Switch: set board-index from 0 to F

Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interfaces
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
USB3.0 Type A
Connecting peripherals (keyboard and/or mouse) to set up device

LED Indicators
Power LED status indicator
On: power connected
Off: power unconnected
Decode LED status indicator
On: decoding
Blinks: decoding error
Off: source unselected

Form Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket

Screw Mounting Hole
1⁄4–20 threaded hole

Power Consumption
5V max current: ~1.05A
Max power consumption: ~5.5W

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
