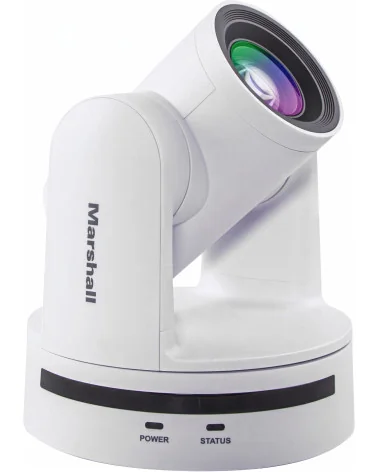

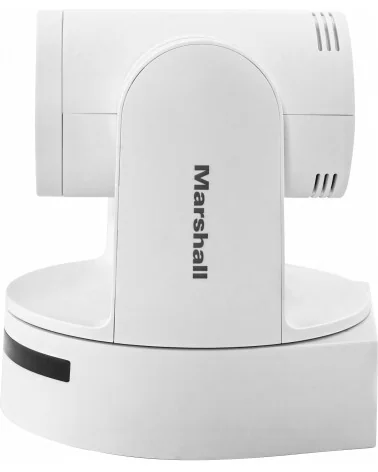

Marshall CV605-U3W PTZ Camera

    CV605-U3W
    Price: €879.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

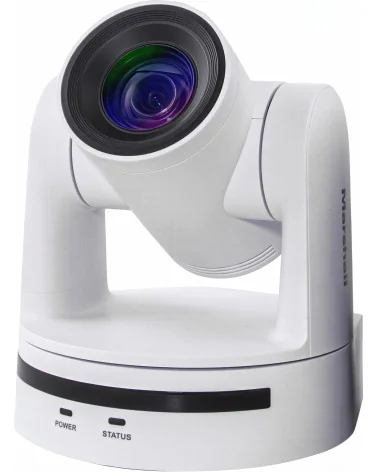

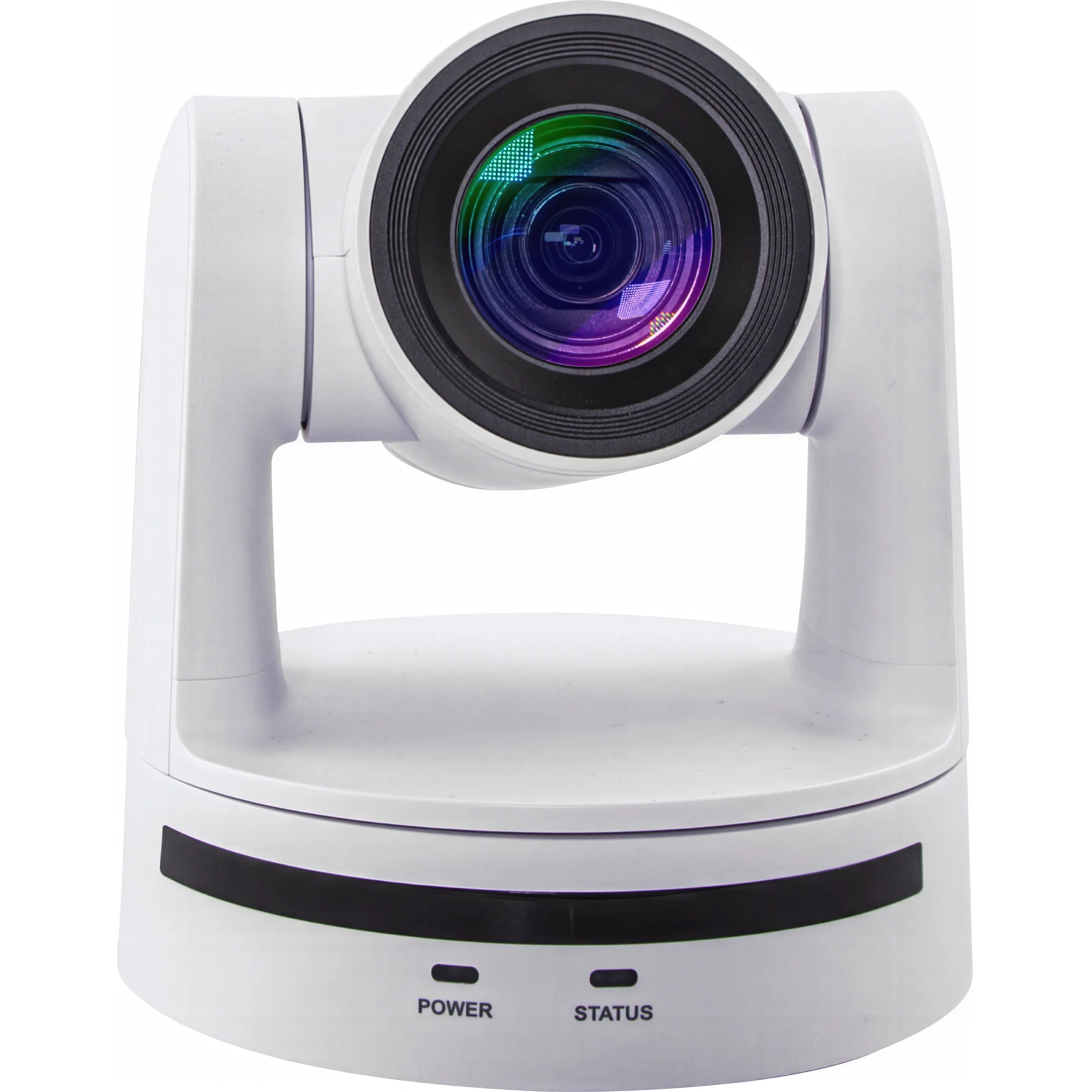

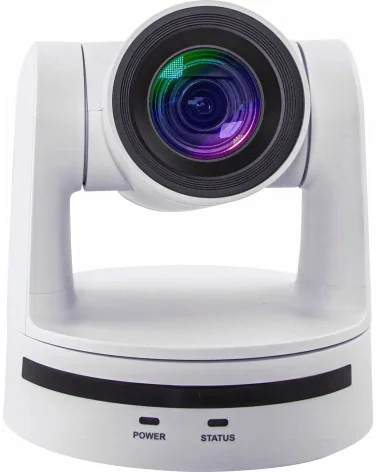

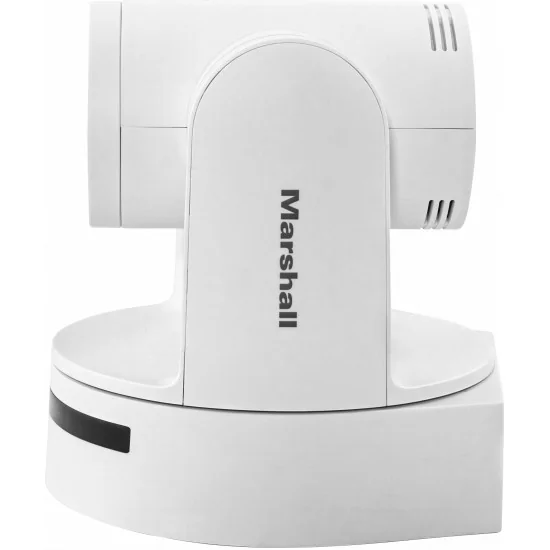

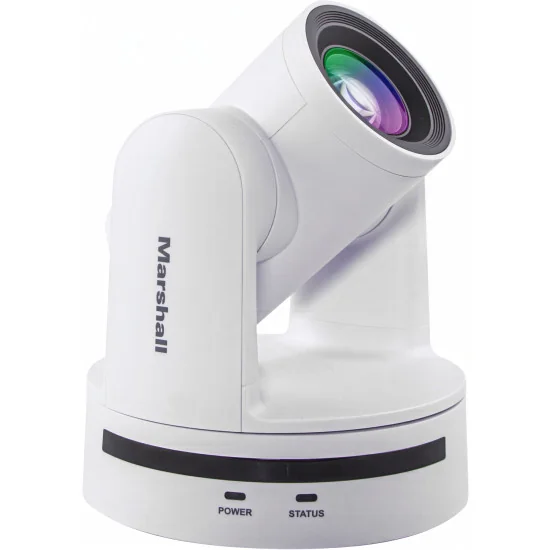

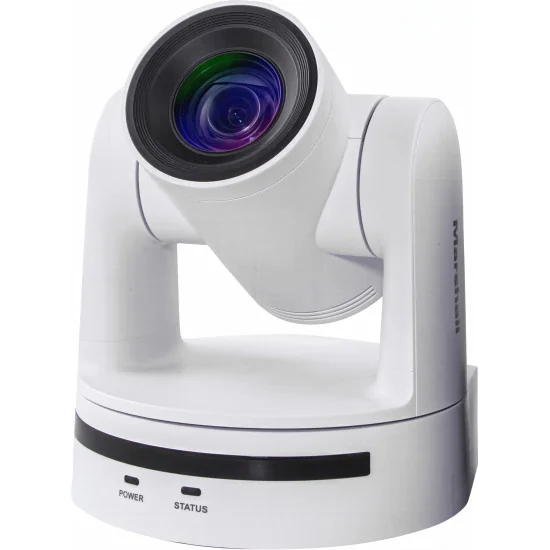

    Compact bodies rarely carry this much production capability, yet the Marshall CV605-U3W packs a full pan-tilt-zoom head into a white housing that disappears against bright meeting-room walls and studio sets. At its core sits a 1/2.8" 2.07-megapixel HD CMOS sensor, paired with a 5x optical zoom (3.1–15.5 mm, f/1.8–2.8) and a further 10x digital reach. Framing opens at a genuinely wide 85° horizontal angle of view, so a single unit can hold an entire conference table, a stage, or a courtroom bench without edge distortion creeping in.

    Picture quality stays honest where it counts. The sensor resolves true-colour 1080p at 60fps, and a 0.5 lux low-light rating (at F1.8) keeps faces clean under dimmed house lighting or a single key. White balance spans 2400–7100K with auto, manual and one-push modes, while the quiet, high-speed motor sweeps a ±135° pan and ±30° tilt range. Operators can store up to 255 preset positions over IP, RS-232 or VISCA — each recalling its own exposure and colour settings — plus ten quick-access presets on the bundled IR remote.

    Connectivity is where the CV605-U3W earns its place in a multi-camera rig. USB-C, HDMI and IP outputs run simultaneously, the Ethernet path carrying H.265/H.264 RTSP and RTMP streams alongside audio, VISCA-over-IP control and PoE (IEEE 802.3af) on one Cat cable. That single-cable approach cuts install time on live events and fixed boardrooms alike, and a 3.5 mm input lets you embed an external mic feed in AAC, MP3 or G.711A. Being Zoom-certified, Barco ClickShare-compatible and dockable in OBS Studio, it slots straight into software-driven streaming as readily as a hardware switcher.

    For a production house weighing reliability against cost, the appeal is practical: a UVC 1.5 source that behaves as a webcam on any laptop, scales up to a controller-driven PTZ on a venue network, and holds a privacy standby mode between calls. Drop it into corporate broadcast, government assembly coverage, hybrid lecture capture or live-streamed services, and the Marshall CV605-U3W delivers a dependable, true-colour feed without the bulk or budget of a full broadcast camera.

    Quantity
    Add to Wishlist
    Add to Compare
    Last items in stock

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Key features

    • Full HD sensor with crystal-clear video quality and accurate color
    • 5X Optical Zoom (3~15mm) – starting at 85° AOV
    • Full-HD Resolution: 1920x1080p, 1280x720p and more
    • Low-light Illumination capability at 0.5Lux (F1.8) for challenging environments
    • USB-C (USB3.0/2.0), HDMI and IP (H.265/H.264) simultaneous outputs
    • Barco Clickshare compatible, along with other common soft codecs
    • Ethernet IP supports video, audio, control, and PoE over one Cat cable
    • PoE IEEE802.3af – power consumption 48V (13W)
    • Control Options: IR remote, VS-PTC-200, VS-PTC-IP, VMS Software, Zoom (certified), GUI via web, UVC1.5, OBS Studio plugins & docs, Barco Clickshare, and more
    • 3.5mm audio linear input (AAC, MP3, G.711A compression)

    Camera Applications:
    The CV605 is suitable for use in USB-C and IP networked HD workflows where image quality and versatility are of utmost concern, including video conference, video collaboration, live streaming, courtroom capture, corporate video, government assembly, OBS Studio, Zoom, and many more.

    Ultra-Wide 85° Horizontal AOV
    The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom.

    Flexible USB-C + HDMI + IP options

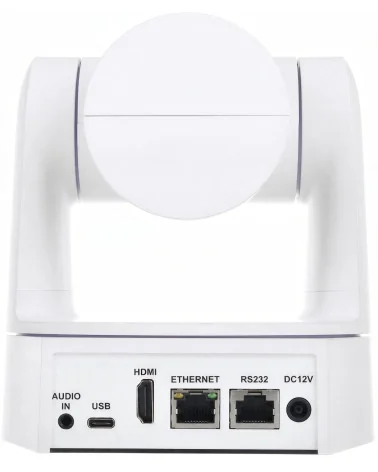

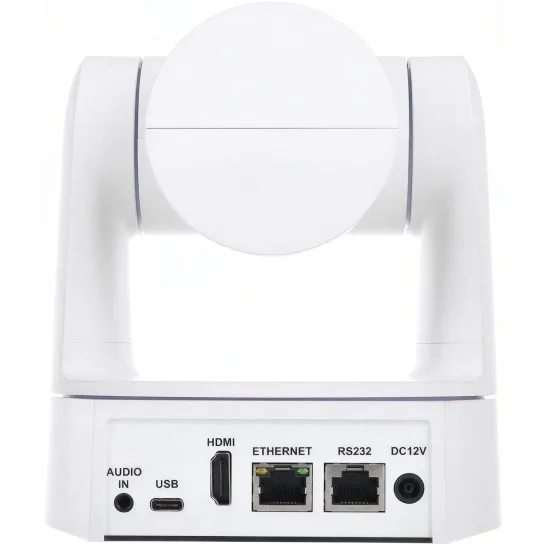

    The CV605-U3 offers a USB-C connection for video conference, collaboration, and streaming. HDMI opens a wide range of options with HDMI workflows and IP provides an easy one-cable to camera setup and operation.

    Low-light Sensitivity
    The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast and other applications with challenging light sources.

    One Cable to Camera
    One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.

    Privacy Standby Mode
    The CV605-U3 PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the internet is paramount to protect intellectual properties and proprietary information while not in video meetings.

    Camera Parameter
    Optical Zoom5X, f=3.1~15.5mm
    Sensor1/2.8-inch-high quality HD CMOS sensor
    Effective Pixels / Video Format16:9, 2.07 megapixe

    USB:
    YUY2, NV12:
    640x480/320x180/480x270/640x360/800x448/800x600/1024x576/1280x720/1920x1080

    MJPEG, H.264:
    640x480/320x240/352x288/480x270/640x360/720x480/720x576/800x448/800x600/960x540/1024x576/1280x720/1600x896/1920x1080

    HDMI:
    1080P 60/59.94/50/30/29.97/25;
    720P 60/59.94/50;
    Viewing Angle16.43°(tele)--83.7°(wide)
    Digital Zoom10X additional
    Minimum Illumination0.5Lux (F1.8, AGC ON)
    DNR2D & 3D DNR
    White BalanceAuto / Manual/ One Push/ VAR
    FocusAuto/Manual/One Push
    IrisClose/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
    Electronic ShutterAuto/Manual
    BLCON/OFF
    Video AdjustmentBrightness, Color, Saturation, Contrast, Sharpness,
    B/W mode, Gamma curve
    SNR>55dB
    Input/ Output Interface
    Video InterfacesUSB3.0 Type-C, HDMI, LAN
    Video Compression FormatH.264, YUV2, NV12, MJPEG
    Audio Input InterfaceTwo-channel 3.5mm (Line and Mic level)
    Audio OutputUSB3.0, HDMI, LAN output together with video
    Audio Compression FormatAAC/MP3/G.711A
    IP Interface100M IP port (100BASE-TX)
    Network ProtocolRTSP/RTMP, ONVIF; Support IP Visca control protoco
    Control InterfaceRS232
    Control ProtocolVISCA/Pelco-D/Pelco-P;
    Baud Rate: 115200/38400/9600/4800/2400
    Power InterfaceHEC3800 outlet (DC12V)
    Supply AdapterAC110V-AC220V to DC12V/1.5A
    Input VoltageDC12V±10%
    Input Current1A (Max)
    Consumption12W (Max)
    PTZ Parameter
    Pan Rotation340-degree pan range
    Tilt Rotation180-degree tilt range
    Pan Control Speed0.1-60°/sec
    Tilt Control Speed0.1-30°/sec
    Preset SpeedPan: 60°/sec, Tilt: 30°/sec
    Preset Number255 presets (10 presets by remote controller)
    Other Parameter
    Store Temperature-10°C~+60°C
    Store Humidity20% - 95%
    Working Temperature-10°C~+50°C
    Working Humidity20% - 80%
    Dimensionφ145.4mmX147mmX154mm
    Weight1.29KG
    Using EnvironmentIndoor
    CV605-U3W
    1 Item

    Data sheet

    Video Output
    HDMI
    RJ-45 (IP)
    USB
    Audio Input
    Mini Jack 3.5mm
    Audio Output
    HDMI Embedded
    RJ-45
    USB
    Max Output Resolution
    1080p 50/60 fps
    Control protocol for PTZ cameras
    PELCO-D
    PELCO-P
    RS-232
    VISCA
    VISCA IP
    Network Connection
    Ethernet
    Sensor Size
    1/1.8"
    Optical Zoom
    5x
    PoE Technology
    Yes
    Auto-Tracking
    No
    Tally Light
    No

    Specific References

    ean13
    801813225242
    mpn
    CV605-U3W
