Marshall V-702W-12G-V2 2x 7" Rackmount Monitor

    V-702W-12G-V2
    Price: €2,099.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

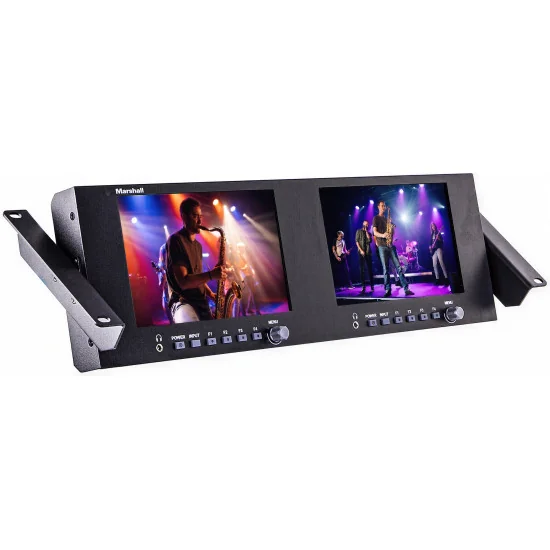

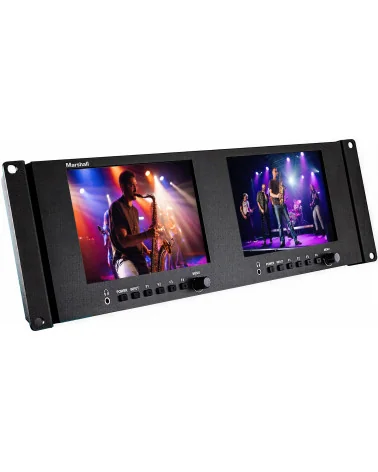

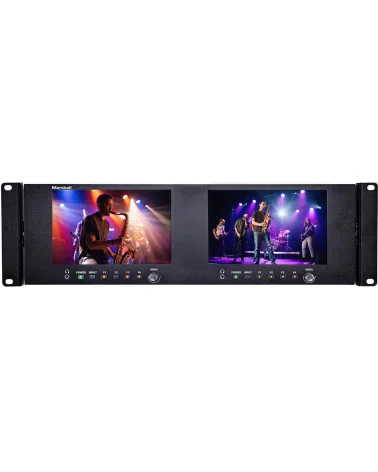

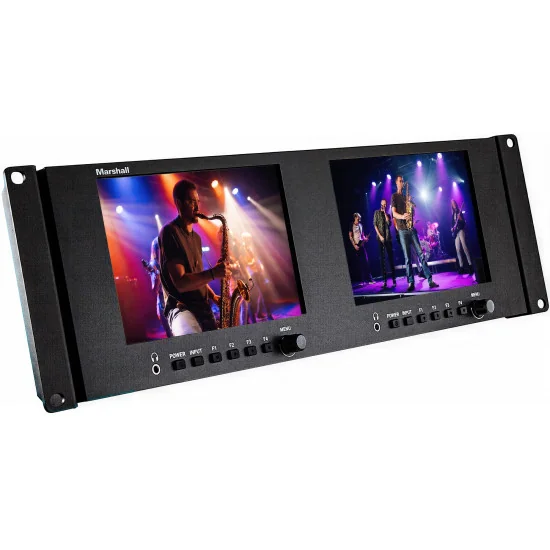

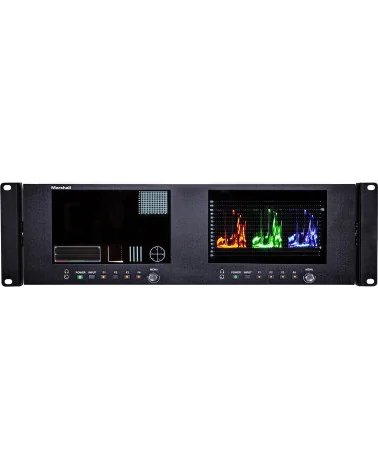

    Routing rooms, OB trucks and fly-packs rarely have a spare rack unit to waste, which is exactly where the Marshall V-702W-12G-V2 earns its place. Two seven-inch LCD panels sit inside a single 3 RU chassis, each running at 1920 x 1200 with a 16:10 aspect ratio, 450 cd/m² brightness and a 1200:1 contrast ratio. The wide ±80° horizontal and vertical viewing angles keep the picture honest when an engineer reads the screen from the side of a crowded routing bay, and the adjustable backlight holds colour accuracy whether the rack lives under studio lighting or in a dim machine room.

    Connectivity is built around 12G-SDI and HDMI. Each display accepts a 12G/3G/HD/SD-SDI feed plus an HDMI source, and every input carries a matching loop output, so a signal can be daisy-chained to recorders, multiviewers or a second rack without splitter hardware. Both paths handle resolutions up to DCI 4K (4096 x 2160) at 60p. Because the 12G input takes a native UHD or 4K stream directly, there is no outboard down-converter sitting between camera and panel, which trims latency on a live cut and removes one more box that can fail during a broadcast.

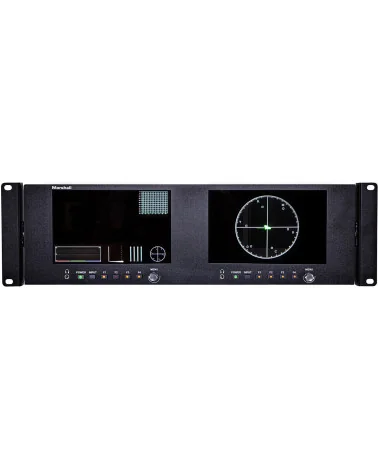

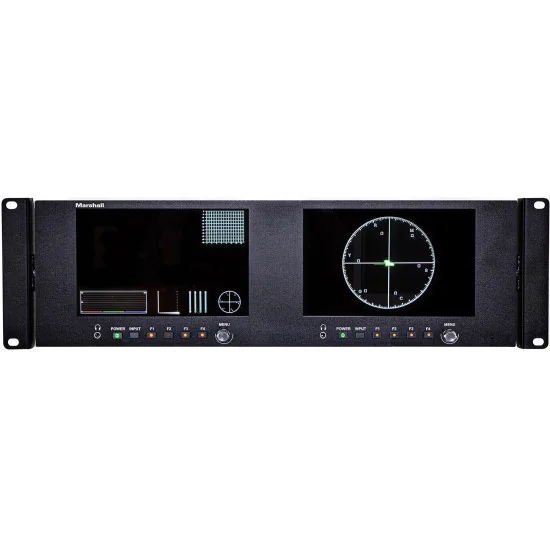

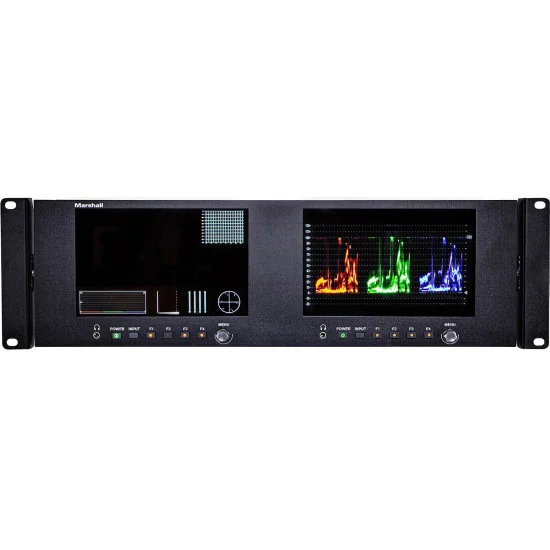

    For shading and QC, the Marshall V-702W-12G-V2 carries the analysis tools an operator actually reaches for: waveform, vectorscope, histogram, false colour, focus peaking, audio metering and a split-screen mode that places HDR, gamma and S-Log corrections side by side for a real-time before-and-after read. User 3D LUTs and an S-LUT library load over the USB-A port, while VITC and LTC timecode display keeps takes in sync. Four assignable function buttons per panel put the most-used settings a single press away.

    Production integration is handled through red, green and yellow on-screen tally, driven by GPI through the 15-pin D-Sub port or routed over Ethernet alongside full GUI control via the Marshall PCSet application. Embedded SDI and HDMI audio can be checked on a 3.5 mm headphone jack, firmware loads from a USB drive, and dual power feeds — a DC barrel and a 4-pin XLR accepting 10.8–24 V at roughly 21 W — give a facility the redundancy it expects from rack-mounted broadcast monitoring.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    The Marshall V-702W-12G-V2 dual 7" LCD Display is a feature-packed, solution perfect for remote production trucks, fly-packs, control rooms, routing rooms and countless other video system applications. Based on the Marshall V-702W model, the 12G-SDI inputs provides low latency and eliminates the need for outboard down conversion.

    Key features

    • 12G SDI input low latency, eliminates external downconverter
    • Two 7-inch diagonal displays
    • Front panel controls give access to all functions
    • Remote controllable via Ethernet. PCSet Control App available
    • Red, Green, Yellow on-screen tally. Control via GPI or Ethernet
    • All inputs have looping outputs allowing for flexible system design
    • Waveform, Vector, Histogram, HDR, S-LUT and User LUT's
    • Timecode Display (VITC & LTC modes)
    • Four user Function buttons

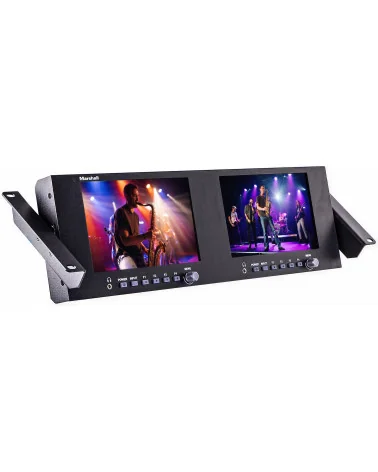

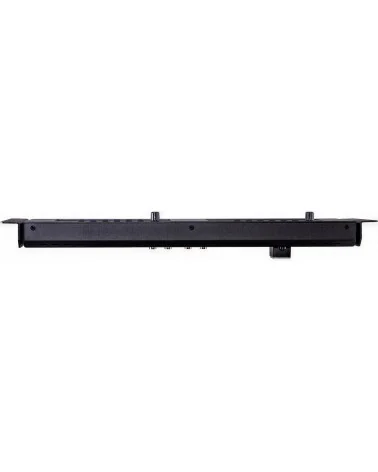

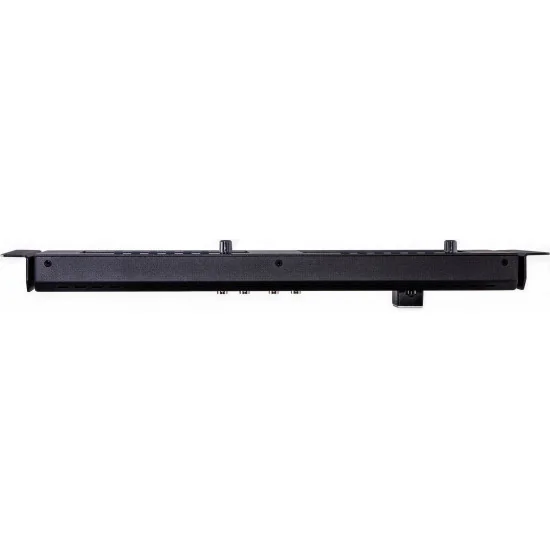

    • Tilting mount. Adjust for optimum viewing or accessing back panel
    • Headphone jack to monitor embedded stereo audio
    • Firmware update via USB drive

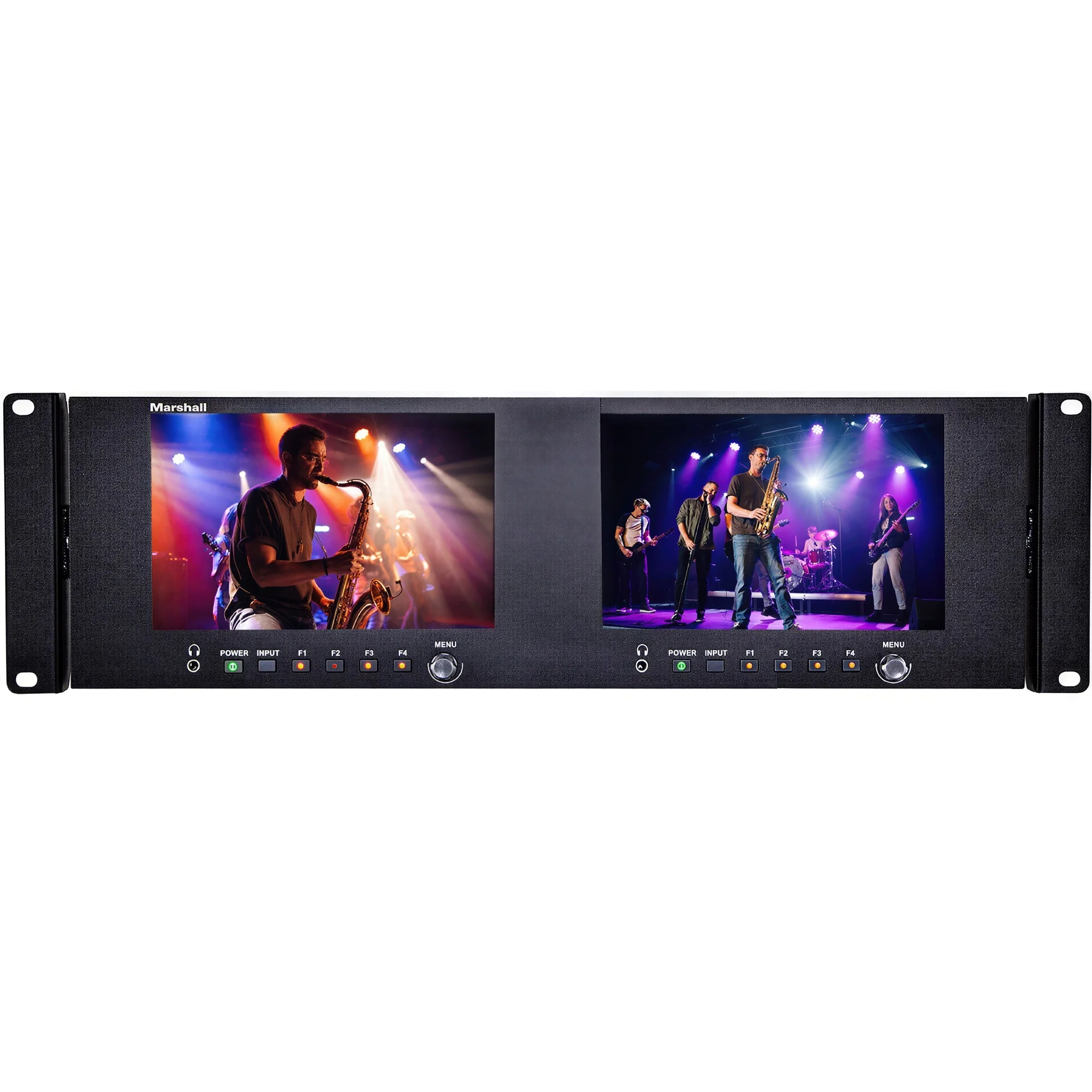

    Dual Full HD Screens
    Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.

    Split-Screen Comparison
    Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.

    Great Off-Axis Performance
    Excellent angle of viewing allows the user to position the rack in any number of physical locations.

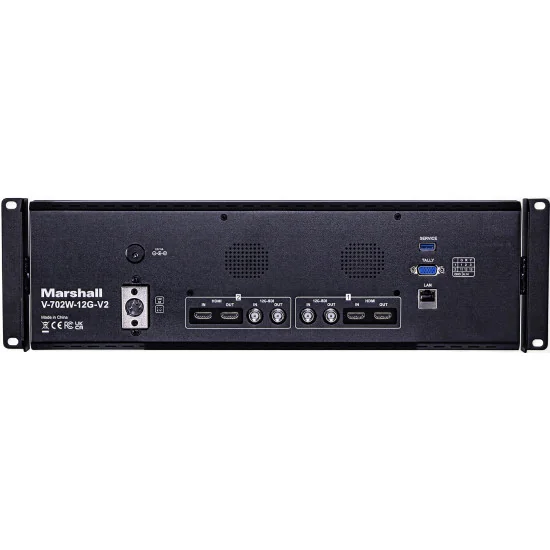

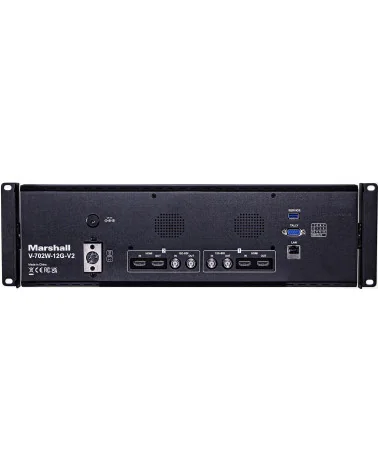

    Integrate the V-702W-12G-V2 Dual 7" 4K LCD Rackmount Monitor from Marshall Electronics into your routing room, control room, or studio for a feature-packed 4K monitoring solution. The dual 7" LCDs offer comprehensive image monitoring tools with 12G-SDI and HDMI connectivity. These inputs and loop output ports support up to DCI 4K60 video signals. A tally input port and USB-A port support the integration of the included tally kit and facilitate LUT upload. The monitor supports flexible power options thanks to its DC barrel and 4-pin XLR input ports.

    V-702W-V2 specifications

    Display
    Number of Panels2
    Screen2 x 7" LCD
    Chassis3 RU
    Resolution1920 x 1200
    Aspect Ratio16:10
    Viewing AngleHorizontal: +80° / -80°
    Vertical: +80° / -80°
    Brightness450 cd/m²
    Contrast Ratio1200 : 1
    Video Input / Output
    Video Input2 x 12G/3G/HD/SD-SDI
    2 x HDMI
    Video Loopout2 x 12G/3G/HD/SD-SDI
    2 x HDMI
    Input Formats
    SDISD: 480i 59.94 / 576i 50
    HD: 720p 25 / 29 / 30 / 50 / 59.94 / 60
    1080i 50 / 59.94 / 60
    1080p 23.98 / 23.98sf / 24 / 24sf / 25 / 29.97 / 30
    3G Level A1080p50 / 59.94 / 60 / 23.98 / 23.98sf / 24 / 24sf / 25 / 25sf / 29 / 29.97sf / 30 / 30sf
    1080i 50 / 59.94 / 60
    12G3840 x 2160p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
    4096 x 2160p 23.98 / 24 / 25 / 29 / 30 / 50 / 59.94 / 60
    HDMI480i 59.94 / 480p 59.94 / 576i 50 / 576p 50
    720p 25 / 29.97 / 30 / 50 / 59.94 / 60
    1080i 50 / 59.94 / 60
    1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
    3840 x 2160p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
    4096 x 2160p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
    640 x 480 60
    800 x 600 60
    1024 x 768 60
    1280 x 768 60
    1360 x 768 60
    1280 x 960 60
    1280 x 1024 60
    1400 x 1050 60
    1600 x 1200 60
    1920 x 1200 60
    Audio
    Audio InEmbedded audio from SDI and HDMI
    Audio OutputSDI and HDMI embedded audio from 3.5mm headphone jack
    Embedded audio from SDI and HDMI loopout
    Control
    ControlOn-screen tally from 15-pin D-Sub port
    GUI control via Ethernet
    Power
    Power SupplyDC 10.8~24V (Typical 12V), 21W (Typical)
    Environmental
    Storage Temperature-20°C ~ +60°C
    Operating Temperature0°C ~ +50°C
    Physical
    Dimensions481.8mm x 133.5mm x 61.4mm (19"W x 5.26"H x 2.42"D)
    Weight2.43 kg (5.35 lbs)
    Features
    FeaturesColor space, camera log (default log and user log), Gamma adjust, HDR, safety marker, aspect marker, center marker, marker color, scan modes, aspect ratio, H/V delay, check field, image freeze, image flip, waveform, vectorscope, peaking color, peaking level, false color, exposure level, histogram, time code, audio meter, 4 user defined function buttons
    V-702W-12G-V2

    Data sheet

    Video Input
    HDMI
    SDI
    Screen Size
    7"
    Display Brightness
    450 nits
    Aspect Ratio
    16:10
    Screen Resolution
    1920x1200
    Max Input Resolution
    4K DCI (4096 x 2160)

    Specific References

    ean13
    801813235098
    mpn
    V-702W-12G-V2
