Netgear M4250-26G4F-PoE++ (GSM4230UP-100EUS) AV Line Managed Switch
€2,899.00
The Netgear M4250-26G4F-PoE++ (GSM4230UP-100EUS) is a 30-port fully managed AV over IP switch built from the ground up for professional...
The Netgear M4250-26G4XF-PoE+ (GSM4230PX) occupies a practical niche in 1G AV over IP infrastructure — a 30-port, 1U rack unit with 24 rear-facing 1G PoE+ RJ45 ports drawing from a 480W shared budget (up to 30W per port), two additional 1G copper ports, and four 10G SFP+ uplink slots. The switching fabric runs at a non-blocking 132 Gbps with a forwarding rate of 98.21 Mpps — enough headroom to keep multi-room NDI streams, distributed Dante audio feeds, and parallel NVX decoder endpoints running without contention.
What separates this hardware from a generic enterprise switch is the purpose-built AV management GUI. Pre-configured profiles for Dante, AES67, Q-SYS, NDI, SDVoE, NVX, and Kramer KDS load directly onto individual ports in seconds, eliminating manual VLAN and multicast rule construction for each codec. The embedded NETGEAR IGMP Plus™ engine activates multicast delivery right out of the box — no PIM configuration, no IGMP querier setup — which matters most when time is short at a live event or in rental AV deployments.
Port placement tells the rest of the story: all active connections sit at the rear, leaving the front panel for status LEDs alone. Broadcaster rack builds and mobile production units benefit from the resulting cable order. Fan noise in quiet mode sits around 42 dB at 25 °C, acceptable in studio environments with monitored ambient levels. Auto-trunk and auto-LAG negotiate automatically with neighbouring M4250 or M4300 switches, cutting manual link-aggregation work between setup and go-live.
Layer 3 functions — static routing, VLAN segmentation, QoS prioritisation, SNMP, SSH, RADIUS, and TACACS+ — round out the feature set for structured broadcast or campus networks. A 1.8 GHz ARM Cortex-A57 quad-core CPU paired with 2 GB RAM keeps the management plane responsive under simultaneous port reconfiguration. Rack-mount brackets ship in the box; VESA and under-table mounts make the GSM4230PX equally at home in furniture-integrated control rooms.

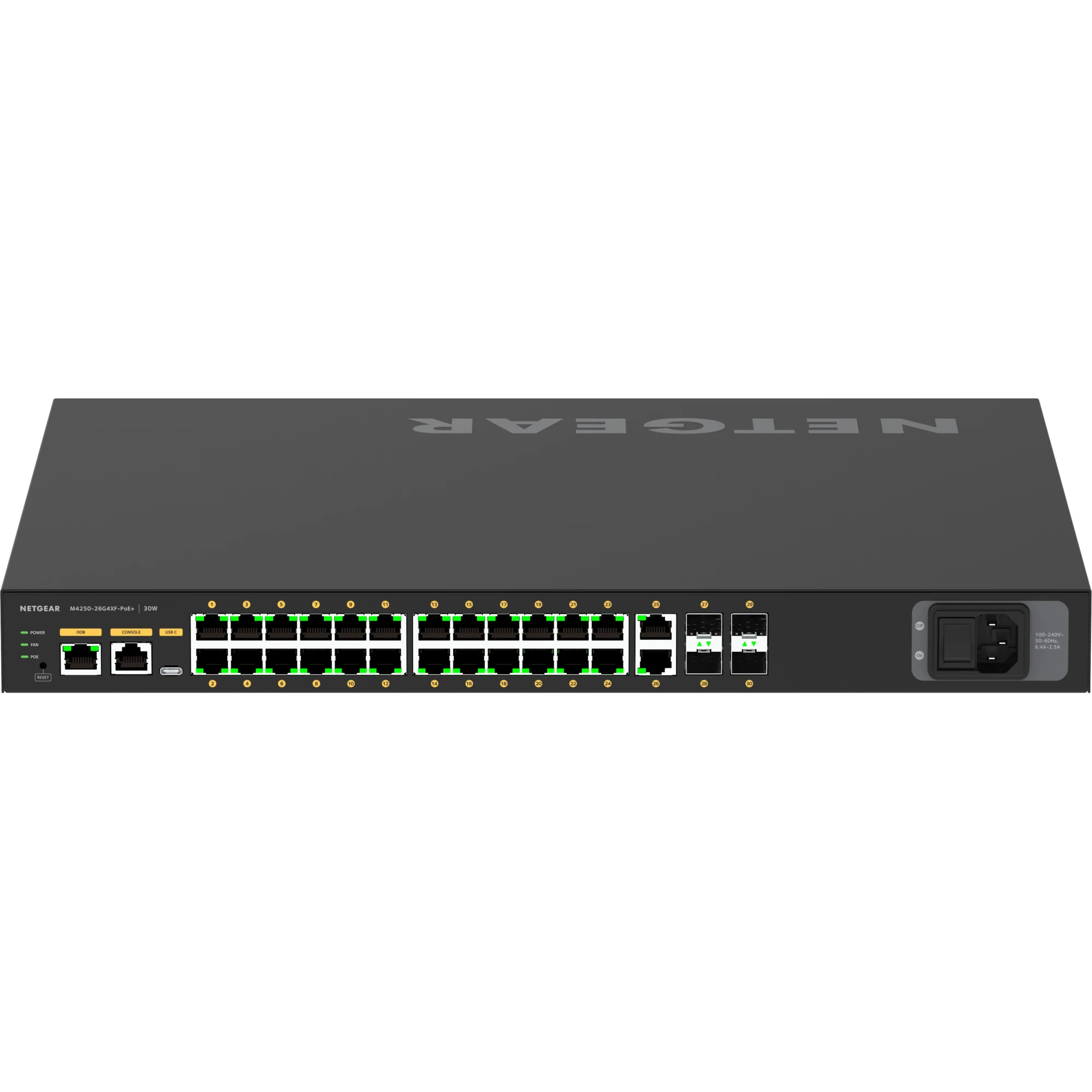

Netgear M4250-26G4XF-PoE+ (GSM4230PX-100EUS) AV Line Managed Switch
GSM4230PX-100EUS
Price: €2,179.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
The Netgear M4250-26G4XF-PoE+ (GSM4230PX) occupies a practical niche in 1G AV over IP infrastructure — a 30-port, 1U rack unit with 24 rear-facing 1G PoE+ RJ45 ports drawing from a 480W shared budget (up to 30W per port), two additional 1G copper ports, and four 10G SFP+ uplink slots. The switching fabric runs at a non-blocking 132 Gbps with a forwarding rate of 98.21 Mpps — enough headroom to keep multi-room NDI streams, distributed Dante audio feeds, and parallel NVX decoder endpoints running without contention.
What separates this hardware from a generic enterprise switch is the purpose-built AV management GUI. Pre-configured profiles for Dante, AES67, Q-SYS, NDI, SDVoE, NVX, and Kramer KDS load directly onto individual ports in seconds, eliminating manual VLAN and multicast rule construction for each codec. The embedded NETGEAR IGMP Plus™ engine activates multicast delivery right out of the box — no PIM configuration, no IGMP querier setup — which matters most when time is short at a live event or in rental AV deployments.
Port placement tells the rest of the story: all active connections sit at the rear, leaving the front panel for status LEDs alone. Broadcaster rack builds and mobile production units benefit from the resulting cable order. Fan noise in quiet mode sits around 42 dB at 25 °C, acceptable in studio environments with monitored ambient levels. Auto-trunk and auto-LAG negotiate automatically with neighbouring M4250 or M4300 switches, cutting manual link-aggregation work between setup and go-live.
Layer 3 functions — static routing, VLAN segmentation, QoS prioritisation, SNMP, SSH, RADIUS, and TACACS+ — round out the feature set for structured broadcast or campus networks. A 1.8 GHz ARM Cortex-A57 quad-core CPU paired with 2 GB RAM keeps the management plane responsive under simultaneous port reconfiguration. Rack-mount brackets ship in the box; VESA and under-table mounts make the GSM4230PX equally at home in furniture-integrated control rooms.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
Fast, Easy, Configuration for AV Pros
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
Focus on The Event Not Fan Noise
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
Designed for AV Over IP right out of the box
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Refined Design Provides Mounting Flexibility
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
Primary Port Speed : 1 Gigabit
Number of Ports : 30 (24x 1G PoE+, 2x 1G, 4x SFP+)
PoE Ports / Budget : 24 PoE+ (30W/port), 480W Budget
IGMP Support : Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support : Yes, up to 12kb
AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230PX-10000S)
Acoustics : Fanless or 42dB@25ºC
TBD Power Consumption : With PoE: 614W/2096.2Btu/hr
Without PoE: 46.8W/159.78Btu/hr
Standby without any port connection: 33.9W/115.73Btu/hr
Third party support : Domotz
Dimensions (WxDxH) : 440 x 400 x 43.2 mm
Weight : 5.45 kg (12.02lb)
What's in the Box :
M4250-26G4XF-PoE+ (GSM4230PX)
Power cord(s)
Console USB Type-C and RJ45-DB9 cables
Rack-mounting standard brackets
Longer brackets for recessed mounting
Rubber footpads for tabletop installation
Installation guide
GSM4230PX-100EUS
6 Items
Data sheet
- Switch type
- Managed
- Number of Ports
- 30
- Type of Ports RJ45
- 10/100/1000 BASE-T RJ45
10/100/1000 BASE-T RJ45 PoE+ - Number of Ports RJ45
- 24
- Type of Fibre Ports
- 1000/10G BASE-X SFP+
- Number of Fibre Ports
- 4
- PoE Standard
- PoE+ (30W) 802.3at
- Number of PoE Ports
- 24
- PoE Budget
- 480W
- Switching Capacity
- 132 Gbps
- Layer Supported
- Layer 2
Layer 3 - Management
- CLI
HTTPs
IT Web GUI (main)
MIBs RSPAN
Out-of-band
Radius Users
SNMP
SSH
TACACS+
Telnet - Wi-Fi
- No
Specific References
- ean13
- 606449151619
- mpn
- GSM4230PX-100EUS
