Discreet Mounting Options
Mount your PTZ camera above, below or beside the action to capture the ideal view every time.
PTZ mounts:
Wall Mounts
Ceiling Mounts
Pole Mounts
Outdoor Enclosures

Build your PTZ Camera System
Our plug-and-play USB 3.0 camera models are built with ease of use and compatibility in mind, featuring game-changing optics and video communication installation options. USB connectivity is now available with options for HDMI and IP streaming in the latest USB PTZ cameras from PTZOptics. The combination of robust high-definition video outputs and flexible camera control options are what makes this camera powerful. Realize the value of connecting this camera to any application, and enjoy the advanced camera control options which include iOS, Android, PTZ controllers, joysticks and more.

KEY FEATURES
• 72.5 degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
• UVC 1.5 (USB), RS232 & RS485 (Serial), and IP (LAN/WAN) control
• H.264, H.265, & MJPEG Streaming over RJ-45 LAN port
• HDMI, USB 3.0, & IP streaming (all 3 simultaneously)
• RTMP & RTSP IP streaming
• 5-year warranty
• Photobooth capable

WHAT’S IN THE BOX

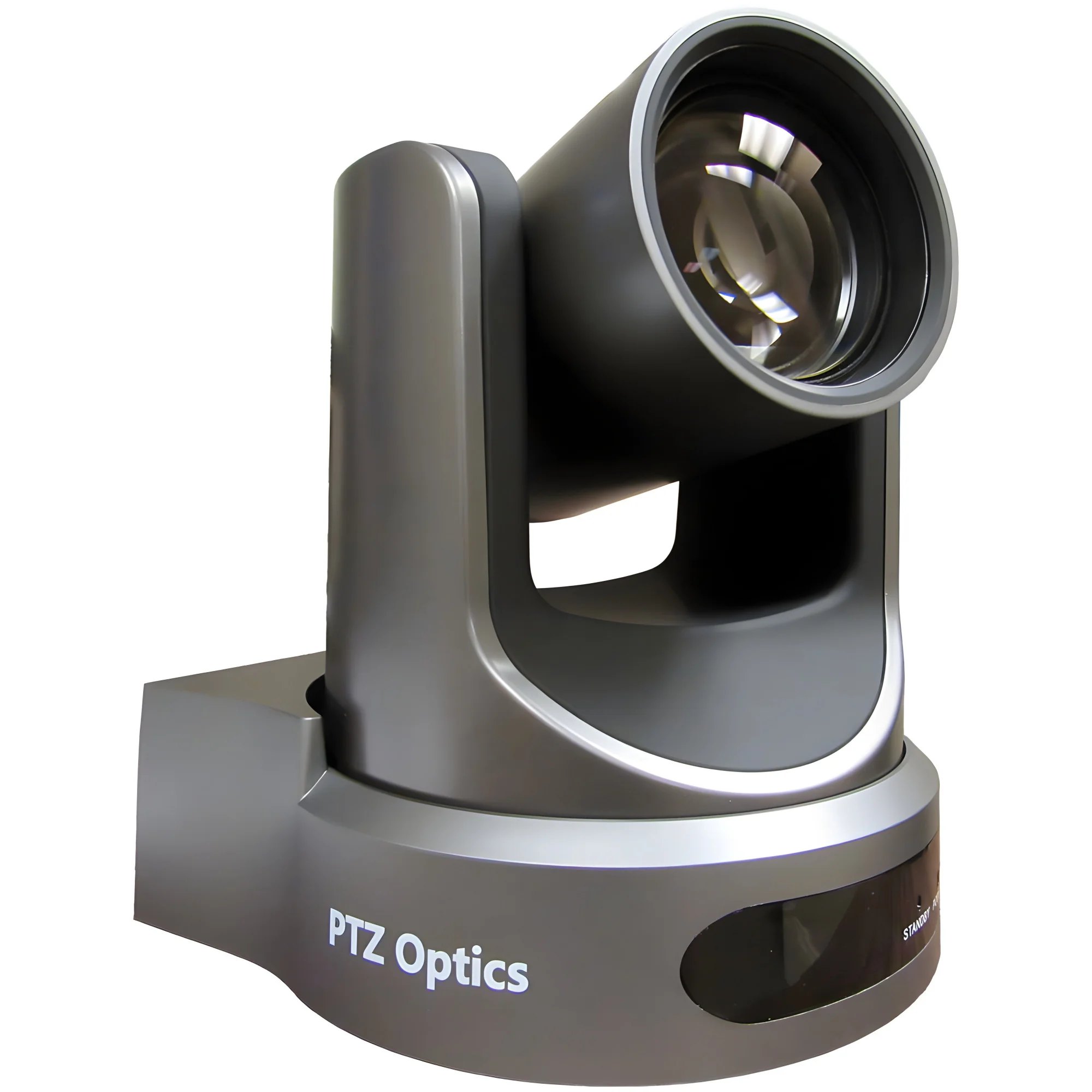

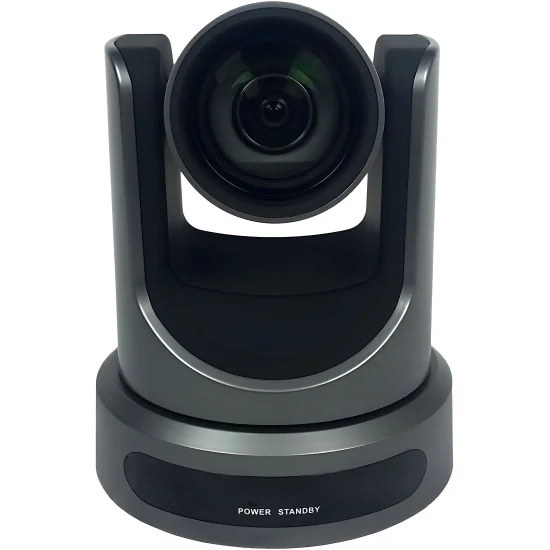

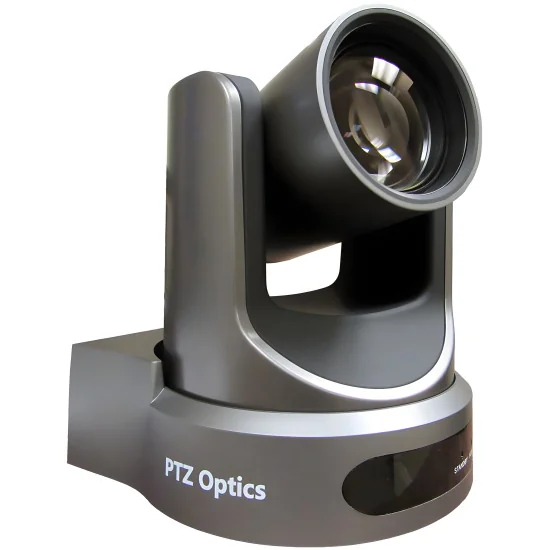

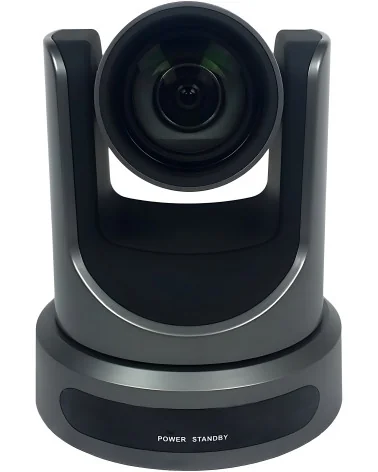

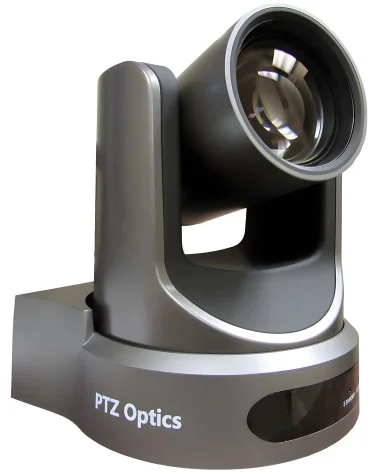

12X Zoom USB 3.0 Camera
Power Adapter + Cord
USB 3.0 Cable
IR Remote Control
RS-232C Cable
Quick Start Guide (2)
AAA Batteries

Camera & Lens
Video Sensor 1/2.7” CMOS, 2.12 Mega Pixels
Frame Rates 1080p-60/50/30/25, 1080i-60/50, 720p-60/50/30/25
Frame Rates (CVBS) 576i-30, 480i-30
Focal Length 12x, F3.5mm-42.3mm, F1.8-F2.8
Lens Zoom 12x
Field of View 72.5°
Min Lux 0.05 Lux (@F1.8, AGC ON)
Shutter Speed 1/30s - 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 6.9° (tele) to 72.5° (wide)
Vertical Angle of View 3.9° (tele) to 44.8°(wide)
Working Environment Indoor
Pan & Tilt Movement
Pan Movement ±170°
Tilt Rotation Up: 90°, Down: 30°
Presets 10 via IR (255 via Serial or IP)

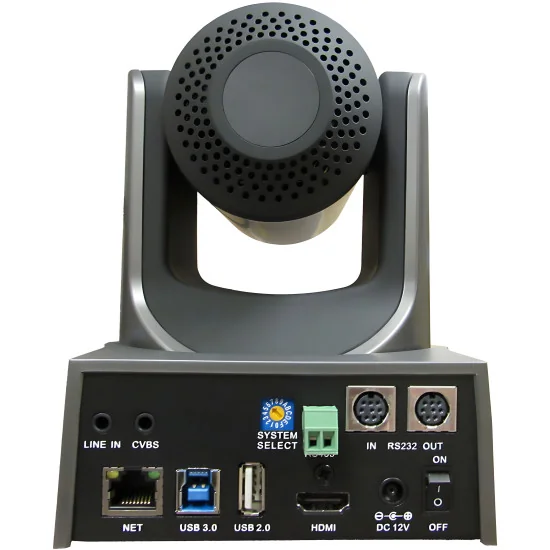

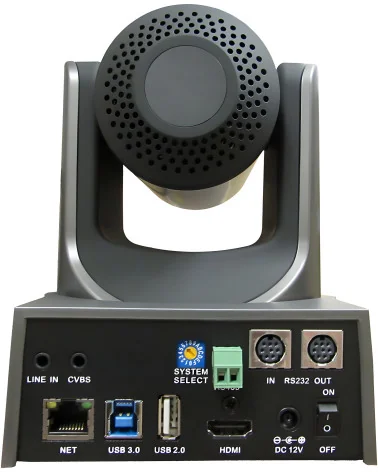

Rear Board
Video Output HDMI, USB 3.0, IP Streaming, CVBS
Network Interface RJ45
Audio Interface Line In, 3.5mm (USB & IP Stream Only)
Communication RS-232, RS485, PELCO-D/P, UVC 1.5
Baud Rate 2400/4800/9600 bits
Power Supply JEITA type Power Adapter (DC IN 12V)
USB 3.0 Interface USB 3.0 (Requires Quad Core Processor)
USB 2.0 Interface Future Use
Electrical Index
Power Supply 12W (Max)
Input Voltage 12V DC (10.8 - 13.0V DC)
Physical Specifications
Dimensions (mm) 142W x 164H x 160D (198H max w/ Tilt)
Box Dimensions 9”x9”x10”|229mmx254mmx229mm
Camera Weight 3.15 lbs. (1.43 kg)
Boxed Weight 5.4 lbs. (2.45 kg)
