Subject tracking is processed on board, with no PC in the loop. Presenter-Lock sticks to the person you select even as others cross in front; to hand over to the next speaker, use the arrow keys in the browser, on the infrared handset or on a VISCA joystick. For a panel, Auto Framing keeps the whole group composed rather than chasing one face. PTZOptics gives a pick-up zone of roughly 7.6 m around the start position and recommends tracking up to 100 ft, about 30 m. Since the January 2026 firmware, the head overreacts less to small movements at full zoom, exactly where a long lens magnifies every twitch. Lose the speaker and a configurable stop point, timeout and fallback preset take over, while presets 150 and 151 give a room control system a simple on/off switch for tracking.

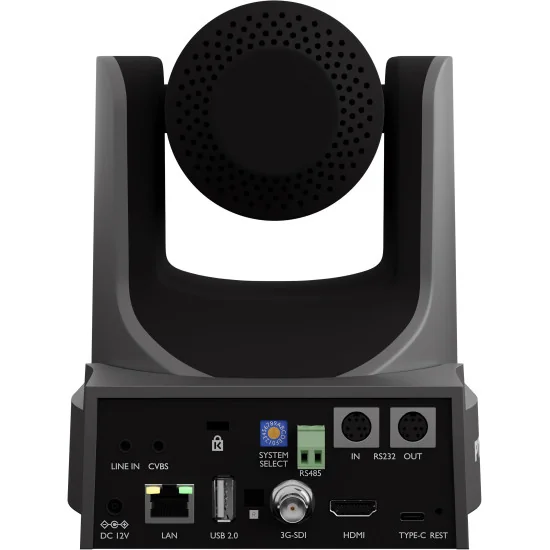

For baseband, pick HDMI 1.3 or 3G-SDI (BNC, SMPTE 424M) through the output mode in the web interface; a rotary selector at the back sets the format at the next boot. Plugged into a computer over USB-C 3.0, the head shows up as a UVC-class webcam that also carries sound, up to 1080p60 in MJPEG, ready for Teams, Zoom or a recording laptop.

The gigabit network port carries two separate encoded streams in H.264 or H.265, with MJPEG as an extra choice on stream two, and the primary stream accepts bitrates near 100 Mb/s. Because RTMP or RTMPS targets are set per stream, a single keynote can feed YouTube and a client's CDN simultaneously. SRT runs in caller or listener mode, protected by a 10–79 character passphrase; RTSP and multicast serve recorders on site; and native NDI|HX3, built on NDI 6.3, can travel over RUDP, TCP, UDP or multicast. Desk audio enters at line level through a 3.5 mm input and is embedded in AAC (44.1 or 48 kHz) or in G.711A for conferencing codecs.

Control is open to almost any desk. VISCA over IP, Sony's VISCA protocol, ONVIF, an HTTP API and MIDI mapping handle network control, while RS-232 (30 m, chainable) and RS-485 (up to 1,200 m) cover serial installs, both speaking VISCA, Pelco-D and Pelco-P. Recall accuracy across the 255 presets is 0.1°. The head pans ±170° at speeds reaching 100°/s and tilts through 120° (−30° to +90°) at no more than 69.9°/s. Image Presets decide whether a recall brings back exposure and colour or only the framing. Newer API calls confirm when a preset has landed and report whether the head is still moving, so automation cuts only on a settled shot. SuperJoy and PT-JOY-G4 joysticks, OBS and vMix integration, PTZOptics' Camera Management Platform and Hive cloud control all address the same head.

Installation needs one Cat5e or Cat6 cable, maximum length 100 m, from an 802.3af PoE port, with a 12 V supply for rooms without PoE. A gravity sensor rights the picture on ceiling mounts, and pan/tilt limits, now kept after a reboot, stop the lens from pointing at the audience or a projection screen. IR receivers on both faces, a Kensington lock point, a privacy mode that swings the head away and blanks the feeds, authenticated firmware updates and NDAA compliance answer the usual questions from university IT and public-sector buyers. Videomaker noted an audible fan on the 12x; a 20x usually hangs farther from the lectern microphone, which helps. Operation is indoor only, within −10 to 40 °C.
