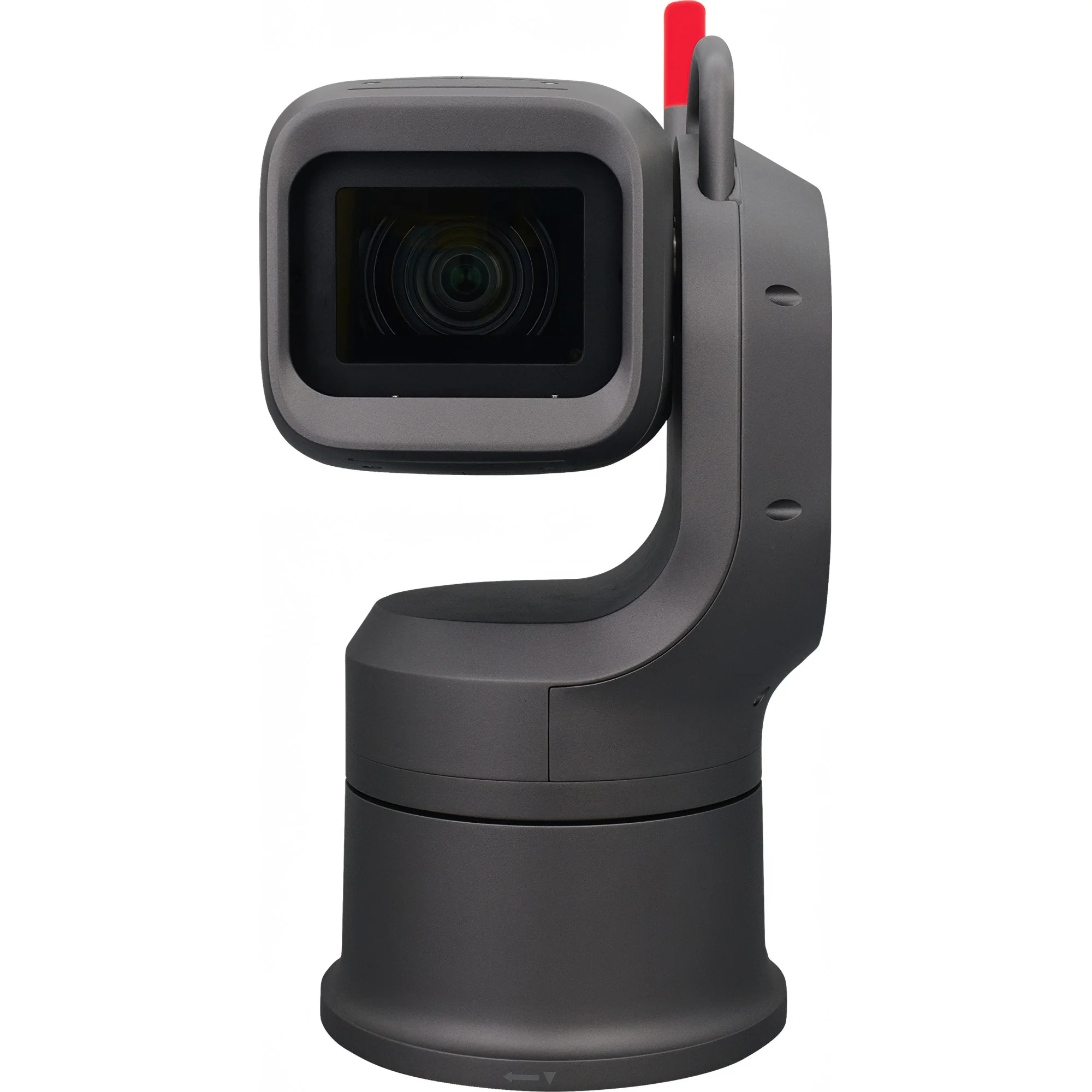

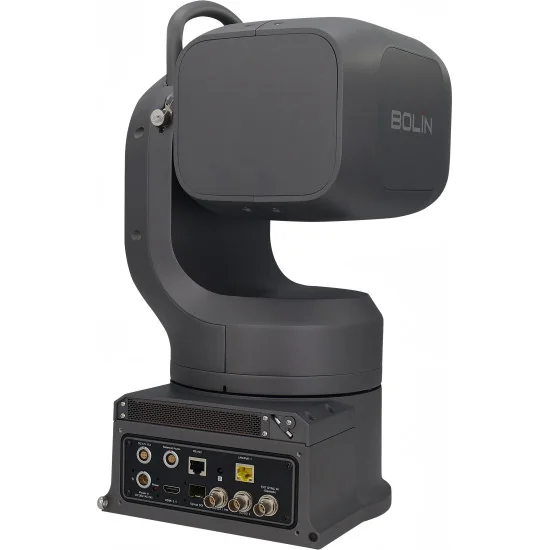

EXU230H Low Light Professional Outdoor PTZ
Designed for professional outdoor video production, the Bolin EXU230H Low Light Professional Outdoor PTZ camera delivers broadcast-quality Full HD video with high-resolution clarity, smooth motion, and precise color accuracy. Featuring a 30x zoom, the EXU230H captures detailed visuals at long distances, making it an ideal choice for sports stadiums, outdoor concerts, observation towers, and live event coverage. Equipped with a Sony Starvis CMOS sensor, the camera excels in low-light conditions, ensuring superior image quality even in challenging lighting environments. Its advanced Super Image Stabilization Plus technology significantly reduces vibrations caused by wind, ground movement, or environmental factors, providing steady and reliable footage in dynamic settings.

Built to withstand extreme conditions, the EXU230H's IP67-rated housing offers full protection against dust, water, and temperature fluctuations, allowing for uninterrupted operation in rain, snow, and direct sunlight. The body features a salt-resistant coating, making it suitable for use in marine or coastal areas. The camera provides versatile output options, including simultaneous 3G-SDI, HDMI, optical fiber, and IP streaming, allowing for easy integration into production workflows. The camera supports multiple streaming protocols ensuring flexible and reliable video delivery. For precise synchronization in multi-camera setups, the camera includes a Genlock input, ensuring frame accuracy in complex production environments. Additionally, FreeD protocol support allows for real-time tracking in AR/VR applications, enhancing virtual productions and immersive experiences. The camera also includes balanced XLR audio inputs for professional-grade audio integration.

With its robust construction, exceptional imaging performance, and flexible connectivity options, the Bolin EXU230H is the ideal solution for capturing high-quality video in any outdoor environment.

Full HD Super Low Light Performance, Image Stabilizer
Bolin EXU230H Low Light Professional Outdoor PTZ, equipped with the latest Sony new color camera block that achieves higher visibility by adopting the 8M ultra high resolution lens, 4M image sensor (1 / 1.8 type), and ISP  from Sony. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.(Data and Picture Quoted From Sony)

• 1/1.8 inch STARVIS II sensor
• Enhanced High Resolution image quality
• 30X 8M High Resolution optical zoom lens
• Advanced AF performance, Spot Focus · Spot AE · Spot AWB
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super low light in color performance
• Super image stabilizer

Extreme Weather Survival

• Wind Load Durability, steady operational and  non-destructive at 30-60 m/s or less
• Heater, Defroster built-in
• –40 °C to 60 °C (-40°F to 140°F) operational
• Hidden-Type Rain Wiper and Sun Shield
• All Stainless Steel/Brass/Metal, Interior Mechanical Parts
• Entire Body IP67 Rated Dustproof and Waterproof

High Resolution-Day Ligh/Night View
The 8M compatible lens, 4M image sensor (1 / 1.8 type), and ISP all use new devices from Japanese manufacturers. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

Super image stabilization
The blur suppression has been greatly improved from the conventional stabilizer function, and high-definition movies with less blur can be shot even in a harsh environment with large vibrations. Equipped with two modes, "Super" and "Super + (plus)" *.

Advanced AF performance
Sony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has the algorithm design which minimizes defocusing in difficult conditions, especially in dark environments (including environments with a mixture of visible light and infrared light and environments with locally strong light sources). (Data and Picture Quoted From Sony)

Sony’s sophisticated proprietary AF algorithm
Sony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has the algorithm design which minimizes defocusing in difficult conditions, especially in dark environments (including environments with a mixture of visible light and infrared light and environments with locally strong light sources).

30x enhanced optical zoom
In pursuit of high image quality and a 1 / 1.8-inch sensor, we have introduced a 30x enhanced optical zoom with a combination zoom of an 8M compatible lens and a 4M image sensor. Beautiful images can be obtained not only at the Wide end, but also at the Tele end where the effects of reduced resolution and aberrations are easily visible.

Jero effect correction
In electronic image stabilization, the image is generally distorted when the amount of blur is large. This product corrects this phenomenon and enables the acquisition of natural images with little distortion.

IP Streaming Codec: Standard HEVC Codec Built-in

• H.264/265 - AVC/HEVC
• SoC Software based encoder built-in
• Browser, software and hardware decode-able
• Up to 1080P60, Full HD
• Three Streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS., SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode
• Open platform

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

PTZ Movement-Smooth, Accurate and Quiet

• PAN: 340° (-170° to +170°); Fully proportional, speed 0.08° to 60°/s
• TILT: 205° (-35° to +170°); Fully proportional, speed 0.08° to 60°/s
• Preset: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
• Smooth and Accurate Movement

Various Control Methods

• IP Control
• Serial Control
• IR Remote Control
• Software Control
• Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD

SPECIFICATION

IMAGE FULL HD, 30X
Image Maker: Sony
Image Sensor: CMOS image sensor 1/1.8 type STARVIS 2
Number of effective pixels: 2712 x 1538, 4.17MP
Picture elements: 2688 x 1520, 4.09MP
Lens: Enhanced optical zoom 30X
Digital Zoom: 12X
Horizontal Angle of View: 58.1˚ (Wide) - 2.3˚ (Tele),
Vertical Angle of View: 34.9˚ (Wide) - 1.7˚ (Tele),
Focal Length: f= 6.5 mm (WIDE) to 162.5 mm (TELE)
Min. object distance: 100mm (Wide), 1200mm (Tele)
Aperture: F1.6 (Wide) to F4.8 (Tele), 16 steps
Min. Illumination: ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On); ICR-On, 0.00008 lx (1/30 sec, 50%, High Sensitivity On)
Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
Focus: Auto, Manual, One Push Trigger, Full Scan one push trigger, Near Limit, Spot Light Avoidance, Spot Focus
White Balance: Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Outdoor Auto
Exposure: Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation
Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
WDR: Yes
Image Stabilizer: Yes, Super, Super+
Color Gain: Yes, (0-255)
Color Hue: Yes, (0-255)
Gamma: Standard / Straight gamma
Color Matrix: Yes
Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D
S/N Ratio: ≥50db
HLC: Yes
E-Flip: Yes
Defog: Yes, (off, low, mid, high)
High Sensitivity: Yes
AE Speed: Yes
Day/Night: Yes
Backlight Compensation: Yes
Low Latency Mode: Yes

MECHANICAL
Pan Movement: 340° (-170° to +170°); Fully proportional; Standard Mode: 0.08° to 60°/s; Fast Mode: 0.08° to 120°/s
Tilt Movement: 205° (-35° to +170°); Fully proportional;Standard Mode: 0.08° to 60°/s; Fast Mode: 0.08° to 120°/s
Speed Proportional: Pan/Tilt Speed proportional to zoom range
Preset Position: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: YES, ON/OFF
PTZ Trace Memory: YES, 4
Cruise: YES, 12
Quietness: NC55(45/35) or less when operating speed is 60°/30°/15°/sec or less
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Position Deviation Correction: Optical
Turning Radius: PAN: Φ 400 mm TILT: Φ 480 mm
Environmental: Outdoor, IP67 compliant for Waterproof and Dust Proof
Body Finishing: C5 Corrosion Resistant Power Coating
Wind Load Durability: 0-15m/s Operation Normal 15-30m/s Pan/Tilt Operational Non-Destructive and steady operation at 60m/s or less
Wiper: Yes
Heater: Yes
Defroster: Yes

INTERFACE
HDMI Video Output: HDMI 1.4 Type A
SDI Video Output: 3G-SDI, 75Ω BNC x 2，SDI Clean / SDI PM for output having OSD display
SDI Optical Fiber Output: Optical SDI SFP module support up to 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE), Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control, IP video output, IP audio output, System FW Upgrade
Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
Audio Input:  2 channels, XLR balanced input (Mini XLR - Hirose Connector) with 48V Phantom power, Input signal level: 0 dBu, Volume variable range: –40 dB to +12 dB (can be changed in 1 dB steps in the menu)
Audio Output:  2 channels, XLR balanced output (Mini XLR - Hirose Connector) (preserve); Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo, superimposed over SDI & HDMI output, Sampling frequency: 48 kHz (synchronized to video) • Quantization bit rate: 24-bit (LPCM) • Audio compression format (IP): AAC-LC (High quality)
Tally Light: Red, Green Color, Front
System Firmware Upgrade: Upgrade via IP for camera system MCU, FPGA and Encoder
Power Connector Type: INPUT: DC36V/AC24A,Pin connector, INPUT: RJ45, PoE++ (IEEE802.3bt), OUTPUT: 12VDC, Pin connector
Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
Control Protocol: Serial: VISCA, PELCO P/D, FreeD; IP: VISCA Over IP, ONVIF

HDMI VIDEO SIGNAL SYSTEM
HDMI Video Format: 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 12bit(HDMI), YUV4:2:2
Color Space: YUV、RGB
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator; Image/Logo Insert Screen Display with IP Image Stream

SDI SIGNAL FORMAT
SDI Video Output: 3G-SDI, Standard 75 Ω (BNC x 1)
SDI Video Format: 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 10bit(SDI), YUV 4:2:2
Color Space: YUV
Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A(3Gb/s) with SMPTE352 SDI Metadata Supported
True Dual Output: HDMI and SDI signal can be output with different format
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator

NETWORK
Video Compression: MJPEG,H.264/H.265 by SoC
IP Resolution/Frame Rate: 1920x1080P 60/59.94/50/30/29.97/25; 1280x720P 60/59.94/50
True Dual Output: IP, HDMI, and SDI signal can be set with different format
IP Protocols: TCP/IP, ICMP, ARP, RTP, UDP, HTTP, DNS, DHCP, FTP, NTP，SRT
Application Protocols: RTMP(S), RTSP, RTSP Encryption, RTP Streaming (Unicast, Multicast), SRT, MPEG-TS over UDP, MPEG-TS over RTP
Multi-stream: 2 stream
Audio Compression: AAC-LC Broadband Audio Encoding(Duplex Communicate Supported, Audio/Video synchronization)
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth: 1Mbps - 100Mbps
Latency (Overall latency may increase depending on network configurations): < 150ms glass to glass at 1080p60
Browser Support: Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: –40 °C to 60 °C（-40°F to 140°F), (PoE is not suggested to be used and camera preheating automatically will be processed when is at environment -10°C (-14°F) or less)
Operating Humidity: 100% Suitable for Use (no condensation)
Power Input: DC 36V / AC24V, PoE++(Compatible with IEEE802.3bt, Type 4 Class8)
IP Protocols: Suggest that not to use POE when environment temperature is -0°C or lower
Power Consumption; Min: 35W(Static state with no movement); Max: 85W（Fully loaded operation with heater on, PoE power is not suggested）
Installation Method: Stand-alone (Upright) or suspended (Pendent), • To ensure safety, the unit must be secured using the mount bracket supplied.
Mount: Ceiling Mount, Wall Mount, Heavy duty tripod
Handle: Built-in for portable use application
Wiper: Yes, hidden type
Size of Tripod Screw Hole: 1 x 3/8”, 1 x 1/4” + secure lock point
Body Color: Dark Gray
Dimension-Camera: PAN: Φ 400 mm TILT: Φ 480 mm
Weight: 10kg（22lb)
Accessories Included: IR Controllerx1, Secure Chain Lock and screwx1, Power Adaptor x1, Seal ringx12, Quick install panel bolt x4, IP67 Tail Cover x1, Rainwater Cover x1
Certificate: CE, FCC, IC, UKCA, ROHS, WEEE
