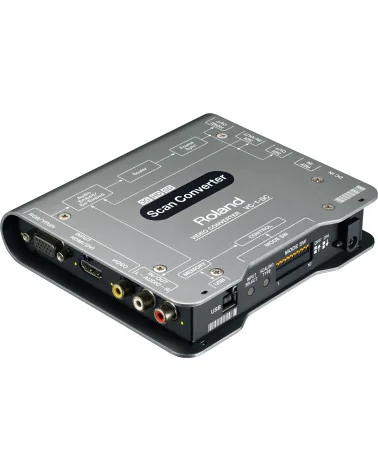

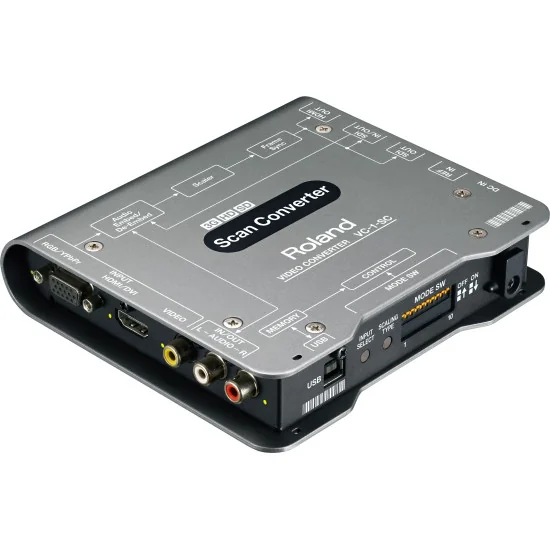

Roland VC-1-SC Video Converter

    VC-1-SC
    Price: €929.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

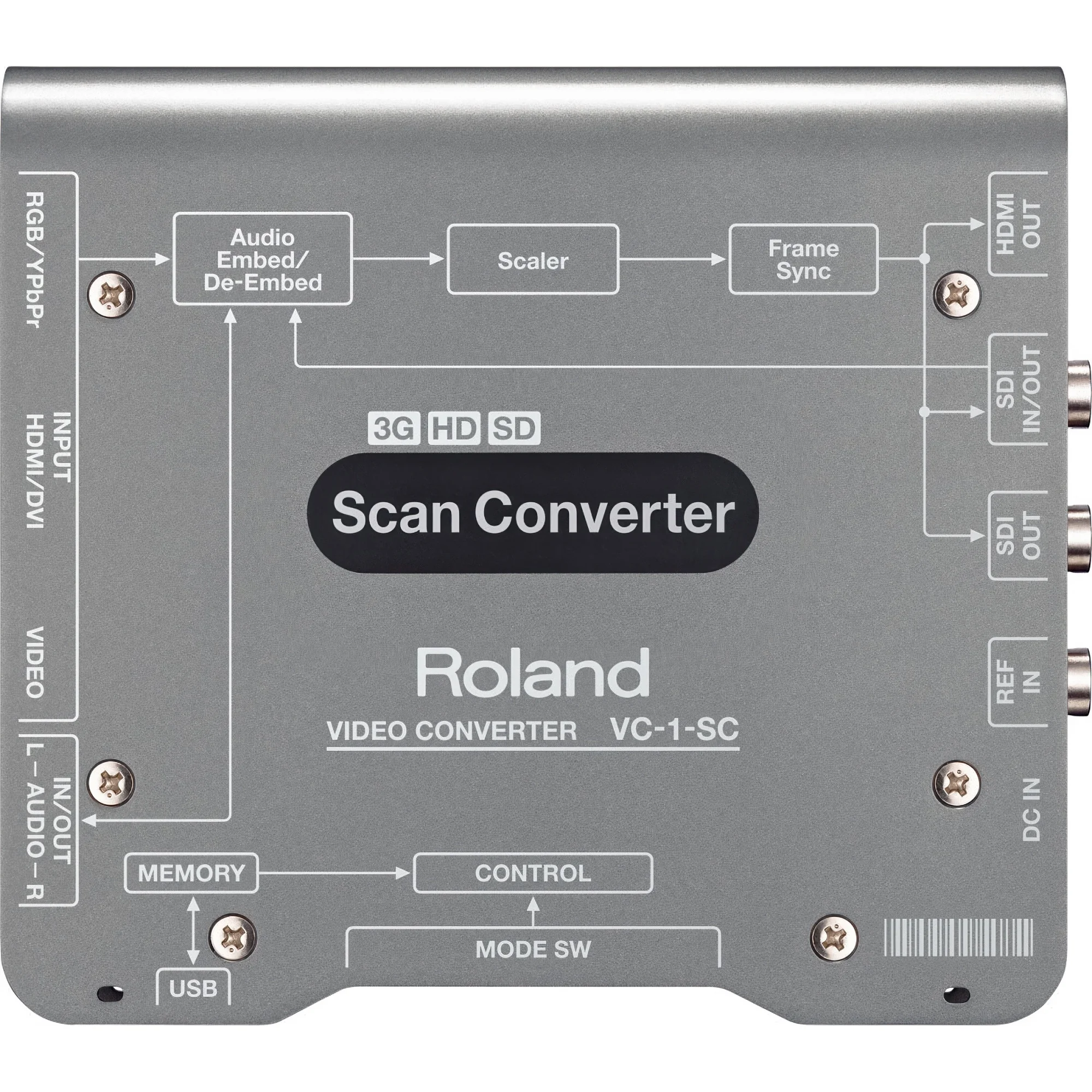

    Roland VC-1-SC is a professional scan converter and signal bridge for SDI/HDMI/analog workflows. It performs up/down/cross conversion, precise frame-rate and i/p transforms, and aspect conversion with Full, Letterbox, Crop or Dot-by-Dot modes. With 3G-SDI Level A/B and HDMI I/O plus RGB/Component (HD-15) and Composite inputs, it normalizes laptop, legacy PC and camera feeds to clean 1080p/60 outputs. The internal scaler accepts VESA formats up to 1920×1200 (reduced blanking) and SD/HD formats from 576i/50 to 1080/59.94p, so mixed sources arrive ready for switching or capture.

    A built-in frame synchronizer with external reference input (black burst, bi-level, tri-level) keeps timing locked across multi-camera setups. The SDI path processes at 10-bit 4:2:2; HDMI supports 10-bit YCbCr 4:2:2 and 8-bit 4:4:4/RGB. On-board re-clocking stabilizes long SDI runs. For audio the unit offers embedding and de-embedding: route embedded HDMI/SDI audio, or use the analog RCA pair to send program audio to mixers or insert external audio back to the outputs.

    Control is exact and predictable through USB with VC-1 RCS for PC/Mac. Engineers can select formats, manage frame skip/repeat between 23.98/24/25/29.97/30/50/59.94/60, choose color sampling, and set safe handling of HDCP (HDMI-only pass-through; SDI is muted when content is protected). Typical uses: standardize presenter laptops for LED walls, deliver stable camera returns to stage displays, conform 4:3 computer graphics to 16:9, or de-interlace 1080i to progressive for IP encoders.

    In live production the Roland VC-1-SC functions as a compact utility hub that resolves format disputes without image artifacts. It combines broad I/O, accurate timing, and granular processing to maintain source fidelity while delivering locked program to switchers, recorders and streaming encoders in broadcast, corporate AV and esports. Built for duty 24h.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Features:

    • 3G (Level A&B) /HD/ SD SDI
    • HDMI In/Out
    • RGB/Component In
    • Composite In
    • HDCP Support
    • Built-in Frame Synchronizer and Scaler
    • Audio Embedding or De-Embedding
    • VC-1 RCS, PC/MAC Control Application
    • Up/Down/Cross, Frame Rate, I/P, and Aspect Ratio Conversion

    Specs

    INPUT CONNECTORS
    SDI: Connector: BNC type x 1 (Combined use with SDI Out Connector), Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
    HDMI: Connector: Type A (19 pins) x 1, Signal Standard: HDMI HDCP support (When an HDCP-applied signal is input, output from the SDI OUT connector is stopped)
    RGB/Component: Connector: HD DB-15 type x 1, Signal Level: 1.0Vp-p (Y signal), 0.7Vp-p (R/G/B/Pb/Pr signals), 5VTTL (H/V signals), Impedance: 75 ohms
    Composite: Connector: BNC type x 1, Signal Level: 1.0 Vp-p (Y signal), 0.286 V-p (C signal (NTSC)), 0.3 V-p (C signal (PAL)), Impedance: 75 ohms
    Analog Audio: Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio Out Connector), Input Level: -6dBV, Maximum Input Level: +6dBV, Impedance: 22 k ohms
    Reference: Connector: BNC type x 1, Impedance: 75 ohms, Signal Format: Black Burst, Bi-level, Tri-level

    OUTPUT CONNECTORS
    SDI: Connector: BNC type x 2 (One is Combined with SDI In Connector), Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
    HDMI: Connector: Type A (19 pins) x 1, Signal Standards: HDMI HDCP support
    Analog Audio: Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio In Connector), Input Level: -6dBV, Maximum Output Level: +6dBV, Impedance: 2.2 k ohms

    INPUT FORMATS

    SDI:
    Connector: BNC type x 1 (Combined use with SDI Out Connector)
    Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
    Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
    1920x1080/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (Conforms to SMPTE 274M)
    1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p (Conforms to SMPTE 296M)
    720x480/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
    Color Format: 10 bits YCC 4:2:2
    Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
    *When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.

    HDMI:
    Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
    1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
    720x480/59.94p/59.94i, 720x576/50p/50i (Conforms to CEA-861-E)
    PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
    Color Format: 10 bits YCC 4:2:2, 8 bits YCC 4:4:4, 8 bits RGB 4:4:4
    Audio Format: Linear PCM, 24 bits, 48 kHz, 8 ch

    RGB/Component:
    Video Formats: 1920x1080/60p/59.94p/50p/60i/59.94i/50i/24PsF/23.98PsF (Conforms to SMPTE 274M)
    1280x720/60p/59.94p/50p (Conforms to SMPTE 296M)
    720x480/59.94p/59.94i, 720x576/50p/50i
    PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x720/60Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1080/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)

    Composite: Video Formats: NTSC, PAL

    PROCESSING
    Audio Embed/De-embed: 2ch
    Frame Synchronizer: Frame sync is activated when a reference signal is detected. When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
    Resolution Conversion: Selectable Full/LetterBox/Crop/Dot-by-Dot Type
    Frame Rate Conversion: Frame Skip/Repeat Type

    OTHERS
    USB: USB Type B (Hi-Speed USB) x 1
    Power Supply: DC 9 V (AC Adaptor)
    Operation Temperature: +0--+40 degrees Celsius
    Accessories: AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
    Size: Width: 150 mm, Depth: 130 mm, Height: 30 mm, Weight: 500 g

    VC-1-SC

    Data sheet

    Video Input
    Component
    Composite CVBS
    HDMI
    SDI
    VGA
    Video Output
    HDMI
    SDI
    Audio Input
    HDMI Embedded
    RCA
    SDI Embedded
    Audio Output
    HDMI Embedded
    SDI Embedded
    Max Output Resolution
    1080p 50/60 fps
    Output colour sampling
    RGB 4:4:4 8-bit
    YUV/YCbCe/YPbPr 4:2:2 10-bit
    Built-in scaler
    Yes

    Specific References

    ean13
    4957054504021
    mpn
    VC-1-SC
