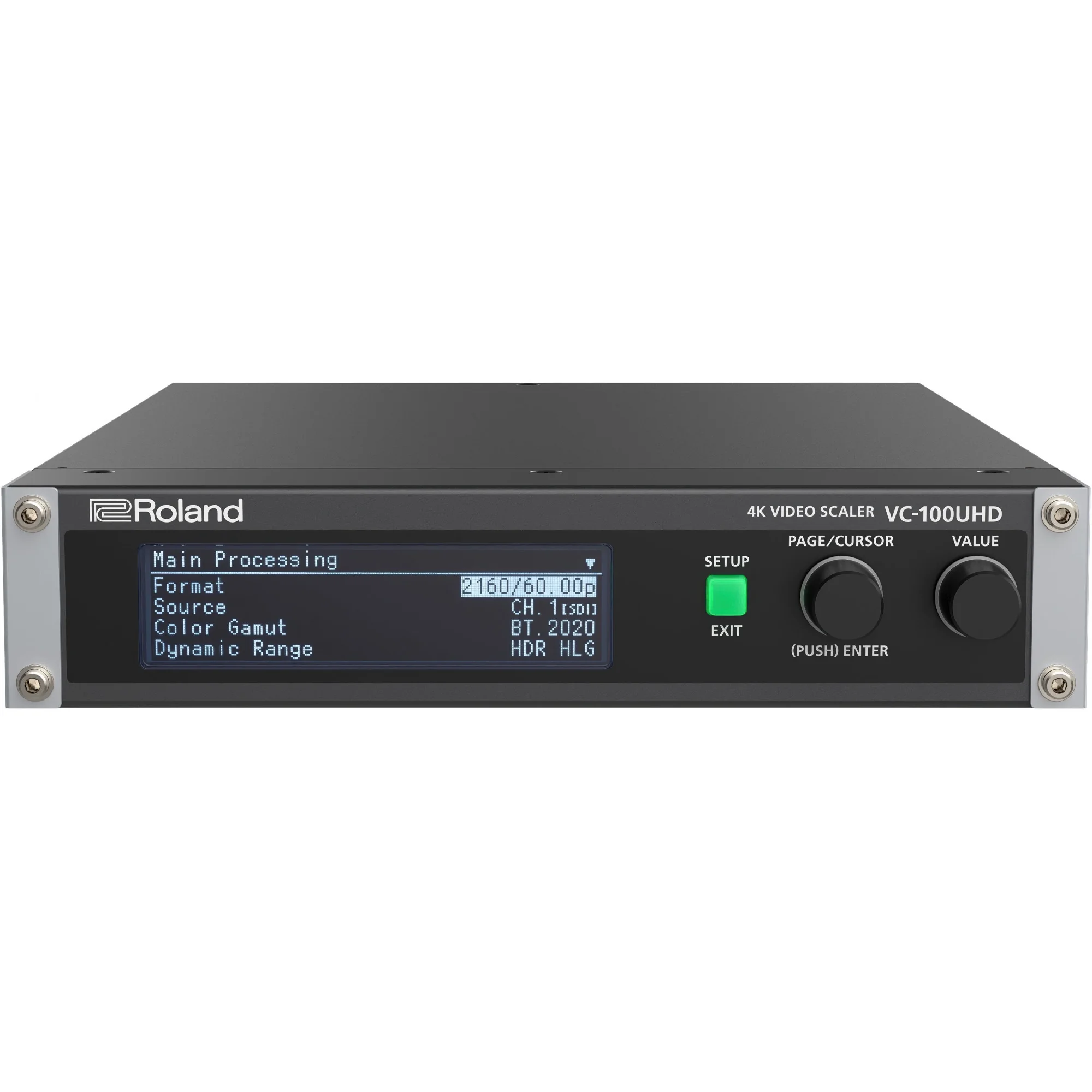

VC-100UHD 4K Video Scaler - Scale, Convert, and Stream
Next-generation A/V signal management processor for live events, fixed installations, and livestreaming.

Introducing the Roland VC-100UHD, a next-generation A/V signal management solution for live events, fixed installations, and livestreaming. Built on a reliable hardware platform for mission-critical applications, this powerhouse processor combines multiple single-task technologies in a compact and flexible half-rack design. With Roland’s Ultra Scaler on board, the VC-100UHD supports simultaneous scaling and conversion to multiple destinations, including 4K LED walls, HD displays, USB livestreams, and more.

• Professional A/V signal management in a compact and robust unit
• Features 12G-SDI and HDMI 2.0 I/O with Roland’s Ultra Scaler video processing technology
• Display processing for multiple audiences: 4K, HD, and web streaming
• High frame rate support at 120, 144, and 240 Hz
• Advanced visual effects and image processing
• Professional audio processing with flexible patching
• USB 3.0 webcam output for livestreaming broadcasts

Process Images for Multiple Audiences at Once
Using the VC-100UHD, it’s a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays and recorders, and USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.

The Ultra-Reliable Ultra Scaler
The VC-100UHD features Roland's revolutionary Ultra Scaler, the same no-compromise, ultra-reliable professional video processor found in the flagship V-600UHD 4K video switcher. Backed by a lightning-fast processing engine, Ultra Scaler delivers premium quality conversion for perfectly synchronized big-screen IMAG and precise dot-by-dot scaling for LED wall displays.

Roland's Ultra Scaler supports:
• 10-bit 4:4:4 pixel-accurate color
• Rec. 2020 wide color gamut
• High dynamic range (HDR-10) processing and conversion
• 1080p high frame rate (HFR) video at 120, 144, and 240 Hz
• Native DCI Digital Cinema System 4K (4096) resolution

High Frame Rates? No Problem.
High frame rate (HFR) video sources can pose signal workflow challenges for integrated systems, but the VC-100UHD handles them with ease. Thanks to Ultra Scaler technology, system designers can simultaneously deliver 1080p video at rates up to 240 Hz for a gaming monitor, 59.94/50 Hz for an HD video system and LED displays, and 59.94/50 Hz for an HD livestream broadcast.

Onboard Visual Effects and Image Processing
Using the VC-100UHD’s built-in visual effects, it’s simple to rotate, flip, and mirror images. For example, a portrait image generated by a smartphone can be trimmed and rotated to fit seamlessly on a 16:9 landscape display for digital signage. And with the VC-100UHD’s Frame Synchronizer and Genlock features, you can easily re-clock and stabilize video images as needed.

USB 3.0 Webcam Output For Streaming and Recording
Reach a worldwide audience and broadcast uncompressed 1080p video at 59.94/50 Hz on popular streaming platforms with the VC-100UHD. The USB 3.0 webcam output offers plug-and-play operation with the latest USB audio/video protocols, so there’s no software to download or drivers to maintain. And with Roland’s free VR Capture software, you can record your HD livestreams in ProRes 422 (Mac) or MP4 (Windows) formats for editing and distribution.

Advanced Audio Features
Along with video, the VC-100UHD can process embedded digital audio from the 12G-SDI and HDMI 2.0 inputs. Analog I/O is provided too, with balanced audio on a 25-pin D-sub connector for installations and line-level stereo audio on RCA jacks for prosumer video gear. An advanced audio patching system lets you route and embed/de-embed up to 16 input channels and output up to eight channels. Need to adjust lip sync? Just tweak the delay that’s available on each audio output.

Compact and Ready for Any Application
The VC-100UHD works great as a portable processor for grab-and-go productions, or can be installed in a rack for use in larger systems and fixed installations. It also comes equipped with rich integration capabilities, including:

• Custom EDID on HDMI
• 24 video test patterns (including animated patterns) and an audio test tone generator
• Support for backing up and recalling system settings on the job via USB memory
• Remote control support over LAN

LED Walls
LED display technology has become a versatile creative tool for event designers. But many corporate events and festivals require pixel widths that exceed the HD format's 1920 pixels. The VC-100UHD’s Ultra Scaler offers dot-by-dot output scaling at incredibly high quality, allowing you to connect to an LED display controller at the exact pixel dimensions needed. Supported resolutions include 4K High Dynamic Range (HDR), 1080p Standard Dynamic Range (SDR), and DCI Cinema 4K.

Esports
Extreme gaming machines are rapidly emerging as the esports market takes off. When milliseconds and costs matter, esports athletes have found a sweet spot for gameplay: 1080p resolution at HFR 120 or 144 Hz for smooth motion while battling opponents. The VC-100UHD lets you integrate these high-end gaming machines into your HD 59.94/50 Hz workflows while keeping gamers happy with a no-latency HFR throughput. And by de-embedding gameplay audio from HDMI, you eliminate analog-to-digital conversions and keep the sound quality high.

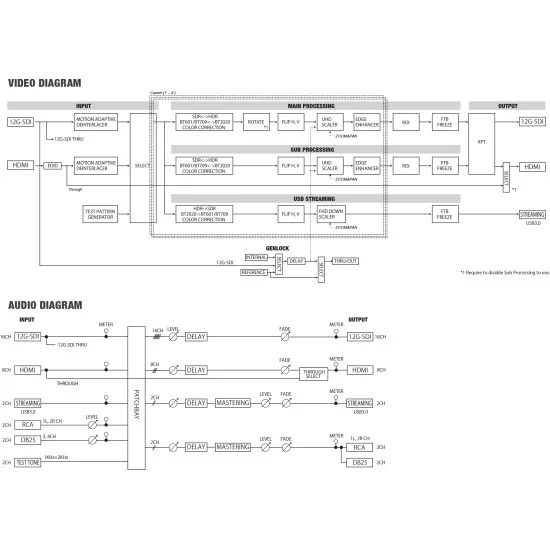

Roland VC-100UHD: 4K VIDEO SCALER

Video
Processing: 4:4:4 (Y/Pb/Pr), 10-bit

Formats

SDI:
2160p(DCI)/59.94 Hz, 50 Hz (SMPTE ST2048)
2160p(UHD)/59.94 Hz, 50 Hz (SMPTE ST2036)
1080p/59.94 Hz, 50 Hz (SMPTE ST274)
1080i/59.94 Hz, 50 Hz (SMPTE ST274)

HDMI: *1
2160p(DCI)/59.94 Hz, 50 Hz (CEA-861-F)
2160p(UHD)/59.94 Hz, 50 Hz (CEA-861-F)
1080p/59.94 Hz, 50 Hz (CEA-861-F)
1080i/59.94 Hz, 50 Hz (CEA-861-F)
4096 x 2160/60 Hz (CEA-861-F)
3840 x 2160/60 Hz (CEA-861-F)
2560 x 1440/60 Hz (VESA CVT Reduced blanking)
1920 x 1200/60 Hz (VESA CVT Reduced blanking)
1920 x 1080/240 Hz (Pixel Clock 556.8 MHz) *2
1920 x 1080/144 Hz (Pixel Clock 346.54 MHz) *2
1920 x 1080/120 Hz (VESA CVT Reduced blanking) *2
1920 x 1080/60 Hz (CEA-861-F)
1280 x 720/60 Hz (CEA-861-F)
*1 HDCP 1.4, 2.2 supported.
*2 Input and through output.

USB Streaming: *3 *4 *5
1080p, 720p, 480p/576p
*3 UVC (USB Video Class) Uncompressed Video 4:2:2 (Y/Pb/Pr), 8-bit
*3 The video signal frame rate can be selected Full or Half.
*4 Color Gamut: Rec.601, Rec.709, Dynamic Range: SDR
* Color Gamut: Rec.601, Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG

Functions
4K Scaler
FHD Down Scaler
Output Fade
Output Freeze
Test Pattern Generator
Rotation *6
Flip H, V
Edge Enhancer
Motion Adaptive Deinterlacer
Color Corrction
Dynamic Range Convertion
*6 Require to disable Sub Processing to use.

Audio
ProcessingL 24 bits/48 kHz

Formats
12G-SDI: Linear PCM, 24 bits/48 kHz, 16 ch (SMPTE 299M)
HDMI 4K: Linear PCM, 24 bits/48 kHz, 8 ch
STREAMING: Linear PCM, 16 bits/48 kHz, 2 ch (UAC (USB Audio Class))

Input Level
LINE IN: -10 dBu (Maximum: +8 dBu)
AUDIO IN: +4 dBu (Maximum: +24 dBu)

Input Impedance
LINE IN: 38 k ohms
AUDIO IN: 15 k ohms

Output Level
LINE OUT: -10 dBu (Maximum: +8 dBu)
AUDIO OUT: +4 dBu (Maximum: +24 dBu)

Output Impedance
LINE OUT: 1 k ohm
AUDIO OUT: 600 ohms

Functions
Output Level
Patchbay
Delay
Mastering
Test Tone Generator

Connectors

Input Connectors
12G-SDI IN: BNC type (SMPTE 2082, 2081, 424M(SMPTE 425M-AB), 292M, 259M)
HDMI 4K IN: HDMI type A
STREAMING: USB type B (USB3.0)
LINE IN: RCA phono type
AUDIO IN: DB-25 female type (Balanced audio 2 ch)
REFERENCE IN: BNC type (Black Burst (Sync to frames), Bi-Level, Tri-Level)

Output Connectors
12G-SDI OUT: BNC type (SMPTE ST2082, ST2081, 424M(SMPTE 425M-AB), 292M, 259M)
12G-SDI THRU: BNC type
HDMI 4K OUT: HDMI type A
STREAMING: USB type B (USB3.0)
LINE OUT: RCA phono type
AUDIO OUT: DB-25 female type (Balanced audio 2 ch)
REFERENCE THRU/OUT: BNC type (Black Burst)

Other Connectors
USB HOST: USB A type (USB2.0) (for USB flash drive)
REMOTE: RJ45 type, 100BASE-TX

Others
Functions: EDID Emulator, Genlock, Preset Memory x 8
Display: Graphic LCD 256 x 64 dots
Power Supply: AC Adaptor
Current Draw: 2.3 A (DC 24V)
Power Consumption: 55 W
Operation Temperature: +0 to +40 degrees Celsius, +32 to +104 degrees Fahrenheit

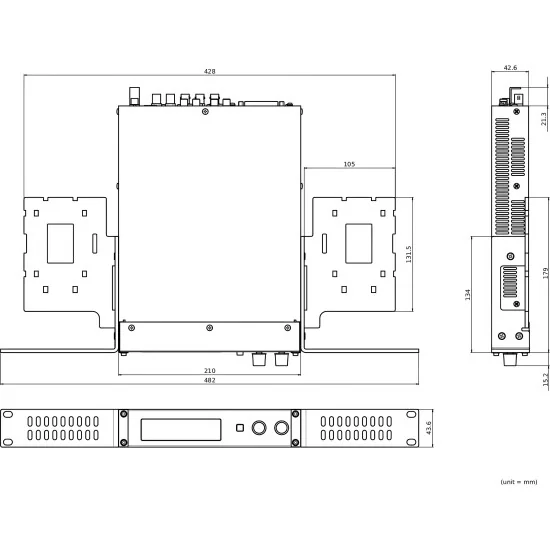

Dimensions: 210 (W) x 284.5 (D) x 43 (H) mm
Weight (excluding Accessories): 2.2 kg
Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", AC adaptor, Power cord, Rubber feet (4 pcs.), Rack mount angle set, DC Plug Stopper
* 0 dBu = 0.775 Vrms
