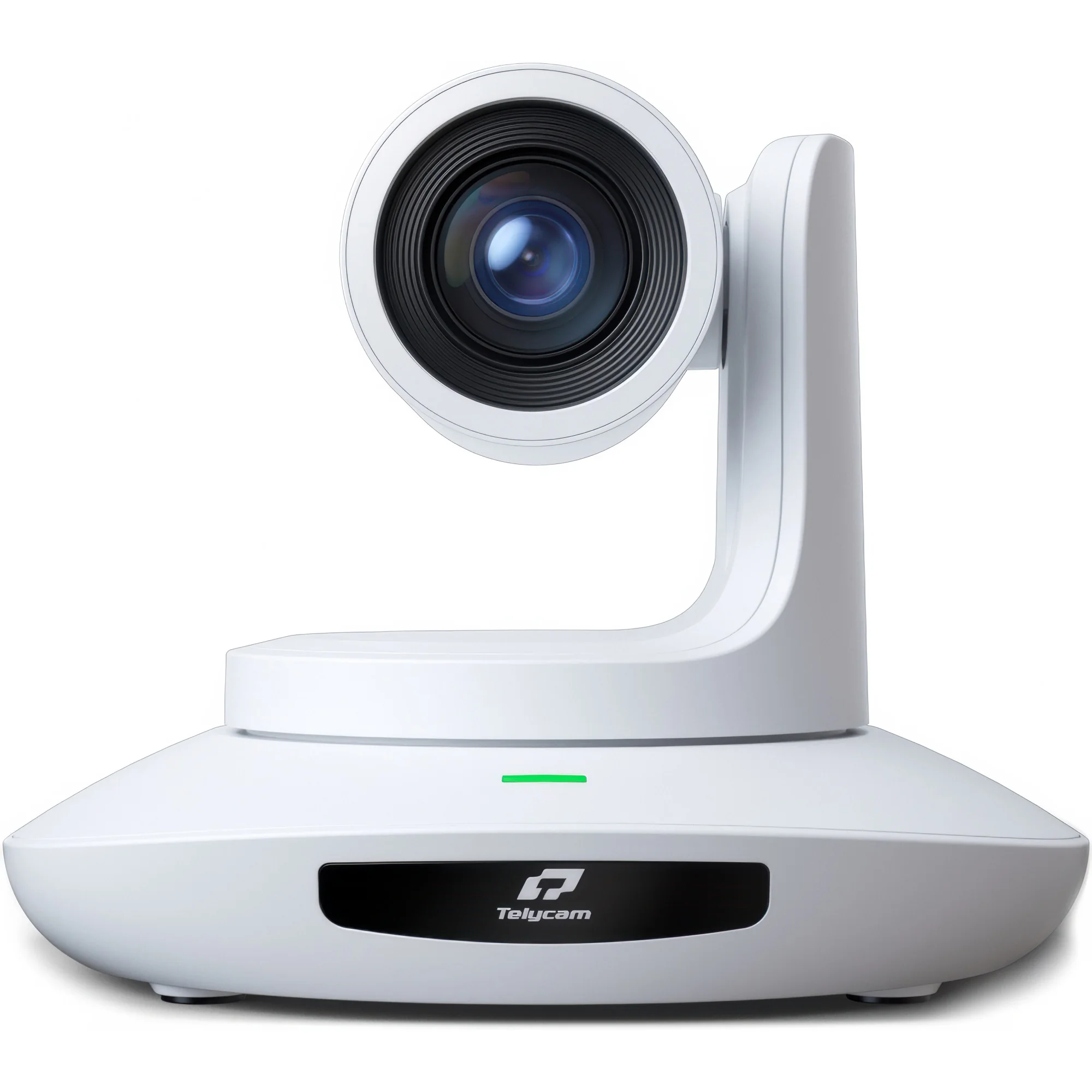

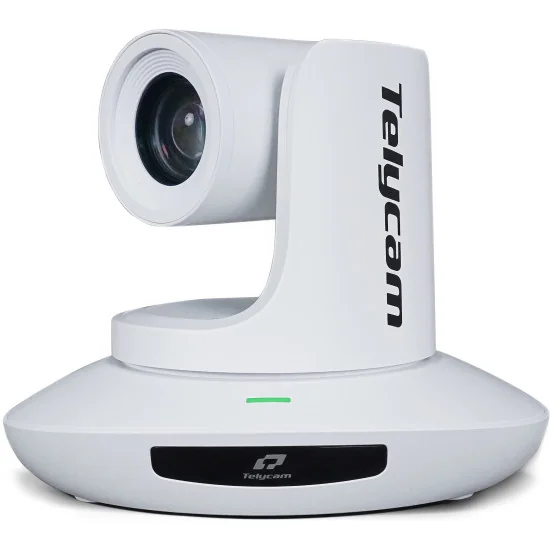

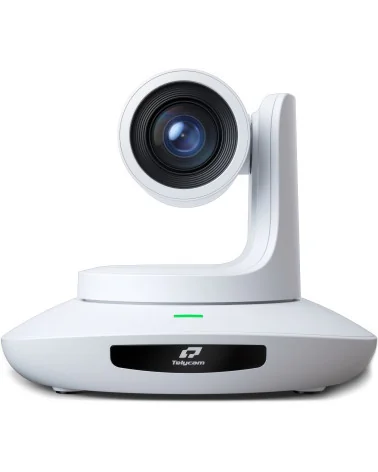

Telycam Drive+ SE HDMI WH is a Full HD PTZ for IP workflows that prioritise signal integrity and control. At its core sits a 1/2.8-inch 2.4 MP CMOS delivering 1920×1080 up to 60p with stable colour and low smear at 0.7 lux. A 20x optical zoom (4.9–98 mm, f/1.5–3.0) covers a 60° to 3.2° horizontal field, maintaining crisp detail. Focus, iris and shutter offer auto or manual operation, while 2D/3D noise reduction and gamma options keep pictures clean in mixed lighting.
Connectivity fits modern production: NDI|HX over Gigabit Ethernet, HDMI for monitors/switchers, and USB 3.0 as UVC 1.5. IP streaming supports H.264/H.265 with RTSP, RTMP, SRT and HTTP; VISCA over IP plus RS-232/RS-485 ensure fast tie-in with control surfaces. Bit rate is configurable from 1 to 16 Mb/s; multicast and ONVIF add interoperability. PoE+ (IEEE 802.3at) carries power, control and video on one cable, reducing cabling on truss or ceiling mounts. A front tally LED follows NDI Program/Preview states for clear production cues.
Precision PTZ mechanics enable -170°~+170° pan and -30°~+90° tilt, adjustable from 0.1°/s for keyed moves to 120°/s for fast reframing, with 0.1° preset accuracy. Store 128 presets via serial control (10 via IR) and switch formats in under three seconds. Minimum working distance is 1.0 m for tight shots in small studios. Image flip/mirror supports inverted mounting; anti-flicker modes cover 50/60 Hz grids. Audio embeds via HDMI/NDI/USB from a 3.5 mm line-level input.
The white chassis measures 220×190×173 mm and weighs 1.35 kg. Operating range is −10 to +50 °C, ≤80% RH. Standard 1/4-20 thread simplifies tripod or plate mounting. Telycam Drive+ SE HDMI WH aligns with searches such as 1080p60 PTZ, 20x zoom, NDI|HX, SRT streaming, VISCA over IP, USB 3.0 UVC and PoE+, serving conference rooms, education and live streaming. VISCA daisy-chain for up to seven units.
Telycam Drive+ SE HDMI WH is a Full HD PTZ for IP workflows that prioritise signal integrity and control. At its core sits a 1/2.8-inch 2.4 MP CMOS delivering 1920×1080 up to 60p with stable colour and low smear at 0.7 lux. A 20x optical zoom (4.9–98 mm, f/1.5–3.0) covers a 60° to 3.2° horizontal field, maintaining crisp detail. Focus, iris and shutter offer auto or manual operation, while 2D/3D noise reduction and gamma options keep pictures clean in mixed lighting.
Connectivity fits modern production: NDI|HX over Gigabit Ethernet, HDMI for monitors/switchers, and USB 3.0 as UVC 1.5. IP streaming supports H.264/H.265 with RTSP, RTMP, SRT and HTTP; VISCA over IP plus RS-232/RS-485 ensure fast tie-in with control surfaces. Bit rate is configurable from 1 to 16 Mb/s; multicast and ONVIF add interoperability. PoE+ (IEEE 802.3at) carries power, control and video on one cable, reducing cabling on truss or ceiling mounts. A front tally LED follows NDI Program/Preview states for clear production cues.
Precision PTZ mechanics enable -170°~+170° pan and -30°~+90° tilt, adjustable from 0.1°/s for keyed moves to 120°/s for fast reframing, with 0.1° preset accuracy. Store 128 presets via serial control (10 via IR) and switch formats in under three seconds. Minimum working distance is 1.0 m for tight shots in small studios. Image flip/mirror supports inverted mounting; anti-flicker modes cover 50/60 Hz grids. Audio embeds via HDMI/NDI/USB from a 3.5 mm line-level input.
The white chassis measures 220×190×173 mm and weighs 1.35 kg. Operating range is −10 to +50 °C, ≤80% RH. Standard 1/4-20 thread simplifies tripod or plate mounting. Telycam Drive+ SE HDMI WH aligns with searches such as 1080p60 PTZ, 20x zoom, NDI|HX, SRT streaming, VISCA over IP, USB 3.0 UVC and PoE+, serving conference rooms, education and live streaming. VISCA daisy-chain for up to seven units.
We ship all over the European Union for €20, free shipping on orders over €1,000.
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
Full HD Clarity
The Drive+ SE features an industry-leading image processor and a 1/2.8-inch 2.4-megapixel sensor, delivering FHD video at 1920x1080p60. It pro-vides vivid, sharp visuals even in challenging low-light conditions.
Precision Zoom
With a 20X optical zoom lens and a 60-degree field of view, the Drive+ SE ensures rapid, accurate focus with its proprietary algorithm. Capture every detail effortlessly, whether zooming in or panning.
Latest NDI®HX Integration
Using Newtek’s NDI® technology, the Drive+ SE enables seamless plug-and-play integration across various live streaming platforms.
Versatile Outputs
In addition to NDI®HX, the Drive+ SE simultaneously outputs via 3G-SDI and USB3.0, providing unmatched connectivity flexibility.
Intuitive Tally System
The built-in indicator light doubles as a tally, responding to notifications from NDI® devices. Easily discern when you're live with a glance.
Specifications
TLC-300-IP-20(NDI)-SE-HDMI
1/2.8 inch, 2.4MP CMOS sensor
20X optical zoom
Lens: f= 4.9mm~98 mm, F1.5~F3.0
Horizontal View Angle: 60°(Wide)~3.2°(Tele)
Vertical Viewing Angle: 34.14°~1.12°
Diagonal Viewing Angle: 67.08°~2.27°
Minimum Working Distance: 1.0m
S/N Ratio: ≥50dB
Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.7Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: ATW/Manual/Auto/Indoor/Outdoor/One Push/Sodium/Fluorescent
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip: Supported
Mirroring: Supported
Focus: Auto/Manual
Iris: Auto/Manual
Electronic-shutter: Auto/Manual
Gamma: Supported
Backlight Compensation: Supported
Video Format
NDI®HX: 1920*1080@3~60; 1280*720@3~60; 1024*576@3~60; 640*360@3~60 (low bandwidth mode)
HDMI: 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
USB 3.0: 1920*1080P60/50/30/25 1280*720P60/50/30(USB 3.0); 1280*720P25(USB 3.0&USB 2.0); 1024*576P30(USB 3.0&USB 2.0); 960*540P30(USB 2.0); 640*360P30(USB 2.0); 512*288P30(USB 2.0)
IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~ 16384Kbps
Network Port Speed: 1000M
Protocol: NDI®HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP, VISCA TCP, VISCA UDP, Pelco P/D, RTP Multicast, HTML
Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 128; Accuracy: 0.1°
Pan Rotation Angle: -170°~+170°
Tilt Rotation Angle: -30°~+90°
Pan Rotation Speed: 0.1°~120°/s
Tilt Rotation Speed: 0.1°~80°/s

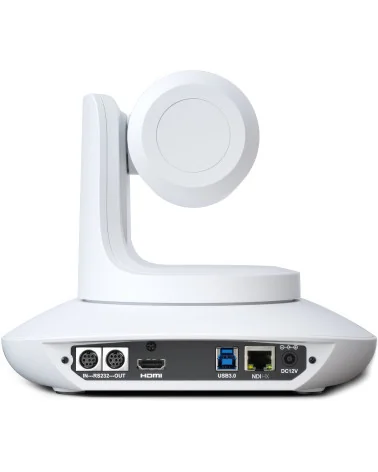

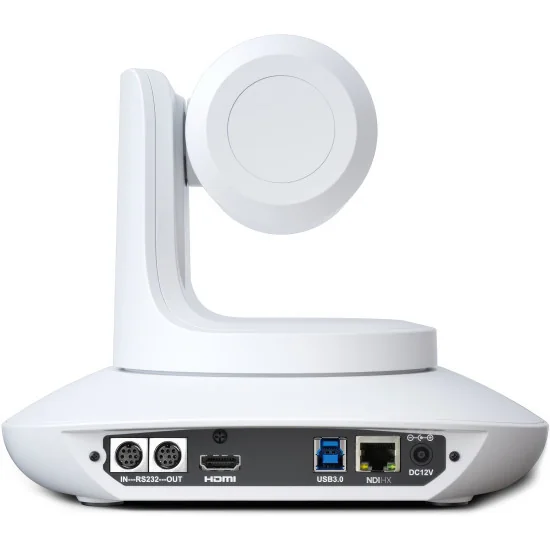

I/O Interface
Control Port: RS232, RS485, NDI®HX, USB 3.0(UVC1.5), USB 2.0(UVC1.1)
Video Port: NDI®HX, 3G-SDI(or HDMI), USB 3.0
Audio Port: stereo 3.5mm linear inputs
Tally: Supported
POE+: Supported
Daisy Chain: Supported
General
Input Voltage: DC12V, POE+(IEEE802.3at)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension(L×W×H): 220mmx190mmx173mm
Net Weight: 1.35kg
Color: Black/White
