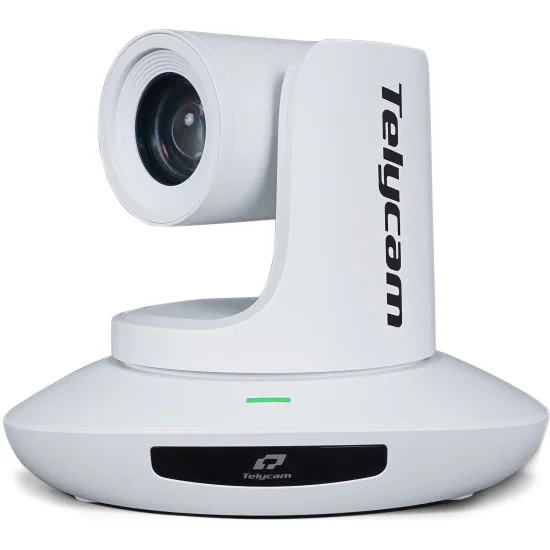

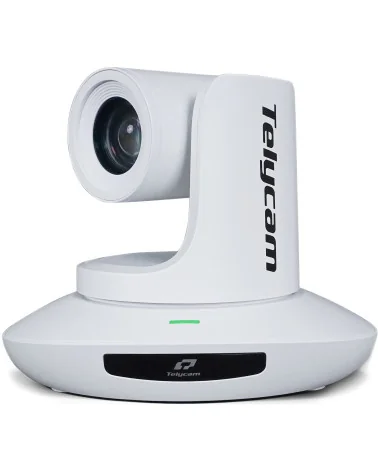

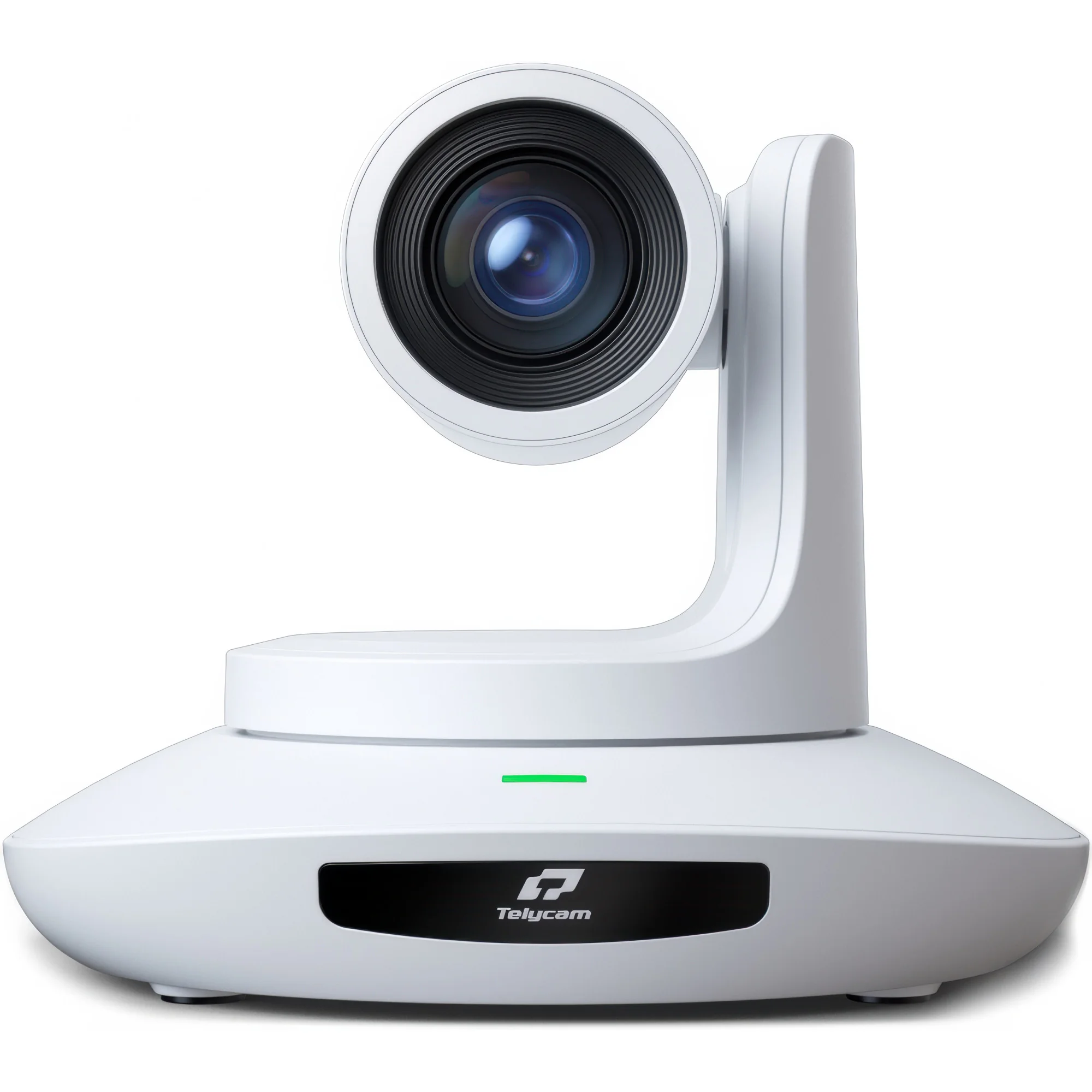

Telycam Drive+ SE SDI WH is a compact PTZ camera for multi-camera live production where reliability and signal discipline matter. A 1/2.8-inch 2.4MP CMOS captures Full HD 1080p60, backed by 2D/3D NR, ≥50 dB SNR and 0.7 lux sensitivity for stable colour and detail in conference halls, lecture rooms and broadcast control spaces.
The 20x optical system (4.9–98 mm, F1.5–F3.0) yields a 60°–3.2° HFOV (34.14°–1.12° VFOV; 67.08°–2.27° diagonal), with preset accuracy of 0.1°. Pan −170° to +170° at up to 120°/s, tilt −30° to +90° at up to 80°/s, with 10 IR and 128 serial presets for precise framing. Image tools include AWB/ATW modes, shutter/iris priority, anti-flicker 50/60 Hz, backlight compensation, flip/mirror and manual focus control. Minimum working distance is 1.0 m.
Connectivity covers simultaneous 3G-SDI, NDI®|HX on 1000M Ethernet and USB 3.0 (UVC 1.5/1.1), with embedded audio via 3.5 mm line in. SDI formats include 1080p60/50/30/25/59.94/29.97/24/23.98, 1080i60/50/59.94 and 720p60/50/30/25/59.94/29.97. IP streaming supports H.264/H.265, CBR/VBR from 1024 to 16384 Kb/s and protocols including SRT, RTSP, RTMP, ONVIF, VISCA over IP/TCP/UDP, Pelco P/D and RTP multicast. A tally indicator follows NDI status for on-air confirmation. Power is available via PoE+ (IEEE 802.3at) or 12 V DC; daisy chain and a browser UI streamline installation.
At 220 × 190 × 173 mm and 1.35 kg, the white variant blends into corporate theaters, government briefings and faith venues. Pair with a PTZ joystick controller for fast preset recall, or operate via RS-232/RS-485 and VISCA. Operating range: −10 °C to 50 °C, ≤80% RH. The Telycam Drive+ SE SDI WH merges optical reach, low-latency IP streaming and standards-based control for dependable switching pipelines. Integrated tally aids live switching, while the web UI makes setup, naming ID and preset organisation straightforward for large deployments.
Telycam Drive+ SE SDI WH is a compact PTZ camera for multi-camera live production where reliability and signal discipline matter. A 1/2.8-inch 2.4MP CMOS captures Full HD 1080p60, backed by 2D/3D NR, ≥50 dB SNR and 0.7 lux sensitivity for stable colour and detail in conference halls, lecture rooms and broadcast control spaces.
The 20x optical system (4.9–98 mm, F1.5–F3.0) yields a 60°–3.2° HFOV (34.14°–1.12° VFOV; 67.08°–2.27° diagonal), with preset accuracy of 0.1°. Pan −170° to +170° at up to 120°/s, tilt −30° to +90° at up to 80°/s, with 10 IR and 128 serial presets for precise framing. Image tools include AWB/ATW modes, shutter/iris priority, anti-flicker 50/60 Hz, backlight compensation, flip/mirror and manual focus control. Minimum working distance is 1.0 m.
Connectivity covers simultaneous 3G-SDI, NDI®|HX on 1000M Ethernet and USB 3.0 (UVC 1.5/1.1), with embedded audio via 3.5 mm line in. SDI formats include 1080p60/50/30/25/59.94/29.97/24/23.98, 1080i60/50/59.94 and 720p60/50/30/25/59.94/29.97. IP streaming supports H.264/H.265, CBR/VBR from 1024 to 16384 Kb/s and protocols including SRT, RTSP, RTMP, ONVIF, VISCA over IP/TCP/UDP, Pelco P/D and RTP multicast. A tally indicator follows NDI status for on-air confirmation. Power is available via PoE+ (IEEE 802.3at) or 12 V DC; daisy chain and a browser UI streamline installation.
At 220 × 190 × 173 mm and 1.35 kg, the white variant blends into corporate theaters, government briefings and faith venues. Pair with a PTZ joystick controller for fast preset recall, or operate via RS-232/RS-485 and VISCA. Operating range: −10 °C to 50 °C, ≤80% RH. The Telycam Drive+ SE SDI WH merges optical reach, low-latency IP streaming and standards-based control for dependable switching pipelines. Integrated tally aids live switching, while the web UI makes setup, naming ID and preset organisation straightforward for large deployments.
We ship all over the European Union for €20, free shipping on orders over €1,000.
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
Full HD Clarity
The Drive+ SE features an industry-leading image processor and a 1/2.8-inch 2.4-megapixel sensor, delivering FHD video at 1920x1080p60. It pro-vides vivid, sharp visuals even in challenging low-light conditions.
Precision Zoom
With a 20X optical zoom lens and a 60-degree field of view, the Drive+ SE ensures rapid, accurate focus with its proprietary algorithm. Capture every detail effortlessly, whether zooming in or panning.
Latest NDI®HX Integration
Using Newtek’s NDI® technology, the Drive+ SE enables seamless plug-and-play integration across various live streaming platforms.
Versatile Outputs
In addition to NDI®HX, the Drive+ SE simultaneously outputs via 3G-SDI and USB3.0, providing unmatched connectivity flexibility.
Intuitive Tally System
The built-in indicator light doubles as a tally, responding to notifications from NDI® devices. Easily discern when you're live with a glance.
Specifications
TLC-300-IP-20(NDI)-SE-SDI
1/2.8 inch, 2.4MP CMOS sensor
20X optical zoom
Lens: f= 4.9mm~98 mm, F1.5~F3.0
Horizontal View Angle: 60°(Wide)~3.2°(Tele)
Vertical Viewing Angle: 34.14°~1.12°
Diagonal Viewing Angle: 67.08°~2.27°
Minimum Working Distance: 1.0m
S/N Ratio: ≥50dB
Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.7Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: ATW/Manual/Auto/Indoor/Outdoor/One Push/Sodium/Fluorescent
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip: Supported
Mirroring: Supported
Focus: Auto/Manual
Iris: Auto/Manual
Electronic-shutter: Auto/Manual
Gamma: Supported
Backlight Compensation: Supported
Video Format
NDI®HX: 1920*1080@3~60; 1280*720@3~60; 1024*576@3~60; 640*360@3~60 (low bandwidth mode)
3G-SDI: 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
USB 3.0: 1920*1080P60/50/30/25 1280*720P60/50/30(USB 3.0); 1280*720P25(USB 3.0&USB 2.0); 1024*576P30(USB 3.0&USB 2.0); 960*540P30(USB 2.0); 640*360P30(USB 2.0); 512*288P30(USB 2.0)
IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~ 16384Kbps
Network Port Speed: 1000M
Protocol: NDI®HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP, VISCA TCP, VISCA UDP, Pelco P/D, RTP Multicast, HTML
Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 128; Accuracy: 0.1°
Pan Rotation Angle: -170°~+170°
Tilt Rotation Angle: -30°~+90°
Pan Rotation Speed: 0.1°~120°/s
Tilt Rotation Speed: 0.1°~80°/s

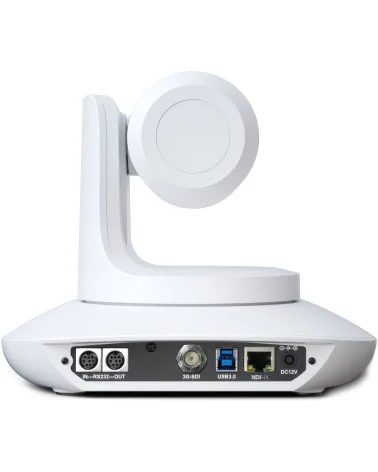

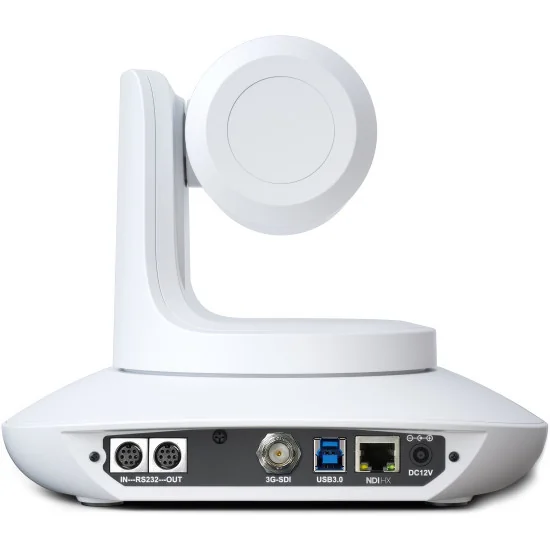

I/O Interface
Control Port: RS232, RS485, NDI®HX, USB 3.0(UVC1.5), USB 2.0(UVC1.1)
Video Port: NDI®HX, 3G-SDI(or HDMI), USB 3.0
Audio Port: stereo 3.5mm linear inputs
Tally: Supported
POE+: Supported
Daisy Chain: Supported
General
Input Voltage: DC12V, POE+(IEEE802.3at)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension(L×W×H): 220mmx190mmx173mm
Net Weight: 1.35kg
Color: Black/White
Data sheet
