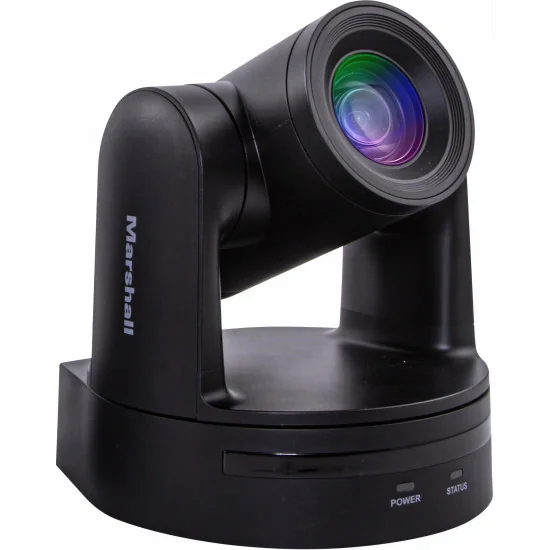

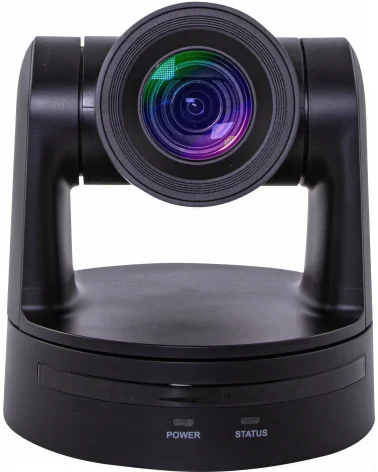

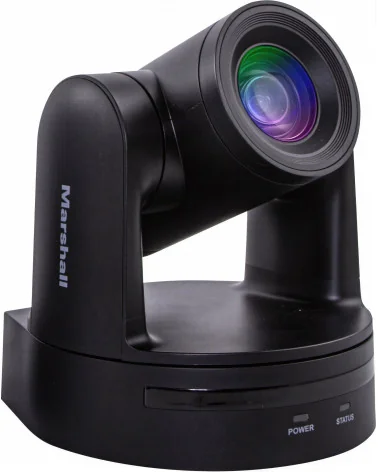

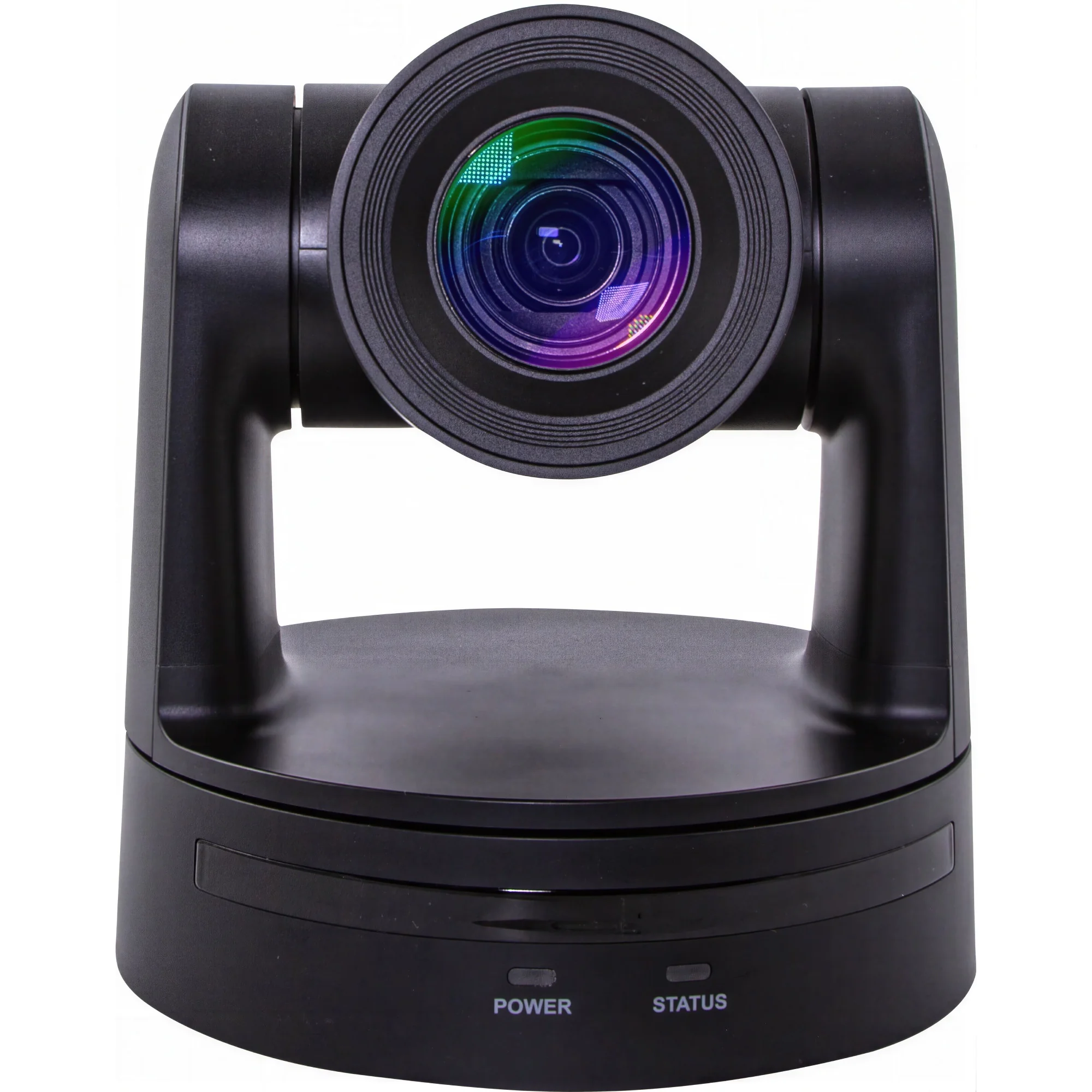

Marshall CV605-U3 PTZ Camera

Specifying a camera for a meeting room or a multi-room corporate estate usually comes down to two questions: will the picture hold up under poor lighting, and how much cabling will the install demand. The Marshall CV605-U3 answers both with a 1/2.8-inch 2.07-megapixel CMOS sensor and a single-cable IP approach. It captures clean Full HD up to 1920x1080 at 60fps, and its 5x optical zoom (a 3.1–15.5mm lens) opens to a genuinely wide 85-degree horizontal field, so a modest boardroom or a lecture hall can be framed from one fixed mounting point without the picture bowing at the edges.

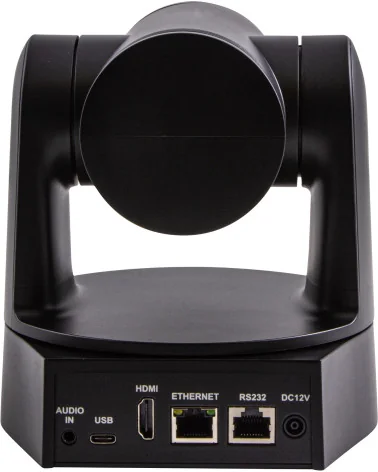

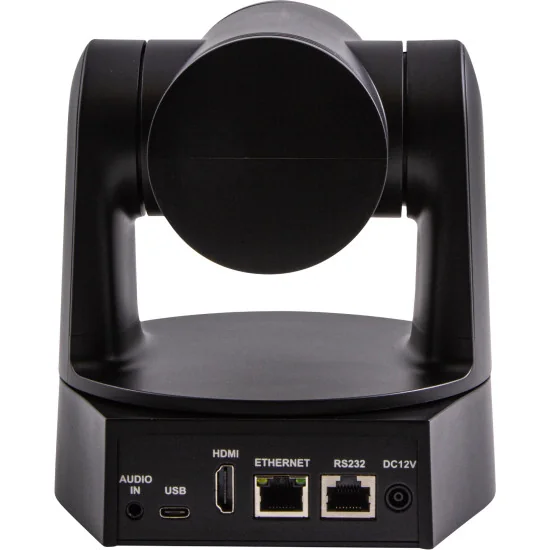

Connectivity is where this PTZ unit earns its place in a B2B install. Three video paths run at once: USB-C for soft codecs such as Zoom and OBS Studio, HDMI for monitors and switchers, and IP over Ethernet carrying H.265 or H.264. Because the Ethernet port handles video, embedded audio, camera control and PoE (IEEE 802.3af, roughly 13W) on one Cat cable, a technician can run a long cable home to the rack and skip a separate power supply at the camera. For integrators billing by the hour and by the metre of cable, that single run is a measurable saving across a building.

Picture control is properly granular. The sensor holds detail down to 0.5 Lux at F1.8, helped by 2D and 3D noise reduction, while auto and manual white balance, iris and shutter let an operator match the CV605-U3 to mixed house lighting or a backlit window. Up to 255 presets can be stored with their own exposure and colour settings, so a single camera can serve a presenter shot, a wide audience frame and a podium close-up on recall. A 3.5mm line and microphone input embeds audio straight into the IP and HDMI streams, keeping sound and vision aligned through to the encoder.

Control suits both quick deployments and fixed installations. The bundled IR remote covers basic moves, while Marshall's VS-PTC-200 and VS-PTC-IP keyboards, the browser GUI and UVC 1.5 give full pan, tilt and zoom command over IP or serial. Barco ClickShare compatibility and a privacy standby mode round out the picture for corporate rooms where confidentiality matters between calls. For courtroom records, government assembly feeds, lecture capture and multi-camera live streaming, the Marshall CV605-U3 behaves like a calm, repeatable building block rather than a camera that needs babysitting on the day.
