Teradek Bolt 6 XT 1500 TX/RX Deluxe Set Gold-Mount is a zero-delay wireless video link for set, studio and OB trucks. Operating in 6 GHz (plus 5 GHz) with next-gen RF silicon, it moves uncompressed monitoring feeds up to 1500 ft (≈457 m) line-of-sight with <1 ms latency, preserving camera settings and timecode for reliable director and shader work.
The XT platform carries 4K60 10-bit 4:2:2 HDR over 12G-SDI and HDMI 2.0. The RX provides output scaling, while the TX offers HDMI→SDI cross-conversion to keep mixed pipelines clean. Ancillary data (timecode / REC flags) passes end-to-end; LUT output control and signal health are available in the Bolt Manager app. Security is hardened with AES-256 plus RSA-1024 pairing, preventing unauthorized links on busy sets.
RF is agile: non-DFS/DFS channels across 5/6 GHz with manual or auto selection, advanced noise-rejection, and multicast to up to six receivers from one transmitter. Bolt 4K cross-compatibility on 5 GHz eases fleet transitions, while the included Array Antenna boosts robustness in crowded venues. Use fixed-frequency modes for predictable spectrum planning or scan for the cleanest air when shooting ENG, live, or multi-cam reality.
Power and mechanics suit broadcast carts. Both TX and RX integrate Gold-Mount plates and a locking 2-pin 6–28 VDC input; typical draw is about 20 W (TX) / 18 W (RX). Milled-aluminum housings, 1/4-20 and 3/8-16 points, and the Deluxe Set extras—Ultra Arm monitor mount, D-Tap and Alexa-type 2-pin cables, 12G-SDI leads, Array Antenna, and hard case—streamline deployment. For productions needing secure, low-latency links, Teradek Bolt 6 XT 1500 keeps 4K monitoring crisp and synchronized across the set. RX adds 17×17×17 3D LUT output; control and pairing via the Bolt Manager app.

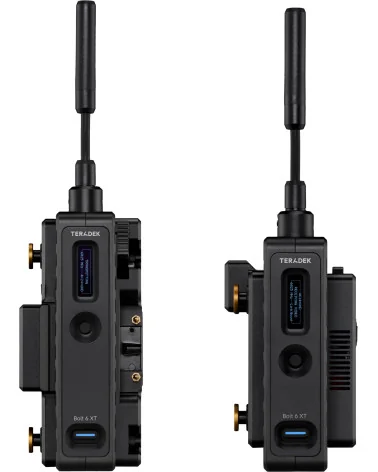

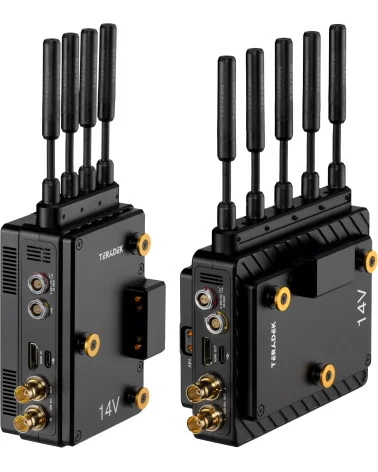

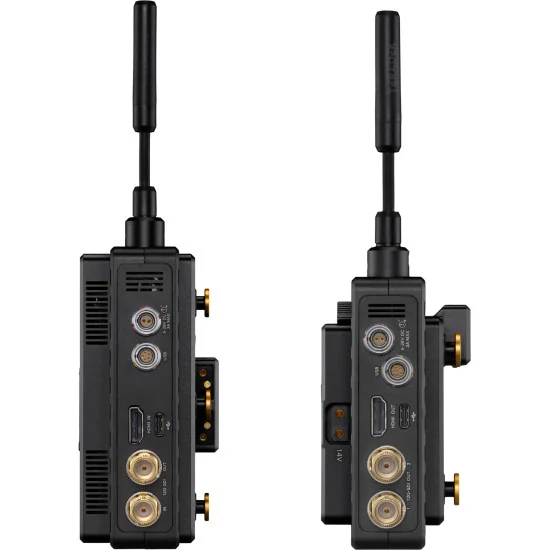

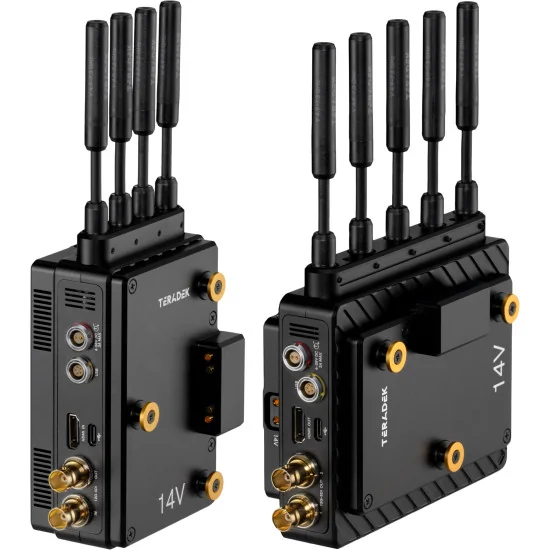

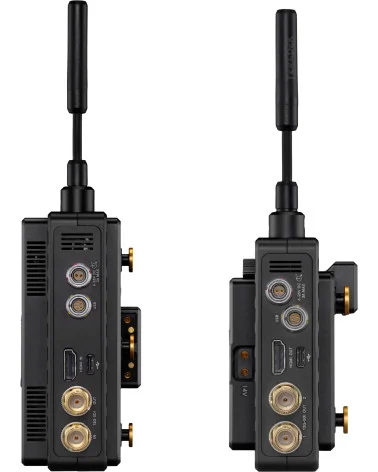

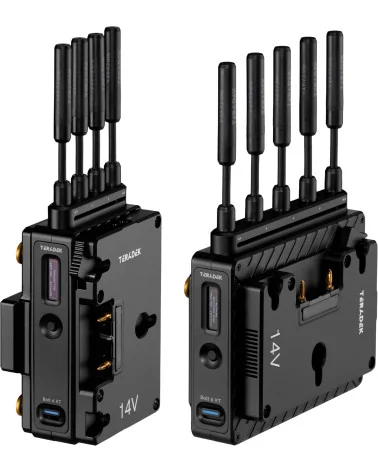

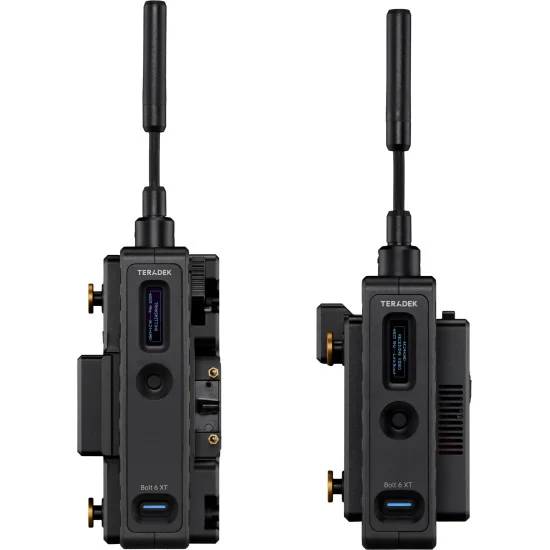

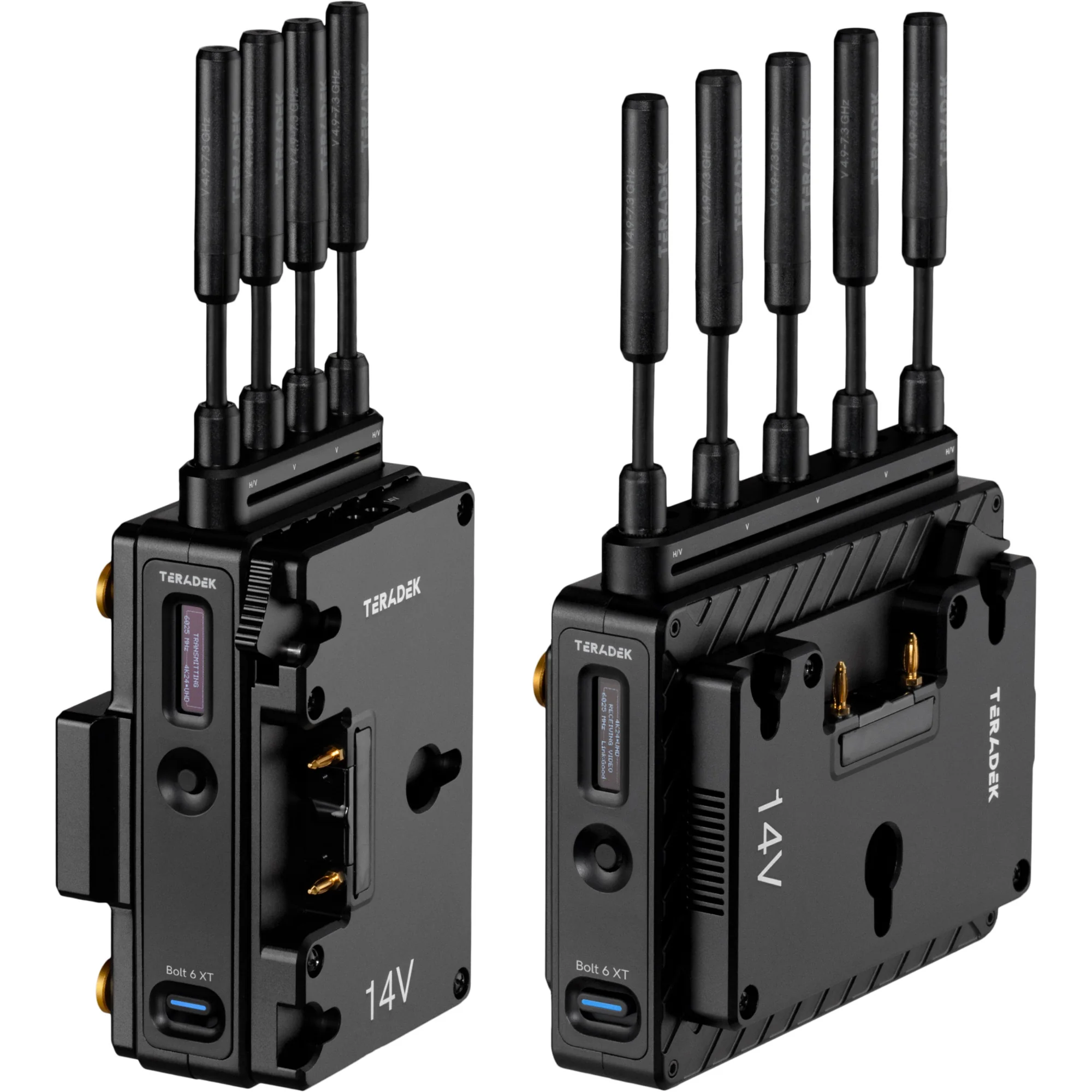

Teradek Bolt 6 XT 1500 TX/RX Deluxe Set Gold-Mount Wireless Video System
TE-10-2310-G
Price: €10,990.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Teradek Bolt 6 XT 1500 TX/RX Deluxe Set Gold-Mount is a zero-delay wireless video link for set, studio and OB trucks. Operating in 6 GHz (plus 5 GHz) with next-gen RF silicon, it moves uncompressed monitoring feeds up to 1500 ft (≈457 m) line-of-sight with <1 ms latency, preserving camera settings and timecode for reliable director and shader work.
The XT platform carries 4K60 10-bit 4:2:2 HDR over 12G-SDI and HDMI 2.0. The RX provides output scaling, while the TX offers HDMI→SDI cross-conversion to keep mixed pipelines clean. Ancillary data (timecode / REC flags) passes end-to-end; LUT output control and signal health are available in the Bolt Manager app. Security is hardened with AES-256 plus RSA-1024 pairing, preventing unauthorized links on busy sets.
RF is agile: non-DFS/DFS channels across 5/6 GHz with manual or auto selection, advanced noise-rejection, and multicast to up to six receivers from one transmitter. Bolt 4K cross-compatibility on 5 GHz eases fleet transitions, while the included Array Antenna boosts robustness in crowded venues. Use fixed-frequency modes for predictable spectrum planning or scan for the cleanest air when shooting ENG, live, or multi-cam reality.
Power and mechanics suit broadcast carts. Both TX and RX integrate Gold-Mount plates and a locking 2-pin 6–28 VDC input; typical draw is about 20 W (TX) / 18 W (RX). Milled-aluminum housings, 1/4-20 and 3/8-16 points, and the Deluxe Set extras—Ultra Arm monitor mount, D-Tap and Alexa-type 2-pin cables, 12G-SDI leads, Array Antenna, and hard case—streamline deployment. For productions needing secure, low-latency links, Teradek Bolt 6 XT 1500 keeps 4K monitoring crisp and synchronized across the set. RX adds 17×17×17 3D LUT output; control and pairing via the Bolt Manager app.
UE Shipping
We ship all over the European Union for €20, free shipping on orders over €1,000.
B2B Shop
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure checkout
Secure online payments via Stripe.
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Technical Specs
Bolt 6 XT 1500 12G-SDI/HDMI Wireless RX Gold-Mount
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx: <0.001sec
Output Video Scaling: Yes, Framerate and Resolution Scaling
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Color Correction: 17x17x17 3D LUT (supports 10-bit color)
Audio Compression: 48kHz 24-bit PCM
Dimensions: 112 x 139 x 27 mm
Weight: 430g (15.2 Oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Usb Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz
Antennas: 5 External 2 dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 21 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: Gold-Mount battery plate
Battery Runtime: 18 Watts
Operating Temperature: 0-40℃
Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
Bolt 6 XT 1500 12G-SDI/HDMI Wireless TX Gold-Mount
Video Inputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx: <0.001sec
Input Cross Conversion: Yes, HDMI to SDI
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Color Correction: None
Audio Compression: 48kHz 24-bit PCM
Dimensions: 132 x 91 x 27 mm
Weight: 344g (12.1 Oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

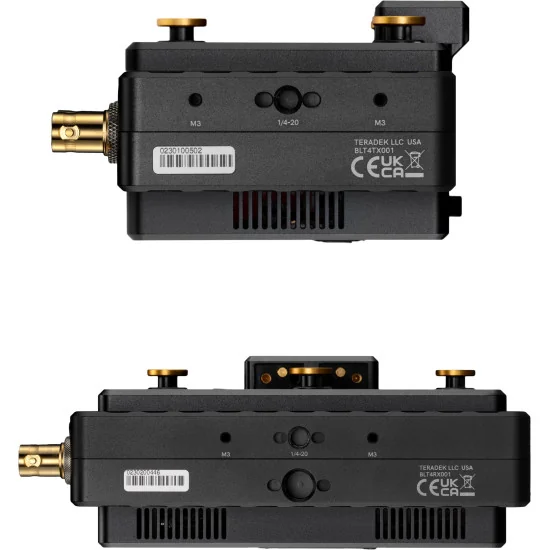

Mountability: Multiple mounting options with 1/4"x20 and M3 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Usb Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz
Antennas: 4 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 23 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: Gold-Mount battery plate
Battery Runtime: 20 Watts
Operating Temperature: 0-40℃
Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
In the Box
1 x Bolt 6 XT 1500 TX Gold-Mount
1 x Bolt 6 XT 1500 RX Gold-Mount

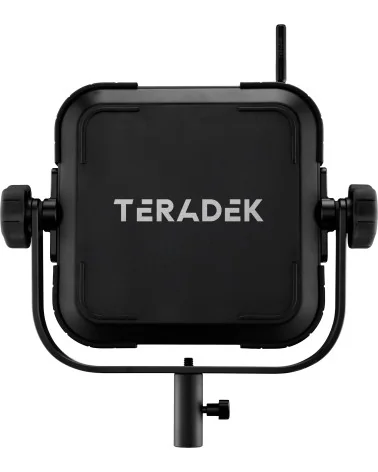

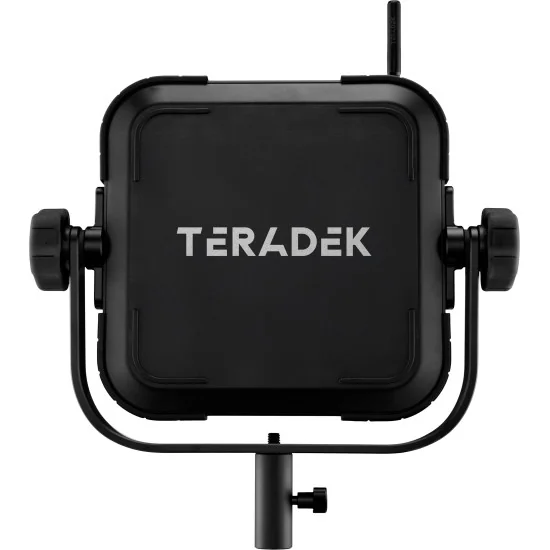

1 x Antenna Array
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x Hex L key 2.5mm size 3-5/8"" length
2 x 2pin Conn. to PowerTap - 18in/46cm Cable
1 x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI 12G BNC to BNC 18in/46cm Cable

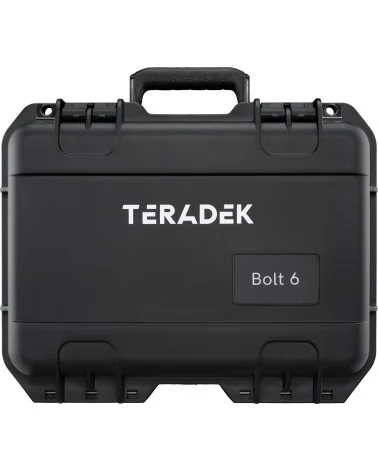

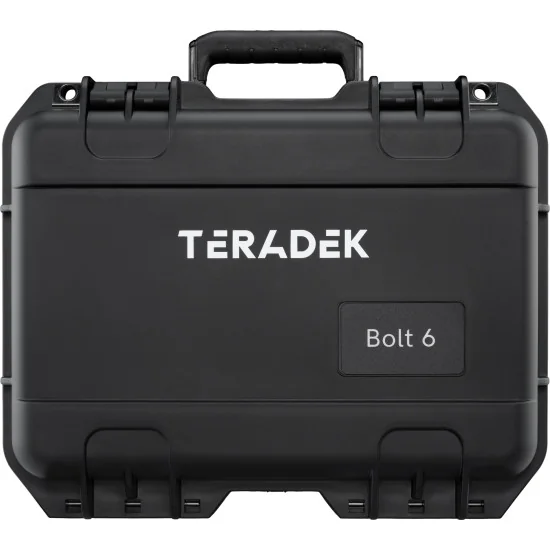

1 x Teradek Case XL - Bolt XT/4RX and Array Antenna
1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1 x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5"")
1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
TE-10-2310-G
Data sheet
- Video Input
- HDMI
SDI - Video Output
- HDMI
SDI - Audio Input
- HDMI Embedded
SDI Embedded - Audio Output
- HDMI Embedded
SDI Embedded - Max Output Resolution
- 4K (4096 x 2160) 50/60 fps
- Power
- DC
Gold-Mount - Transmission Range
- 440m
- Latency
- 0.001s
Specific References
- ean13
- 818264027189
- mpn
- 10-2310-G
