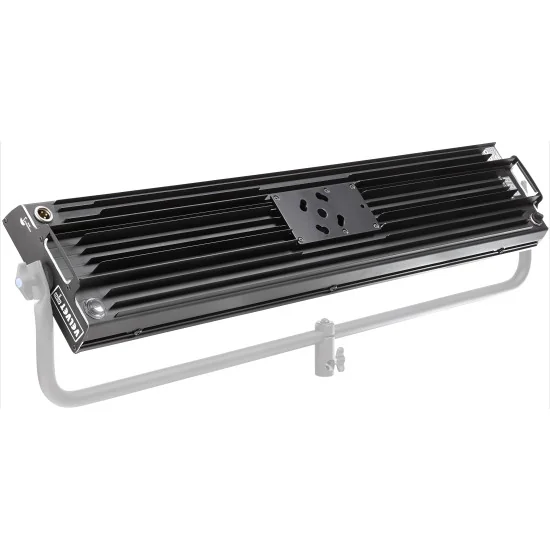

VELVET Mini 3 IP54 (MPN VM3IP54NY, no yoke) is a panoramic bi-color LED soft panel for cine, broadcast and streaming crews operating under mixed practicals and outdoor work. Correlated colour temperature runs from 2700–6500 K in precise 100 K increments, driven by selected LED bins, an optical diffuser and CPU control for repeatable CCT and intensity. Colour rendering is camera-centric with TLCI 97 at 3200 K and TLCI 98 at 5600 K, supporting natural skin tones and consistent wardrobe reproduction across multi-camera pipelines.
Exposure continuity is straightforward: output is 0–100% dimmable with smooth fades and flicker-free behaviour, rated for an output frequency up to 2000 fps for slow-motion and rolling-shutter sensitive scenes. Photometrics reach 3200 lx at 1 m and approximately 435 lx at 3 m. A wide 100° beam angle produces broad, soft coverage for interview keys, wraparound fill, tabletop lighting, or fast wall washes in compact studios and office sets where fixtures often sit close to talent.
Local operation stays fast under pressure. Shock-resistant buttons and a clear digital display provide direct access to dimmer and CCT, and a dedicated 3200 K / 5600 K shortcut jumps instantly between tungsten and daylight references for continuity on documentary or news workflows. For grid, stage or OB control, the fixture accepts DMX-RDM via XLR-5, enabling remote addressing and parameter readback from a console or gateway.
For location reliability, the enclosure carries an IP54 dust/rain rating for work in light rain, dusty streets and fast company moves. Powering suits studios and battery rigs: 90–264 V AC through a smart adapter or 12–35 V DC via a locking XLR-3 input, with optional quick-link V-Lock or Gold Mount battery plates for cable-free placements. Operating range is specified from −20 °C to +40 °C, and the LED system is rated beyond 50,000 h (L70) and 35,000 h (L80) for long service cycles on corporate sets with low ceilings, and mobile streaming stages.
VELVET Mini 3 IP54 (MPN VM3IP54NY, no yoke) is a panoramic bi-color LED soft panel for cine, broadcast and streaming crews operating under mixed practicals and outdoor work. Correlated colour temperature runs from 2700–6500 K in precise 100 K increments, driven by selected LED bins, an optical diffuser and CPU control for repeatable CCT and intensity. Colour rendering is camera-centric with TLCI 97 at 3200 K and TLCI 98 at 5600 K, supporting natural skin tones and consistent wardrobe reproduction across multi-camera pipelines.
Exposure continuity is straightforward: output is 0–100% dimmable with smooth fades and flicker-free behaviour, rated for an output frequency up to 2000 fps for slow-motion and rolling-shutter sensitive scenes. Photometrics reach 3200 lx at 1 m and approximately 435 lx at 3 m. A wide 100° beam angle produces broad, soft coverage for interview keys, wraparound fill, tabletop lighting, or fast wall washes in compact studios and office sets where fixtures often sit close to talent.
Local operation stays fast under pressure. Shock-resistant buttons and a clear digital display provide direct access to dimmer and CCT, and a dedicated 3200 K / 5600 K shortcut jumps instantly between tungsten and daylight references for continuity on documentary or news workflows. For grid, stage or OB control, the fixture accepts DMX-RDM via XLR-5, enabling remote addressing and parameter readback from a console or gateway.
For location reliability, the enclosure carries an IP54 dust/rain rating for work in light rain, dusty streets and fast company moves. Powering suits studios and battery rigs: 90–264 V AC through a smart adapter or 12–35 V DC via a locking XLR-3 input, with optional quick-link V-Lock or Gold Mount battery plates for cable-free placements. Operating range is specified from −20 °C to +40 °C, and the LED system is rated beyond 50,000 h (L70) and 35,000 h (L80) for long service cycles on corporate sets with low ceilings, and mobile streaming stages.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
3x1/2 feet bicolor weatherproof compact panoramicsoft light LED panel
Natural soft light panel for low ceilings. Rainproof IP54. High TLCI & CRI (96). Precise color temperature adjustment from 2700K to 6500K. Perfect skin tones and real colors. Lightweight, low-carbon aluminum body. Totally silent fanless operation DMX-RDM control. High efficiency means 100% light output even with batteries.
The set includes only the lamp, the holder, the power supply unit or battery plates are available separately.
SPECIFICATIONS
COLOUR TEMPERATURE: Adjustable from 2700K a 6500K (100K increments)
LIGHT INTENSITY: Dimmable 0 to 100 (smooth and flicker-free)
LOCAL CONTROL: Shock proof buttons and display
WIRE CONTROL: DMX-RDM with XLR-5 In connector (In & Out with DMX splitter)
TLCI INDEX: 97 at 3200K and 98 at 5600K
PHOTOMETRICS: 3200 lux / 297 fc at 1m / 3 feet, 435 lux / 40 fc at 3m / 10 feet
BEAM ANGLE: 100º
DIMENSIONS: 870 x 190x 90 mm / 34” x 7,5” x 3,5” (panel)
WEIGHT: 4,6 kgs / 10 lbs (panel), 5,1 kgs /11,2 lbs (panel +yoke)
POWER DRAW: 150W (1.35A at 110 VAC — 0.66A at 220 VAC)
POWER SUPPLY: Optional Vlock or Gold battery quick link mount, 90-264 VAC 50/60Hz through Smart AC adapter
LED RATED LIFE: More than 50.000 hours L70 , More than 35.000 hours L80
POWER CONNECTION: Neutrik XLR-3 DC In connector
OUTPUT FREQUENCY: 2000 fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: No-noise, fan-free passive cooling
PROTECTION: IP54 rainproof, indoor or outdoor use
VELVET LED TECHNOLOGY: Selected BIN LED + optic diffuser + CPU software control
RIGGING OPTIONS: (optional) Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four sliding threads ¼” for riggings located on panel sides, double baby pin for diagonal or vertical position using the standard yoke
QUICK MOUNTING ACCESSORIES (optional): Smart AC power supply (Vlock or Gold available), VELVET DMX remote control, foldable Snapgrid, foldable SnapBag softbox, removable barn doors, cordura case, hard case
CONSTRUCTION & FINISH: Black anodized extruded aluminum and black powder coated sheet aluminum
Data sheet
Specific References
