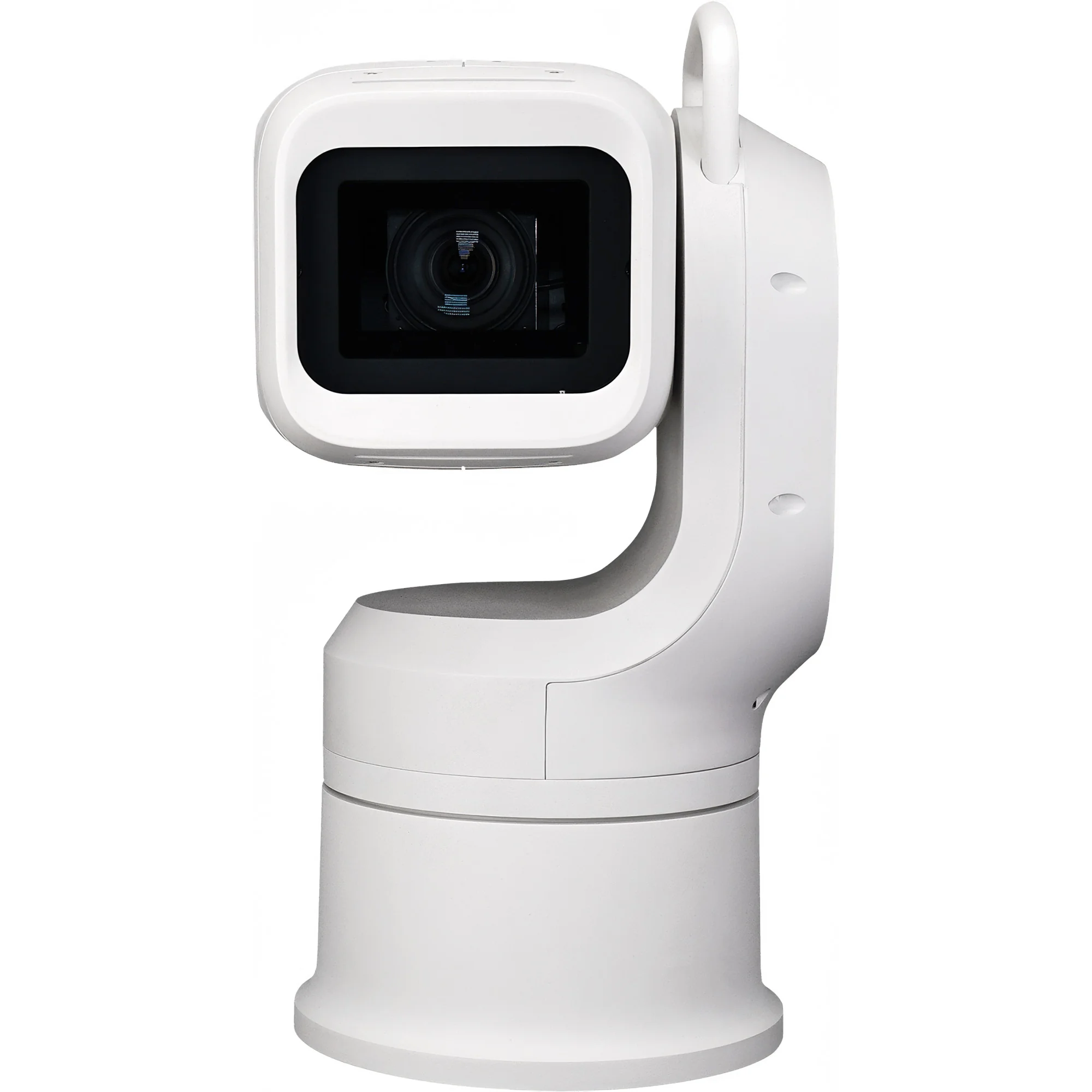

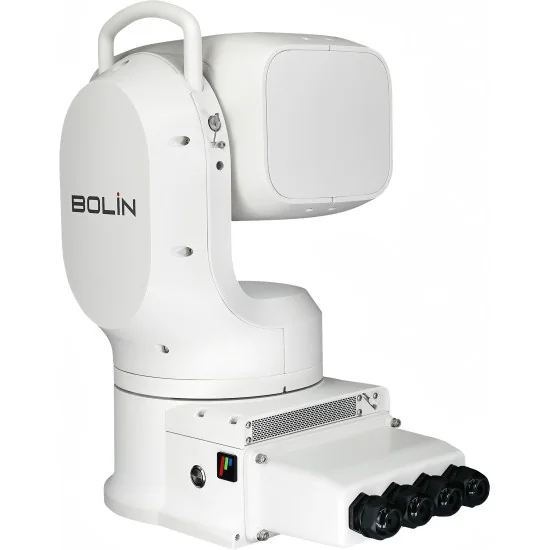

EXU420F 4K60 Outdoor PTZ Camera
Designed for professional outdoor video production, the Bolin EXU420F 4K60 Outdoor PTZ camera delivers stunning 4K60 video with high-resolution clarity, smooth motion, and precise color accuracy. Featuring a 20x zoom, the EXU420F ensures detailed, high-quality imaging from both wide and long-range shots, making it the perfect choice for live sports, outdoor concerts, weather decks, and remote event broadcasting. Built using Sony's STARVIS sensor, the camera excels in capturing color-accurate video in low-light applications.

Engineered for demanding environments, its IP67-rated weatherproof housing protects against dust, water, and extreme temperatures, ensuring reliable 24/7 operation in rain, snow, and direct sunlight. The EXU420F is built for professional broadcast and AV-over-IP workflows, offering simultaneous 12G-SDI, HDMI 2.0, SFP Optical SDI, and IP streaming outputs for seamless integration into modern production setups. FPGA hardware FAST HEVC codec provides high-quality, low latency and low bandwidth IP streams include RTSP, RTMP, SRT, ONVIF, and MPEG-TS.

The EXU420F supports FreeD protocol, allowing for real-time tracking in AR/VR applications, making it an ideal choice for visitor engagement in outdoor venues, sports analytics, and immersive live broadcasts. For multi-camera productions, the EXU420F supports external synchronization via Genlock input, ensuring frame-accuracy when cutting between sources. Its industry-leading 255 steps of VISCA control deliver ultra-smooth pan, tilt, and zoom movements, allowing operators to capture dynamic shots with absolute precision.

With low-latency streaming, flexible connectivity, and rugged outdoor reliability, the EXU420F is the ideal PTZ camera for professional broadcast, live production, and remote video applications. Whether for fixed installations or mobile productions, the Bolin EXU420F provides exceptional image quality, robust performance, and industry-leading versatility in any outdoor environment.

EXU420N, equipped with Bolin 4K60 image module
Bolin image module BM4620 equipped with Sony image sensor IMX715, and 8M ultra high resolution 20X optical lens, integrated with AI based  algorithm ISP this image module delivers high quality and clean noiseless high speed 60fps UHD color image.

• 1/2.8 Inch CMX715 High Class Sensor
• Crisp and clean UHD image quality
• Crystal 20X High Resolution optical zooms
• Super WDR
• Gamma Level
• AI Face Detection Auto Focus/Exposure

Extreme Weather Survival

• Wind Load Durability, steady operational and  non-destructive at 30-60 m/s or less
• Heater, Defroster built-in
• –40 °C to 60 °C (-40°F to 140°F) operational
• Hidden-Type Rain Wiper and Sun Shield
• All Stainless Steel/brass/metal, interior mechanical parts
• Entire body IP67 rated dustproof and waterproof

Low Bandwidth! One 4Kp60 IP stream with Multiple Decoders
This video demonstrates the power of the FPGA imaging processor in Bolin's new Red Line cameras, and the dramatically low bandwidth of FAST HEVC! Here, we are sending 12G-SDI baseband video and three simultaneous IP FAST HEVC streams, all at 4Kp60 and at only 50Mbps per stream!

Video Codec:  FAST HEVC Codec Built-in

• There is "FAST HEVC" logo on the camera body
• H.264/265 - AVC/HEVC
• Hardware FPGA  based encoder built-in
• High Quality, Ultra Low Latency, Low Bandwidth
• Browser, hardware and software  decode-able
• Up to 4K60, Full HD
• Two IP video streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS., SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode
• Open platform

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

AI Powered Auto Focus and Auto Exposure
Built with Bolin’s latest AI-powered facial analytics engine, which enables smart focus and smart exposure to provide faster, more precise focusing and improved auto exposure on faces in complex lighting environments.

PTZ Movement-Smooth, Accurate and Quiet

• PAN: 340° (-170° to +170°); Fully proportional, speed 0.08° to 60°/s
• TILT: 205° (-35° to +170°); Fully proportional, speed 0.08° to 60°/s
• Preset: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
• Smooth and Accurate Movement

Various Control Methods

• IP Control
• Serial Control
• IR Remote Control
• Bolin API
• Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD Supported

SPECIFICATION

IMAGE 4K60, 20X
Image Maker: Bolin
Image Sensor: IMX715, CMOS image sensor 1/2.8 type
Number of effective pixels: 8.29MP, 8.29 MP
Picture elements: 3840x2160
Lens: 20X
Digital Zoom: 16X
Horizontal Angle of View: 78.59° (W)~4.92° (T)
Vertical Angle of View: 48.39° (W)~2.79° (T)
Focal Length: f= 3.55 mm (WIDE) to 71 mm (TELE)
Min. object distance: 10cm
Aperture: F2.0 (Wide) to F3.8 (Tele)
Min. Illumination: 0.5lux（color），0.1lux（black）
Shutter Speed: 1/60-1/100k sec (21steps)
Focus: Auto, Push, Manual
White Balance: Auto, Indoor, Outdoor, OPW, ATW, Manual, USER, SVL
Exposure: Auto, Manual, Shutter, Iris priority
Features: Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker ,Contrast, Effect, SHARPNESS
WDR: 120db
Color Gain: Yes
Color Hue: Yes
Gamma: Yes
Gamma Level: 0-4
Color Matrix: -
Noise Reduction: 2D / 3D (level 0 to 100)
S/N Ratio: ≥50db
E-Flip: Yes
Defog: Yes
Day/Night: Yes
Backlight Compensation: Yes
AI Face Detection Focus: Yes
AI Face Auto Exposure: Yes
Scene Style: Standard, Bright, Clarity, Soft
Focus Zone: Face Priority, All Area, Top/Central/Bottom

MECHANICAL
Pan Movement: 340° (-170° to +170°); Fully proportional; Standard Mode: 0.08° to 60°/s; Fast Mode: 0.08° to 120°/s
Tilt Movement: 205° (-35° to +170°); Fully proportional;Standard Mode: 0.08° to 60°/s; Fast Mode: 0.08° to 120°/s
Speed Proportional: Pan/Tilt Speed proportional to zoom range
Preset Position: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: YES, ON/OFF
PTZ Trace Memory: YES, 4
Cruise: YES, 12
Quietness: NC55(45/35) or less when operating speed is 60°/30°/15°/sec or less
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Position Deviation Correction: Optical
Turning Radius: PAN: Φ 400 mm TILT: Φ 480 mm
Environmental: Outdoor, IP67 compliant for Waterproof and Dust Proof
Body Finishing: C5 Corrosion Resistant Power Coating
Wind Load Durability: 0-15m/s Operation Normal 15-30m/s Pan/Tilt Operational Non-Destructive and steady operation at 60m/s or less
Wiper: Yes
Heater: Yes
Defroster: Yes

INTERFACE
HDMI Video Output: HDMI 2.0 Type A
SDI Video Output: 12G-SDI, 75Ω BNC x 2，SDI Clean / SDI PM for output having OSD display
SDI Optical Fiber Output: Optical SDI SFP module support up to 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE), Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control, IP video output, IP audio output, System FW Upgrade
Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
Audio Input: 2 channels, XLR balanced input (Mini XLR - Hirose Connector) with 48V Phantom power, Input signal level: 0 dBu, Volume variable range: –40 dB to +12 dB (can be changed in 1 dB steps in the menu)
Audio Output*: 2 channels, XLR balanced output (Mini XLR - Hirose Connector) (preserve); Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo, superimposed over SDI & HDMI output, Sampling frequency: 48 kHz (synchronized to video) • Quantization bit rate: 24-bit (LPCM) • Audio compression format (IP): AAC-LC (High quality)
Tally Light: Red, Green Color, Front
System Firmware Upgrade: Upgrade via IP for camera system MCU, FPGA and Encoder
Power Connector Type: INPUT: DC36V/AC24A,Pin connector, INPUT: RJ45, PoE++ (IEEE802.3bt), OUTPUT: 12VDC, Pin connector
Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
Control Protocol: Serial: VISCA, PELCO P/D, FreeD; IP: VISCA Over IP, ONVIF

HDMI VIDEO SIGNAL SYSTEM
HDMI Video Format: 3840x2160P 60/59.94/50/30/29.97/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 12bit(HDMI), YUV4:2:2
Color Space: YUV、RGB
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator; Image/Logo Insert Screen Display with IP Image Stream

SDI SIGNAL FORMAT
SDI Video Output: 12G-SDI
SDI Video Format: 3840x2160P 60/59.94/50/29.97/30/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 10bit(SDI), YUV 4:2:2
Color Space: YUV
Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A(3Gb/s), SMPTE 2081(6Gb/s), SMPTE 2082‑1(12Gb/s) with SMPTE352 SDI Metadata Supported
True Dual Output: HDMI and SDI signal can be output with different format
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator

NETWORK
Video Compression: AVC-H.264/HEVC-H.265/MJPEG by FPGA
IP Resolution/Frame Rate: 3840x2160P 60/59.94/50/29.97/30/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
True Dual Output: IP, HDMI, and SDI signal can be set with different format
IP Protocols: TCP/IP, IGMP, ICMP, ARP, QoS, SNMP, UDP, HTTP, DNS, DHCP, FTP, NTP, UPNP, SRT
Application Protocols: RTMP(S), RTSP, RTSP Encryption, RTP Streaming (Unicast, Multicast), SRT, MPEG-TS over UDP, MPEG-TS over RTP
Color Format: YUV4:2:0 8bit、YUV4:2:2 8bit、YUV4:2:2 10bit
Multi-stream: 2 stream
Audio Compression: 32-128Kbps(AAC-LC) Selectable
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth ( results may vary depending on network configuration and management settings.): 128Kbps-60Mbps, 4kp60 12 bit 4:2:2, 10-20Mbps, 1080p60 12 bit 4:2:2
Latency (Overall latency may increase depending on network configurations): 2-3 frame (e.g. 2160p60 latency is < 120ms glass to glass
Browser Support: Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: –40 °C to 60 °C（-40°F to 140°F), (PoE is not suggested to be used and camera preheating automatically will be processed when is at environment -10°C (-14°F) or less)
Operating Humidity: 100% Suitable for Use (no condensation)
Power Input: DC 36V / AC24V, PoE++(Compatible with IEEE802.3bt, Type 4 Class8)
IP Protocols: Suggest that not to use POE when environment temperature is -0°C or lower
Power Consumption: Min: 35W(Static state with no movement); Max: 85W（Fully loaded operation with heater on, PoE power is not suggested）
Installation Method: Stand-alone (Upright) or suspended (Pendent), • To ensure safety, the unit must be secured using the mount bracket supplied.
Mount: Ceiling Mount, Wall Mount, Heavy duty tripod
Handle: Built-in for portable use application
Wiper: Yes, hidden type
Size of Tripod Screw Hole: 1 x 3/8”, 1 x 1/4” + secure lock point
Body Color: White
Dimension-Camera: PAN: Φ 400 mm TILT: Φ 480 mm
Weight: 10kg（22lb)
Accessories Included: IR Controllerx1, Secure Chain Lock and screwx1, Power Adaptor x1, Seal ringx12, Quick install panel bolt x4, IP67 Tail Cover x1, Rainwater Cover x1
Certificate: CE, FCC, IC, UKCA, ROHS, WEEE
