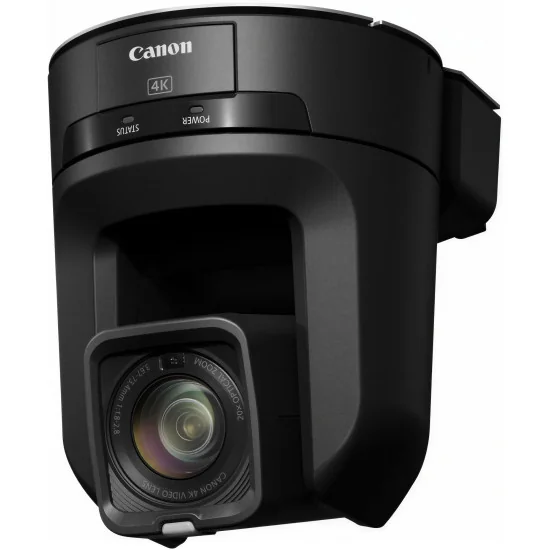

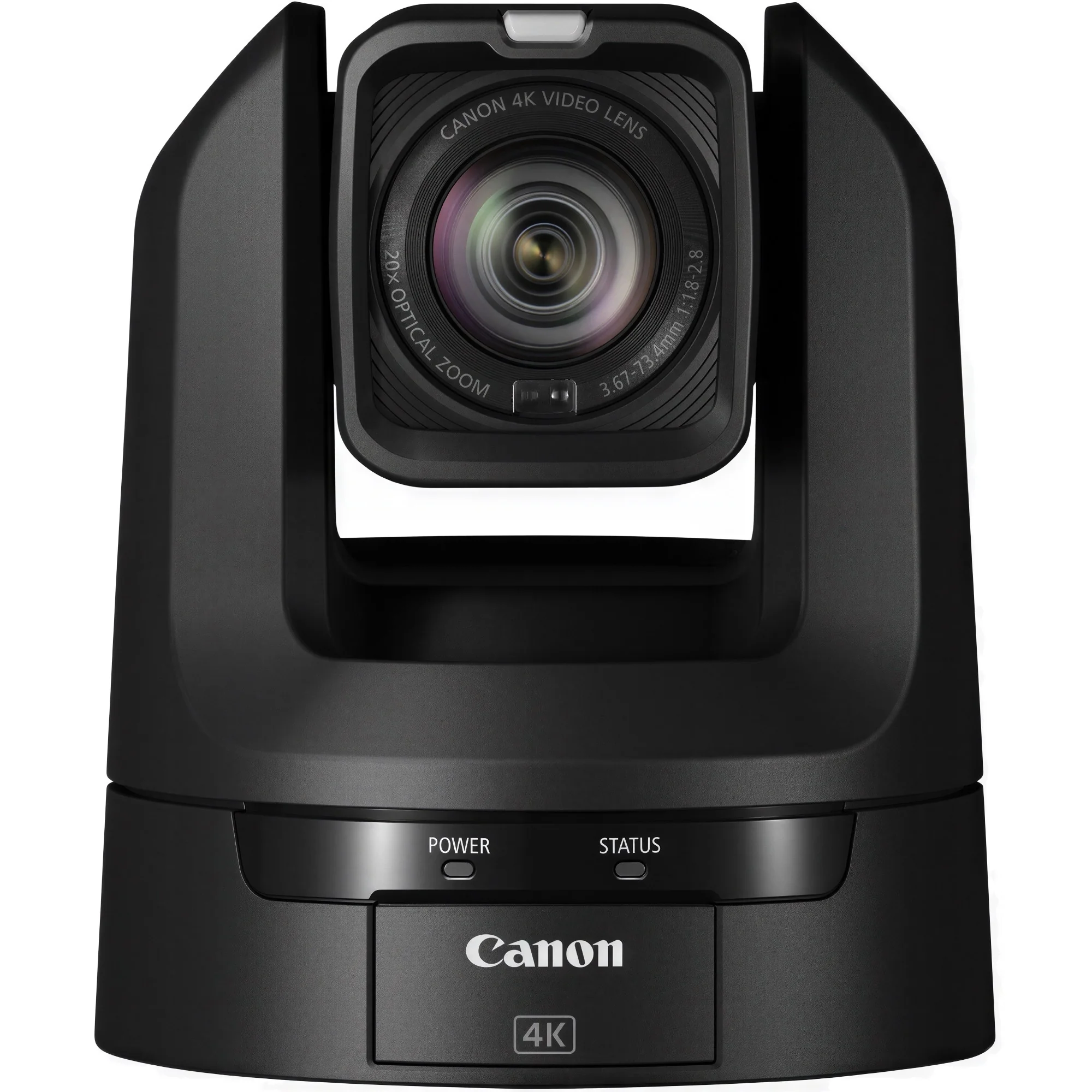

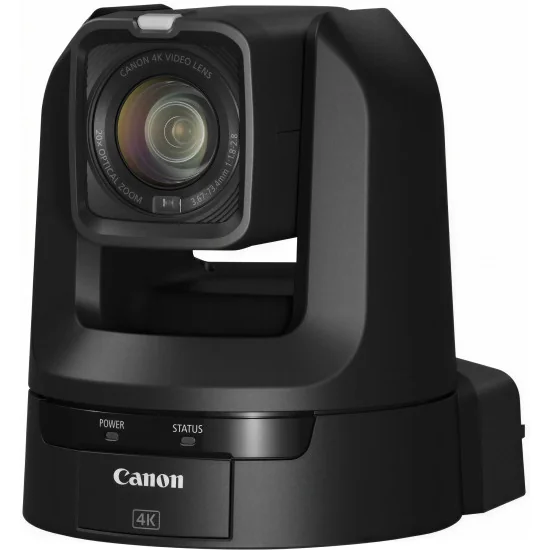

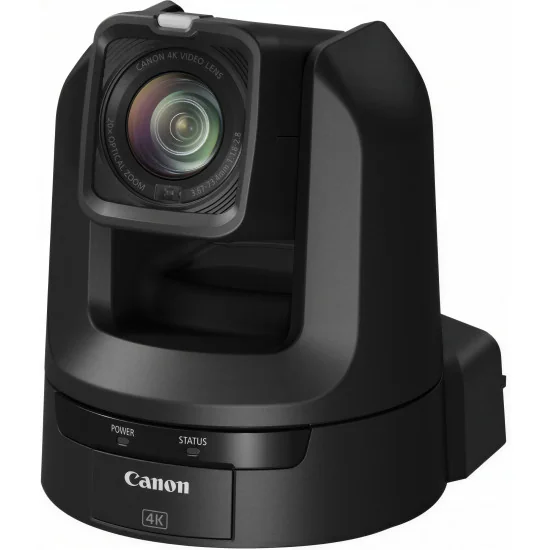

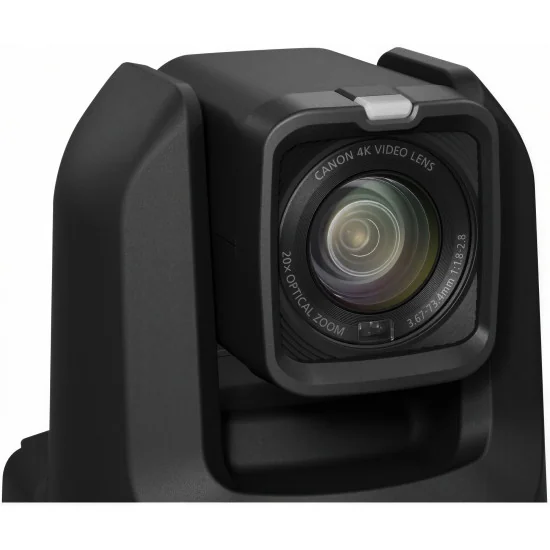

Canon CR-N100 Black PTZ Camera

Name: Canon CR-N100 Black PTZ Camera
Brand: Canon
SKU: CR-N100 BK
Price: 1859.00 EUR
Availability: InStock

MPN: CR-N100 BK

Price: €1,859.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Production teams that juggle simultaneous feeds, broadcast graphics and tight rundowns need a remote head that drops into a control room without slowing the rest of the rig. The Canon CR-N100 Black answers that brief — a compact 4K PTZ camera built around a 1/2.3-type CMOS sensor and the DIGIC DV6 processor, paired with a 20x optical zoom (f=3.67–73.4 mm, F/1.8–2.8) whose 8-bladed circular aperture keeps highlights and bokeh clean on long-end pickups. 4K UHD acquisition reaches 30P in 4:2:2 10-bit, while Full HD climbs to 60p for sports cut-ins and live-event slo-mo coverage.

Operators get fast, repeatable focus thanks to Hybrid AF, which marries contrast detection with phase detection for confident pulls. Face AF and Tracking AF hold attention on the speaker during keynote sessions or talk shows, while a motor-driven gradation ND filter (up to 1/8) and a Night Mode (IR cut-off) handle mixed-light venues — from theatre stages to outdoor relay points. Minimum subject illumination sits at around 1.5 lux, gain stretches from 0 to 36 dB, and pan-tilt drives travel as slowly as 0.2°/sec for fluid, broadcast-grade moves on long lenses.

Multi-camera setups gain real momentum here. The Canon CR-N100 streams over NDI|HX, SRT, RTMP/RTMPS and RTSP/RTP, with XC and Standard Communication protocols for serial or IP control — a useful asset when bridging the camera into existing AV racks or third-party switchers. PoE+ (IEEE 802.3at) routes data and power through one RJ45 run, while HDMI, USB-C 3.1 and RS-422 cover redundant outputs, conferencing rigs and joystick controllers. Up to 100 presets let you script multi-cam moves for town-hall coverage, e-sport studios or hybrid lecture capture without re-rigging the set.

The free Auto Tracking App RA-AT001 (Lite), shipped via the August 2025 firmware, locks on to a single subject automatically; the paid RA-AT001 unlocks multi-person framing, sit/stand framing and five saved tracking profiles — practical for unattended classroom shoots, panel discussions and remote production trucks. For owners scaling a production house, the Canon CR-N100 Black behaves like a B2B-grade tool: consistent colour science, granular control and a firmware roadmap that protects the investment.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Experience the flexibility of a 1/2.3-type 4K sensor and DIGIC DV6 processor with Hybrid AF and a 20x image stabilized optical zoom. Compatible with the built-in Auto Tracking app*, IP streaming and control protocols, this camera offers seamless integration for the corporate, education, houses of worship and live event industries.

Smooth and precise control
The CR-N100 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.2°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

Precise focusing with Hybrid AF
Combining high-precision contrast AF with high-speed phase-detection AF, the CR-N100 delivers rapid and accurate focusing of the subject, even in low light conditions.

The CR-N100 PTZ camera has an external sensor measuring subject distance, and compares the point of focus with that determined by the Contrast AF system. This Auto Focus system delivers faster and more accurate focussing than conventional contrast AF, assisting the camera operator.

Auto Tracking
Auto Tracking Application RA-AT001. Unlock the potential to track one or more speakers with face detection as they move around the stage, automatically. Optimise production efficiency for lectures, corporate events, houses of worship, live performances and broadcast.

Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.

*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.

Feature	Auto Tracking Application (Lite)	Auto Tracking Application
Tracking subject	Auto-select only	Auto-/manual select possible
Tracking sensitivity	Fixed	Adjustable from 1 to 10 levels
Tracking subject display size	Can be set at two levels	Can be set at five levels
Tracking target display position	Fixed at center	Can be set to any area
Auto Framing	—	Multi-Person Framing, Face Direction Framing, Sit/Stand Framing
Priority display area	—	Can be set
Fixed angle of view	—	Can be set
Save tracking settings	One only	Up to five can be saved/recalled

Specifications

Camera
Image Sensor	Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels	approx. 8.29 megapixels (3840 x 2160)
Lens	f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
Optical Zoom	20x optical zoom
Digital Zoom	20x digital zoom
Focal Length	3.67 – 73.4 mm, f/1.8 – 2.8, 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) – 601 mm (T) [Full HD] approx. 30.5 (W) – 627 mm (T)
Angle of View	[4K UHD] Horizontal: 65.6 (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T) [Full HD] Horizontal: 63.5 (W) – 3.4° (T) Vertical: 38.4° (W) – 1.9° (T)
Minimum Subject Illumination	Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
Shutter Speed	1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris	Manual/Automatic aperture
Gain	0.0 dB – 36 dB
ND Filter	Built-in (1/8 at maximum, gradation ND), motor operated
Night Mode (IR Cut Filter Off)	No
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K¹, tungsten lamp: 3,200 K²), color temperature setting (2,000 K – 15,000 K), Manual
Focus	Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
Gamma	Normal1 (Standard), Normal3 (BT.709)
Pan and Tilt	Pan operation range: Horizontal ±170° Pan operation speed: 0.2° – 300°/sec. Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.2° – 180°/sec.
Server
Video Output Format: HDMI	3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
Video Output Format: IP	[Frame frequency 59.94 Hz] 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 29.97 Hz] 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 50.00 Hz] 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 25.00 Hz] 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 23.98 Hz] 3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/29.97 Hz: 14.99 fps, When frame frequency is 50.00/25.00 Hz: 12.50 fps, When frame frequency is 23.98 Hz: 11.99 fps
Video Output Format: USB	Motion JPEG: 1920 x 1080 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps YUV: 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
Video Transmission Protocol	Protocol: XC (Canon's original), RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT.
Preset	Number of presets: Max. 100 (including home position)

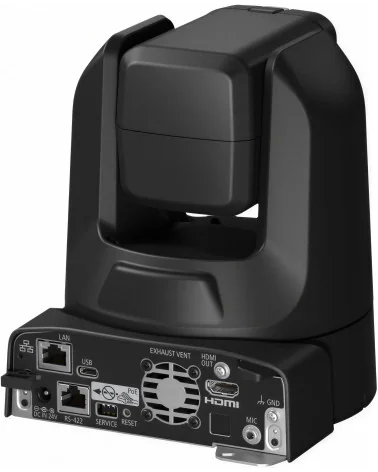

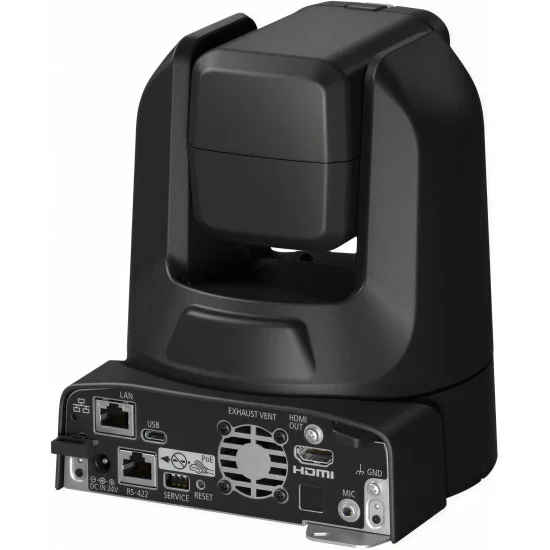

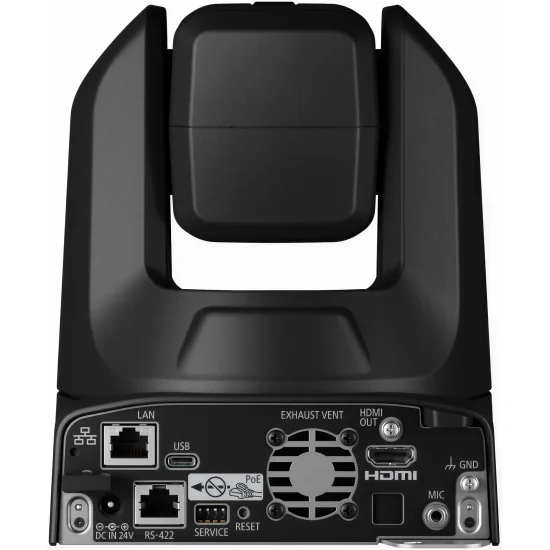

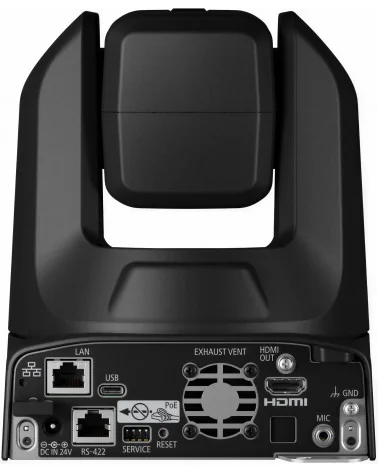

Interface
Communication Control	LAN, Serial, IR
Network Terminal	LAN x 1, RJ45, 1000Base-T
GEN-LOCK Terminal	No
HDMI OUT Terminal	HDMI connector x 1, output only
RS-422 Terminal	RJ45 connector x 1
Audio INPUT 1/INPUT 2 Terminals	No
MIC Terminal	ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal	Type-C (USB 3.1) x 1
Physical Features
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used External power source: 24 V DC (using included AC adaptor)
Power Consumption	PoE+ Input: Approx. 16.2 W³ max. (body only) DC Input: Approx. 15.0 W max. (body only)
Dimensions (W x H x D)	Approx. 154 x 178 x 164 mm (excluding protrusions)
Weight	Approx. 2.2 kg (4.86 lb.) (body only)
Noise	NC35 or less
