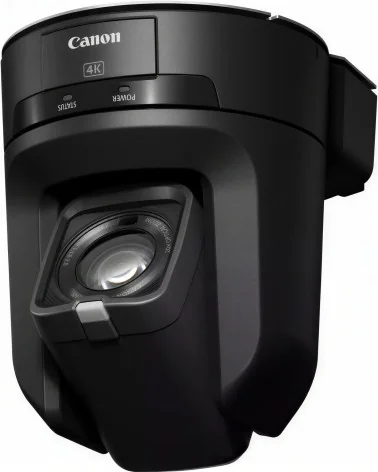

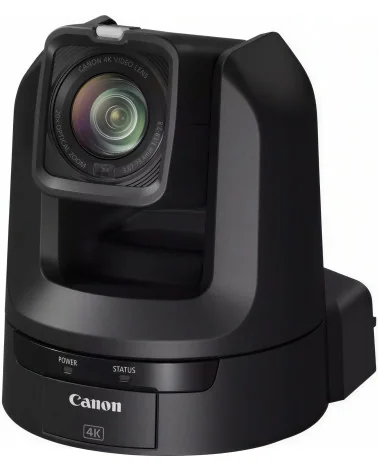

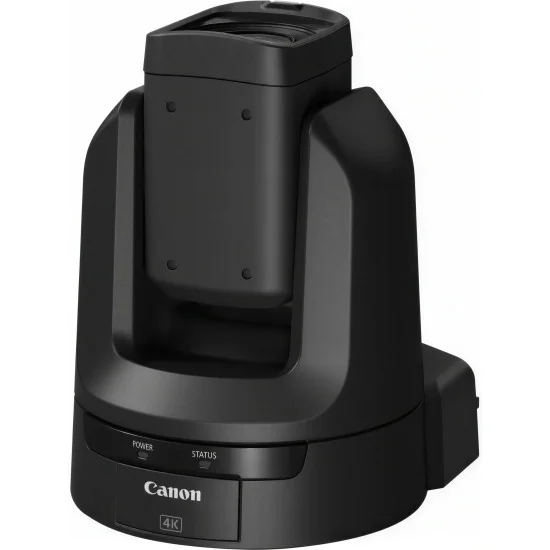

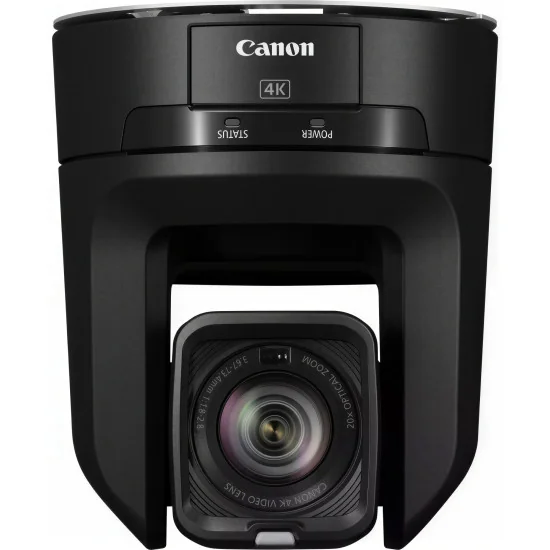

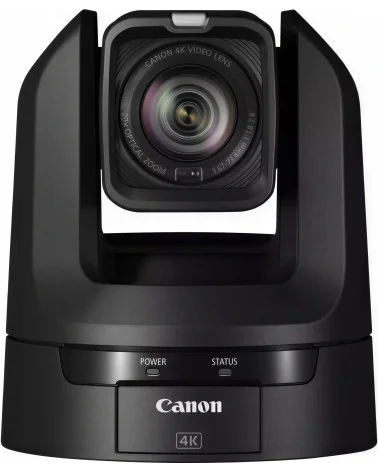

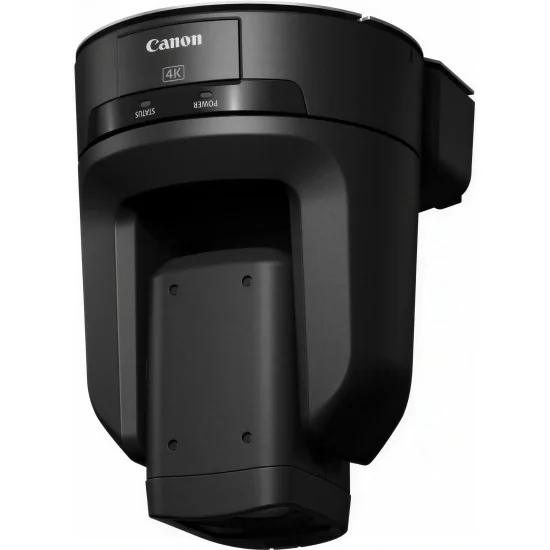

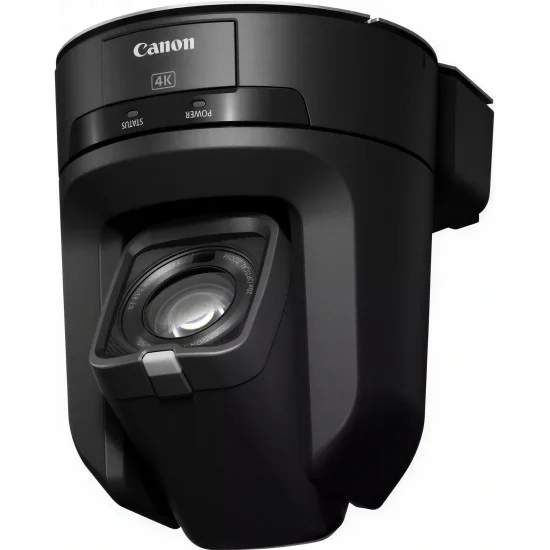

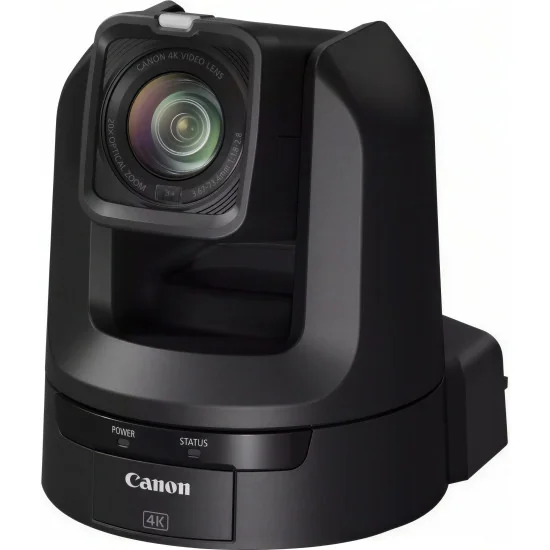

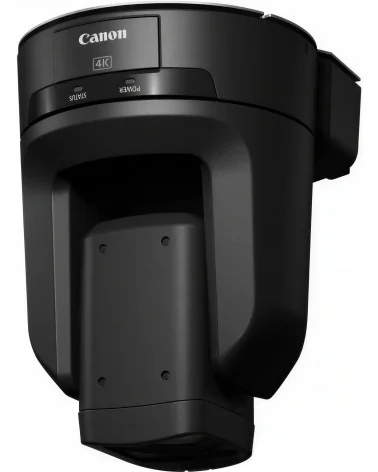

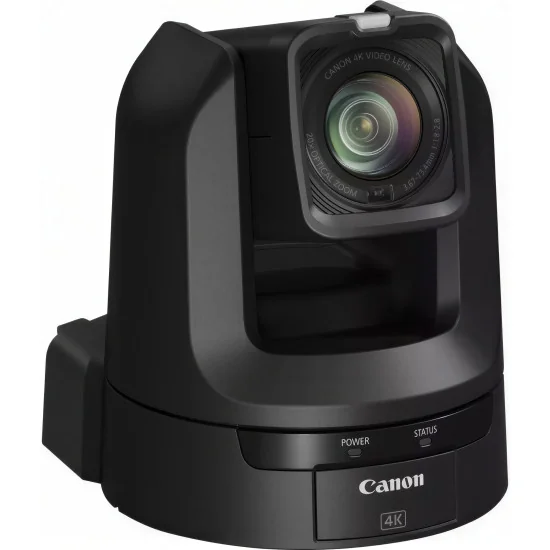

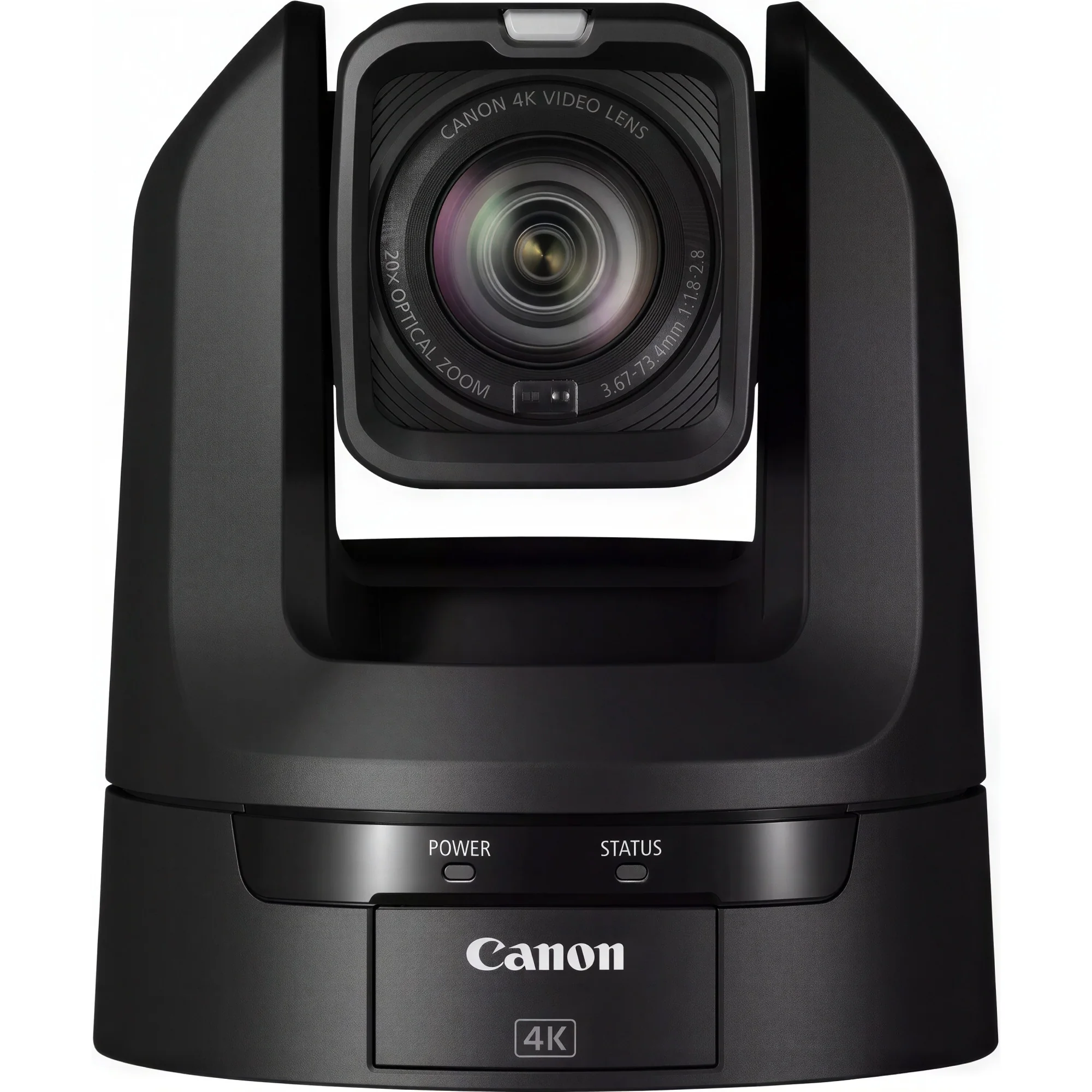

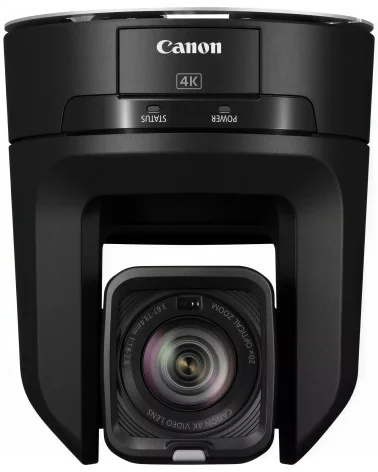

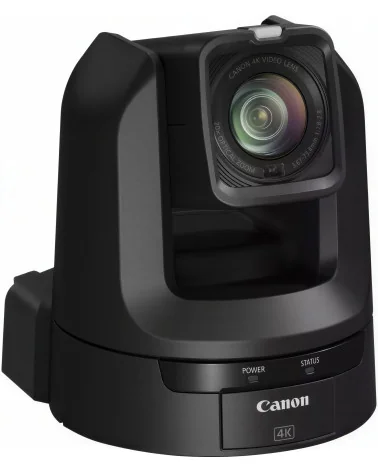

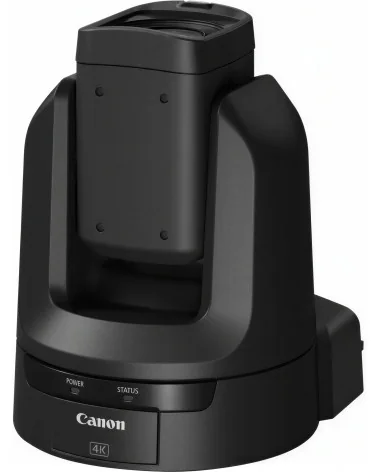

Canon CR-N300 Black Auto Tracking PTZ Camera

Canon CR-N300 Black Auto Tracking PTZ Camera

Name: Canon CR-N300 Black Auto Tracking PTZ Camera
Brand: Canon
SKU: CR-N300 BK auto-tracking
Price: 2799.00 EUR
Availability: InStock

MPN: CR-N300 BK auto-tracking

Price: €2,799.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Camera operators planning multi-camera live productions get a PTZ head that finally combines broadcast-grade optics with a complete auto-tracking solution. The Canon CR-N300 Black Auto Tracking ships with the paid RA-AT001 license already activated, so the unit leaves the box ready to follow speakers, presenters, panellists, and stage performers without an external processor sitting in the rack. Its 1/2.3-inch CMOS sensor paired with the DIGIC DV6 engine produces 4K UHD recording up to 30p and Full HD up to 59.94p, with low-light sensitivity around 1.5 lux for venues where stage lighting can dip during transitions.

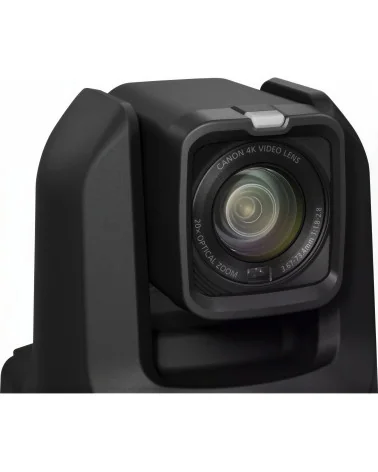

At the front sits a 20x optical zoom (f = 3.67–73.4 mm, F/1.8–2.8) paired with 20x digital zoom, an eight-bladed circular iris, and a built-in gradation ND filter reaching 1/8. The hybrid autofocus blends contrast detection with high-speed phase detection, locking onto a moving subject quickly enough for keynote walks, classroom demos, and corporate Q&A panels. A high-precision pan-tilt mechanism covers ±170° horizontally and -30° to +90° vertically, with speeds running from 0.2° up to 300° per second.

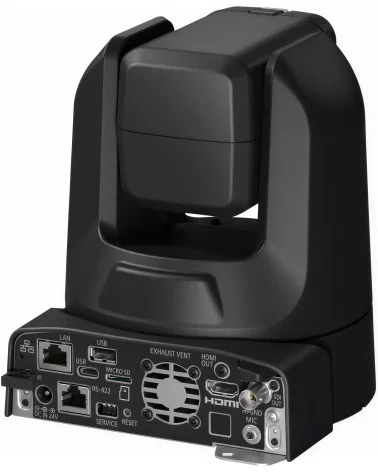

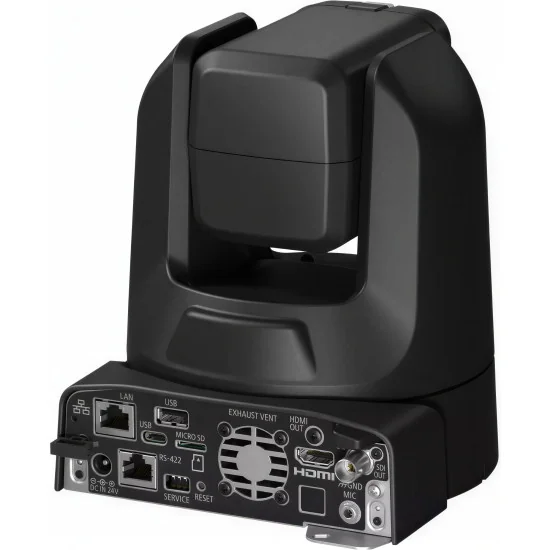

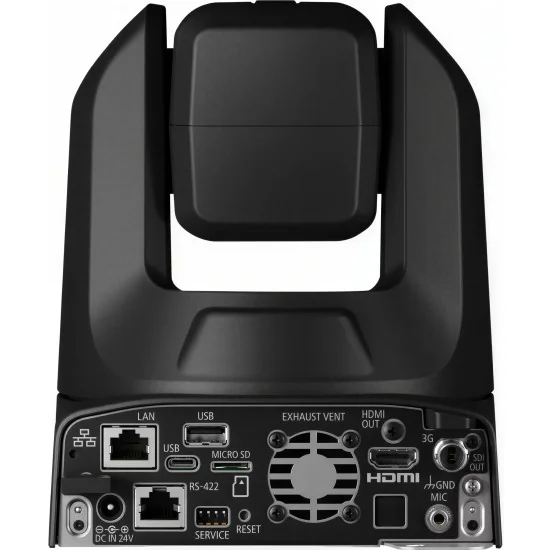

The CR-N300 is built around a serious set of professional connectors: 3G-SDI, HDMI, USB Type-C, RJ45 1000Base-T, RS-422 control, gen-lock, and a stereo mini-jack mic input. NDI|HX, SRT, RTMP/RTMPS, RTSP/RTP, FreeD, and Canon's XC protocol slot the camera straight into vMix, OBS, TriCaster, or similar IP switchers. PoE+ over one LAN run (IEEE 802.3at) carries video, power, tally, and control — useful for ceiling installs and mobile flypacks where DC outlets are scarce.

The bundled full Auto Tracking Application unlocks production-grade options rather than the Lite tier: manual or automatic subject selection, ten sensitivity levels, five user-saved tracking presets, plus Multi-Person, Face Direction, and Sit/Stand framing modes. One operator can supervise several CR-N300 heads from a single RC-IP100 controller while each camera handles subject composition on its own — a measurable reduction in crew hours per show day.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

This version has a full Canon RA-AT001 Auto Tracking App license.

The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, as well as the ability to automate your productions using Auto Tracking App RA-AT001(Lite), it’s the ideal choice for a variety of productions.

20x Optical zoom for incredible flexibility

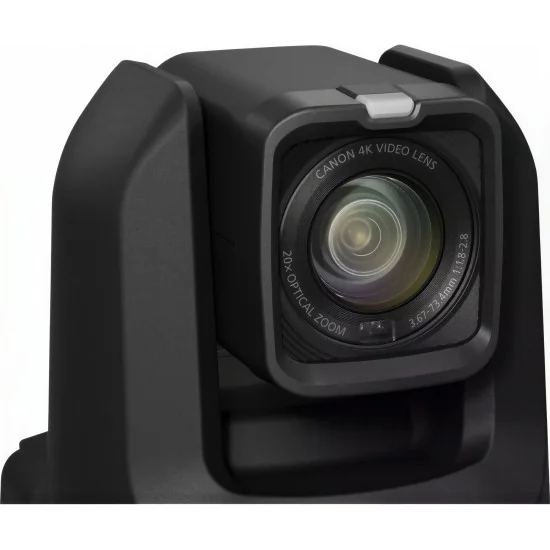

Capture all the detail you need, thanks to Canon’s advanced 4K optics which feature a flexible 20x optical zoom covering a broad focal range of 29.3-601mm (35mm equivalent), ensuring great flexibility. Equipped with image stabilisation, for minimal image disruption when moving.

IP Streaming and Control to transform your productions
The CR-N300 boasts a comprehensive range of IP control and streaming protocols up to 4K UHD 30p allowing for greater control for your production needs. Featuring major protocols such as NDI|HX, RTMP, RTP/RTSP, RTMPS, SRT, FreeD and Canon’s XC Protocol, it will fit into most new or most existing systems, making it an extremely flexible option.

Hybrid AF for precise focus
The CR-N300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring rapid and accurate focusing of the subject, even in low light conditions. Equipped with a bespoke external sensor which measures the distance to the subject and compares the point of focus with that determined by the Contrast AF system. This Hybrid AF system is particularly effective in low light situations and provides fast, accurate and reliable Autofocus with greater accuracy than Contrast AF alone.

Flexible connectivity for your workflow

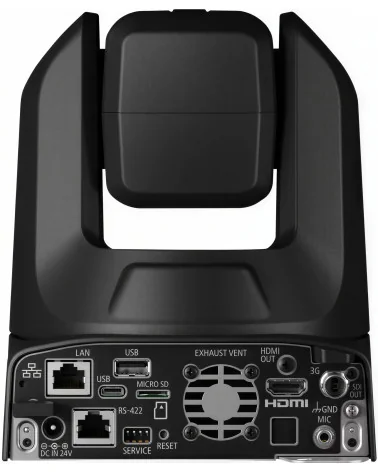

The CR-N300 features a whole host of connections to ensure the ultimate flexibility in workflows. Featuring a HDMI port which can achieve 4K UHD, 4:2:2 10-bit. The camera also boasts a 3G-SDI port, USB Port, 3.5mm Audio Input and a PoE+ LAN port.

Smooth, precise control
The CR-N300 is equipped with a high-precision drive mechanism, enabling the Pan and Tilt movement to be finely adjusted at variable speeds using controllers such as RC-IP100, Canon Remote Camera Control Application or a tablet via Wi-Fi, to capture the perfect shot.

Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.

*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.

Feature	Auto Tracking Application (Lite)	Auto Tracking Application
Tracking subject	Auto-select only	Auto-/manual select possible
Tracking sensitivity	Fixed	Adjustable from 1 to 10 levels
Tracking subject display size	Can be set at two levels	Can be set at five levels
Tracking target display position	Fixed at center	Can be set to any area
Auto Framing	—	Multi-Person Framing, Face Direction Framing, Sit/Stand Framing
Priority display area	—	Can be set
Fixed angle of view	—	Can be set
Save tracking settings	One only	Up to five can be saved/recalled

Specifications

Camera
Image Sensor	Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels	approx. 8.29 megapixels (3840 x 2160)
Lens	f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
Optical Zoom	20x optical zoom
Digital Zoom	20x digital zoom
Focal Length	f=3.67 – 73.4 mm, F/1.8 – 2.8, 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) – 601 mm (T) [Full HD] approx. 30.5 (W) – 627 mm (T) Digital
Angle of View	[4K UHD] Horizontal: 65.6 (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T) [Full HD] Horizontal: 63.5 (W) – 3.4° (T) Vertical: 38.4° (W) – 1.9° (T)
Minimum Subject Illumination	Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (Programmed AE) shooting mode, auto slow shutter on)
Shutter Speed	1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris	Manual/Automatic aperture
Gain	0.0 dB – 36 dB
ND Filter	Built-in (1/8 at maximum, gradation ND), motor operate
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K – 15,000 K), Manual * Color temperatures are given for reference purposes only.
Focus	Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
Gamma	Normal1 (Standard), Normal3 (BT.709)
Pan and Tilt	Pan operation range: Horizontal ±170° Pan operation speed: 0.2° – 300°/sec. Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.2° – 180°/sec.
Pan and Tilt Operation
Protocol	XC (Canon's original), RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
Server
Video Output Format: SDI	1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: HDMI	HDMI 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: IP	3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) – If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. – A frame rate that exceeds the frame frequency cannot be selected. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
Video Output Format: USB	Motion JPEG: 1920 x 1080 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps YUV: 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
Preset	Number of presets: Max. 100 (including home position)
Interface
Communication Control	LAN, Wi-Fi, Serial, IR
Network Terminal	LAN x 1, RJ45, 1000Base-T
SDI OUT Terminal	BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal	-
HDMI OUT Terminal	HDMI connector x 1, output only
RS-422 Terminal	RJ45 connector x 1
Audio INPUT 1/INPUT 2 Terminals	-
MIC Terminal	ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal	Type-A (USB 2.0) x 1 (future expansion) Type-C (USB 3.0) x 1
Physical Features
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used External power source: 24 V DC (using included AC adaptor)
Power Consumption	PoE+ Input: Approx. 16.2 W* max. (body only) DC Input: Approx. 15.0 W max. (body only) * Class 4 (25.5 W required) for power supply devices
Dimensions (W x H x D)	Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)
Weight	Approx. 2.2 kg (4.86 lb.) (body only)
IP Rating	-
