Kinefinity E Mounting Adapter
€649.00
Lens choice can determine whether a camera package stays compact or becomes needlessly complex. The Kinefinity E Mounting Adapter gives...
On many cinema jobs, the LPL lens package is the capital asset; the camera body is the variable around it. The Kinefinity LPL Mounting Adapter connects that glass to a KineMOUNT camera through a direct metal positive-lock interface. It accepts most LPL large-format cine lenses, including ARRI Signature Primes, so a production company can retain a familiar optical package for features, commercials and premium branded shoots. Short flange geometry and a wide internal opening suit full-frame LPL optics with wide apertures.
The adapter seats on KineMOUNT without an external cable and fits without tools. During prep, one camera package can take an LPL prime set, then return to another supported mount without dedicating a second body to the lens choice. The lock provides a firm reference for repeatable focus work with a manual follow focus or wireless FIZ motor. Its compact, low-mass construction keeps unnecessary load away from handheld, gimbal and shoulder builds; long or heavy cine lenses should still use manufacturer-specified support.
Compatibility reaches beyond early MAVO LF listings. Kinefinity currently lists MAVO Edge 8K, MAVO Edge 6K, MAVO mark2 LF, MAVO mark2 S35, MAVO LF, MAVO 6K, TERRA 4K, TERRA 6K and VISTA, provided the camera carries KineMOUNT. This serves rental stock, A/B-camera packages and mixed full-frame/Super 35 jobs where one LPL inventory must cover several bodies. Image-circle coverage remains a property of the selected lens and camera mode and should be checked at each focal length, not assumed from the mount.
This passive adapter provides no electronic communication. Lens metadata, iris commands and focus control therefore do not pass through the mount, a key distinction from active alternatives. Crews using manual cine glass or an external FIZ system gain a cable-free mechanical path and keep lens control with the assistant. It is a focused investment in ARRI LPL lenses on Kinefinity cameras, stable seating for precision focus pulls and fewer lens-platform constraints across a professional fleet.

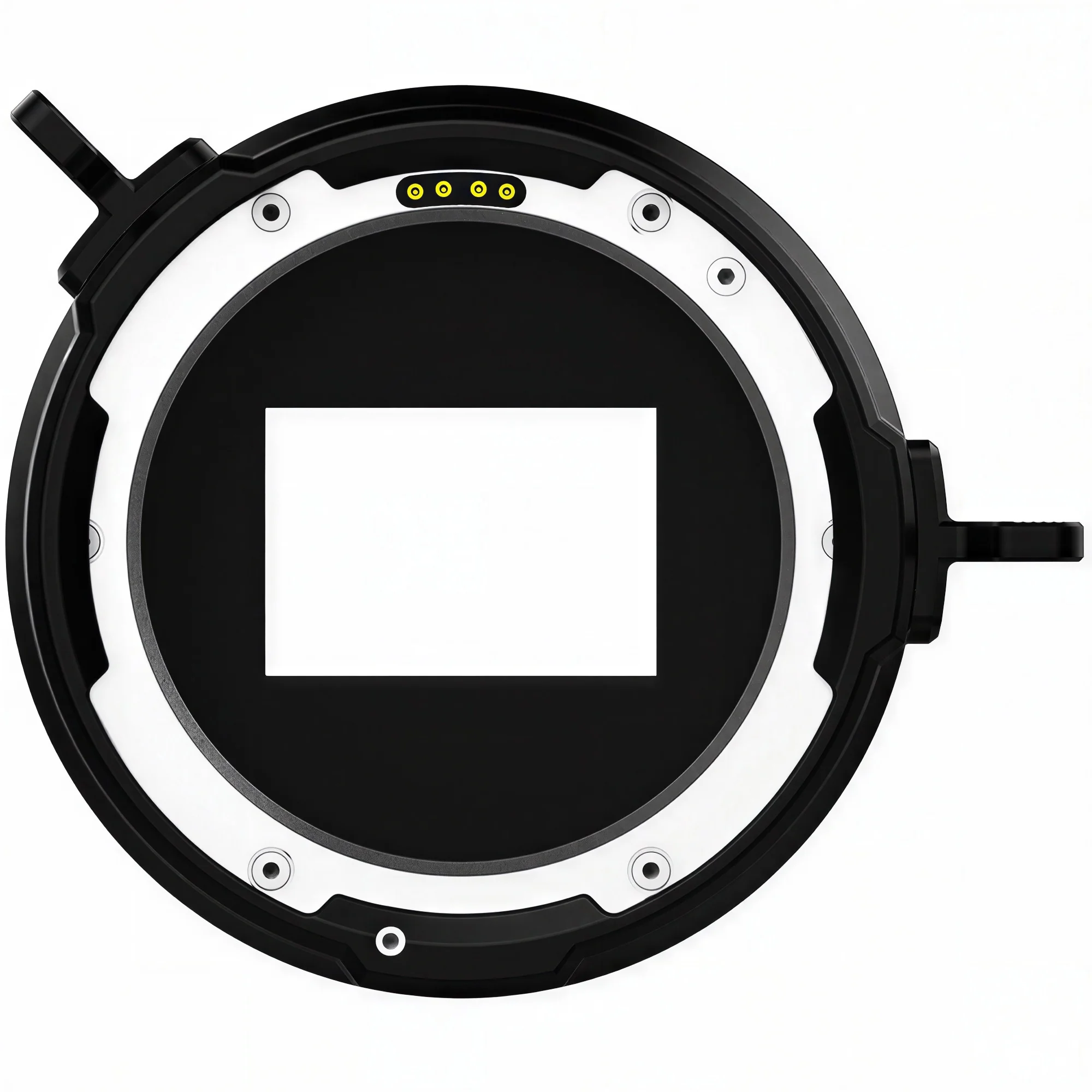

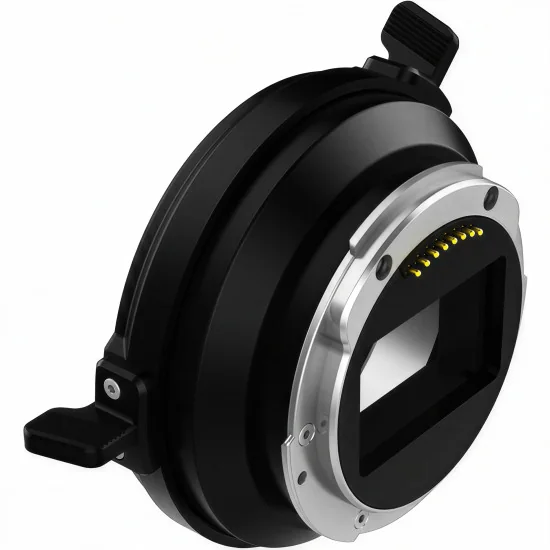

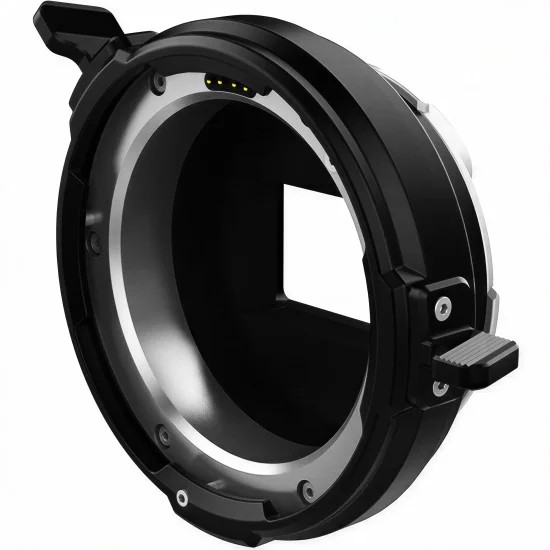

Kinefinity LPL Mounting Adapter
A230-006-01
Price: €949.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
On many cinema jobs, the LPL lens package is the capital asset; the camera body is the variable around it. The Kinefinity LPL Mounting Adapter connects that glass to a KineMOUNT camera through a direct metal positive-lock interface. It accepts most LPL large-format cine lenses, including ARRI Signature Primes, so a production company can retain a familiar optical package for features, commercials and premium branded shoots. Short flange geometry and a wide internal opening suit full-frame LPL optics with wide apertures.
The adapter seats on KineMOUNT without an external cable and fits without tools. During prep, one camera package can take an LPL prime set, then return to another supported mount without dedicating a second body to the lens choice. The lock provides a firm reference for repeatable focus work with a manual follow focus or wireless FIZ motor. Its compact, low-mass construction keeps unnecessary load away from handheld, gimbal and shoulder builds; long or heavy cine lenses should still use manufacturer-specified support.
Compatibility reaches beyond early MAVO LF listings. Kinefinity currently lists MAVO Edge 8K, MAVO Edge 6K, MAVO mark2 LF, MAVO mark2 S35, MAVO LF, MAVO 6K, TERRA 4K, TERRA 6K and VISTA, provided the camera carries KineMOUNT. This serves rental stock, A/B-camera packages and mixed full-frame/Super 35 jobs where one LPL inventory must cover several bodies. Image-circle coverage remains a property of the selected lens and camera mode and should be checked at each focal length, not assumed from the mount.
This passive adapter provides no electronic communication. Lens metadata, iris commands and focus control therefore do not pass through the mount, a key distinction from active alternatives. Crews using manual cine glass or an external FIZ system gain a cable-free mechanical path and keep lens control with the assistant. It is a focused investment in ARRI LPL lenses on Kinefinity cameras, stable seating for precision focus pulls and fewer lens-platform constraints across a professional fleet.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Kinefinity A230-006-01 LPL Mounting Adapter is a precision-engineered, tool-free passive LPL mount for MAVO LF, MAVO Edge, and TERRA cameras, featuring a 62 mm diameter throat and optimized flange geometry to support ultra-wide large-format cine primes and zooms (ARRI Signature, Zeiss Supreme, etc.) with zero vignetting and rock-solid lock-up in a featherlight 200 g aluminum body
The Kinefinity A230-006-01 LPL Mounting Adapter seamlessly integrates ARRI LPL lenses with any Kinefinity full-frame or S35 camera (MAVO LF, MAVO Edge 8K/6K, MAVO mark2, TERRA 4K). Its passive stainless-steel bayonet locks with a smooth 60° twist using the integrated lever—no tools, no shims, no back-focus drift. The 62 mm inner diameter and recessed flange design accommodate lenses as fast as T1.4 and wider without vignetting, while the 44 mm flange-to-sensor distance (when paired with KineMOUNT) ensures perfect optical alignment with ARRI 65, Signature Primes, and DNA glass. CNC-machined from aluminum and hard-anodized in stealth black, the adapter adds only 200 g and maintains full compatibility with follow-focus gears and matte boxes.
KEY FEATURES
Passive ARRI LPL mount (no electronic contacts)
Tool-free 60° locking lever with positive click
62 mm clear aperture for full large-format coverage
Zero-shim factory calibration (44 mm flange)
Supports lenses to T1.4 and wider
Recessed rear element protection
Aluminum, 200 g total
SPECIFICATIONS
Model: Kinefinity A230-006-01 LPL Mounting Adapter
Camera mount: KineMOUNT native (MAVO LF/Edge/mark2/TERRA)
Lens mount: ARRI LPL (Large Positive Lock)
Electronic communication: No (passive)
Throat diameter: 62 mm
Flange focal distance: 44 mm (with KineMOUNT)
Lock rotation: 60° with spring-loaded lever
Material: CNC aluminum + stainless bayonet
Weight: 200 g / 7.1 oz
A230-006-01
Data sheet
- Lens mount
- LPL
- Camera Mount
- KineMOUNT
Specific References
- mpn
- A230-006-01
