Matrox LUMA Pro A380 Octal Multi-Monitor Graphics Card

    LUMA-A380P8
    Price: €3,999.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

    Matrox LUMA Pro A380 Octal is a single-slot, standard-height PCIe 4.0 x16 graphics card built for dense multi-display systems where one workstation must drive an entire canvas. With 8 secure Mini DisplayPort 2.0 outputs (DP 2.0 UHBR10) and cable-retention hardware, it keeps connections stable in racks, flight cases and 24/7 control rooms. The card can feed eight 5K displays at 60p HDR with 12-bit precision, or scale to four 8K heads for LED walls, broadcast sets and premium signage.

    At the core are 2× Intel Arc A380E GPUs with 12GB GDDR6, backed by modern media engines for hardware H.264/H.265, AV1 and VP9 encode/decode. That matters when your wall mixes live program, graphics, replay and multiple IP feeds: decoding stays smooth while the CPU remains available for switching, monitoring, logging or automation. The board also carries multi-channel audio, outputting high-definition audio streams on up to four digital ports simultaneously.

    For installations that must look “locked”, LUMA Pro A380 Octal provides built-in frame lock between up to two cards, enabling 16 synchronized outputs without a separate sync board—useful for seamless video walls and projector blends. Add VESA DSC and Adaptive Sync to reduce link bandwidth constraints and tearing on fast motion content, while HDCP 2.3 compliance supports protected sources on approved displays—relevant in corporate studios, broadcast monitoring and secure facilities.

    Deployment is straightforward on Windows 10/11 using Matrox PowerDesk for multi-monitor layout control (bezel management, edge overlap, rotation, clone or stretched desktops) and Mura developer tools for integrators who need API-driven behavior. Typical placements include broadcast galleries, OB vans, esports stages, museums, transportation hubs, NOC/SOC rooms and rental video-wall rigs that benefit from fewer cards, fewer cables and a cleaner chassis footprint.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Matrox LUMA Pro A380 Octal (Ask for a special price)

    Superior IP-based digital signage and video walls
    Drive eight 5Kp60 synchronized high-resolution displays or projectors from a single Matrox LUMA Pro Series graphics card. A single-slot PCIe® 4.0 x 16 card with eight native Mini DisplayPort™ 2.0 connectors, A380 Octal delivers extreme performance for multi-display video wall and digital signage applications. For OEMs, system integrators, AV installers, and developers looking to create custom control functions, we also offer a complete range of video wall software, APIs, SDKs, and libraries.  Matrox LUMA Pro Series is powered by Intel® Arc™ graphics. TAA compliant sku available.

    Drive multi-display 5K HDR video wall applications
    LUMA Pro A380 Octal allows you to create powerful IP-based video walls with fewer components and smaller systems with the built-in MURA SDK media codec engine.

    High-density performance with a single slot
    The LUMA Pro A380 Octal sets a new standard for high-density applications, delivering eight outputs out of a single-slot card. This design means vendors can install multiple cards in one system, ultimately creating powerful systems with a smaller system footprint. The A380 Octal provides a unique and efficient solution that is ideal for high-density applications.

    Perfect synchronization. Smooth image display.

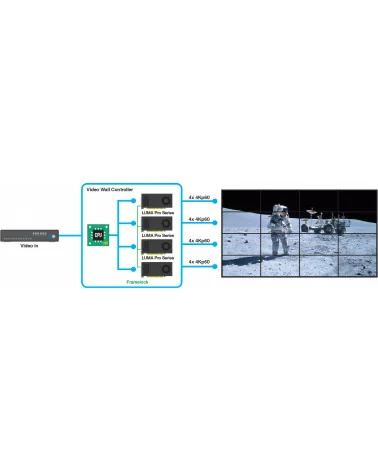

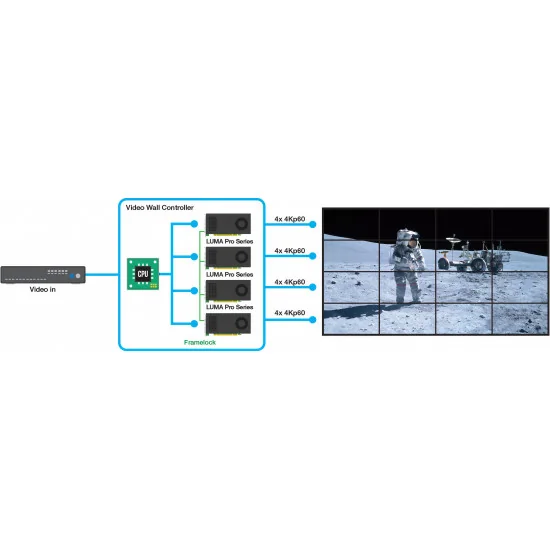

    Drive up to sixteen synchronized displays and reduce tearing by framelocking up to two LUMA Pro A380 Octal cards together using board-to-board framelock cables. Also, save slot space—a separate card isn’t needed for the synchronization.

    Advanced capabilities
    With up to 12 GB of graphics memory, A380 Octal graphics card brings superior video playback and performance to a wide variety of video wall applications. Support for Microsoft® DirectX® 12 Ultimate, OpenGL® 4.6, OpenCL™ 3.0, Vulkan® 1.3, Intel® oneAPI Video Processing Library (oneVPL), and OpenVINO™ enables you to run the latest professional applications. Finally, secure connectors on the boards prevent the risk of loose cabling.

    HDCP compliant

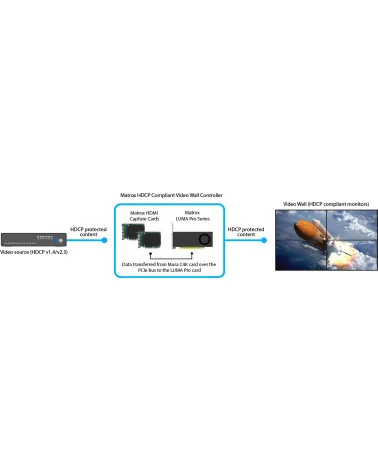

    LUMA Pro Series is designed for a range of multi-display desktop applications in control rooms, enterprises, industries, government, military, pro AV, digital signage, security, and more. HDCP compliance makes it possible to display protected content on video walls, or to capture and display protected content when paired with Matrox Mura C4Kcapture cards.

    LUMA Pro A380 Octal Technical Specifications

    Product
    Part number: LUMA-A380P8
    Bus type: PCIe 4.0 x 16
    Number of video outputs: 8

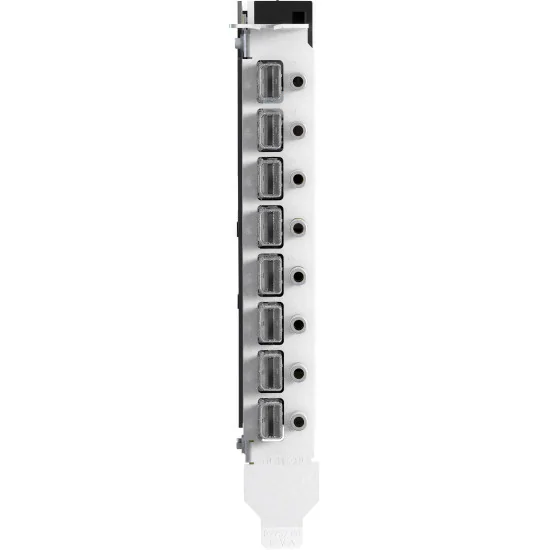

    Video output connectors: 8x Mini DisplayPort (secure)
    DisplayPort specification: 2.0 UHBR10
    Maximum number of cards in a system: 2

    Performance
    Maximum resolution: 8x 5K60 HDR 12b
    Bit depth and color space: Up to 36 bpp (Bits per Pixel) 12bit per channel, YCbCR 4:4:4, YCbCR 4:2:0, RGB
    Memory: 12GB GDDR6
    GPU: 2x Intel® ArcTM A380E
    Multi-stream audio: High-definition audio streams on four digital ports simultaneously

    Additional features
    DisplayPort features: VESA DSC 1.1, and Adaptive Sync
    HDCP compliance: 2.3
    Power connector: 6-pin PCIe
    Board-to-board framelock: Max of 2 cards
    Supported graphics API: DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3, oneAPI and OpenVINO
    Hardware video encode/decode: H264/H265/AV1/VP9

    Hardware

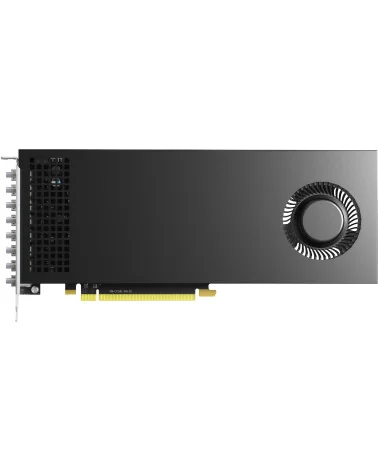

    Form factor: Standard Height Single Slot
    Dimensions: Length: 26.45 cm (10.41"), Height: 12.68 cm (4.99")
    Bracket: Standard Height

    Environmental & Power consumption
    Cooling: Active
    Power consumption: 130W
    Operating temperature: 0 to 45 oC (32 to 113 °F)
    Regulatory compliance: CE (EU) Class A, FCC (US) Class A, ICES-003 (Canada) Class A, KC (S. Korea) Class A, RCM (Aus/NZ) Class A, UKCA (UK) Class A, CSA/UL 62368-1, IEC 62368-1
    Environmental compliance: EU RoHS, China RoHS, REACH, WEEE
    Warranty2: 3 years

    Software & API
    Matrox PowerDesk for Windows: Yes
    Mura Developer tools: Yes
    Operating systems: Windows 10 64-bit & LTSC (version 21H2 and up) / Windows 11 up to 24H2 and 64-bit LTSC (version 24H2)
    System requirements3:
    Single available PCIe 4.0 (or newer) x8 slot
    Intel Core Processor from 10th Gen to 14th Gen,
    Intel Xeon W-35xx/25xx/34xx/24xx processor for workstations
    Resizable BAR (reBAR) or Smart Access Memory (SAM)

    Accessories (sold separately)
    Mini DisplayPort to DisplayPort adapter: CAB-MDP-DPF
    Secure cable solution: SK-SLNB-4F

    1. Extended two-year warranty available.
    2. Please refer to the Luma Pro system validation guide for more information.

    LUMA-A380P8

    Data sheet

    Video Output
    Mini DisplayPort
    Max Output Resolution
    5K (5120 x 2880) 50/60 fps
    For Operating System
    Windows
    Output colour sampling
    RGB 4:4:4 12-bit
    YUV/YCbCe/YPbPr 4:4:4 12-bit
    Type
    Multi-Monitor Graphics Card
    Form Factor
    PCIe Card
    Video output channels
    8
    Cropping
    Yes
    HDCP Support
    Yes
    Multi-Unit Support
    Yes

    Specific References

    ean13
    790750263984
    mpn
    LUMA-A380P8
