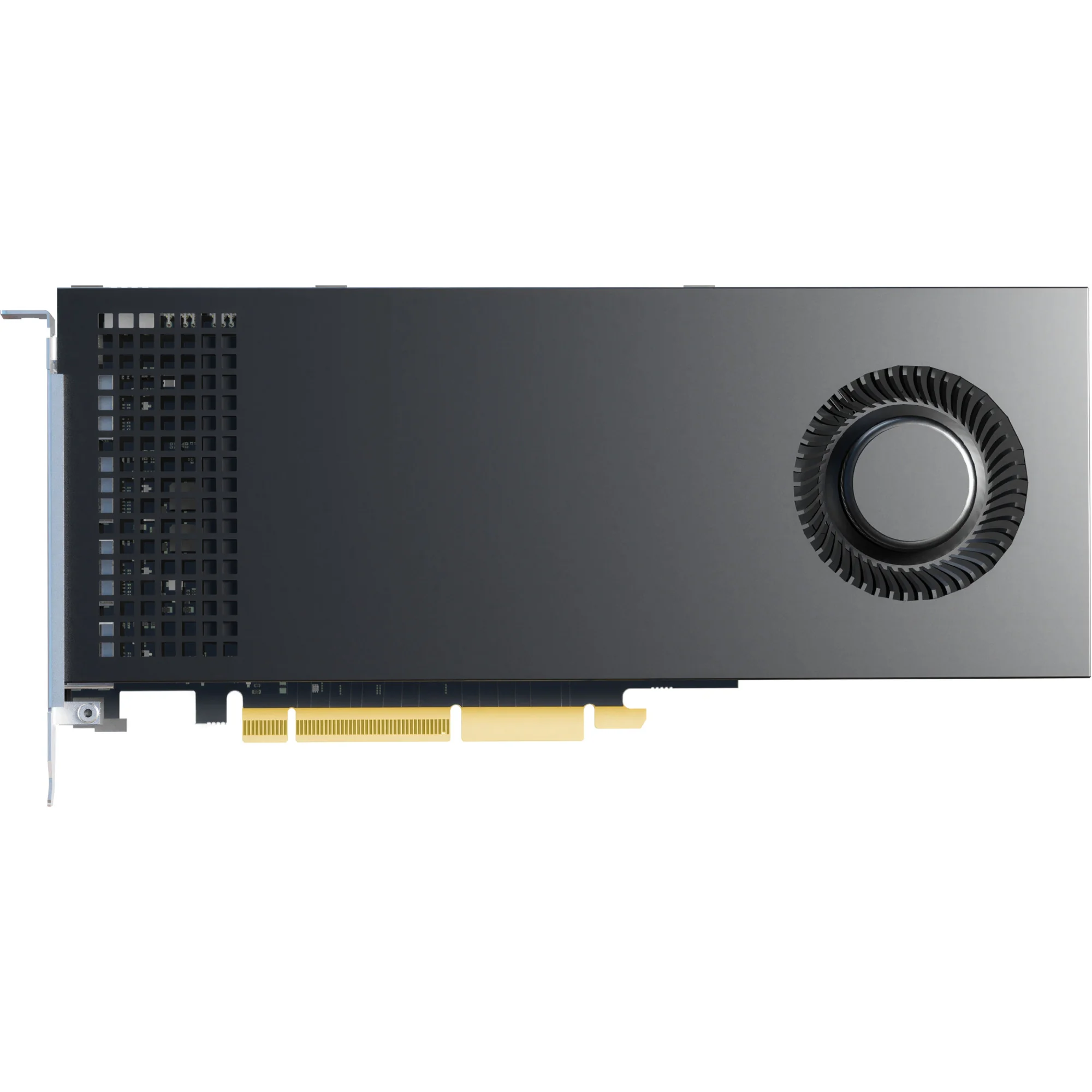

Matrox LUMA Pro A380 Quad Multi-Monitor Graphics Card

    LUMA-A380P
    Price: €2,199.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

    Matrox LUMA Pro A380 Quad is a professional PCIe Gen4 graphics card for installations where one PC must drive multiple high-resolution canvases with predictable timing. With 4x DisplayPort 2.0 (UHBR10) outputs on a single-slot board, it can feed two 8K60 displays (or two 5K120) or run up to four 5K60 HDR displays with 12-bit processing. That headroom matters for broadcast control rooms, LED-wall backplanes, stage projection, and multi-view monitoring where fine text, scopes, and graphics stay readable at distance.

    In live production and streaming, the A380 Quad is often used to build a clean operator surface: program/preview, multiviewer, rundown, audio metering, comms panels, clocking, and QC tools spread across synchronized screens. It also fits replay kiosks, newsroom graphics PCs, on-set playback, and corporate event control where a single workstation must address multiple confidence monitors and engineering displays without breaking sync. Board-to-board framelock lets you lock up to four cards in one system for tearing-free presentation across large arrays—useful for video-wall control, OB trucks, NOC rooms, and immersive brand activations where every panel steps together.

    For content security and modern display features, the card supports HDCP 2.3, VESA DSC 1.1, and Adaptive-Sync, plus up to 36 bpp color with RGB/YCbCR formats. Its 6 GB GDDR6 memory and Intel Arc A380E GPU provide smooth playback, while hardware encode/decode for H.264/H.265, AV1, and VP9 helps when a signage player, review station, or capture system needs efficient media handling.

    Integration teams get a practical toolkit: Matrox PowerDesk for Windows adds bezel management, edge overlap, and fast layout changes; developers can pair it with Mura tools/SDK and common APIs (DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.3, OpenCL 3.0, oneAPI/OpenVINO). The card runs from the PCIe slot at 75 W (no auxiliary power), supporting dense builds where reliability and thermal planning are non-negotiable.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Matrox LUMA Pro A380 Quad (Ask for a special price)

    Superior IP-based digital signage and video walls
    Drive two 8K displays—or two 5Kp120 displays—or up to four synchronized high-resolution displays or projectors from a single Matrox LUMA Pro Series graphics card. A single-slot PCIe® 4.0 x8 card with four native Mini DisplayPort™ 2.0 connectors, A380 Quad delivers superior graphics performance for today’s multi-display video wall and digital signage applications. For OEMs, system integrators, AV installers, and developers looking to create custom control functions, we also offer a complete range of video wall software, APIs, SDKs, and libraries.  Matrox LUMA Pro Series is powered by Intel® Arc™ graphics. TAA compliant sku is available.

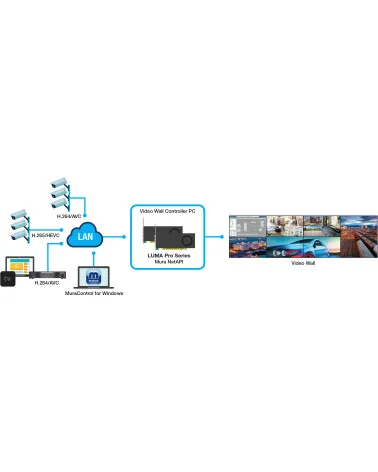

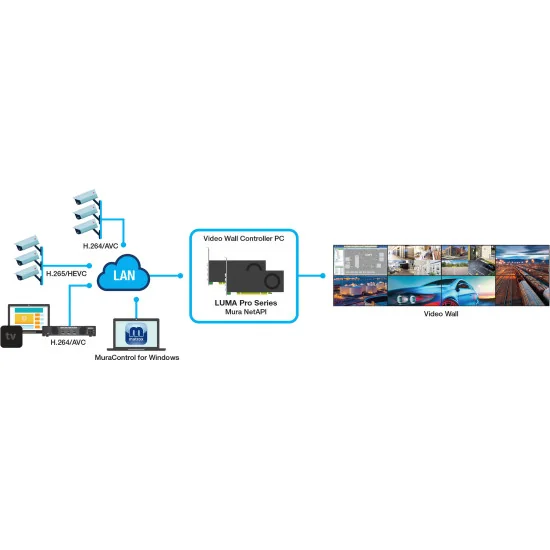

    Drive multi-display IP-based video wall applications
    LUMA Pro Series allows you to create powerful IP-based video walls with fewer components and smaller systems with the built-in MURA SDK media codec engine.

    Low power. Maximum efficiency.
    LUMA Pro A380 Quad’s low power consumption at 75W offers vendors simpler integration and a lower cost of ownership. Its low power consumption means you can install multiple cards in one system while using less power. LUMA Pro A380 Quad also eliminates the need for external power supplies.

    Perfect synchronization. Smooth image display.

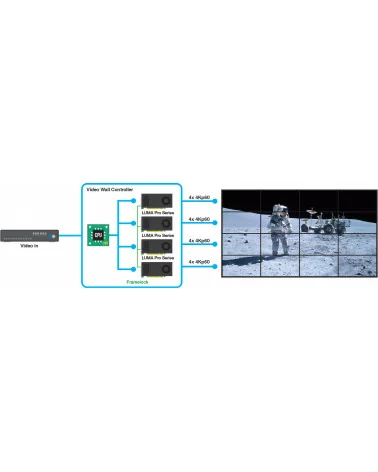

    Drive up to sixteen synchronized displays and reduce tearing by framelocking up to four LUMA Pro cards together using board-to-board framelock cables. Also, save slot space—a separate card isn’t needed for the synchronization.

    Advanced capabilities
    With up to 6 GB of graphics memory, A380 Quad graphics card brings superior video playback and performance to a wide variety of video wall applications. Support for Microsoft® DirectX® 12 Ultimate, OpenGL® 4.6, OpenCL™ 3.0, Vulkan® 1.3, Intel® oneAPI Video Processing Library (oneVPL), and OpenVINO™ enables you to run the latest professional applications. Finally, secure connectors on the boards prevent the risk of loose cabling.

    HDCP compliant

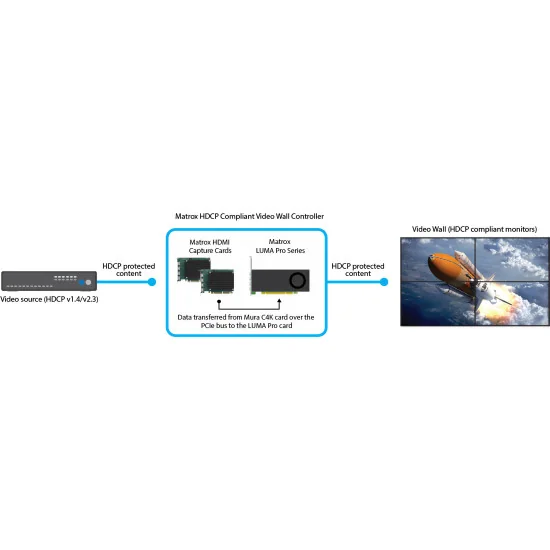

    LUMA Pro Series is designed for a range of multi-display desktop applications in control rooms, enterprises, industries, government, military, pro AV, digital signage, security, and more. HDCP compliance makes it possible to display protected content on video walls, or to capture and display protected content when paired with Matrox Mura C4Kcapture cards.

    LUMA A380 Quad Technical Specifications

    Product
    Part number: LUMA-A380P
    Bus type: PCIe 4.0 x 16 (x8 electrical)
    Number of video outputs: 4
    Video output connectors: 4x DisplayPort
    DisplayPort specification: 2.0 UHBR10
    Maximum number of cards in a system: 4

    Performance
    Maximum resolution: 2x 8K60/5K120 or 4x 5K60 HDR 12b
    Bit depth and color space: Up to 36 bpp (Bits per Pixel) (12bit per channel), YCbCR 4:4:4, YCbCR 4:2:0, RGB
    Memory: 6GB GDDR6
    GPU: Intel® ArcTM A380E
    Multi-stream audio: High-definition audio streams on four digital ports simultaneously

    Additional features
    DisplayPort features: VESA DSC 1.1, and Adaptive Sync
    HDCP compliance: 2.3
    Power connector: -
    Board-to-board framelock: Max of 4 cards
    Supported graphics API: DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3, oneAPI and OpenVINO
    Hardware video encode/decode: H264/H265/AV1/VP9

    Hardware
    Form factor: Standard Height Single Slot
    Dimensions: Length: 25.38 cm (9.99”), Height: 12.68 cm (4.99”)
    Bracket: Standard Height

    Environmental & Power consumption
    Cooling: Active
    Power consumption: 75W
    Operating temperature: 0 to 45 oC (32 to 113 °F)
    Regulatory compliance: CE (EU) Class A, FCC (US) Class A, ICES-003 (Canada) Class A, KC (S. Korea) Class A, RCM (Aus/NZ) Class A, UKCA (UK) Class A, CSA/UL 62368-1, IEC 62368-1
    Environmental compliance: EU RoHS, China RoHS, REACH, WEEE
    Warranty1: 3 years

    Software & API
    Matrox PowerDesk for Windows: Yes
    Mura Developer tools: Yes
    Operating systems: Windows 10 64-bit & LTSC (version 21H2 and up) / Windows 11 up to 24H2 and 64-bit LTSC (version 24H2)
    System requirements2:
    Single available PCIe 4.0 (or newer) x8 slot
    Intel Core Processor from 10th Gen to 14th Gen,
    Intel Xeon W-35xx/25xx/34xx/24xx processor for workstations
    Resizable BAR (reBAR) or Smart Access Memory (SAM)

    1. Extended two-year warranty available
    2. Please refer to the Luma Pro system validation guide for more information

    LUMA-A380P

    Data sheet

    Video Output
    DisplayPort
    Max Output Resolution
    5K (5120 x 2880) 50/60 fps
    8K (7680 × 4320) 50/60 fps
    For Operating System
    Windows
    Output colour sampling
    RGB 4:4:4 12-bit
    YUV/YCbCe/YPbPr 4:4:4 12-bit
    Type
    Multi-Monitor Graphics Card
    Form Factor
    PCIe Card
    Video output channels
    4
    Cropping
    Yes
    HDCP Support
    Yes
    Multi-Unit Support
    Yes

    Specific References

    ean13
    790750261119
    mpn
    LUMA-A380P
