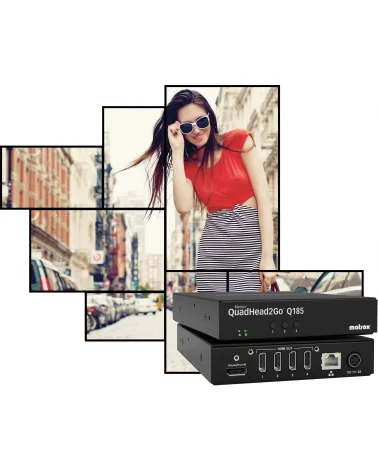

Matrox QuadHead2Go Q185 4K DP / HDMI Multi-Monitor Controller

Matrox QuadHead2Go Q185 4K DP / HDMI Multi-Monitor Controller

Name: Matrox QuadHead2Go Q185 4K DP / HDMI Multi-Monitor Controller
Brand: Matrox Video
SKU: Q2G-DP4K2
Price: 1299.00 EUR
Availability: InStock

MPN: Q2G-DP4K2

Price: €1,299.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Matrox QuadHead2Go Q185 is a system-independent video wall controller built for teams that need one reliable input split across four screens without asking a media player or GPU to do the heavy lifting. Feed it with DisplayPort 1.2 up to 3840×2160 at 60 Hz (also ultra-wide inputs such as 7680×1080) and it outputs four synchronized HDMI signals, letting an operator treat a 2×2 wall as one canvas while keeping each panel locked to frame.

In live production, broadcast graphics and streaming stages, Q185 becomes the “set-and-forget” layer between a render machine and the wall: bezel management keeps tickers and lower thirds continuous, while per-output rotation (90/180/270°), cropping and scaling help match portrait panels, LED processors or odd aspect ratios. Preset layouts (2×2, 4×1, 1×4, 3×1, 2×1, 1×2, 1×3) can be recalled fast, so a control room can jump from a quad monitoring grid to a long ribbon wall during a show. Clone mode and stretched-desktop behaviour make it practical with switcher multiviewers, replay servers and playout PCs.

Signal integrity stays predictable: the Q185 accepts RGB 8:8:8 and YUV 4:4:4/4:2:2 inputs, then outputs RGB 8:8:8 for clean text and sharp UI elements. It supports HDCP sources when protected content must be displayed, and it can pass embedded audio as AAC or PCM (stereo/mono) depending on the system.

Install time is where it earns its keep. On-device buttons and built-in test images let you validate cabling and panel order even before the source is connected. Over Gigabit Ethernet, the unit can be configured and updated remotely, using DHCP by default or static addressing in managed networks. The free Matrox PowerWall software adds offline configuration plus fine placement control, and integrators can request a REST API option for custom UIs and automation—useful for studios, monitoring, events and digital signage that must come up exactly the same way every time.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

QuadHead2Go Q185 Multi-Monitor Controller Appliance

Scalable. Flexible. Easy-to-deploy video walls.
Drive four displays from one signal. System-independent, the Matrox® QuadHead2Go™ Series multi-monitor controller is designed to power any video wall configuration of any possible dimension, from any video source—reliably delivering flawless image quality across expansive video wall displays. On-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience. TAA compliant SKU available.

Ready to deploy. Right out of the box.

Set up without installing software or even connecting a video source, by using the default configuration of 2x2 in landscape.
Reduce setup time by using QuadHead2Go’s pre-set configurations and built-in images.
Eliminate physical handling by controlling and updating the cards remotely from anywhere on the network (LAN).
Ensure compatibility with professional-grade graphics cards with Mini DisplayPort™ 1.2 support—no adapter required.
Create a video wall from any content source—professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.

Build your wall with the touch of a button
On-device buttons make it easy to select and set the display layout—simply cycle through pre-set configurations. Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.

Compact design fits anywhere
Fit three QuadHead2Go appliances horizontally or ten appliances vertically—in a standard 19-inch rack. Simply place the appliance on the desktop, workstation, or rack, and it’s ready to use. Need to mount your QuadHead2Go appliance to your monitor instead? Conveniently mount it to your display with the available VESA bracket.

Scale your video wall. Easily and infinitely.

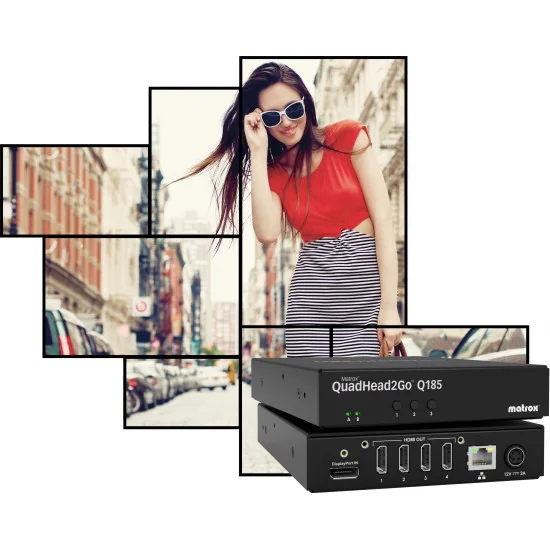

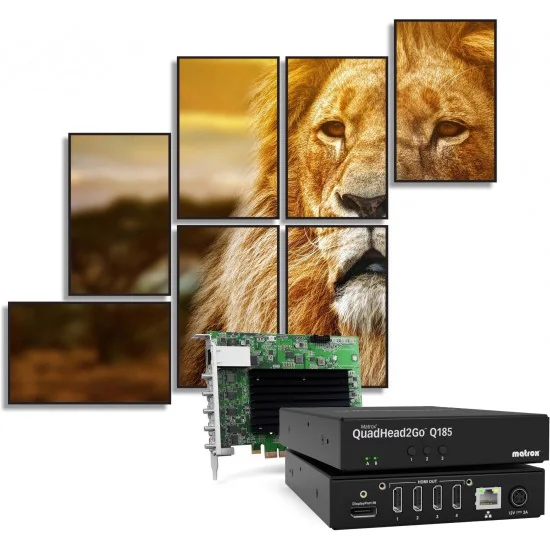

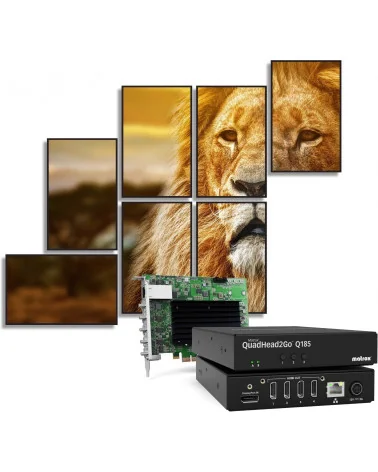

Rotate and position outputs independently from one another
Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.

Create or expand large-scale video wall solutions
Expand to a video wall configuration of any size by using multiple QuadHead2Go appliances. Fashion countless forms of setups—arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale video walls.

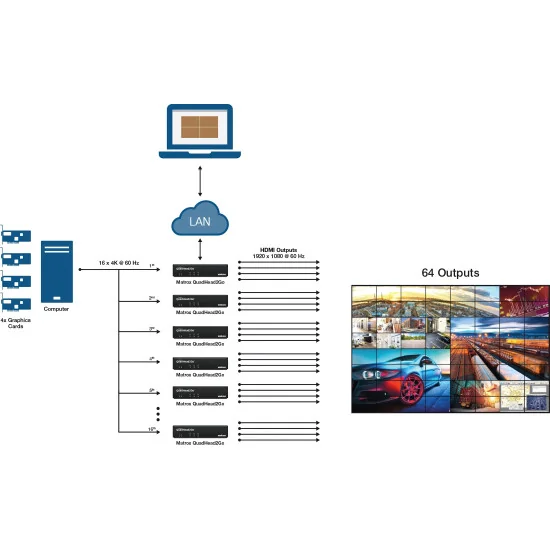

Proven video wall ecosystem

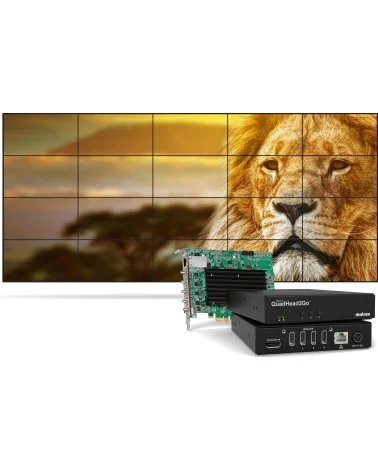

Drive up to 64 1920x1080p60 displays and create captivating video walls by pairing QuadHead2Go multi-monitor controllers with Matrox LUMA or Matrox D-Series graphics cards.

HDCP compliant
Capture and display HDCP-protected content with QuadHead2Go multi-monitor controllers.

Complete your setup
From cables and adapters to shelves and brackets, Matrox provides a range of hardware accessories that make connecting, installing, and securing your Matrox product quick and easy.

Always powered. Always on.
Safeguard against a potential loss of power. Matrox makes available rack-mounted, multi-output redundant power supply units (RPSU) to ensure uninterrupted operation of your Matrox device in case of a power module failure and a redundant power input in case a circuit breaker trips.

Designed to simplify large video wall installations
Install and use PowerWall software in offline mode to customize configurations of any type and size, and control the outputs independently—even before establishing an active connection to QuadHead2Go. Set the display layout by simply selecting any of the pre-set configurations from the PowerWall interface.

Build custom applications
For OEMs and system integrators seeking to customize applications ranging from single-function operation to thorough integration, the complimentary Matrox QuadHead2Go REST API is available upon request. Further customize the appearance of your Matrox product—with new company naming, images, logos, colors, buttons, and identity—for greater ease of use and complete white label branding of Matrox hardware and software.

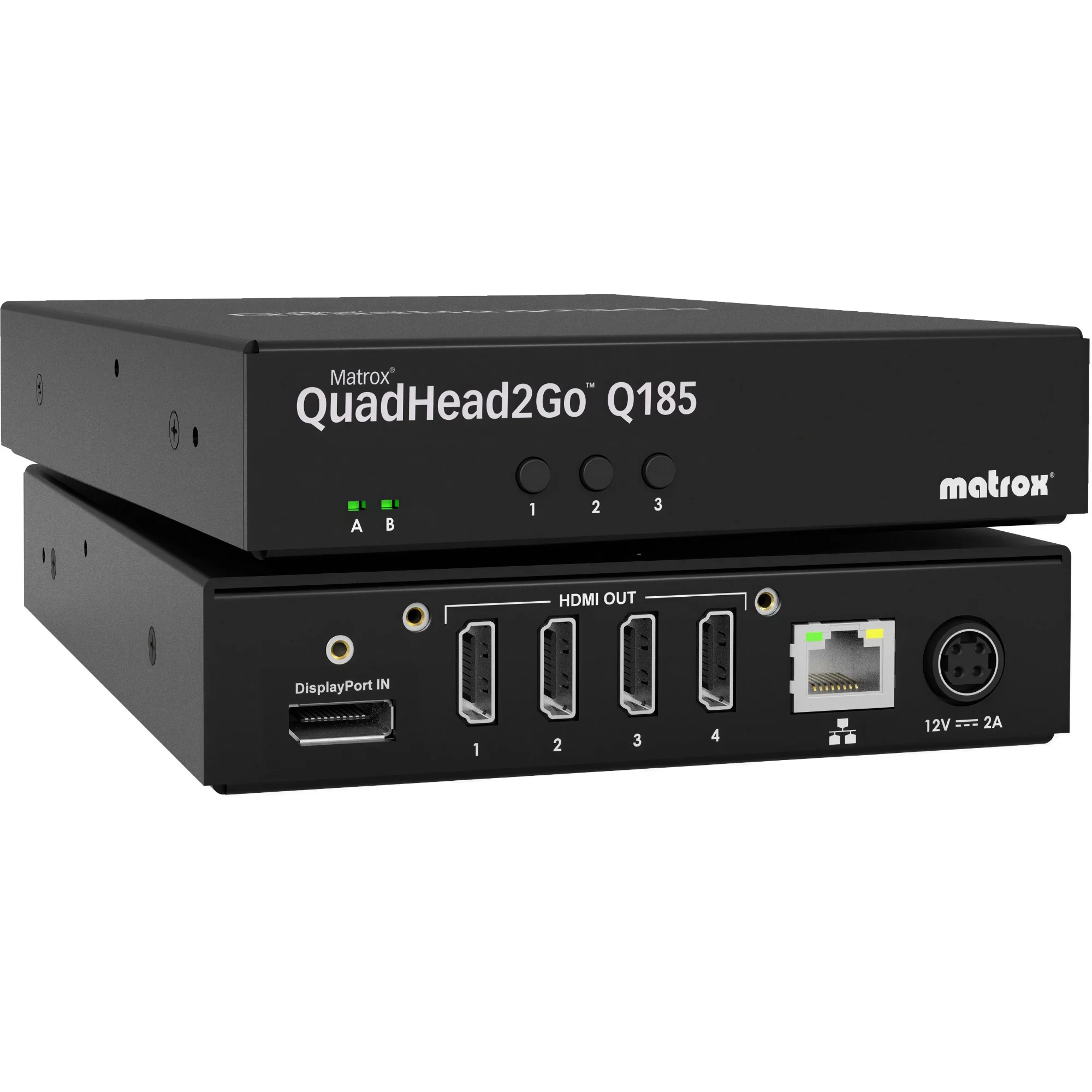

QuadHead2Go Q185 Appliance Technical Specifications

Product
Part Number: Q2G-DP4K
Form Factor: Standalone appliance

Connectivity
Video Input
Number of channels: 1
Formats: DisplayPort 1.2
Video Output
Number of channels: 4
Formats: HDMI
Network Connector: 1x RJ45
Multi-Unit Support: Yes

Performance
Maximum Video Resolutions: Support for custom resolutions; contact Matrox for details.
Memory: 1 GB

Video Input Resolutions
3840x2160 @60Hz
3840x2160 @30Hz
7680x1080 @60Hz
7680x1080 @30Hz
1920x4320 @60Hz
1920x4320 @30Hz
Other input resolutions including 8Kx8K are supported. Contact Matrox for more details.

Video Output Resolutions
1920x1080 @60Hz
1920x1080 @30Hz
1920x1200 @60Hz
1920x1200 @30Hz
Other output resolutions are supported. Contact Matrox for more details.

Color Space and Chroma Sub-Sampling
Input: RGB: 8:8:8 (24 bits per pixel), YUV: 4:4:4, 4:2:2 (8 bits per component)
Output: RGB: 8:8:8 (24 bits per pixel)

Video and Audio Processing
Supported Configurations: 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait modes and other non-rectangular/artistic configurations
Non-Rectangular/Artistic Video Walls: Yes
Clone Mode: Yes
Rotation (output): Yes. Support for 90, 180, 270 degrees
Bezel Management: Yes
Video Scaling: Yes
Video Cropping: Yes
Stretched Desktop Support: Yes
HDCP Support: Yes
Audio Output Format: AAC, PCM, Stereo, and Mono
Audio Sampling Frequency: 44.1 KHz and 48 KHz 16-bit stereo

Network
IP Addressing: IPv4, IPv6*, DHCP (default) and static IP
*IP version 6 support coming soon. Please view Release Notes for latest updates or contact Matrox for more details

Physical
Product Dimensions: 5.50 (W) x 1.25 (H) x 7.13 (D) inches, 13.97 (W) x 3.18 (H) x 18.11 (D) cm
Unit Weight: 1.089 lbs / 494 g
Cooling: Fanless
Power Supply Unit: 100-240 V a.c. in, 12 V d.c. out, 42 W, DIN4 locking power connector

Hardware & Software
Hardware Included: 4 x 6 feet power cables for US, EU, UK, Aus/Nz, 1x 12 V, 3.5 A, 42 W external power supply with DIN 4 connector

Accessories (sold separately)
Secure Cable Solution (SK-Q2G-A)
VESA bracket (RMK-6BRKT-A)
Rack Mount Kit (RMK-19TR-A)

Software
Matrox PowerWall (free download)
See Matrox PowerWall datasheet for more details.

Environmental
Operating Conditions: Temperature: 0 to 45 degrees Celsius, Humidity: 20% to 80% non-condensing
Storage Conditions: Temperature: -40 to 70 degrees Celsius, Humidity: 5% to 95% non-condensing
Power Consumption: 15W

General
EMC/EMI Device Class: Class A
EMC/EMI Compliance: CE (EU), FCC (US), ICES-3 (Canada), KC (Korea)
Environmental Compliance: China RoHS, EU RoHS, REACH
Warranty: Three-year limited warranty with free telephone support
