PTZOptics Studio SE 12x Zoom Box Camera White
€899.00
The PTZOptics Studio SE 12x White is a stationary box camera built around a 1/2.8-inch CMOS sensor with 8.4 million effective pixels. Its...
The PTZOptics Studio SE 20x is a stationary box camera built around a 1/2.8-inch CMOS sensor with 8.4 million effective pixels, delivering 1080p at up to 60 fps. Its 20x optical zoom lens covers a focal range of 4.7 mm to 94 mm (F1.6–F3.6), producing a horizontal field of view from 60.7° down to 3.5° — wide enough to frame an entire conference table, yet tight enough for clean head-and-shoulder shots across a large venue. A 16x digital zoom supplements the optics when extra reach is needed.
Four simultaneous outputs set this camera apart from typical fixed-lens units. A 3G-SDI port (BNC, 75 Ω, SMPTE 424M) feeds broadcast switchers directly, while HDMI 2.0 handles monitors and recorders. USB 3.0 Type-C turns the Studio SE into a plug-and-play capture device for software encoders and videoconferencing platforms. On the network side, a Gigabit Ethernet port carries native NDI HX3 alongside RTSP, RTMP/RTMPS, SRT, and ONVIF — a single Cat cable can replace an SDI run across a studio floor. H.264, H.265 HEVC, MJPEG, and YUY2 compression keep bandwidth manageable regardless of transport.
Low-light sensitivity reaches 0.5 lux (F1.8, AGC on), so the camera holds a usable image under dim stage wash or courtroom overhead lighting. Shutter speeds span 1/30 s to 1/10 000 s, and 255 stored presets let operators recall exact framing instantly. A built-in microphone handles ambient audio, while 3.5 mm line-level input and output jacks tie into external mixers. The front-facing tally light gives talent a clear programme indicator.
Through Hive-Linked connectivity the PTZOptics Studio SE 20x pairs with Hive Studio for cloud-based management from any browser. It also responds to IR remote, web UI, VISCA-over-IP, and the PTZOptics control app. Power runs from 12 V DC or PoE (802.3at) at 18 W max — well suited for ceiling mounts in houses of worship, lecture halls, broadcast control rooms, or municipal buildings. NDAA-compliant components make it eligible for government installations.

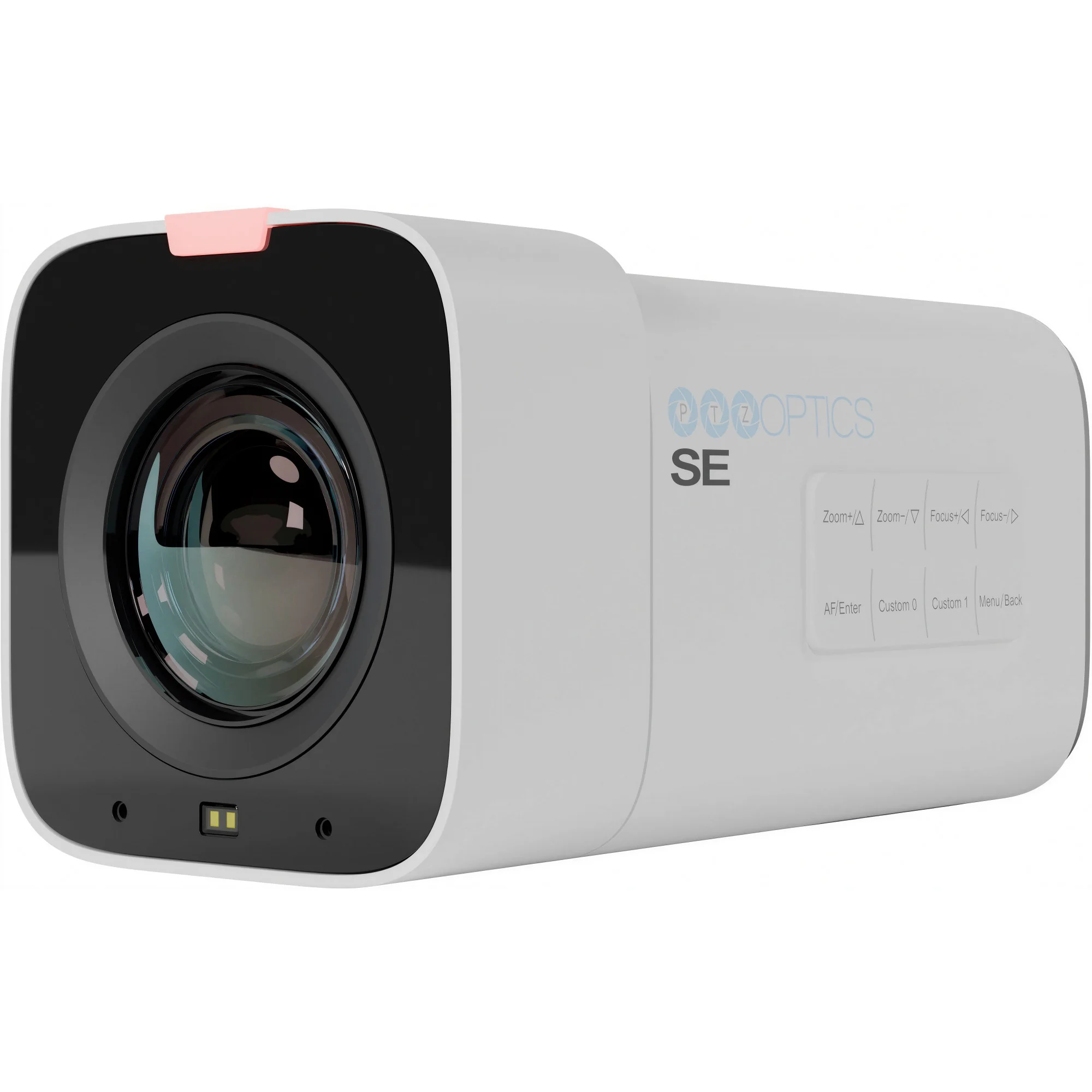

PTZOptics Studio SE 20x Zoom Box Camera White
PT20X-STUDIO-SE-WH-G3
Price: €1,039.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
The PTZOptics Studio SE 20x is a stationary box camera built around a 1/2.8-inch CMOS sensor with 8.4 million effective pixels, delivering 1080p at up to 60 fps. Its 20x optical zoom lens covers a focal range of 4.7 mm to 94 mm (F1.6–F3.6), producing a horizontal field of view from 60.7° down to 3.5° — wide enough to frame an entire conference table, yet tight enough for clean head-and-shoulder shots across a large venue. A 16x digital zoom supplements the optics when extra reach is needed.
Four simultaneous outputs set this camera apart from typical fixed-lens units. A 3G-SDI port (BNC, 75 Ω, SMPTE 424M) feeds broadcast switchers directly, while HDMI 2.0 handles monitors and recorders. USB 3.0 Type-C turns the Studio SE into a plug-and-play capture device for software encoders and videoconferencing platforms. On the network side, a Gigabit Ethernet port carries native NDI HX3 alongside RTSP, RTMP/RTMPS, SRT, and ONVIF — a single Cat cable can replace an SDI run across a studio floor. H.264, H.265 HEVC, MJPEG, and YUY2 compression keep bandwidth manageable regardless of transport.
Low-light sensitivity reaches 0.5 lux (F1.8, AGC on), so the camera holds a usable image under dim stage wash or courtroom overhead lighting. Shutter speeds span 1/30 s to 1/10 000 s, and 255 stored presets let operators recall exact framing instantly. A built-in microphone handles ambient audio, while 3.5 mm line-level input and output jacks tie into external mixers. The front-facing tally light gives talent a clear programme indicator.
Through Hive-Linked connectivity the PTZOptics Studio SE 20x pairs with Hive Studio for cloud-based management from any browser. It also responds to IR remote, web UI, VISCA-over-IP, and the PTZOptics control app. Power runs from 12 V DC or PoE (802.3at) at 18 W max — well suited for ceiling mounts in houses of worship, lecture halls, broadcast control rooms, or municipal buildings. NDAA-compliant components make it eligible for government installations.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
PTZOptics Studio SE 20x Technical Specifications:
Camera & Lens
Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
Resolution and Frame Rate:
HDMI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50/30/29.97
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1280x720p-60/59.94/50/30/29.97
Optical Lens Focal Length (Zoom): f = 4.7mm ~ 94mm, F1.6 ~ F3.6
Optical Lens Field of View, Horizontal & Vertical: H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Display Field of View: 67.8°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Presets: 255 Presets
Presets Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported
Physical Specifications
Material: Aluminum, Plastic
Color: Gray or White
Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight: 0.64kg
Working Environment: Indoor
Humidity Range: 10% ~ 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)

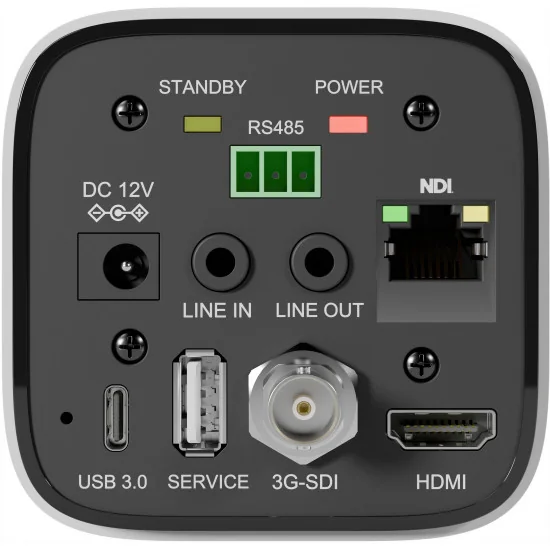

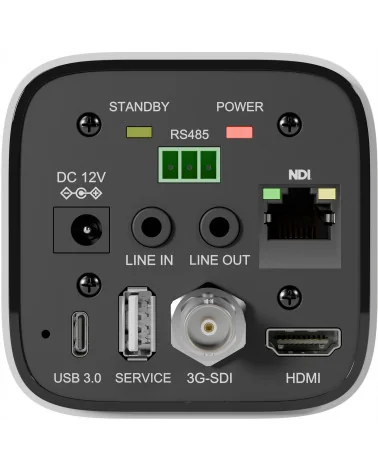

Connections
HD Video Output:
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface: 1x 3.5mm Line level input, 1x 3.5mm Line level output
Video Formats:
USB:
YUY2: Max resolution 1920x1080p @ 30fps
MJPEG: Max resolution 1920x1080p @ 30fps
H.264 AVC & SVC: Max resolution 1920x1080p @ 30fps
RTSP/NDI® HX3 only: H.265: Max resolution 1920x1080p @ 30fps
Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
UVC Version Supported: UVC 1.1
Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 2A
Power Consumption: Max 18W
PT20X-STUDIO-SE-WH-G3
1 Item
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Built-in microphone
Mini Jack 3.5mm - Audio Output
- HDMI Embedded
Mini Jack 3.5mm
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 1080p 50/60 fps
- Streaming protocols
- Multicast
NDI®|HX 3
ONVIF
RTMP
RTSP
SRT - Network Connection
- Ethernet
- USB video capture
- Yes
- Sensor Size
- 1/2.8"
- Optical Zoom
- 20x
- Interchangeable lens
- No
- Lens mount
- Integrated lens
Specific References
- ean13
- 840170500982
- mpn
- PT20X-STUDIO-SE-WH-G3
