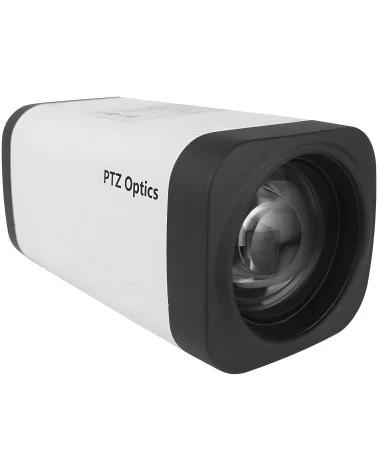

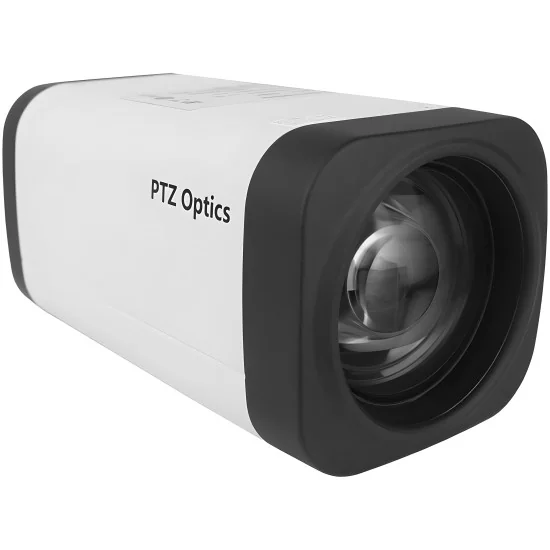

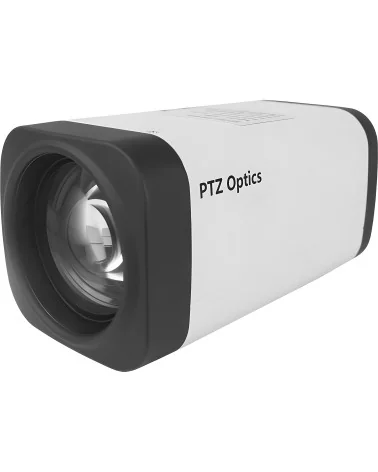

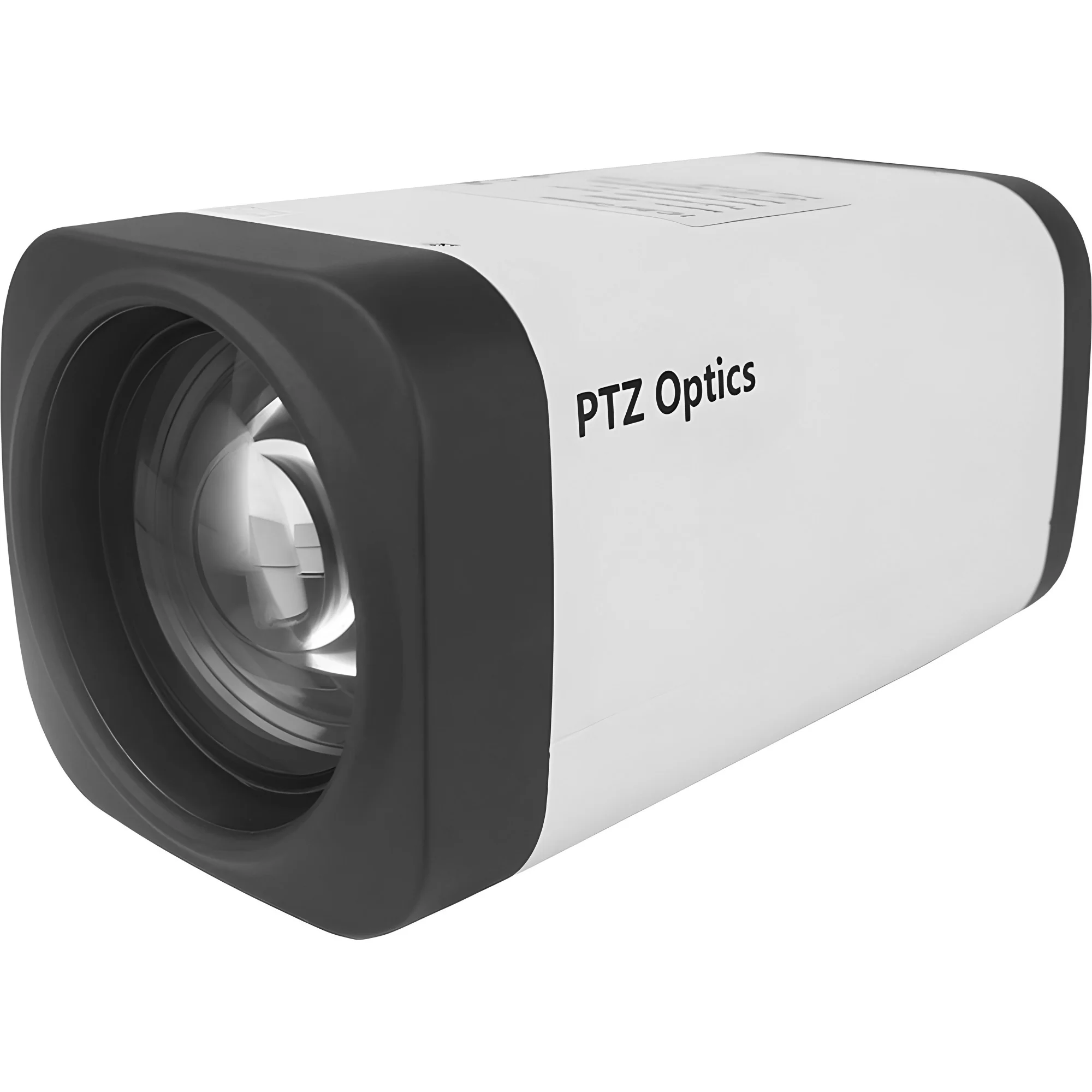

PTZOptics ZCam ZCAM-12X Box Camera 12x Zoom

PTZOptics ZCam ZCAM-12X Box Camera 12x Zoom

Name: PTZOptics ZCam ZCAM-12X Box Camera 12x Zoom
Brand: PTZOptics
SKU: PT12X-ZCAM-C
Price: 585.00 EUR
Availability: InStock

MPN: PT12X-ZCAM-C

Price: €585.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

PTZOptics ZCam ZCAM-12X (PT12X-ZCAM) is a compact Full HD POV box camera for multi-camera production, lecture capture and fixed installs. A 2.07 MP 1/2.7" CMOS and a 12x optical zoom (3.5–42.3 mm, f/1.8–2.8) deliver 1080p60 over 3G-SDI, while IP streaming provides H.264/H.265/MJPEG dual streams up to 1080p30 for RTSP/RTMP workflows. Horizontal angle of view spans 72.5° to 6.9° (vertical 44.8° to 3.9°), covering wide classroom shots through tight stage crops without swapping lenses.

Engineers get broadcast-ready signals and deterministic sync via 3G-SDI, plus low-bandwidth remote contribution over gigabit Ethernet with PoE (802.3af Class 3). The camera encodes AAC audio over IP, supports 2D/3D noise reduction, Wide Dynamic Range and ≥55 dB SNR for clean pictures in mixed lighting. Minimum illumination is 0.5 lux at f/1.8 (AGC on), maintaining color fidelity in auditoriums and houses of worship. An on-body OSD and rear menu keys enable fast exposure, color matrix and gamma adjustments without a controller.

Control options include IP (web UI/HTTP), RS-485 with VISCA and Pelco-D/P at 2400/4800/9600 bps, and tally via production switchers. Dual streaming lets you deliver a high-bitrate program and a concurrent proxy for monitoring or recording. For NDI|HX ecosystems, a licensed activation is available on ZCam variants, enabling discovery and routing inside NDI-based switchers*.

Installation is straightforward: power by PoE or 12 VDC, then route SDI to your switcher and IP to your network. The metal chassis measures 79 × 74 × 145 mm and weighs 0.63 kg, with a bottom 1/4-20 mount for cages or ceiling plates. Typical uses include broadcast flypacks, corporate auditoriums, training rooms, esports POVs and remote interview angles where a small, locked-off camera must match PTZ and studio chains. Outputs: 3G-SDI, RJ45 IP; H.264/H.265; RTSP/RTMP; PoE for single-cable installs.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The PTZOptics ZCAM-12X is a 1080p box camera with 12X optical zoom for capturing HD video even at a distance. With support for 3G-SDI & IP streaming, this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications up to 1080p/60 resolution.

What is a ZCam?
ZCams are “box” cameras meant for static, point-of-view shots and specialized applications, such as surveillance and monitoring. Designed to capture specific areas, these sturdy cameras, combined with our traditional PTZ cameras, provide more angle options for video production.

Designed for many uses, the PTZOptics ZCam is compact and easy to set up and integrate into a variety of production workflows.

Mount and stream your ZCam in just 10 minutes! Capture unique viewing angles and deploy cameras up to 300 feet away with standard Ethernet cabling.

Each compact ZCam includes an option for NDI® integration for seamless integration into video production software on a network, such as vMix, Wirecast, xSplit, MimoLive, OBS, Livestream Studio, and more. When connected to high-quality 3GSDI video switchers, PTZOptics ZCams can be used with a wide variety of hard video switchers from brands such as Blackmagic Design, Roland, and NewTek. ZCams can be remotely controlled with fine-tuned settings for camera exposure, white balance, noise reduction, and more.

KEY FEATURES
• Panasonic 1/2.7” HD CMOS Sensor
• 3G-SDI High Definition Video Output
• H.264, H.265 & MJPEG IP streaming output (dual stream)
• AAC stereo unbalanced Audio Encoding over IP
• High performance in low light scenarios
• Full 1920x1080p HD Resolutions up to 60 frames per second via SDI
• 2D & 3D noise reduction with our latest “low noise CMOS sensor”
• Wide Dynamic Range
• Menu controls on back of camera
• RS485 and IP remote camera control
• 72.5° Field of View
• Std 1/4-20 female thread for camera mounting (bottom)
• PoE (Power over Ethernet)
• Hold left button on Menu Navigation for 5+ seconds to toggle
• Dynamic or Static IP addressing
• 5-year warranty
• Photobooth capable

WHAT’S IN THE BOX
12X ZCAM Camera
Power Adapter
PoE Splitter*
Quick Start Guide
*PoE Splitter is included with serial numbers yg02250001 and beyond.

Camera & Lens
Video CMOS Sensor 1/2.7” CMOS, 2.07 Mega Pixels
Frame Rate 1080p-60/50/30/25, 1080i-60/50, 720p-60/50 (IP Stream limited to 30 fps)
Focal Length F=3.5mm ~ 42.3mm, F1.8-F2.8
Lens Zoom 12X
Mix Lux 0.05 Lux (@F1.8, AGC ON)
Shutter Speed 1/30s – 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 6.9° (tele) – 72.5° (wide)
Vertical Angle of View 3.9° (tele) – 44.8° (wide)
Electrical Index
Power Supply 12W–1A
Input Voltage 12V DC (10.8 – 13.0V DC) PoE Class 3 - 802.3af

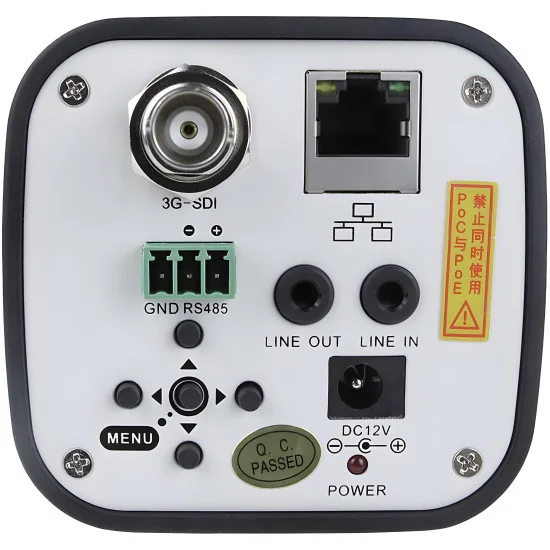

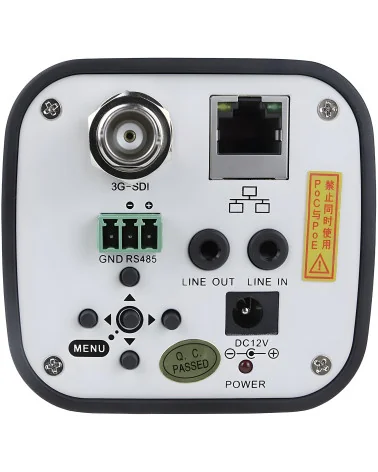

Rear Board Connectors
Video Output Interface 3G-SDI, RJ45 IP Network
Communication Interface RS485 VISCA, Pelco-D, Pelco-P
Baud Rate 2400/4800/9600 bits
Power Supply Interface JEITA type Power Adapter (DC IN 12V) / PoE 802.3af
Physical Specifications
Dimensions (mm.) 78W x 73H x 143D
Camera Weight 1.4 lbs. | 0.63 kg
Box Dimensions (mm.) 254W x 127H x 127D
Box Weight 2.0 lbs. | 0.90 kg
