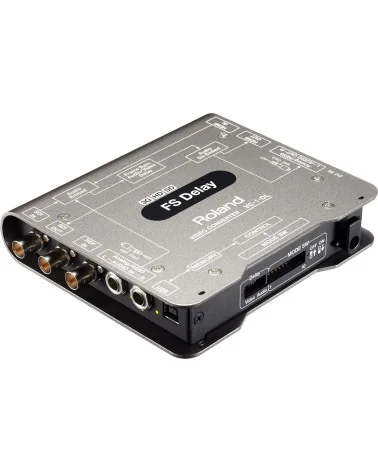

Roland VC-1-DL Video Converter

Name: Roland VC-1-DL Video Converter
Brand: Roland Pro AV
SKU: VC-1-DL
Price: 799.00 EUR
Availability: InStock

MPN: VC-1-DL

Price: €799.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

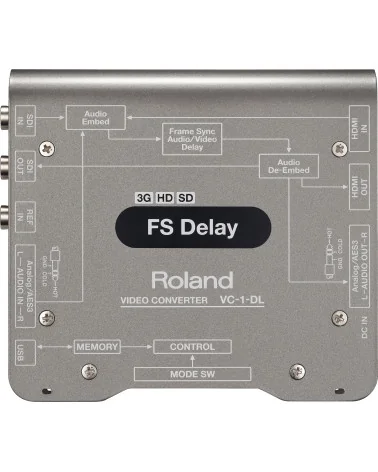

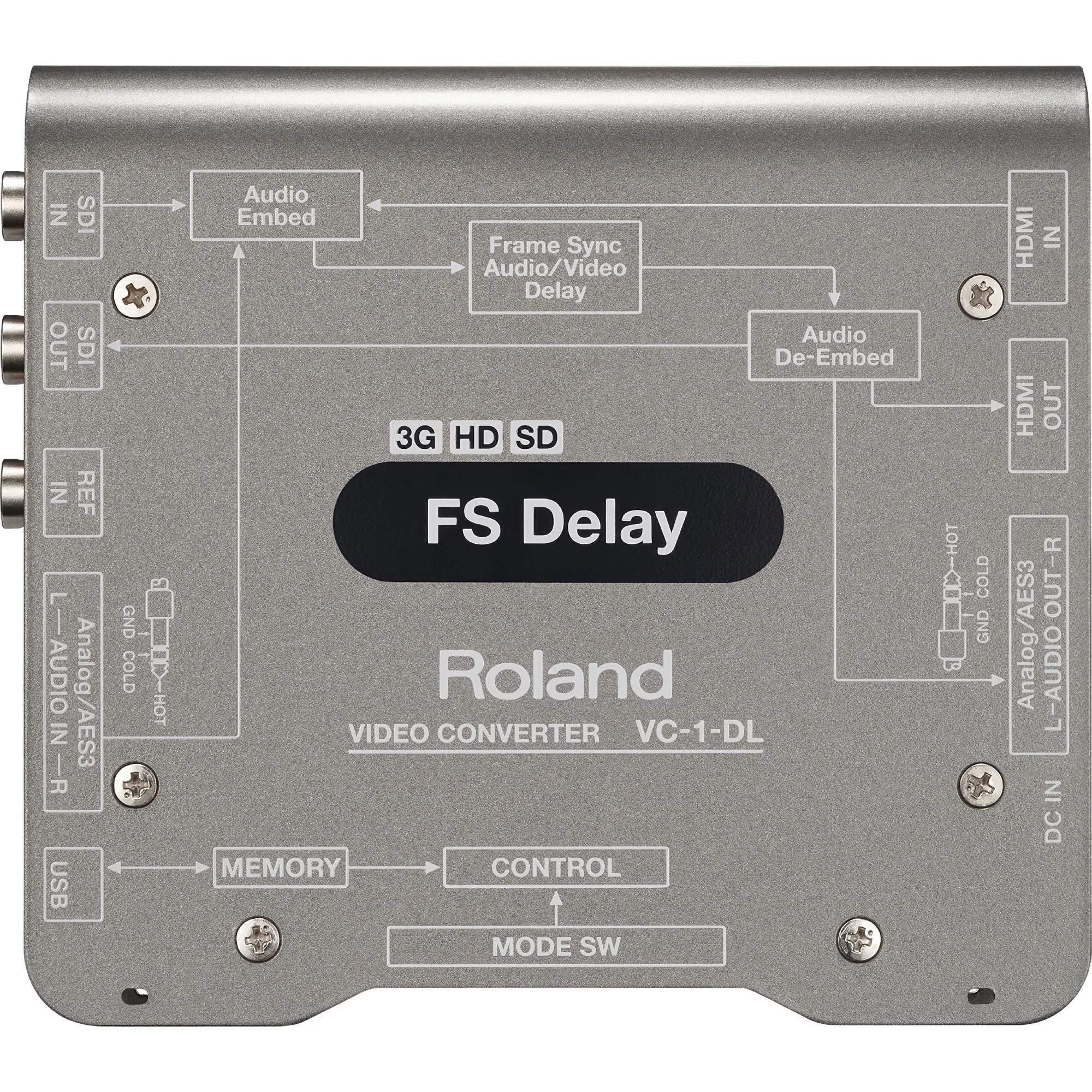

Roland VC-1-DL is a bi-directional SDI/HDMI converter that adds precise frame sync and independent audio/video delay to any signal path. It accepts and outputs 3G/HD/SD-SDI (Level A or B) and HDMI while maintaining 4:2:2 video integrity with no interlace artifacts. Delay ranges from 0 to 9 fields (up to 4.5 frames) for picture and for sound separately, allowing tight latency management across switchers, processors and encoders.

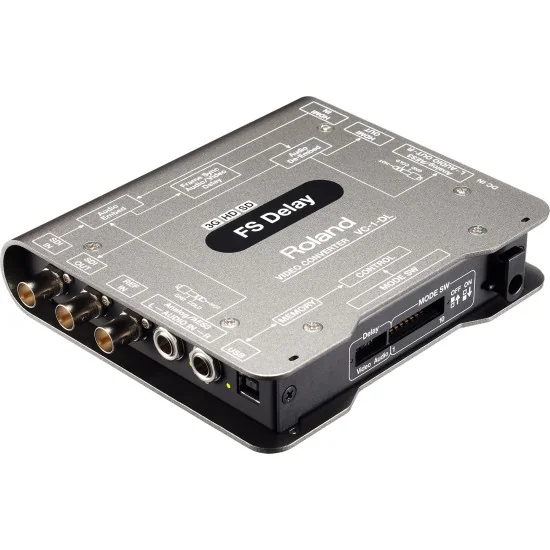

I/O is comprehensive: SDI In/Outs, HDMI In/Out, and balanced analog audio I/O on 1/4-inch (6.35 mm) TRS plus AES3 24-bit/48 kHz. Selectable audio embedding/de-embedding routes analog or AES to HDMI/SDI outputs on channels 1/2, 3/4, 5/6 or 7/8, or extracts embedded audio to analog/AES outputs. A dedicated REF IN accepts black burst and bi-/tri-level sync; with reference applied, the VC-1-DL also operates as a frame synchronizer for unstable or asynchronous sources.

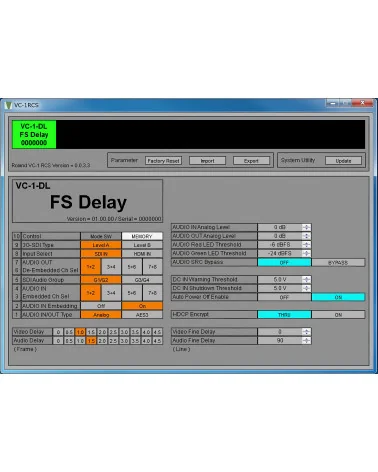

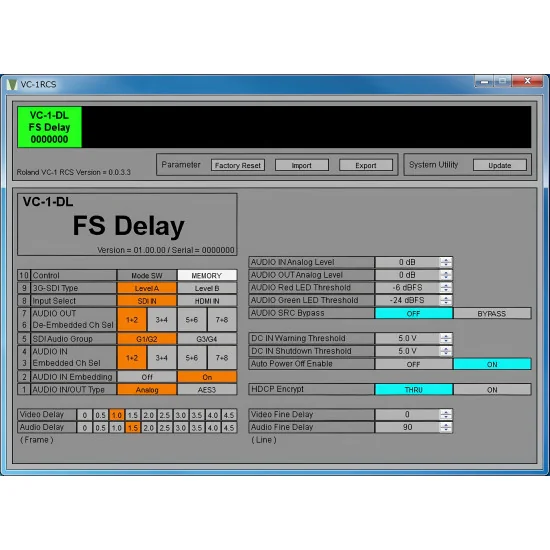

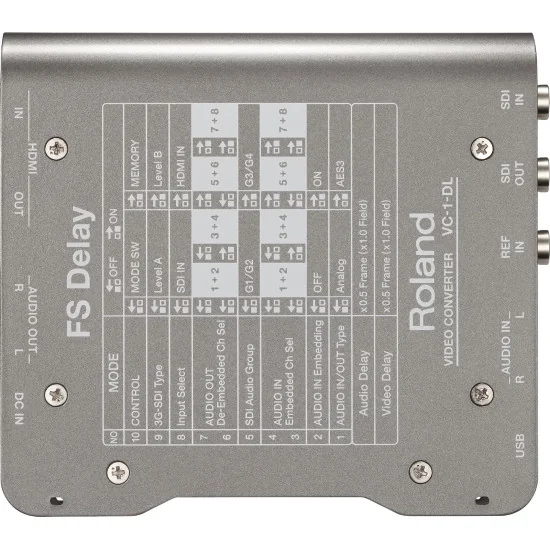

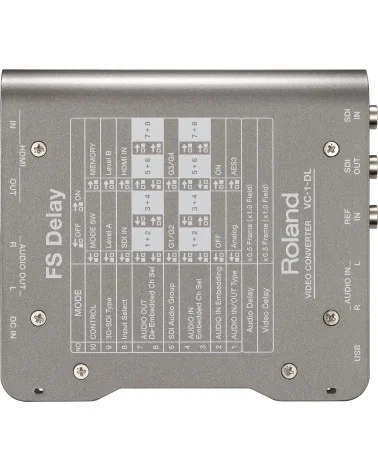

Standards handling is exhaustive. The unit is HDCP-compliant; when protected content is detected on HDMI input, output continues on HDMI while SDI and audio outputs mute as required. A front-panel mode switch selects 3G-SDI Level A/B, while status LEDs report SD/HD/3G on SDI and RGB/YCC sampling on HDMI. For setup, connect via USB and run the VC-1 RCS software to store presets, map audio groups (1/2 vs 3/4), and adjust delay with sub-field accuracy.

Use the Roland VC-1-DL to align multi-camera rigs feeding mixed SDI/HDMI routers; match projector pipelines to LED walls; delay program audio for PA to keep lips and speakers in phase; embed intercom/program stems into SDI for contribution; or bridge studio SDI infrastructure to HDMI monitors and recorders. In live production, broadcast and streaming, it delivers deterministic timing, clean conversion, and reliable synchronization in one compact unit.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Roland VC-1-DL
In live production as you add more video components to a signal flow, latency is introduced. The VC-1-DL converter not only allows bidirectional conversion of SDI/HDMI but it also provides frame sync and delay adjustment of up to 9 fields (4.5 frames) for audio and video independently. This is helpful when keeping various types of cameras in sync as well as ensuring a projector stays in sync with an LED wall. In this way it is an indispensable tool live production, broadcast and recording applications.

HDMI to SDI Conversion
SDI to HDMI Conversion
Lossless Image Conversion
3G (Level A&B) /HD/ SD SDI
HDCP Support
Built-in Frame Synchronizer
Audio Delay - up to 9 fields (4.5 frames)
Video Delay - up to 9 fields (4.5 frames)
VC-1 RCS, PC/MAC Control Application
Selectable Channel for Embedded/De-Embedded Audio

Specs

INPUT
SDI Connector: BNC type x 1
HDMI Connector: Type A (19 pins) x 1
Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Reference Connector: BNC type x 1
Reference Signal Format: Black Burst, Bi-level, Tri-level
Reference Impedance: 75 ohms

PROCESSING
Video delay ( 0 to 4.5 frames ) Audio delay ( 0 to 4.5 frames ) Audio embedding Audio de-embedding

OUTPUT
SDI Connector: BNC type x 1
HDMI Connector: Type A (19 pins ) x 1
Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair ( L/R)
Digital Audio Connector: 1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector )

INPUT / OUTPUT FORMAT
SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Forma: t1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1
SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)
HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1

AUDIO INPUT / OUTPUT
Analog Audio Input Level: +4dBu
Analog Audio Maximum Input Level: +24dBu
Analog Audio Input Impedance: 110 ohms
Analog Audio Output Level: +4dBu
Analog Audio Output Impedance: 600 ohms
Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance: 110 ohms

OTHERS
USB Connector: USB Type B (Hi-Speed USB) x 1
Power Supply: DC 9V
Power Consumption: 8W
Operation Temperature: +0 to + 40 degrees Celsius
Accessories: AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual

SIZE AND WEIGHT
Width: 150 mm
Depth: 130 mm
Height: 30 mm
Weight: 500 g
