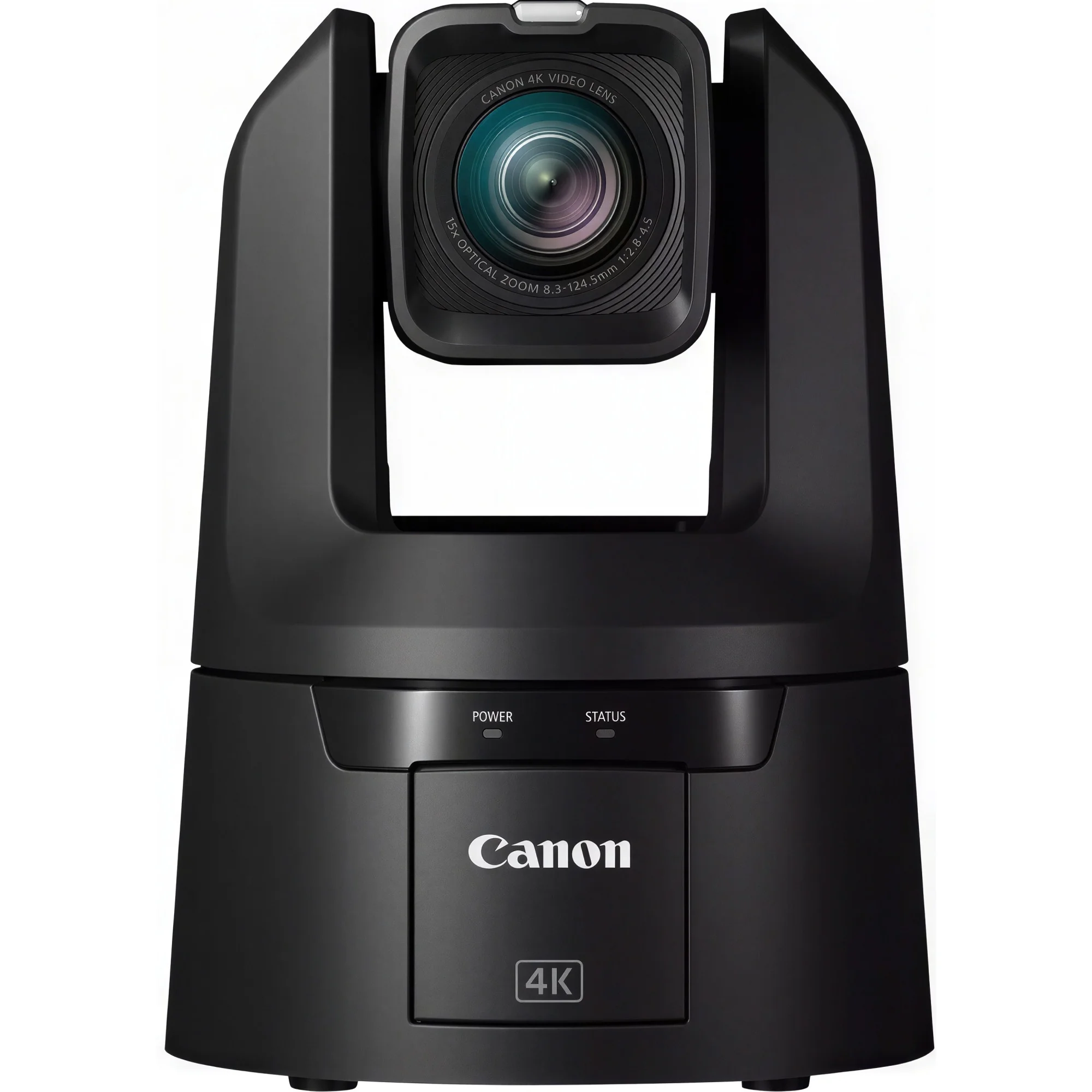

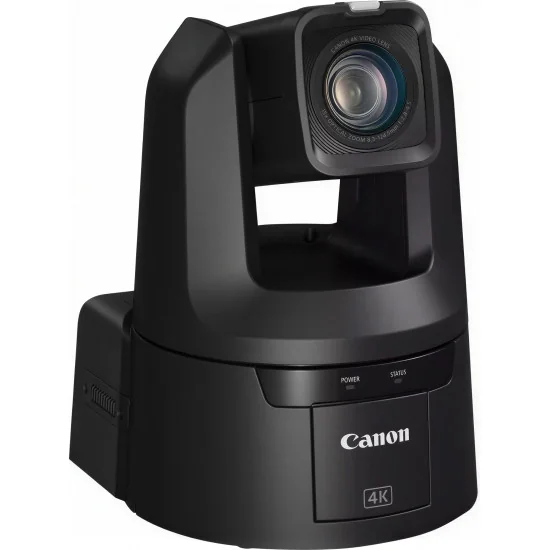

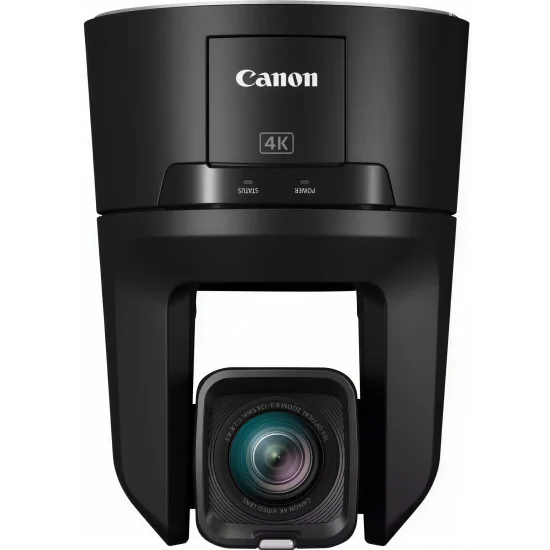

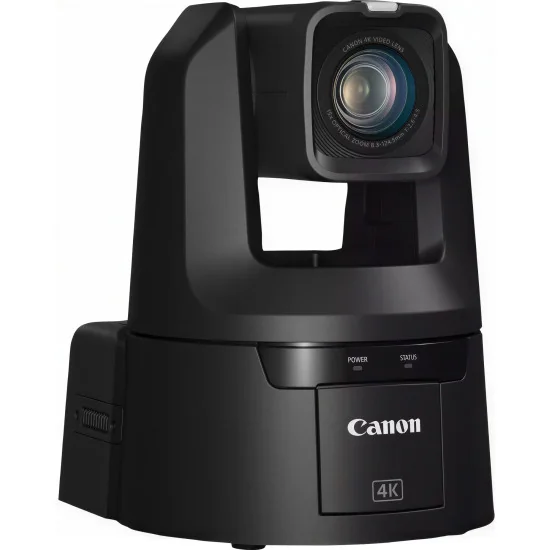

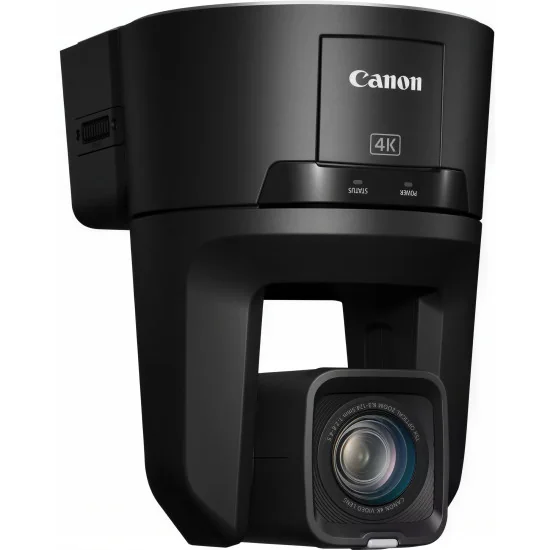

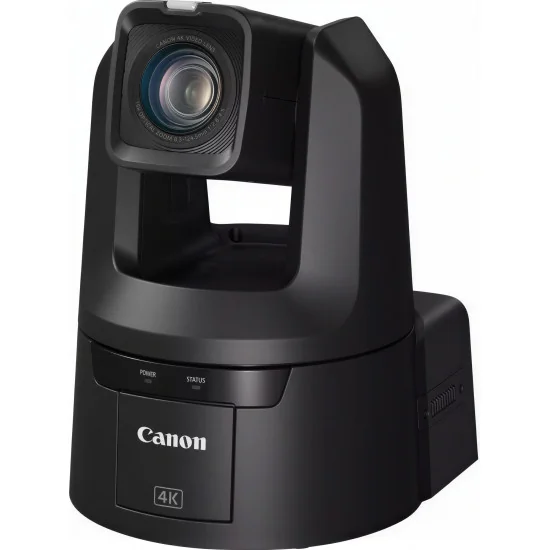

Canon CR-N500 Black Auto Tracking PTZ Camera

Canon CR-N500 Black Auto Tracking PTZ Camera

Name: Canon CR-N500 Black Auto Tracking PTZ Camera
Brand: Canon
SKU: CR-N500 BK auto-tracking
Price: 5299.00 EUR
Availability: InStock

MPN: CR-N500 BK auto-tracking

Price: €5,299.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

What sets the Canon CR-N500 Black Auto Tracking apart from the standard CR-N500 is one critical addition: a pre-installed full license for Canon's RA-AT001 Auto Tracking Application. Where the free Lite version limits you to auto-select with fixed sensitivity, this bundle unlocks manual subject selection, ten levels of tracking sensitivity, configurable target positioning anywhere in the frame, and up to five storable tracking profiles — features that matter the moment a production runs without a dedicated camera operator. Auto Framing modes such as Multi-Person Framing, Face Direction Framing, and Sit/Stand Framing handle composition automatically during conferences, lecture captures, or live panel broadcasts.

Underneath the tracking software sits broadcast-calibre hardware: a 1.0-type CMOS sensor with roughly 8.29 million effective pixels, paired with the DIGIC DV6 processor for native 4K UHD 30p and Full HD 60p output. The 15x optical zoom lens (f/2.8–4.5, 35mm equivalent 25.5–382.5 mm) opens to a 73° horizontal angle of view, and a built-in motorised ND filter across three densities allows precise depth-of-field control on set. Dual Pixel CMOS autofocus tracks faces reliably, while Canon Log 3 and Wide Dynamic Range gamma deliver 13 stops of latitude for post-production colour grading or direct-to-air use. Canon's colour science matches that of the Cinema EOS line, so mixing the CR-N500 with C300- or C70-series cameras in a multi-camera shoot requires minimal colour correction. The satin black finish blends discreetly into studio sets and stage rigs.

Connectivity covers 3G-SDI, full-size HDMI at 4K 4:2:2 10-bit, and IP streaming via NDI|HX2, SRT, RTSP/RTP, and RTMP/RTMPS — three simultaneous output paths from one camera. A single PoE+ Ethernet cable handles power, video, audio, tally, and control, keeping cable runs minimal during installations. Two balanced XLR inputs with 48V phantom power, a genlock BNC input for multi-camera sync, RS-422 serial, and Wi-Fi round out the interface panel. Canon's XC protocol ensures compatibility with the RC-IP100 and RC-IP1000 controllers — the latter managing up to 200 units across large-scale AV deployments.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Powerful 4K imagery
The 1.0-type CMOS Sensor and DIGIC DV6 processor work in unison to deliver exceptional 4K UHD/30p image quality as well as upscaled Full HD/60p images thanks to over sampled HD processing.

Smooth and precise control
The CR-N500 is equipped with a high-precision drive mechanism enabling fine adjustments of the Pan and Tilt movement and speed ensuring the perfect shot. Compatible with the RC-IP1000, the RC-SK5, the RC-IP100 controller and Remote Camera Control Application controllers, the CR-N500 is also compatible with selected third-party controllers.

Stabilised 15x Optical Zoom to get closer
Canon’s advanced 4K optics make sure greater detail is captured, and flexibility assured, with a 15x optical zoom (25.5-382.5mm 35mm equivalent), providing a wide angle to telephoto field of view. Canon’s advanced four-axis image stabilisation ensures high quality image capture.

IP Streaming and Control to transform your production
A comprehensive range of IP control and streaming protocols up to 4K UHD 30p (such as NDI|HX, RTMP, RTP/RTSP, RTMPS, SRT, FreeD and Canon’s XC Protocol) are included, making the CR-N500 an ideal solution for new or existing systems.

Excellent imagery in low light
The CR-N500 produces high quality imagery with low noise, even with a minimum illumination of 1.5 lux. The large 1.0-type CMOS sensor and the DIGIC DV6 processor ensure the image quality retains its integrity even in the most challenging of lighting conditions.

Dual Pixel CMOS AF keeps it sharp
The CR-N500 features Canon’s renowned Dual Pixel CMOS Auto Focus system which provides extremely quick and accurate focus via multiple modes.

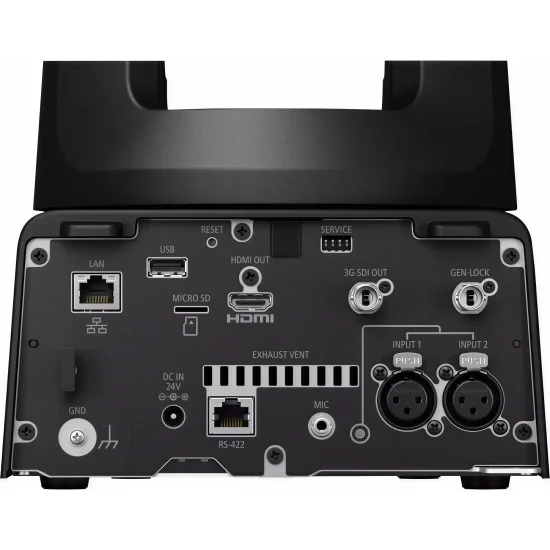

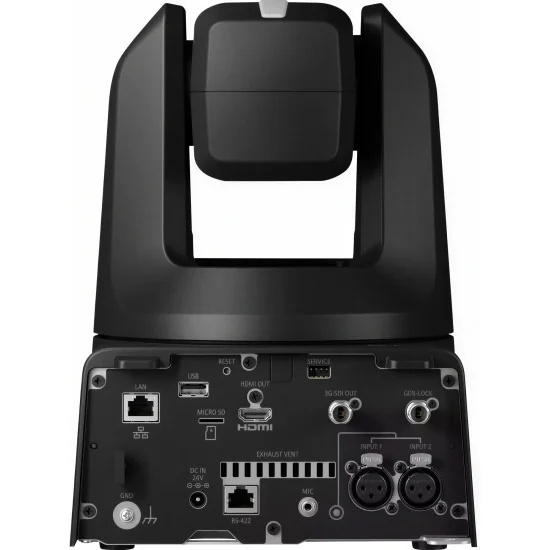

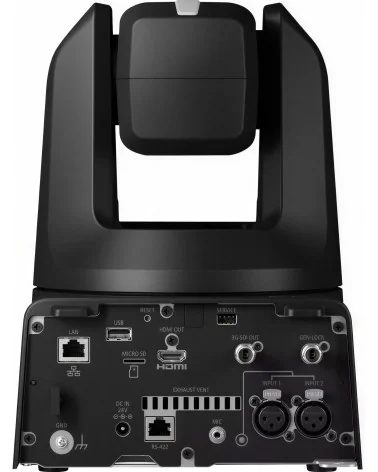

Extensive Connectors for ease of use
The CR-N500 features a host of connections to ensure the ultimate flexibility, including a 3G-SDI video output, full-sized HDMI port (supporting 4K UHD 30p at 4:2:2 10-bit), professional XLR audio inputs, as well as a PoE+ LAN port to allow for easy system integration.

HDR Imagery, with versatile image quality adjustments
Achieve stunning HDR imagery with Canon Log 3 and Wide Dynamic Range Support. Both technologies ensure the best HDR imagery can be achieved for applications where postproduction or a quick turnaround is required. The in-built image adjustment settings also ensure flexible and bespoke imagery to colour match with other cameras.

Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.

*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.

Feature	Auto Tracking Application (Lite)	Auto Tracking Application
Tracking subject	Auto-select only	Auto-/manual select possible
Tracking sensitivity	Fixed	Adjustable from 1 to 10 levels
Tracking subject display size	Can be set at two levels	Can be set at five levels
Tracking target display position	Fixed at center	Can be set to any area
Auto Framing	—	Multi-Person Framing, Face Direction Framing, Sit/Stand Framing
Priority display area	—	Can be set
Fixed angle of view	—	Can be set
Save tracking settings	One only	Up to five can be saved/recalled

Specifications

Camera
Image Sensor	Type 1.0 (1.0 in.) single-plate CMOS sensor
Effective Pixels	approx. 8.29 megapixels (3840 x 2160)
Lens	f=8.3 – 124.5 mm, F/2.8 – 4.5, 15x optical zoom, 9-bladed iris diaphragm
Optical Zoom	15x optical zoom
Digital Zoom	20x digital zoom
Focal Length	f=8.3 – 124.5 mm, F/2.8 – 4.5, 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)
Angle of View	Horizontal: 73.0 (W) – 5.7° (T) Vertical: 45.2° (W) – 3.2° (T)
Minimum Subject Illumination	3840 x 2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB) 1920 x 1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB)
Shutter Speed	1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris	Manual/Automatic aperture
Gain	-6.0 dB – 33.0 dB
ND Filter	Built-in (Off, 1/4, 1/16, 1/64), motor operated
Optical Low-Pass Filter	Yes
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K – 15,000 K), Manual * Color temperatures are given for reference purposes only.
Focus	Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking AF type: Dual Pixel CMOS AF, Contrast AF
Gamma	Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3
Pan and Tilt	Pan operation range: Horizontal ±170° Pan operation speed: 0.1° – 100°/sec. Tilt operation range: Vertical -30° – +90° Tilt operation speed: 0.1° – 100°/sec.
Pan and Tilt Operation
Protocol	XC (Canon's original), RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
Server
Video Output Format: SDI	1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: HDMI	3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: IP	3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) – If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. – A frame rate that exceeds the frame frequency cannot be selected. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
Video Output Format: USB	-
Preset	Number of presets: Max. 100 (including home position)
Interface
Communication Control	LAN, Wi-Fi, Serial, IR
Network Terminal	LAN x 1, RJ45, 1000Base-T
SDI OUT Terminal	BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal	BNC jack x 1, 1.0 Vp-p/75 Ω, input only
HDMI OUT Terminal	HDMI connector x 1, output only
RS-422 Terminal	RJ45 connector x 1
Audio INPUT 1/INPUT 2 Terminals	XLR/Audio Input (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ω/Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)
MIC Terminal	ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal	Type-A (USB 2.0) x 1 (future expansion)
Physical Features
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used External power source: 24 V DC (using included AC adaptor)
Power Consumption	PoE+ Input: Approx. 19.6 W* max. (body only) DC Input: Approx. 18.6 W max. (body only) * Class 4 (25.5 W required) for power supply devices
Dimensions (W x H x D)	Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions)
Weight	Approx. 4.1 kg (9.04 lb.) (body only)
IP Rating	-
