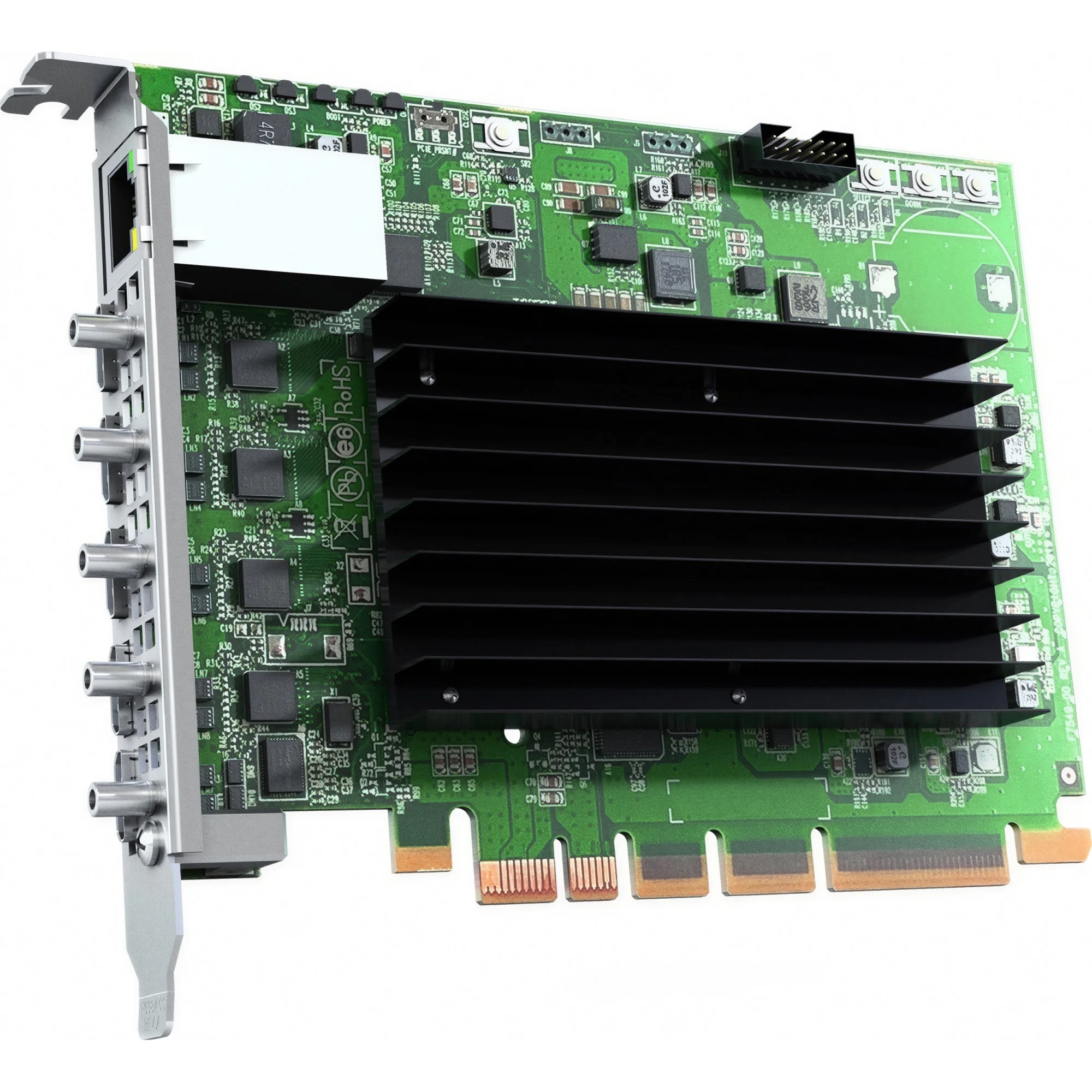

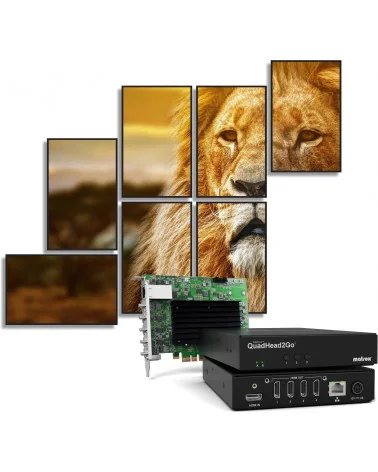

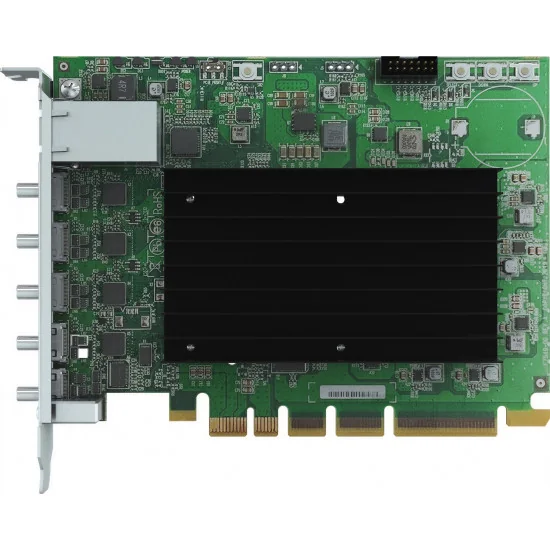

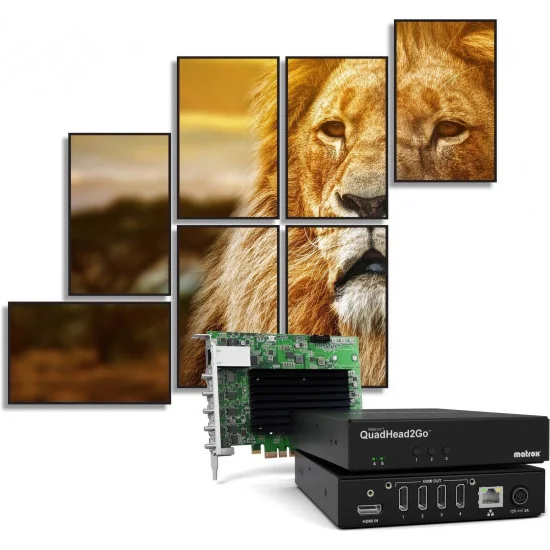

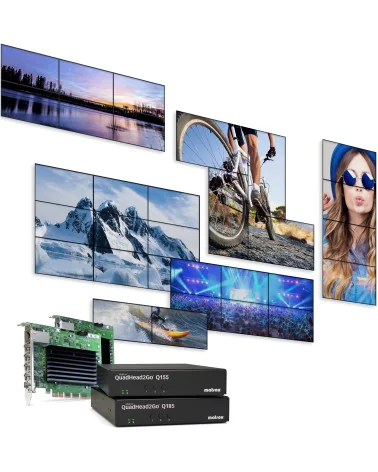

Matrox QuadHead2Go Q155 Multi-Monitor Controller Card

Fast. Easy. High-Density Video Walls.
Drive up to four Full HD displays from a single video signal—of up to 4Kp60 and 8Kx8K—at full RGB 8:8:8 and YUV 4:4:4 color support. The Matrox® QuadHead2Go™ Q155 multi-monitor controller card is a single-slot PCIe® card designed to power any video wall configuration of any possible dimension, from any HDMI® video source. QuadHead2Go’s pre-set configurations and built-in images simplify the installation experience.

Ready to deploy. Right out of the box.

• Set up without installing software or even connecting a video source, by using the default configuration of 2x2 in landscape.
• Reduce setup time by using QuadHead2Go’s pre-set configurations and built-in images, together with display identification information that includes the ID number and the resolution of each output.
• Eliminate physical handling by controlling and updating the cards remotely from anywhere on the network (LAN).
• Ensure compatibility with professional-grade graphics cards and media players with HDMI support.
• Create a video wall from any content source—professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.

Build your wall with the touch of a button
On-device buttons make it easy to select and set the display layout—simply cycle through pre-set configurations. Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.

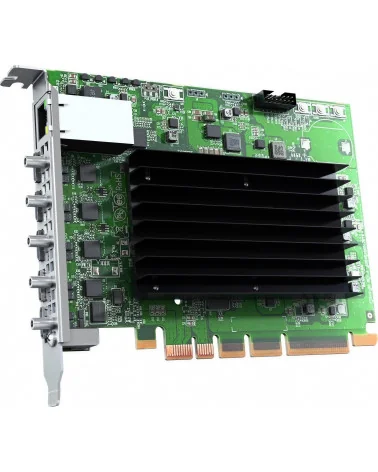

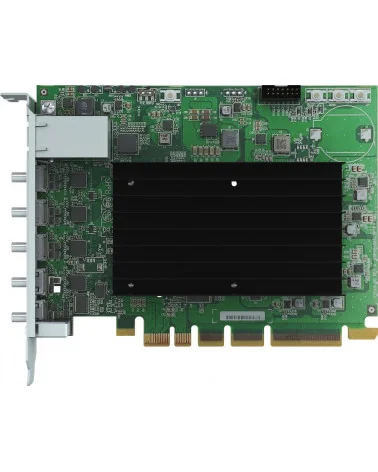

Smallest footprint. Highest density.
Drive up to four Full HD displays from a single video signal from a single PCIe® card. A native network jack on the card eliminates reliance on the host computers’ network. PC independence means there’s no need for a driver and no system bus data transfer is required or executed—only power is taken from the host system’s PCIe bus. QuadHead2Go cards can be placed into available slots in existing systems without compromising system integrity and stability, and make minimal power consumption demands of the PC system.

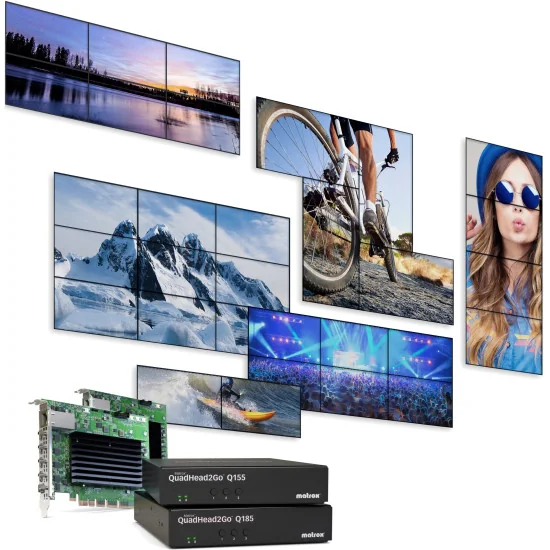

Scale your video wall. Easily and infinitely.

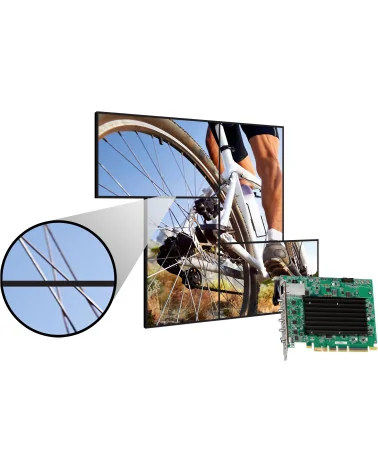

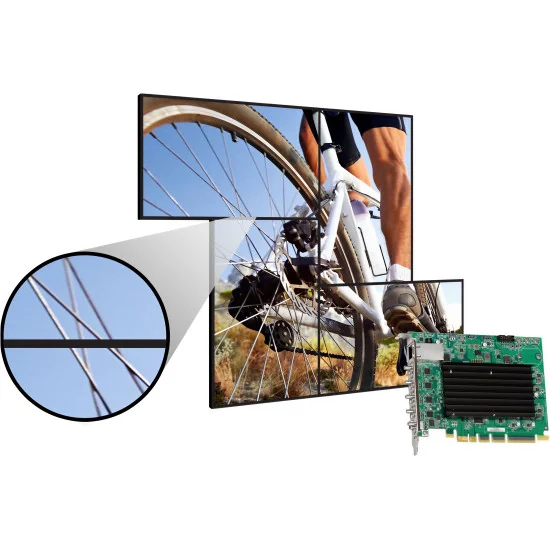

Rotate and position outputs independently from one another
Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.

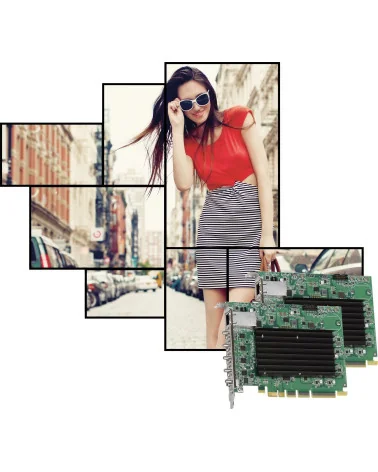

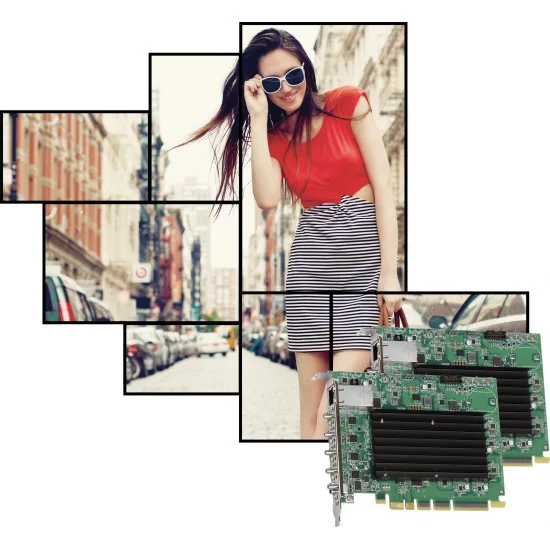

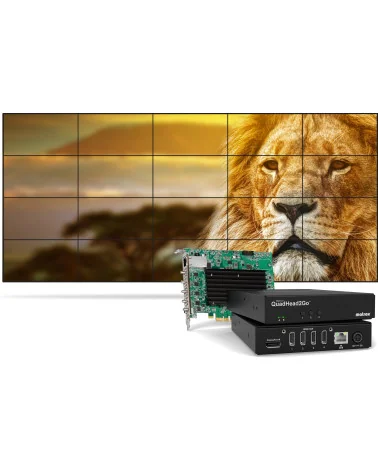

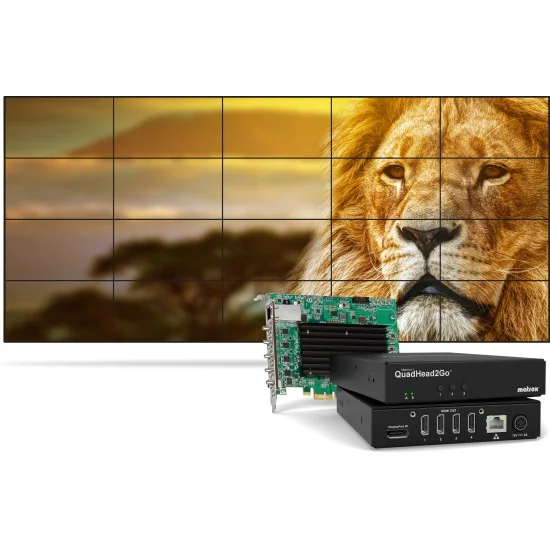

Create or expand large-scale video wall solutions
Expand to a video wall configuration of any size by using multiple QuadHead2Go cards. Fashion countless forms of setups—arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale video walls.

Proven video wall ecosystem

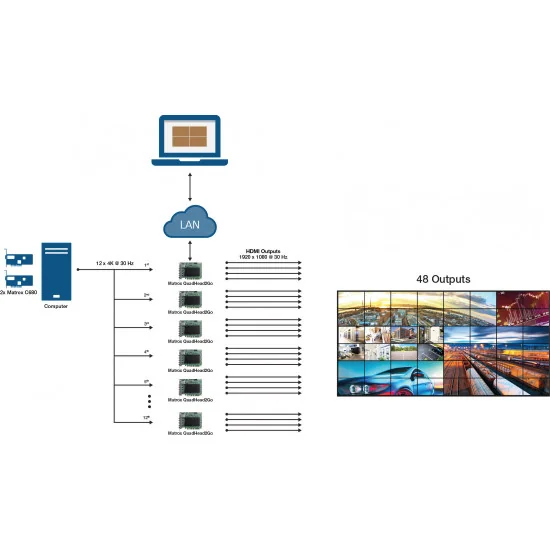

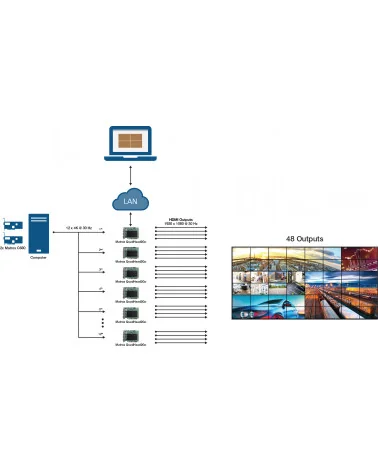

Drive up to 64 1920x1080p60 displays and create captivating video walls by pairing QuadHead2Go multi-monitor controllers with Matrox LUMA or Matrox D-Series graphics cards.

HDCP compliant
Capture and display HDCP-protected content with QuadHead2Go multi-monitor controllers.

Designed to simplify large video wall installations
Install and use PowerWall software in offline mode to customize configurations of any type and size, and control the outputs independently—even before establishing an active connection to QuadHead2Go. Set the display layout by simply selecting any of the pre-set configurations from the PowerWall interface.

QuadHead2Go Q155 Card Technical Specifications

Product
Part Number: Q2G-H4K-C
Form Factor: PCIe® x16 mechanical, x1 electrical (power only)

Connectivity
Video Input:
Number of channels: 1
Formats: Mini HDMI
Video Output
Number of channels: 4
Formats: Mini HDMI
Network Connector: 1x RJ45
Multi-Unit Support: Yes

Performance
Maximum Video Resolutions: Support for custom resolutions;
Memory: 1 GB

Video Input Resolutions:
3840x2160 @60Hz
3840x2160 @30Hz
7680x1080 @60Hz
7680x1080 @30Hz
1920x4320 @60Hz
1920x4320 @30Hz
Other input resolutions including 8Kx8K are supported.

Video Output Resolutions:
1920x1080 @60Hz
1920x1080 @30Hz
1920x1200 @60Hz
1920x1200 @30Hz
Other output resolutions are supported.

Color Space and Chroma Sub-Sampling
Input: RGB: 8:8:8 (24 bits per pixel), YUV: 4:4:4, 4:2:2, 4:2:0 (8 bits per component)
Output: RGB: 8:8:8 (24 bits per pixel)

Video and Audio Processing
Supported Configurations: 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait modes and other non-rectangular/artistic configurations
Non-Rectangular/Artistic Video Walls: Yes
Clone Mode: Yes
Rotation (output): Yes. Support for 90, 180, 270 degrees
Bezel Management: Yes
Video Scaling: Yes
Video Cropping: Yes
Stretched Desktop Support: Yes
HDCP Support: Yes
Audio Output Format: AAC, PCM, Stereo, and Mono
Audio Sampling Frequency: 44.1 KHz and 48 KHz, 16-bit stereo

Network
Command and Control: Firmware update (via network interface)
HTTP/HTTPS
mDNS and DNS-SD (discovery)
UPnP (discovery)

Physical
Product Dimensions: 0.85 (W) x 5.00 (H) x 6.21 (D) inches, 2.16 (W) x 12.70 (H) x 15.77 (D) cm
Unit Weight: 0.375 lbs / 170 g
Cooling: Fanless

Hardware & Software
Accessories (sold separately): Secure Cable Solution (SK-SNLB-6)
Software: Matrox PowerWall (free download), See Matrox PowerWall datasheet for more details.

Environmental
Operating Conditions: Temperature: 0 to 45 degrees Celsius, Humidity: 20% to 80% non-condensing
Storage Conditions: Temperature: -40 to 70 degrees Celsius, Humidity: 5% to 95% non-condensing
Power Consumption: 15W

General
EMC/EMI Device Class: Class A
EMC/EMI Compliance: CE (EU), FCC (US), ICES-3 (Canada), KC (Korea)
Environmental Compliance: China RoHS, EU RoHS, REACH
Warranty: Three-year limited warranty with free telephone support
