Magewell Modator Chassis 2U

Name: Magewell Modator Chassis 2U
Brand: Magewell
SKU: B52200000T
Price: 2099.00 EUR
Availability: InStock

MPN: B52200000T

Price: €2,099.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

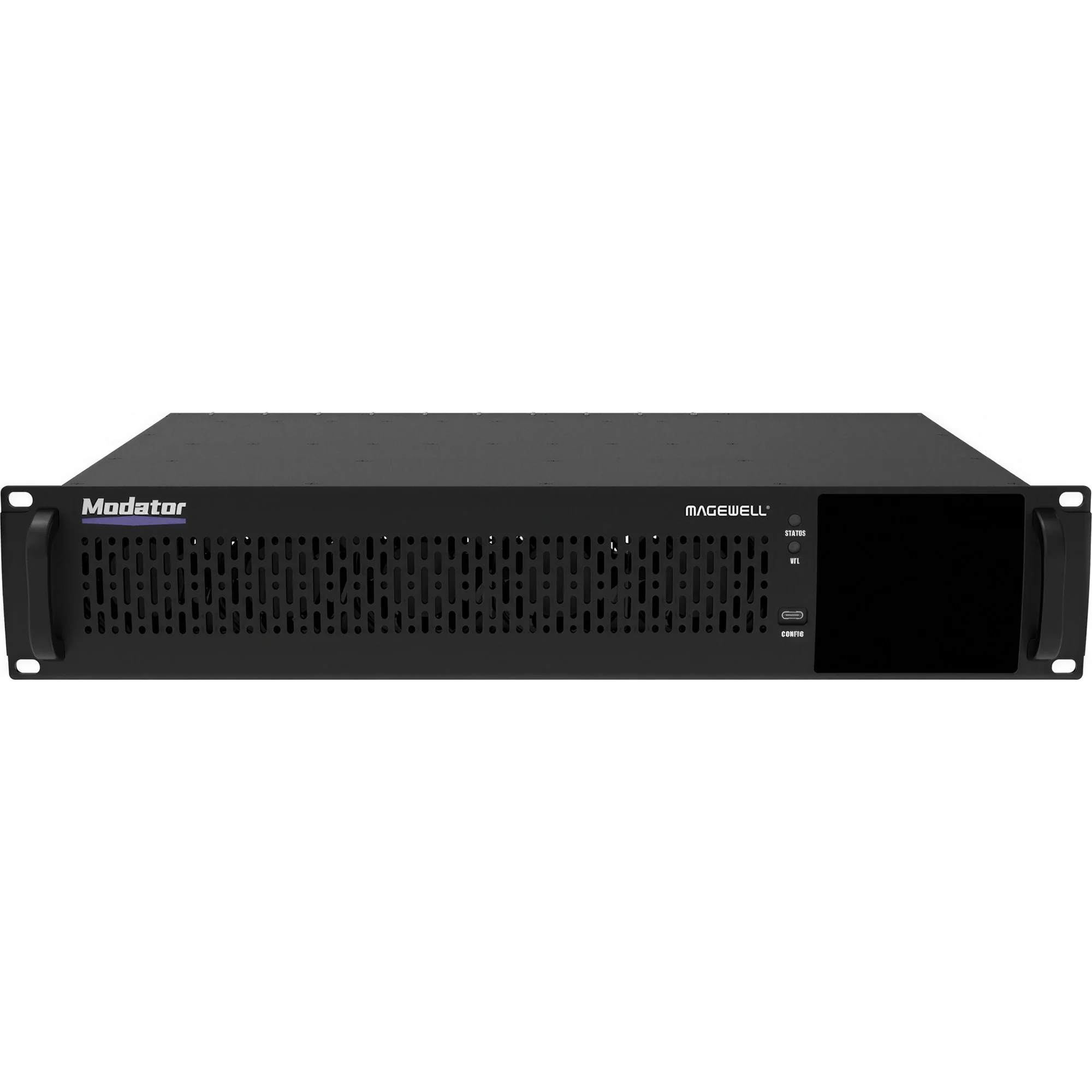

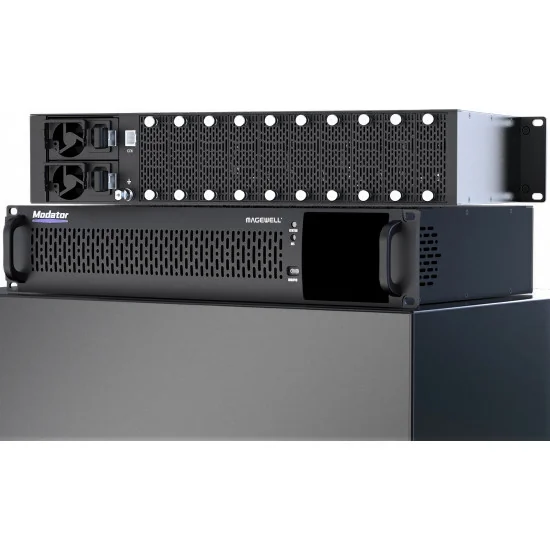

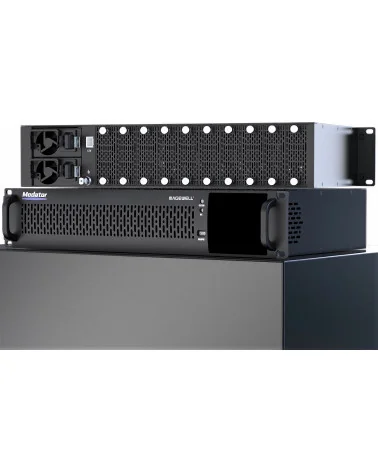

The Magewell Modator Chassis 2U is a rack-mountable modular platform for professional IP video and audio conversion in broadcast, live production, and streaming setups. This 2RU chassis holds up to ten independently operating hot-swappable modules, letting engineering teams mix encoders, decoders, and audio converters in a single unit. Whether a facility ingests ten HDMI or SDI sources into an NDI-based infrastructure or decodes IP streams to baseband for monitoring walls, the Modator 2U consolidates signal paths without standalone boxes cluttering a rack.

Each slot delivers up to 20W and has its own RJ45 Gigabit Ethernet port, so every channel keeps an independent network path. Compatible modules include the Pro Convert HDMI 4K Plus encoding up to 4096×2160 at 60fps in 4:4:4 10-bit colour, the Pro Convert SDI Plus handling 3G-SDI up to DCI 2K, and the Pro Convert AES67 bridging analog audio with AES67 and NDI streams. That makes the chassis equally at home in a mobile production truck or on a corporate campus distributing digital signage over IP.

Dual hot-swappable power supplies accept 100–240V AC, keeping operations running during a PSU failure — critical for 24/7 news desks or medical video distribution. Five variable-speed fans hold temperatures in check from 0°C to 50°C. A 4.8-inch LED touchscreen on the front panel provides instant status readings and per-module configuration.

Remote administration scales through the built-in web interface or Magewell Control Hub for multi-chassis deployments across distributed sites. Control Hub handles batch firmware updates, centralized parameter tuning, and live health monitoring — a clear advantage when dozens of Modator units serve a broadcast campus or a nationwide streaming relay network. The Magewell Modator Chassis 2U turns complex signal conversion into a structured operation broadcast engineers and integrators can count on.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Magewell Modator 2U is a high-density, modular, rackmount chassis designed to bring Magewell's standalone encoders and decoders to a scalable and reliable form factor. The Modator 2U chassis fits into standard rack deployments and supports up to 10 Modator modules, offering flexibility and high performance for demanding IP-based workflows.

Features

Designed for 24/7 Operation: Dual power supplies and optimized heat dissipation ensure reliable operation in high-demand environments, making it suitable for broadcast and live production workflows that require continuous uptime.
Independent Encoding & Decoding: Each module can work independently to handle high-quality video and audio conversion from and to IP streams, providing the flexibility to configure the chassis for different production needs.
LED Touch Screen: The intuitive touch screen allows users to turn the chassis on/off, view status information for both the chassis and each installed module, and configure network settings quickly and easily.
Scalable Solution: With the ability to install up to 10 Modator modules, the system can be tailored to meet specific needs, whether for encoding, decoding, or both.
Hot-Swappable Modules: The chassis supports the installation of various Magewell Modator modules, including those for NDI®, HDMI, SDI, and AES67 conversion, enabling customization and future upgrades.

Available Modules:

Pro Convert for NDI® to AIO Module
Pro Convert for NDI® to HDMI Module
Pro Convert for NDI® to HDMI 4K Module
Pro Convert HDMI 4K Plus Module
Pro Convert HDMI Plus Module
Ultra Encode SDI Plus Module
Ultra Encode HDMI Plus Module

Modator 2U Specifications

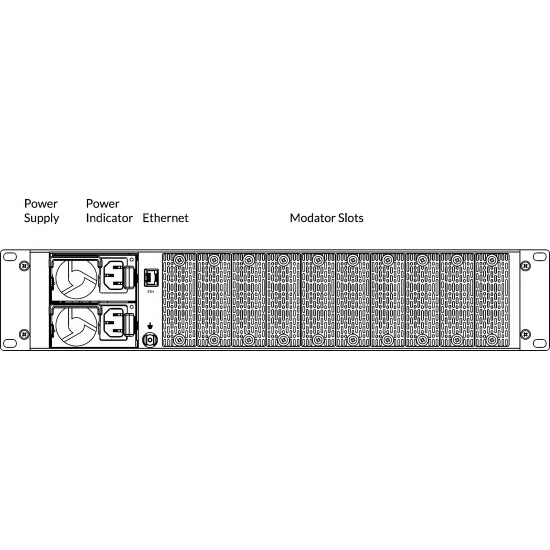

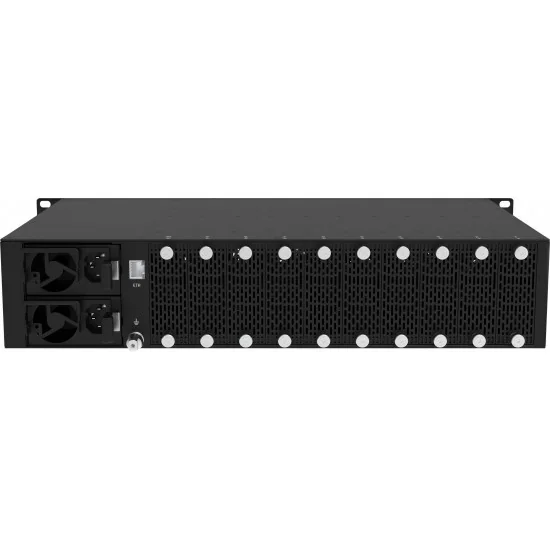

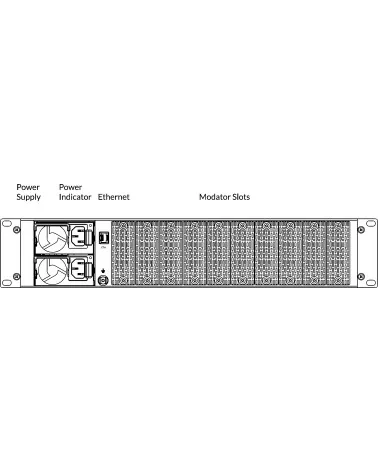

Interfaces
10* Modator slots supporting hot swap of Magewell modules
1* RJ45 1000Mbps Ethernet port for configuration
1* USB Type-C port for configuration

Power and Power Consumption
Hot-swappable dual power supply modules for safety and redundancy
AC: 100–240V, 7–3.5A, 60/50Hz
Maximum power consumption of the chassis: 200W
Maximum power consumption of each slot: 20W
Standby power consumption: 11W (Touchscreen off), 11.9W (Touchscreen on)
No-load power consumption: 17W (Touchscreen off), 17.9W (Touchscreen on)

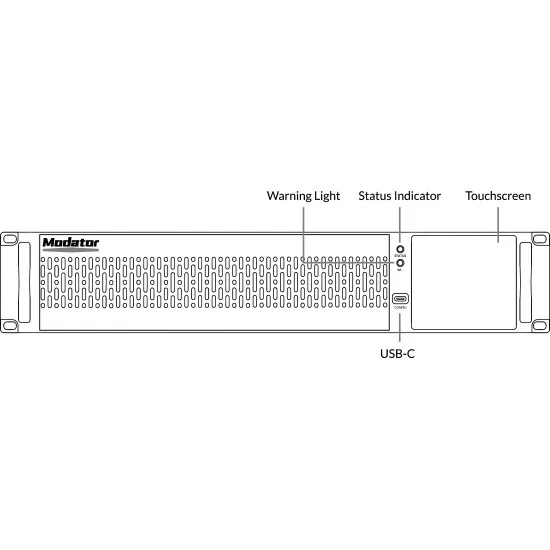

Status Indication
Status indicator:
Blue: Working
Off: Standby
Warning light:
Red: Error
Off: Normal
Power indicator:
Green: Output on and OK
Flashing Green: Standby or Cold Redundancy
Red: Error or fault
Buzzer:
Beeping: Error
Off: Normal

Touchscreen: Dimension: 91mm x 81mm

Control

Touchscreen
Power on/off the device
Display the device information
Display information about the connection state of each slot and information of inserted modules
Display and edit Ethernet information
Display logs to trace important events
Display notifications of errors

Web UI
Provides comprehensive information regarding the device
Provides basic information and working status regarding connected modules
Supports managing and configuring the device, such as changing device name, enabling beeper, updating firmware, setting network, etc.
Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs

Physical Specifications
Form factor: 482mm (L) x 275mm (W) x 88 mm (H)
Weight: ≈5.6kg (with 10 blank panels)

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
