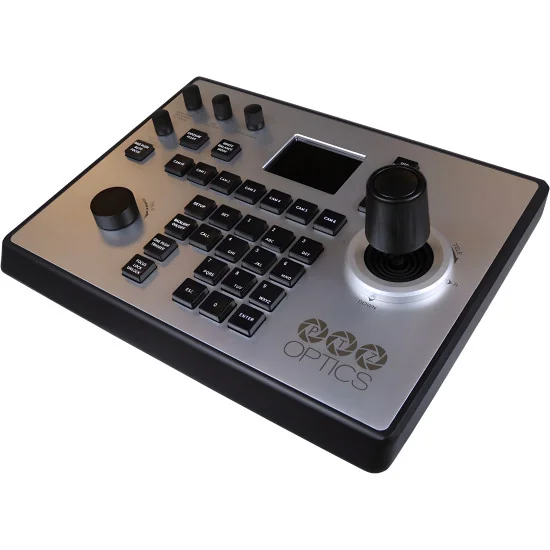

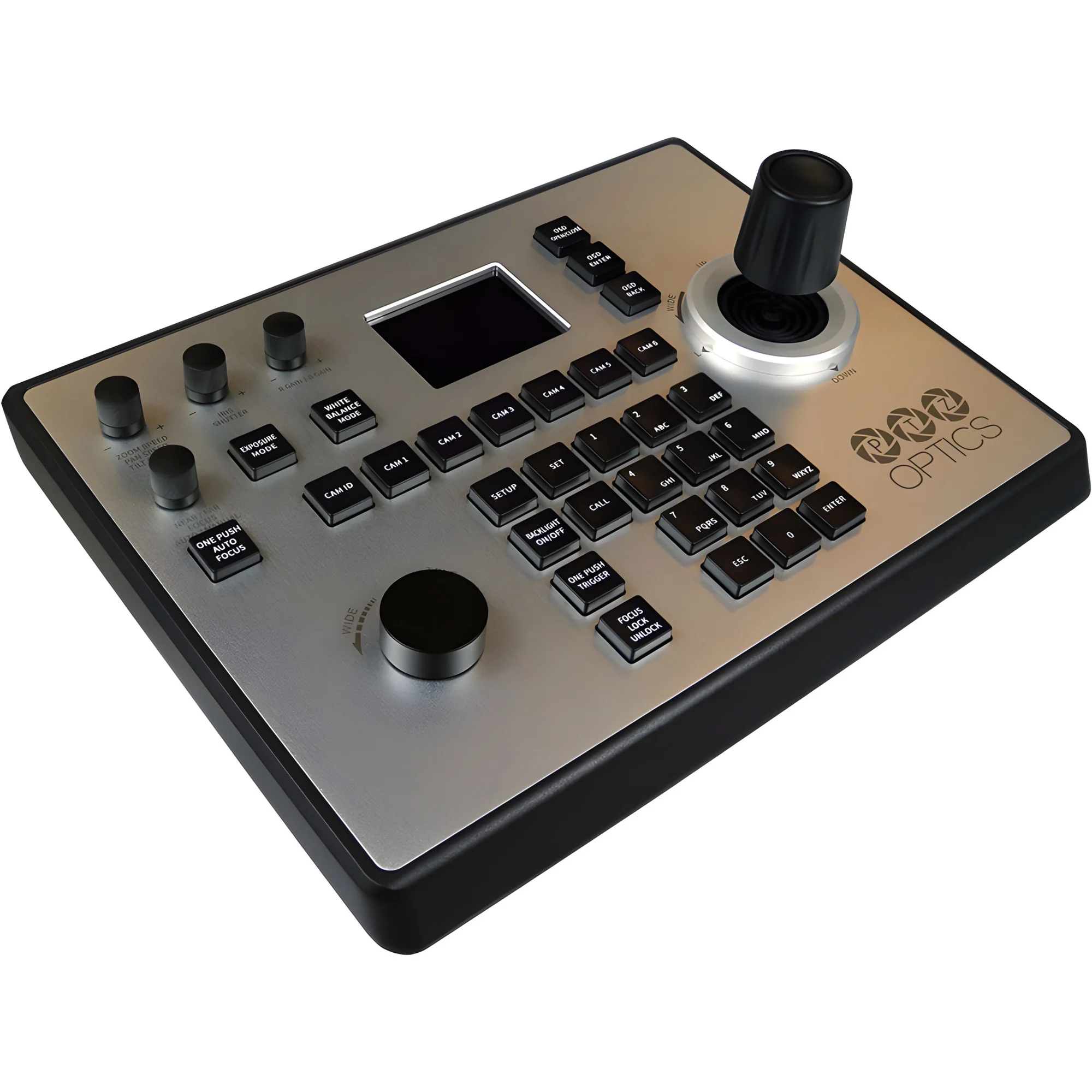

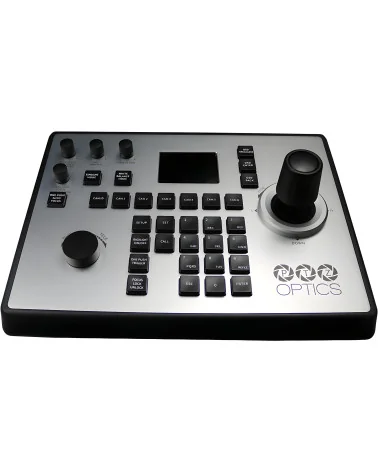

PTZOptics PT-JOY-G4 PTZ Camera Controller
PT-JOY-G4
Price: €640.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
PTZOptics PT-JOY-G4 is a network and serial PTZ camera controller for broadcast, streaming and enterprise AV. It pairs a 3-axis joystick with tactile dials to deliver precise pan/tilt/zoom and iris control across large systems. Over IP it manages up to 255 cameras using VISCA over IP (PTZOptics & Sony) and supports serial VISCA, Pelco-D, Pelco-P via RS-232, RS-422 or RS-485. A large LCD status display, direct OSD access and 255 presets (with 9 quick presets) accelerate operations with instant recall and on-panel speed shaping.
Connectivity is straightforward: PoE (802.3af) or 12 VDC power; LAN with DHCP or static IP; and serial cabling with recommended ranges of 100 m (Ethernet), 15 m (RS-232/422) and 1200 m (RS-485 using 24-AWG twisted pair). Variable PTZ speeds and a fine-tune zoom dial plus focus knob enable smooth shots; focus lock/unlock keeps framing stable. Operators can adjust exposure, white balance, and red/blue gain from the panel without menu diving.
The built-in web UI streamlines configuration, backup and re-deployment. Import/export profiles for different studios, map cameras quickly, and trigger SuperPresets to recall coordinated moves on up to eight cameras. Firmware also adds Automatic Triggers and a customizable joystick-top button for actions such as starting a record macro or enabling auto-tracking on the active unit—useful alongside vision mixers or automation.
Engineered in a metal chassis for production environments, PT-JOY-G4 weighs 2.02 kg and measures 303 × 235 × 56 mm (108 mm incl. joystick). Power draw is just 6 W. Operating range is –10 to +50 °C, 10–90% RH. Baud rates from 1200–19200 bps ensure interoperability across legacy and modern endpoints. The controller is NDAA Section 889 compliant and covered by a 2-year warranty, fitting professional control rooms that require deterministic PTZ control with minimal cabling. USB firmware updates are supported.
UE Shipping
We ship all over the European Union for €20, free shipping on orders over €1,000.
B2B Shop
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure checkout
Secure online payments via Stripe.
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Introducing the PTZOptics 4th Generation IP Joystick Controller. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.
A Controller for All Production Setups
Introducing the PTZOptics 4th Generation IP Joystick Controller. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.
Enhanced Setup Management
A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments.
For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.

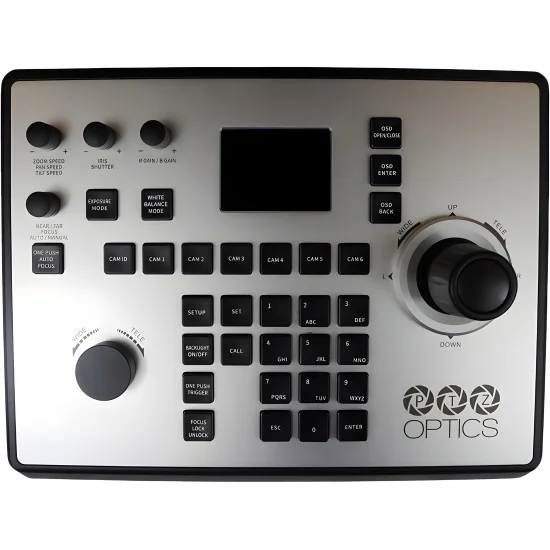

Main Features
● Durable metal housing
● VISCA over IP & Serial control
● PTZOptics Camera On Screen Display control
● Full Pan / Tilt / Zoom camera control
● P/T/Z Speed adjustment on the fly
● Direct exposure & white balance control
● 255 total cameras via network
● 255 camera presets, 9 Quick presets
● Fine tune zoom control dial
● Fine tune focus control knob
● PTZOptics Focus lock & unlock
● Large LCD screen with controller status
● Import / Export settings via network
● 2-Year warranty
What’s in the box?
● PT-JOY-G4 Joystick Controller
● 12V 2A DC International Power Supply
● RS-232C cable 8ft (2.4m)
● PT-JOY-G4 Quick Start Guide
● Grounding Pin
Technical Specifications

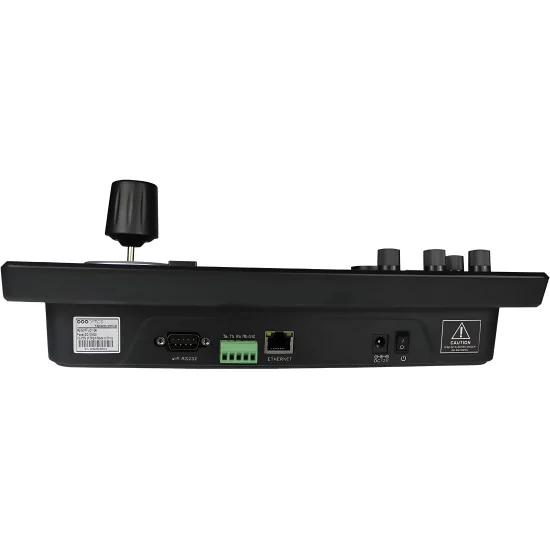

Control Interfaces Network: NIC (TCP and UDP), Serial: RS-232 Full Duplex, RS-485 Semi Duplex, RS-422 Full Duplex
Protocols PTZOptics VISCA and VISCA over IP, PELCO-D and PELCO-P via Serial Ports, Limited Sony VISCA and VISCA over IP support
Variable Baud Rate 1200 to 19200 bps
Recommended Maximum Cable Distance* Ethernet: 328 feet | 100 Meters, RS-232: 50 feet | 15 Meters, RS-485: 3,937 feet | 1200 Meters, RS-422: 50 feet | 15 Meters
Maximum Cameras 255 cameras via network | 7 cameras via serial VISCA
Power Voltage 12V DC
Power Consumption 6W
Power over Ethernet 802.3af
Working Temperature 14° F ~ 122° F (-10° C ~ +50° C)
Working Humidity 10% ~ 90% (non condensation)
Weight 4.45 lbs | 2.02 kg
Dimensions 303.23 W x 234.95 D x 55.58 H (107.95 H incl. joystick) mm
Shipping Weight 5.80 lbs | 2.63 kg
Box Dimensions 355.6 W x 222.25 D x 139.7 H mm
Warranty 2 Year Manufacturer Warranty
*Using high quality certified cabling
PT-JOY-G4
Data sheet
- Interface
- Block terminal
DE-9/DB-9
Ethernet - Control protocol for PTZ cameras
- PELCO-D
PELCO-P
RS-232
RS-422
RS-485
Sony
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- No
Specific References
- ean13
- 840170500166
- mpn
- PT-JOY-G4
