Canon RC-IP100 PTZ Controller

Name: Canon RC-IP100 PTZ Controller
Brand: Canon
SKU: RC-IP100
Price: 1799.00 EUR
Availability: InStock

MPN: RC-IP100

Price: €1,799.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

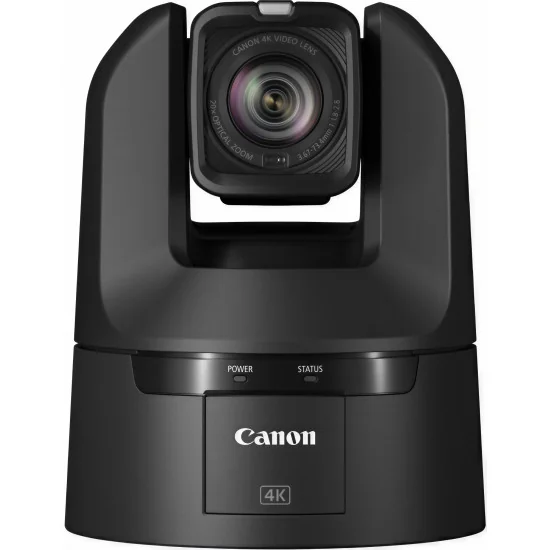

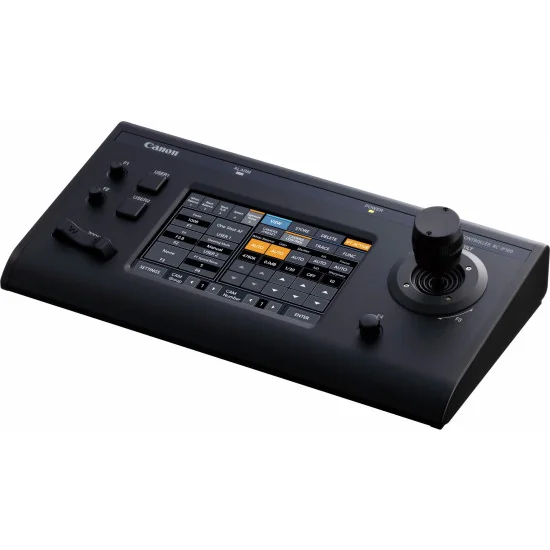

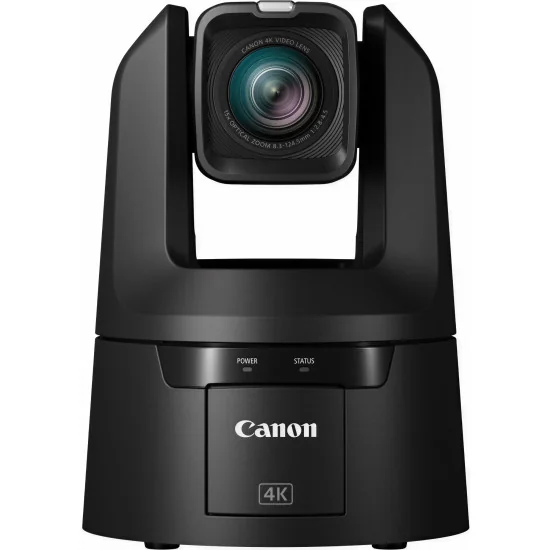

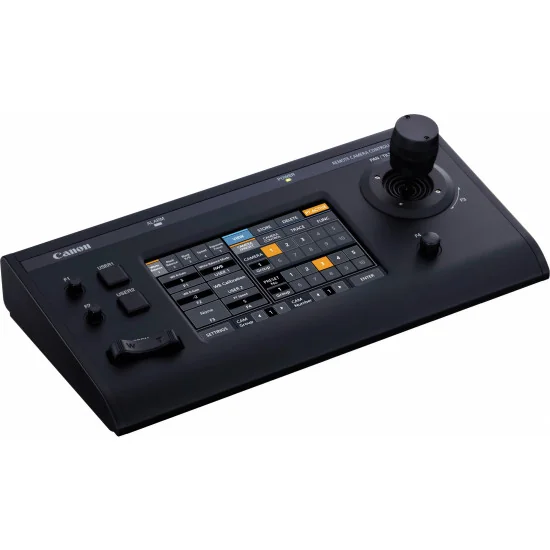

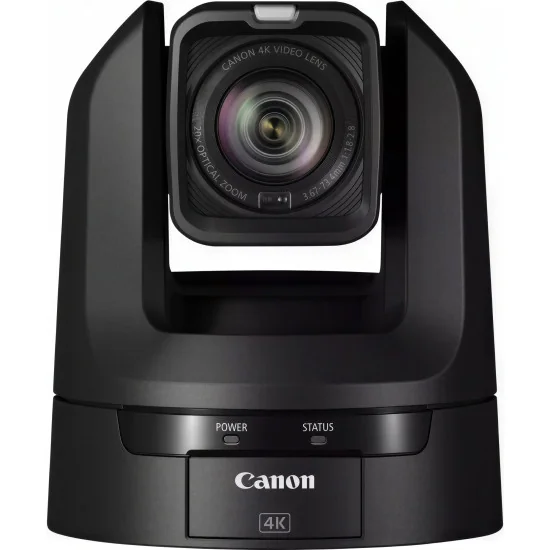

Centralised, hands-on command of a multi-camera PTZ rig becomes far less stressful once a dedicated console handles the heavy lifting. The Canon RC-IP100 is a compact hardware controller engineered for production houses that need a dependable, single-operator solution for Canon CR-N series remote cameras, with confirmed support for the CR-N100, CR-N300, CR-N500 and CR-N700 models over LAN and legacy NU-protocol units over serial.

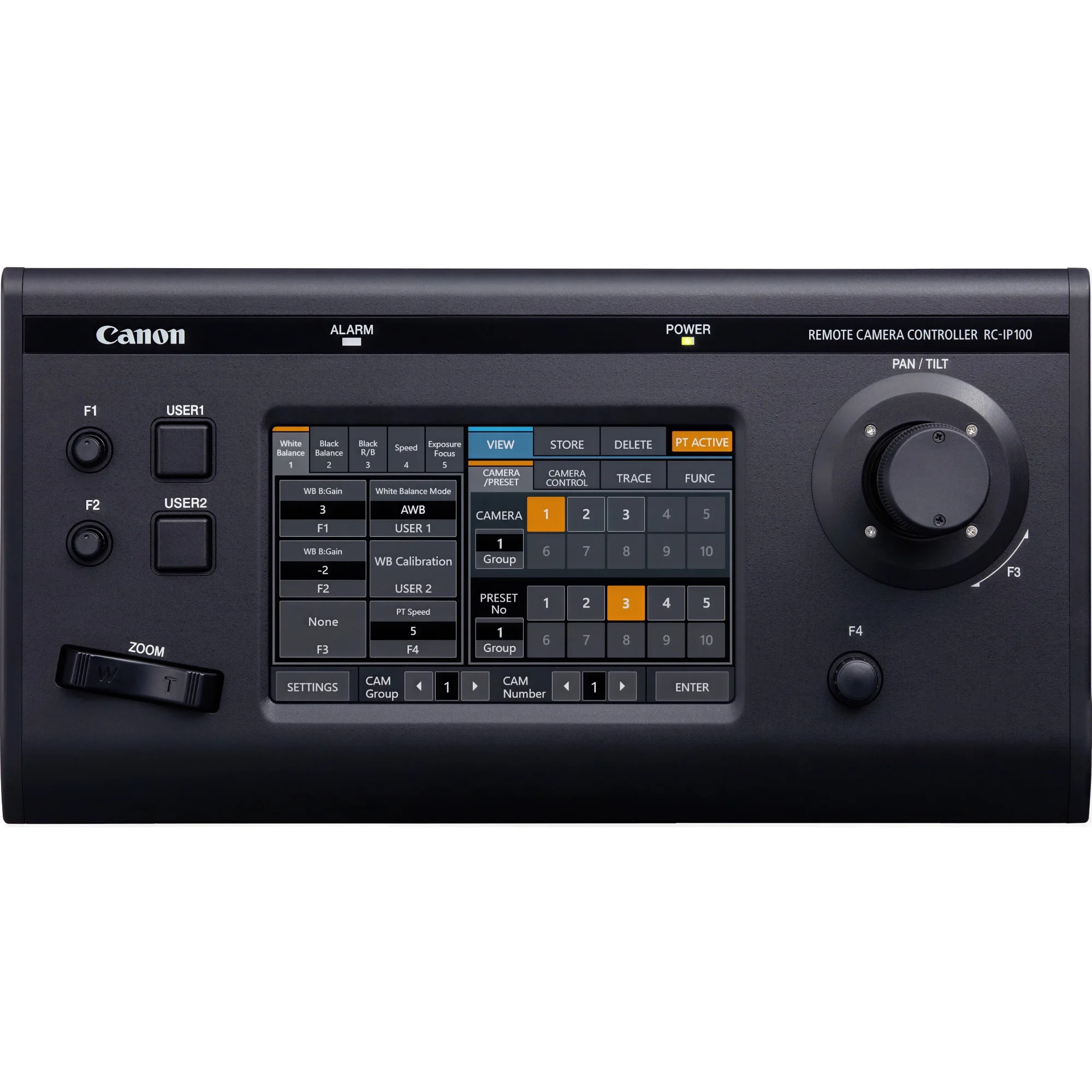

At the heart of the unit sits a 7-inch colour touchscreen that puts camera selection, white balance, shutter, iris, focus and menu navigation a finger-tap away. Pan and tilt are handled by a smooth, weighted joystick, while a separate zoom rocker mirrors the ergonomics of a professional camcorder lens grip — useful on long live shows where operator fatigue would otherwise affect picture quality. Four customisable buttons plus assignable rotary controls let each operator map the panel to their own production habits.

For studios juggling fixed installs with portable rigs, the RC-IP100 manages up to 100 PTZ units from a single position: 99 cameras over IP using Canon's XC protocol and one additional unit through the RS-422 serial port. Two RJ45 ports allow segregation of a private camera network from house infrastructure, which is a practical detail for IT-conscious broadcasters running secure VLANs. A DB-9 tally I/O on the rear ties the controller into existing switcher and intercom chains during multi-cam shoots, council chambers, e-sports stages, lecture theatres or hybrid conference rooms.

Each camera supports up to 100 presets, and the trace function records up to ten complete pan-tilt-zoom motions for one-touch playback — a real time-saver during scripted segments, drama rehearsals and lecture capture. Powered by a standard 12 V DC adapter and rated for operation between 0 °C and 40 °C, the Canon RC-IP100 slots neatly into outside broadcast vehicles, fly-pack kits or permanent gallery desks. Backed by our specialist after-sales support, this controller is a sensible investment for any production company building reliable, scalable PTZ infrastructure.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Pan, tilt and zoom effortlessly with this high-quality controller featuring a multi-function joystick and intuitive touchscreen for easy control of up to 100 cameras over IP.

Connect and control with precise simplicity
Take control of your remote cameras with this robust and compact hardware controller, designed to operate up to 100 PTZ units over IP connection, Serial or both. A multi-function joystick along with an intuitive touch screen enables fast and precise adjustments in real time.

Control up to 100 cameras remotely
A multi camera set-up over IP is easy with the RC-IP100 and offers control of up to 100 PTZ units with just one operator and LAN cable, making remote production beautifully streamlined.

Manage and adjust with fingertip simplicity
An intuitive 7-inch (17.78 cm) touch screen allows easy switching between cameras as well as quick management of focus settings, white balance, shutter speeds and much more.

Perfect precision with a multifunction joystick
A multi-function joystick allows precise adjustment over camera movements and settings while a control grip on top of the stick allows zoom, focus and iris control.

Pinpoint zooming for the perfect shot
A professional zoom rocker enables smooth and precise wide-to-tele adjustments and lets you zoom with the same high degree of control as seen on pro camcorders.

Assign and refine with custom controls
With two user assignable buttons as well as two dedicated function buttons and customisable control knob on the joystick the user can optimise their setup for a wide range of shooting scenarios.

Manage up to 100 stored positions
Appoint up to 100 pre-set angles per camera using the 7” touchscreen, and utilise the trace function to allow recording of up to ten different movements (pan, tilt, zoom) which can be reproduced at the touch of a button.

Flexible connectivity
Equipped with Serial and LAN integration, control over IP based PTZ cameras is made easier and more intuitive, giving you greater freedom in controlling your setup.

Specifications:

Key Specs
Number of Supported Cameras	100 Channels
Control I/O	1x RJ45 (IP Control) Output 1x RJ45 (RS-422) Output
Controls	1x Pan/Tilt Joystick 1x Zoom Rocker 4x Programmable Buttons 2x Multifunction Buttons
Touchscreen	Yes
PoE Support	No
Security Lock Support	No
General
Number of Supported Cameras	100 Channels
Supported Control Protocols	Canon XC RS-422
Control I/O	1x RJ45 (IP Control) Output 1x RJ45 (RS-422) Output
Other I/O	1x DE-9/DB-9 (Tally) Input/Output 1x USB-A (3.0 / 3.1/3.2 Gen 1) Input
Controls	1x Pan/Tilt Joystick 1x Zoom Rocker 4x Programmable Buttons 2x Multifunction Buttons
Presets	100 via IP
Display
Size	7"
Touchscreen	Yes
Power
PoE Support	None
Power Connectors	1x Barrel / Coaxial
DC Input Power	12 VDC
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Physical
Security Lock Support	No
Dimensions	13.8 x 7.2 x 4.3" / 350 x 182 x 110 mm
Weight	4.6 lb / 2.1 kg
